EXPC-1519 Series

Quick Installation Guide

Edition 1.0, September 2015

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The EXPC-1519 series Zone 2 panel computers feature advanced 3rd

generation Intel® Core™ processors—i7-3555LE and Celeron

1047UE—with 4 GB of system memory expandable to 16 GB, delivering a

reliable, high-performance platform of wide versatility for use in harsh oil

and gas environments.

Package Checklist

Before installing the EXPC-1519, verify that the package contains the

following items for your model.

Model

Package Checklist

EXPC-1519-C1-S1-T

EXPC-1519-C7-S1-T

EXPC-1519-C1-S2-T

EXPC-1519-C7-S2-T

•1 EXPC-1519 panel computer

•HDD/SSD installation kit

•1 2-pin terminal block for DC power input

•1 3-pin terminal block for AC power input

•Quick installation guide

•Documentation & software DVD

•Warranty card

EXPC-1519-C1-S3-T

EXPC-1519-C7-S3-T •1 EXPC-1519 panel computer

•HDD/SSD installation kit

•USB female connector installation kit

•RJ45 female connector installation kit

•DC power installation kit

•AC power installation kit

•Quick installation guide

•Documentation & software DVD

•Warranty card

NOTE

Please notify your sales representative if any of the above items

are missing or damaged.

Hardware Overview

Front and Rear Views

- 3 -

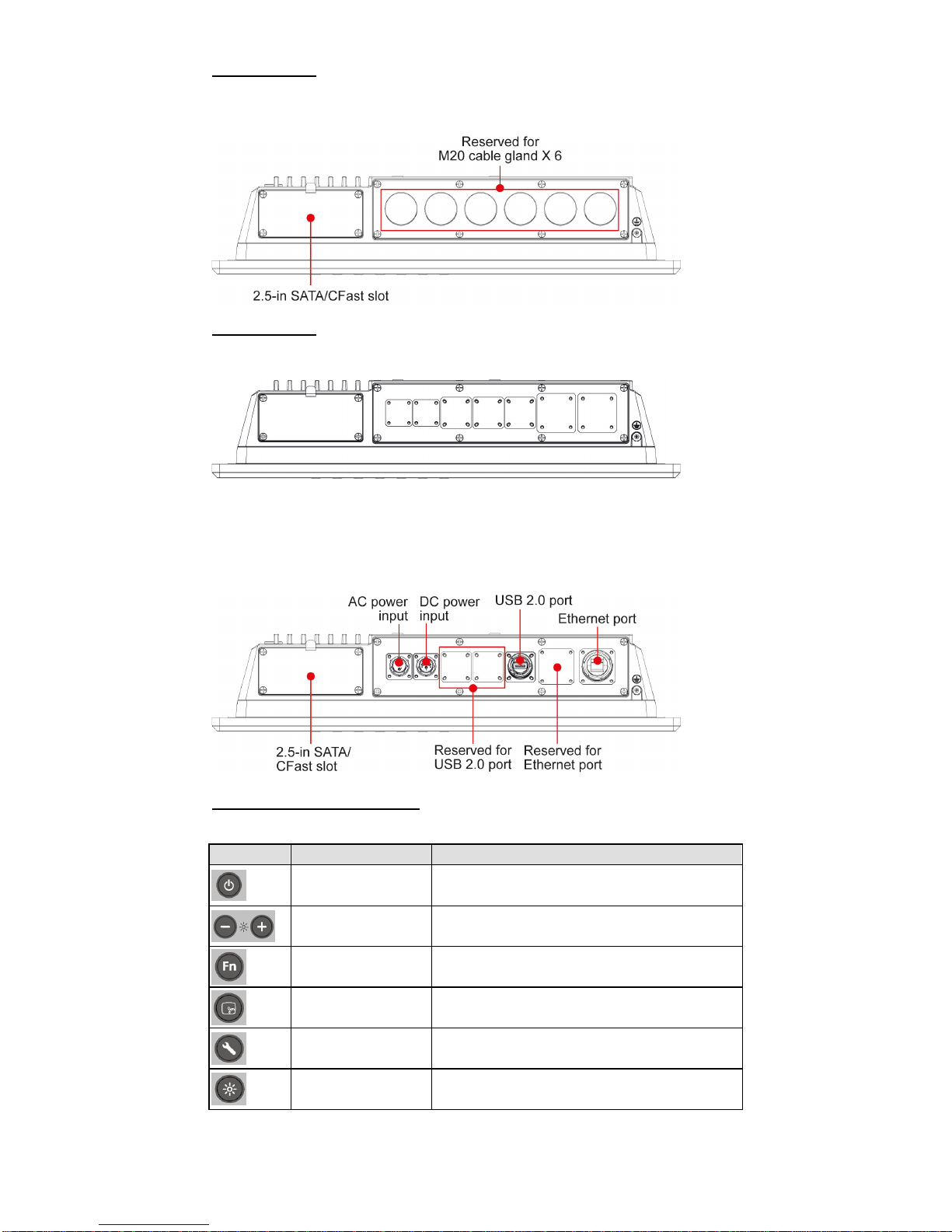

Bottom View

Applies to: EXPC-1519-C1-S1-T, EXPC-1519-C7-S1-T,

EXPC-1519-C1-S2-T, EXPC-1519-C7-S2-T

Bottom View

Applies to: EXPC-1519-C1-S3-T, EXPC-1519-C7-S3-T

The accessories provided with the product include an AC power connector,

DC power connector, USB connector, and RJ45 connector. Install the

items required for your own application. The following figure shows what

the computer should look like after all the connectors are installed.

Control Buttons and LEDs

The following table describes the control buttons on the front panel.

Button

Name

Description

Power

Press to power on or wake up.

Press and hold for 4 seconds to power off.

Brightness Press to adjust the brightness level.

Fn Press to display function menu.

Touch

Touch to enable the touchscreen function.

Touch again to disable.

Info Press to display system information.

Brightness mode Press to switch between display modes.

- 4 -

The following table describes the LEDs on the front panel.

LED

Color

Description

Power

Green

Power is on and functioning normally.

Off

Power is off.

Fiber 1/ Fiber 2

Green

Fiber port is connected.

Off

Fiber port is not connected.

LAN 1/ LAN 2

Green

LAN port is connected.

Off

LAN port is not connected.

Touch

Green

Panel touch mode is enabled.

Off

Panel touch mode is disabled.

Info

Red

System error.

Off

System is functioning properly.

Display

mode

Green Displays the brightness mode.

Off Not in brightness mode range.

Hardware Connection and Installation

Connecting the I/O Ports

The procedure for connecting the I/O ports depends on which EXPC-1519

model you are using. To meet the IP66 standard, be sure to tighten the

cable connectors.

For the EXPC-1519-C1-S1-T and

EXPC

-1519-C7-S1-T models,

remove the cover on the IO panel

enclosure on the rear panel. Connect

one end of the cables to the IO ports

though the cable connectors on the

bottom panel.

For the EXPC-1519-C1-S2-T and

EXPC

-1519-C7-S2-T models,

remove the cover on the IO panel

enclosure on the rear panel. Connect

one end of the cables to the terminal

blocks though the cable connectors

on the bottom panel.

For the EXPC-1519-C1-S3-T and

EXP

C-1519-C7-S3-T models,

remove the cover on the IO panel

enclosure on the rear panel. Install

AC connector, DC connector, USE

connector,

RJ45 connector on the

IO panel

, and then connect and

secure the cables to the connectors

on the bottom panel.

- 5 -

Installing the SATA Storage Drive

1. Use the screws provided to secure a 2.5-inch SATA storage drive in

the storage drive bracket.

2. Loosen the screws to remove the slot cover on the bottom panel.

3. Install the bracket with the storage drive into the slot.

4. Replace the slot cover.

Installing a CFast Card

Remove the slot cover on the bottom

panel and push a CFast card into the

slot, and then replace the slot cover.

Grounding the EXPC-1519 Series

Proper grounding and wire routing help limit the effects of noise from

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting the power

source.

Pin Assignments

Power Ports

Model

Power connector pin assignment

EXPC-1519-C1-S1-T

EXPC-1519-C7-S1-T

EXPC-1519-C1-S2-T

EXPC-1519-C7-S2-T

DC Power

(DC 24 V)

AC Power

(AC 110-240 V)

EXPC-1519-C1-S3-T

EXPC-1519-C7-S3-T

AC Power

DC Power

GND

VCC

- 6 -

AC/DC Power Connector Assembly

For models EXPC-1519-C1-S3-T and EXPC-1519-C7-S3-T, you will need

to assemble the power cable yourself:

1. Use a suitable cable with diameter smaller than 10 mm.

2. Solder the cable to the appropriate pin, based on the AC and DC pin

assignments shown in the above table.

3. Assemble the cable and connector kit in together, as illustrated in the

following figure.

Serial Ports

The EXPC-1519 series features two software-selectable RS-232/422/485

serial ports, using a DB9 connector.

Pin RS-232

RS-422

RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

Ethernet Ports

The following table shows the pin assignments for the Fast Ethernet

100/1000 Mbps RJ45 ports.

100 Mbps

1000 Mbps

ETx+

TRD(0)+

ETx-

TRD(0)-

ERx+

TRD(1)+

–

TRD(2)+

–

TRD(2)-

ERx-

TRD(1)-

–

TRD(3)+

–

TRD(3)-

Refer to the following table for LAN LED indicator descriptions.

LAN

(on connectors)

Green

100 Mbps Ethernet mode

Yellow

1000 Mbps (Gigabit) Ethernet mode

Off

No activity / 10 Mbps Ethernet mode

- 7 -

EXPC-1519-C1-S2-T / EXPC-1519-C7-S2-T Terminal Block

For the EXPC-1519-C1-S2-T and EXPC-1519-C7-S2-T SKU, all data input

and output goes through terminal block. Refer to the pin assignment table

below for details.

Function Pin Definition

USB1/

USB2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10

GND VCC USB1-

DATA-

USB1-

DATA+

USB2-

DATA-

USB2-

DATA+ N/A N/A N/A N/A

USB3/

USB4 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10

GND VCC USB3-

DATA-

USB3-

DATA+

USB4-

DATA-

USB4-

DATA+ – – – –

LAN1 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10

N/A N/A LAN1_

MDIN0

LAN1_

MDIP0

LAN1_

MDIN1

LAN1_

MDIP1

LAN1_

MDIN2

LAN1_

MDIP2

LAN1_

MDIN3

LAN1_

MDIP3

LAN2 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10

N/A N/A LAN2_

MDIN0

LAN2_

MDIP0

LAN2_

MDIN1

LAN2_

MDIP1

LAN2_

MDIN2

LAN2_

MDIP2

LAN2_

MDIN3

LAN2_

MDIP3

Serial

port 1 E1 E2 E3 E4 E5 E6 E7 E8 E9 E10

RS-232 GND N/A P1_DTR N/A P1_TXD P1_CTS

P1_RXD P1_RTS

P1_DCD P1_DSR

RS-422 GND N/A P1_

RxDA(-) N/A P1_

RxDB(+) N/A P1_

TxDB(+) N/A P1_

TxDA(-) N/A

RS-485

(4-wire) GND N/A P1_

RxDA(-) N/A P1_

RxDB(+) N/A P1_

TxDB(+) N/A P1_

TxDA(-) N/A

RS-485

(2-wire) GND N/A P1_

DataA(-) N/A P1_

DataB(+)

N/A N/A N/A N/A N/A

- 8 -

Serial

port 2 F1 F2 F3 F4 F5 F6 F7 F8 F9 F10

RS-232 GND N/A P2_DTR N/A P2_TXD P2_CTS

P2_RXD P2_RTS

P2_DCD P2_DSR

RS-422 GND N/A P2_

RxDA(-) N/A P2_

RxDB(+) N/A P2_

TxDB(+) N/A P2_

TxDA(-) N/A

RS-485

(4-wire) GND N/A P2_

RxDA(-) N/A P2_

RxDB(+) N/A P2_

TxDB(+) N/A P2_

TxDA(-) N/A

RS-485

(2-wire) GND N/A P2_

DataA(-) N/A P2_

DataB(+)

N/A N/A N/A N/A N/A

Powering on the EXPC-1519

To turn on the EXPC-1519, connect the EXPC-1519 to an AC or DC power

source and press the Power button on the front panel. It takes about 30

seconds for the system to boot up. Once the system is ready, the Power

LED turns on.

To power off the EXPC-1519 series, we recommend using the power off

procedure for the OS you are using. If the system does not power off

properly, you can press the Power button for about 4 seconds to force

the power to turn off.

Real Time Clock

The EXPC-1519’s real time clock (RTC) is powered by a lithium battery.

We strongly recommend that you do NOT replace the lithium battery

without help from a qualified Moxa support engineer. If you need to

change the battery, contact the Moxa RMA service team at

http://www.moxa.com/rma/about_rma.aspx.

ATTENTION

There is a risk of explosion if the

clock’s lithium battery is

replaced with an incompatible battery.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de Moxa Technologies

Moxa Technologies

Moxa Technologies DA-820 Series Manual de usuario

Moxa Technologies

Moxa Technologies UC-7122 Manual de usuario

Moxa Technologies

Moxa Technologies UC-8112-ME-T-LX Instrucciones de uso

Moxa Technologies

Moxa Technologies BXP Series Manual de usuario

Moxa Technologies

Moxa Technologies V3200 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2120 Series Instrucciones de uso

Moxa Technologies

Moxa Technologies V2416 Series Manual de usuario

Moxa Technologies

Moxa Technologies V2406C Series Manual de usuario

Moxa Technologies

Moxa Technologies DA-681C Series Manual de usuario

Moxa Technologies

Moxa Technologies V2416A-C7 Manual de usuario

Moxa Technologies

Moxa Technologies DA-682C Series Manual de usuario

Moxa Technologies

Moxa Technologies UC-8112-ME-T Series Manual de usuario

Moxa Technologies

Moxa Technologies DRP Series Manual de usuario

Moxa Technologies

Moxa Technologies V2201 Manual de usuario

Moxa Technologies

Moxa Technologies MC-3201 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2121 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2240 Series Manual de usuario

Moxa Technologies

Moxa Technologies MC-7270-DC-CP-T Series Manual de usuario

Moxa Technologies

Moxa Technologies e V2416A-C2 Manual de usuario

Moxa Technologies

Moxa Technologies MC-1200 Series Manual de usuario

Moxa Technologies

Moxa Technologies IA260 series Manual de usuario

Moxa Technologies

Moxa Technologies V2406A Series Instrucciones de uso

Moxa Technologies

Moxa Technologies UC-8410-LX Manual de usuario

Moxa Technologies

Moxa Technologies V2416 Series Manual de usuario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
