SR-1000/42U Rack stand
19 inch
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
EMEA & Asian region:
+32 (0) 472 630212
USA, LATAM, Canada, Australia
& New Zealand region:
+1 (562) 607 7348
The SR-1000/42U is a sound rack that provides mounting space for standard 19 inch devices. This rack
features 19 inch rails on the front, rear, side, top and bottom panels, providing ultimate mounting con-
venience for any installation.
The SR-1000/42U is available in two versions, a basic and an extended kit version. The basic version pro-

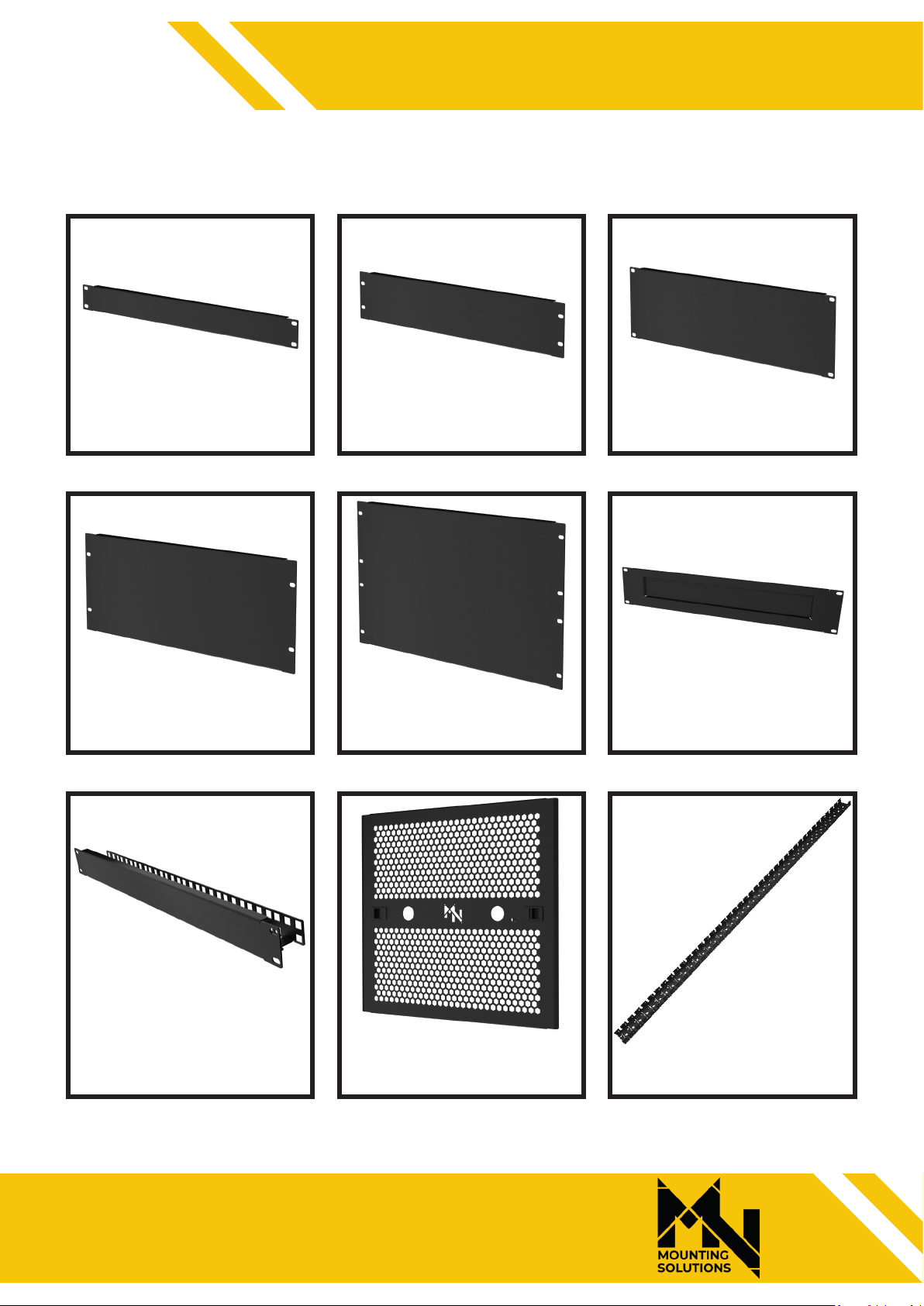

vides the essential frame and side covers; the extended kit version additionally includes set of 19 inch
covers to also ll the front, back, top and bottom spaces.
This high end and robust sound rack is assembled in less than 10 minutes using only one size standard
hex key, which is provided with the rack.
All parts of this sound rack are covered with scratch-resistant black polymer nish.
SPECIFICATIONS:
Functions 19” Sound Rack
Front / Rear / Side mounting space 42U
Top / Bottom mounting space 19U
Weight capacity 700 kg 1543,24 lbs

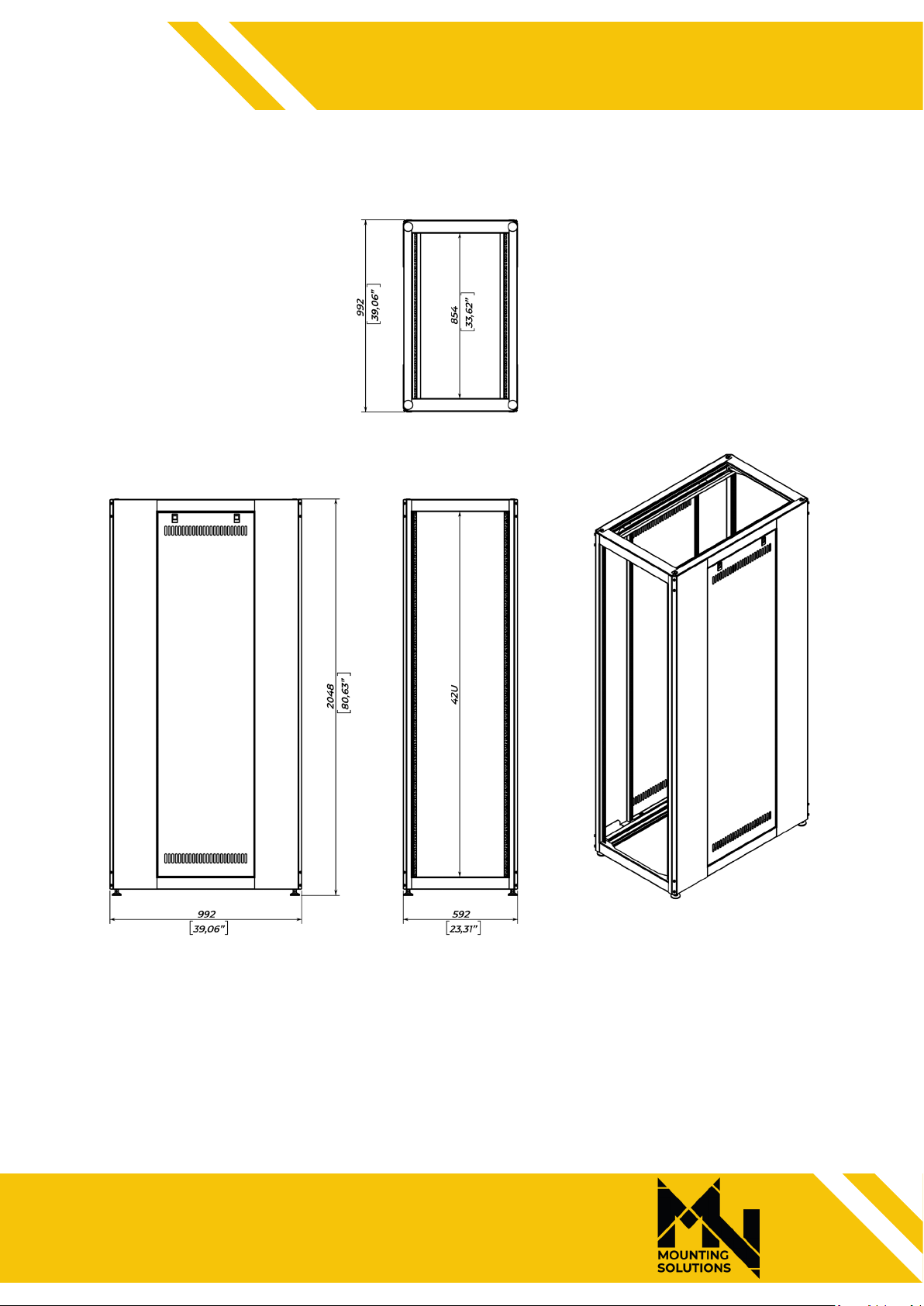

Dimensions (HxWxD) 2048 x 592 x 992 mm
80,63” x 23,31” x 39,06”
Shipping dimensions
(not assembled, 2 boxes)
1th box 1100 x 700 x 250 mm 43,31” x 27,56” x 9,84”
2nd box 700 x 2100 x 250 mm
27,56” x 82,68” x 9,84”
Net weight 80 kg 176 lbs
Shipping weight 86 kg 190 lbs
Color Black
Steel grade A 283 Grade C
BASIC version
PACKAGE CONTENTS
1. SR-1000/42U (not assembled) - 1 pcs
2. Set of mounting hardware - 1 pcs
3. SD-42U (removable side covers) - 2 pcs
4. Hex key 5 - 1 pcs
5. Installation manual - 1 pcs
