Mounting Dream MD2653 Manual de usuario

MD2653 INSTALLATION INSTRUCTION

42"~70" Max:600x400mm/24x16"

Min:100x100mm/4x4"

Für die Installationsanweisungen auf Deutsch, siehe Seite 12~13.

Pour l'instruction en Français, veuillez vous reporter à la page 14~15.

Para las instrucciones de la instalación en Español, favor vea la página 16~17.

Per le Istruzioni in Italiano, vedi pagina 18~19.

x3 x1

1 2

(C1)

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

100x100mm/4x4"

and equal to/less than

600x400mm/24x16"?

2 Does your TV

(including accessories)

weigh less than

80 LBS (36.3 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:600mm/24"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

M6x8mm

Allen Key

Extended Arm Screws

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

1-1 Disassemble Wall Plate Unit into Two Pieces

Wall plate unit

Extended Arm

Wall plate

TV plate

1-2 Choose Configuration

③ 300mm x 200mm

④ 400mm x 200mm

100mm x 100mm

100mm x 200mm

150mm x 150mm

200mm x 100mm

200mm x 150mm

200mm x 200mm

⑤ 400mm x 300mm

②

⑥ 600mm x 400mm

① 300mm x 300mm

② 400mm x 400mm

①①

① ①

②

③③

④④

⑤⑤

⑤

⑥⑥

⑥

⑧

⑦

⑦ 200mm x 300mm

⑧ 200mm x 400mm

⑦

⑦ ⑦

⑧

⑧ ⑧

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 5 for detailed combination.

Yes, go to PAGE 5 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

Extended Arms Assembly Example (For reference)

TV plate

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

Screw and washer

Spacer(s), screw and washer

1-5 Attach TV Plate to TV Back

No!

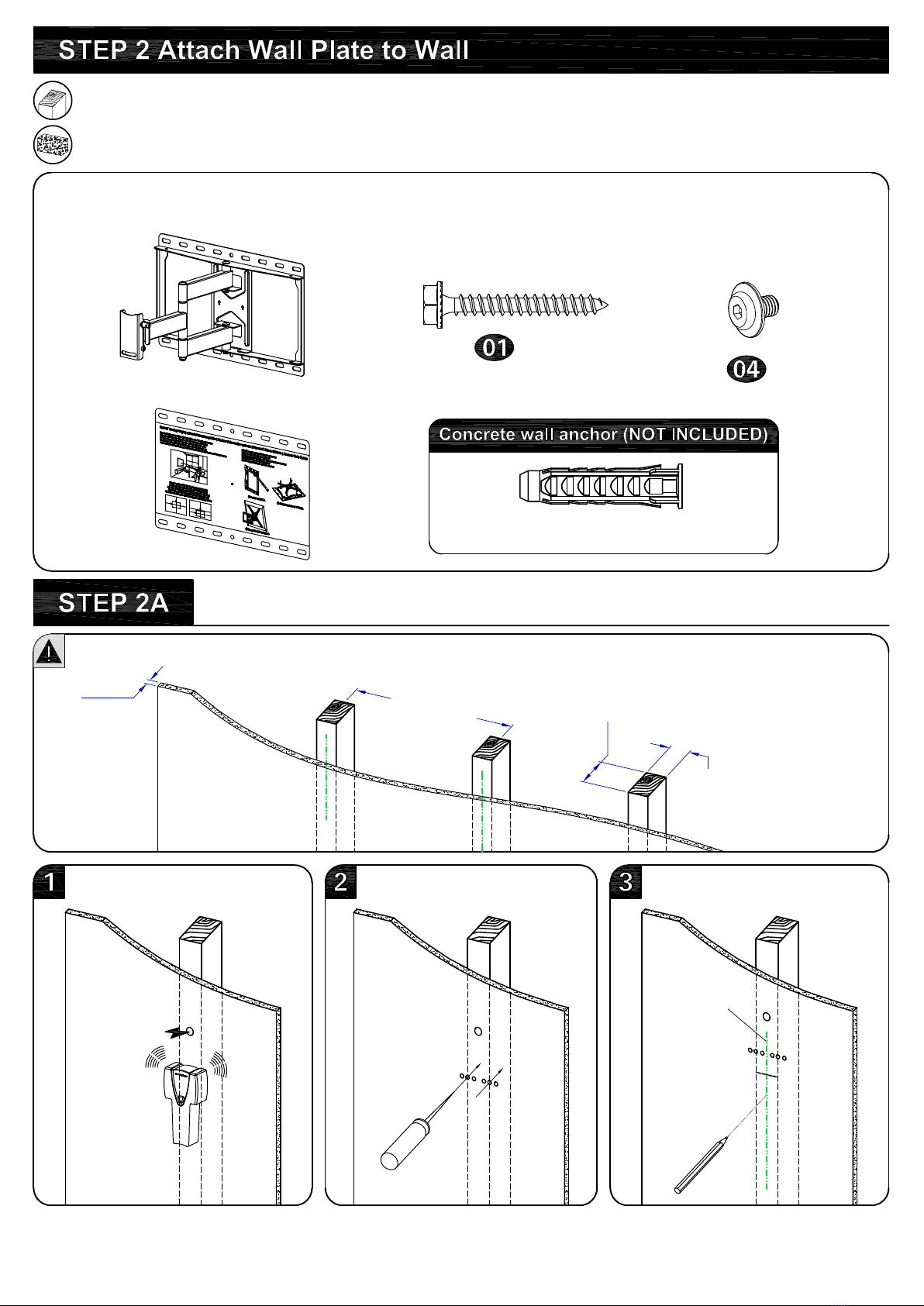

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 8

Parts and Hardware

Lag Bolt M8x60mm

Wood Stud Installation

Wall plate

Mounting Template

M6x10mm Bolt

<16mm

(5/8") Max.

16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Centre line

Concrete Wall Anchor

4pcs

Go to Step 3 on PAGE 9.

16"(406mm)

7/32"

(5.5mm)

2.5"(64mm)

Centre line

Again, find another wood stud

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

Level

UP!

Mounting Template

Wall plate

Solid Concrete Wall Installation

2.5"

(64mm)

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Mounting Template

3/8"

(10mm)

Concrete Wall

Anchor

Level

UP!

Wall plate

80 LBS (36.3 KG)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2
