Contents

Page

SCRIPTOR LX4/FLX4 Message Receiver..................1

Getting the Most fromYour Message Receiver...........1

Display Symbols .........................................................2

Controls ......................................................................2

Message Receiver Symbols .......................................3

TurningYour Message Receiver On............................4

TurningYour Message Receiver Off............................4

Receiving and ReadingYour Messages......................5

Using the Function Menu............................................6

Backlighting.................................................................6

Locking and Unlocking Messages ..............................6

Setting theTime and Date ..........................................7

Setting the Alarm ........................................................8

Setting the Message Alarm.........................................9

Setting the Alert Mode..............................................10

Setting the Alert Pattern............................................10

Turning the Maildrop Alert On and Off ......................11

Deleting Messages from Memory.............................11

Moving Messages toYour Notebooks.......................12

Deleting Messages FromYour Notebooks................13

Setting Auto On/Off...................................................13

Other Features..........................................................14

Battery Information ...................................................16

Care ofYour Message Receiver................................17

CleaningYour Message Receiver.............................17

Repair and Maintenance...........................................17

Patent Information.....................................................17

27b15TOC.FR5 Page ii Thursday, December 5, 1996 09:55

All manuals and user guides at all-guides.com

SCRIPTOR LX4/FLX4 Message Receiver

Congratulations on purchasing an SCRIPTOR LX4/

FLX4 message receiver by Motorola.Your new mes-

sage receiver provides exciting capabilities in messag-

ing and can become a vital part of your business and

personal life.

The message receiver’s four-line display and

expanded functionality incorporates many of the most

advanced electronic, communications and wireless

technologies available. It is reliable, convenient, and

designed for easy operation.

These operating instructions explain how to use your

message receiver and provide helpful suggestions for

ﬁrst-time as well as experienced users.

Getting the Most fromYour Message Receiver

• Spend a few minutes learning all of the functions

and messaging capabilities of your message

receiver.

• Give your message receiver number to your secre-

tary, business associates, friends, and family.

• Include your message receiver number on business

cards and on your answering machine message.

• Leave your message receiver number at your chil-

dren’s school and with the baby-sitter so you can

always be reached in an emergency.

1027B15.fr5 Page 1 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Display Symbols

Controls

ESCAPE

È Ñ å É ó ò ï ñ í Ö ¶

Set

Auto

On/Off

AddTo

Note-

book

Set

Message

Alarm

Choose

Alert

Set

Audible/

Silent

Alert

Turn

Message

Receiver

Off

Escape

(tostatus

screen)

Delete All

Messages

Lock/

Unlock

Message

SetTime

and Alarm

Delete

Message

Left/Right

Directional

Buttons

Function/

Select Button Read/

Escape/

Power On

Button

Up/Down

Directional

Buttons

1027B15.fr5 Page 2 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Message Receiver Symbols

Message Receiver Status Symbols: (Left column)

Power On

Audible Alert Mode

Auto On/Off

Alarm

Message Status Symbols: (Top two rows of

display)

Locked Message

Maildrop Indicator (Alert Enabled)

Maildrop Indicator (Alert Disabled)

Message In Memory Indicator

Memory Full Indicator

Alarmed Message

Function Menu Symbols: (Bottom row of display)

Choose Alert

SetTime and Alarm

Set Auto On/Off

Set Audible Alert

Set Silent Alert

Turn Message Receiver Off

Escape (to status screen)

Delete Message

Delete All Messages

Lock Message

Unlock Message

Maildrop Indicator (Alert Enabled)

Maildrop Indicator (Alert Disabled)

Set Message Alarm

Add to Notebook

1027B15.fr5 Page 3 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Other Symbols:

Enter Auto On/Off Menu and Auto On/Off

Enabled

Auto On/Off Disabled

24 HourTime

AMTime

PMTime

Disable Alarm

Enable Alarm

No Message Alert (On Choose Alert Menu)

Chirping Alert (On Choose Alert Menu)

(

Full Battery Gauge

Low Battery Gauge

Out of Range

Message Continuation

Truncated Message

<..> Alphanumeric Missing Fragment Indicator*

_____ Long Numeric Missing Fragment Indicator*

Errored Data Indicator

These symbols are applicable to SCRIPTOR FLX4

only.

TurningYour Message Receiver On

Press

Your message receiver alerts and shows

in the left

column of the display.The time and date are shown at

the bottom of the display.

TurningYour Message Receiver Off

➊

Press

to display the function menu.

➋

Press

to move the cursor to

➌

Press

twice to turn the message receiver off.

1027B15.fr5 Page 4 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

all-guides.com

Receiving and ReadingYour Messages

When a message is received, your message receiver

alerts and displays a ﬂashing

symbol.

➊

Press any button to stop the alert.

➋

Press

to display your message.

The message receiver automatically stores the mes-

sage and the time and date it is received.

A ﬂashing arrow

at the bottom right corner of the

screen indicates the message you are reading contin-

ues beyond the four lines of the display.

Press

to advance to the next screen of the mes-

sage.

You can also press to read your message line by

line.

Press and hold

to rapidly scroll through your mes-

sage, screen by screen.

If more than one message exists, press

select the message you want to read.The symbol

indicates the location of the message. Press

display your message.While reading your messages,

you can press

to view the previous or next

message.

A ﬂashing

symbol indicates you have a message

that has not been read.The message receiver alerts

at predetermined intervals to remind you of any

unread messages.

1027B15.fr5 Page 5 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Using the Function Menu

Press

to display the function menu.

The function menu gives you access to the many features

ofyourmessagereceiverthrough aseriesofsymbols and

prompts.For example, when the function menu screen is

ﬁrst displayed, the

symbol ﬂashes, indicating the

present position of the cursor.You can now press

to move the cursor within the function menu.

NOTE:

To exit from any menu without making changes,

press

Backlighting

The message receiver’s backlight illuminates in low-

light conditions when any button is pressed.You can

manually activate or deactivate the backlight at any

time by pressing and holding

for two seconds. If no

other buttons are pressed, the backlight automatically

turns off when the message receiver returns to the

standby mode.

Locking and Unlocking Messages

Up to 10 messages can be locked in memory, preventing

them from being replaced when memory is full (indicated

by the

symbol).

➊

Press

➋

Press

äor ãto select the message to lock.

➌Press Áto display the function menu.

➍Press ãto move the cursor to lock (í) or unlock

(ì).

➎Press Áto lock or unlock the message.

➏The symbol íor ìis displayed, indicating the status

of the message in memory.

1027B15.fr5 Page 6 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Setting theTime and Date

➊Press Áto display the function menu.

➋Press äto move the cursor to Ñ.

➌Press Áto display the set-time screen.

➍Press ãto move the cursor to the hour digit.

➎Press or to adjust the hour.

➏Press ãto move the cursor to the minute digit.

➐Press or to adjust the minute.

➑Repeat the process for each set of digits: AM/PM/

24 hr., month/day/year.

➒Press Áto activate the time and date change.

If you move the cursor past the last symbol in the row

(far right), it automatically wraps around and is dis-

played at the ﬁrst symbol in the beginning of that same

row (far left).

NOTE:To exit from any menu without making changes,

press Ë.

●Ñ22:23ô05/06/96●

Ö0:00ô--/--/--

SET TIME

Example of Set-Time Screen

1027B15.fr5 Page 7 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

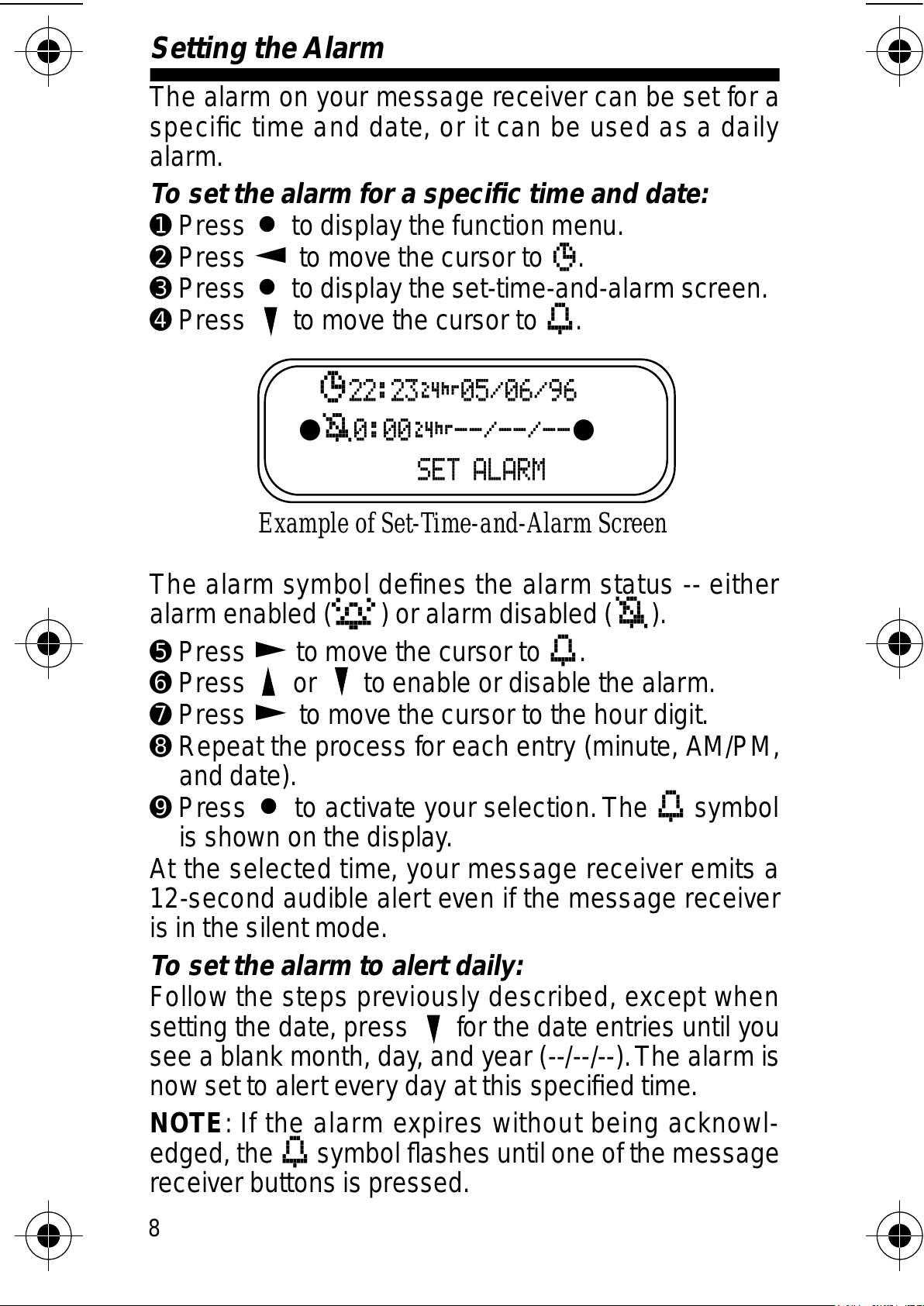

Setting the Alarm

The alarm on your message receiver can be set for a

speciﬁc time and date, or it can be used as a daily

alarm.

To set the alarm for a speciﬁc time and date:

➊Press Áto display the function menu.

➋Press äto move the cursor to Ñ.

➌Press Áto display the set-time-and-alarm screen.

➍Press to move the cursor to Ö.

The alarm symbol deﬁnes the alarm status -- either

alarm enabled (c) or alarm disabled (Ã).

➎Press ãto move the cursor to Ö.

➏Press or to enable or disable the alarm.

➐Press ãto move the cursor to the hour digit.

➑Repeat the process for each entry (minute, AM/PM,

and date).

➒Press Áto activate your selection.The Ösymbol

is shown on the display.

At the selected time, your message receiver emits a

12-second audible alert even if the message receiver

is in the silent mode.

To set the alarm to alert daily:

Follow the steps previously described, except when

setting the date, press for the date entries until you

see a blank month, day, and year (--/--/--).The alarm is

now set to alert every day at this speciﬁed time.

NOTE: If the alarm expires without being acknowl-

edged, the Ösymbol ﬂashes until one of the message

receiver buttons is pressed.

Ñ22:23ô05/06/96

●Ã0:00ô--/--/--●

SET ALARM

Example of Set-Time-and-Alarm Screen

1027B15.fr5 Page 8 Thursday, December 5, 1996 09:56

All manuals and user guides at all-guides.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Motorola

Motorola

Motorola TIME WARNER DCT6200 Manual de usuario

Motorola

Motorola DCT 2020 Manual de usuario

Motorola

Motorola DCT5100 Manual del propietario

Motorola

Motorola simplefi Manual de operación

Motorola

Motorola ISR-4410 Manual de usuario

Motorola

Motorola DCT2000 Hoja de especificaciones

Motorola

Motorola DCH3200 Manual de usuario

Motorola

Motorola Monitor V Manual de usuario

Motorola

Motorola DCT6412 DUAL-TUNER DVR AND HD SET-TOP - MICROSOFT... Manual de usuario

Motorola

Motorola HDT101 Manual de usuario

Motorola

Motorola DCT2000 Manual de usuario

Motorola

Motorola DSR-470 Manual de usuario

Motorola

Motorola TIME WARNER DCT6200 Manual de usuario

Motorola

Motorola DCT2500 Manual de usuario

Motorola

Motorola DCT2500 Manual de usuario

Motorola

Motorola DCT6412 DUAL-TUNER DVR AND HD SET-TOP - MICROSOFT... Manual de usuario

Motorola

Motorola TRD6290A Instrucciones de funcionamiento e instalación

Motorola

Motorola DSR-6402 Manual de usuario

Motorola

Motorola HDT101 Manual de uso y mantenimiento

Motorola

Motorola DCH3200 Manual de usuario

Motorola

Motorola simplefi Manual de usuario

Motorola

Motorola DSR-4550 Manual

Motorola

Motorola DSR-6100 Manual

Motorola

Motorola DCT5100 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
