Chapter 1

THEORY OF OPERATION

1.0 Overview

This Chapter provides a detailed theory of operation for the power distribution and controller circuits

in the radio. The components for these circuits are contained on the Main Board. Refer to the RF

sections of this manual for the component location details and the parts lists for these circuits.

2.0 Radio Power Distribution

Figure 1-1 illustrates the DC distribution throughout the radio board. A 7.5V battery (BATT 7.5V)

supplies power directly to the electronic on/off control as UNSWB+. When the radio is turned on,

MECH_SWB+ (on/off/volume control) will trigger the electronic on/off control (momentary-on path),

then SWB+ is distributed as shown in Figure1-1. Vdda from 3.3V Vdda regulator will then supply the

microprocessor. Data is then sent to ASFIC_CMP to turn on GCB4(DAC). GCB4 will take over the

momentary-on path within 12ms. SWB+ will continue to support the whole board until the radio is

turned off.

Radio will be turned-off on two conditions;

1. MECH_SWB+ turned off

2. Low battery

When low battery level is detected by the microprocessor through both conditions above, it will store

the radio personality data to EEPROM before turning off.

Figure 1-1 DC Power Distribution Block Diagram

Control

On/Off Switch

SWB+

Fuse

Low Battery

Detect

Ant. SW

PCIC(ALC)

PA, Driver

LI Ion

3.5V

Reg.

7.5V

Audio PA

4.0V/3.3V

Vddd

Reg.

ASFIC_CMP VCOBIC

FRACTN IF

LCD

Driver

RF. AMP, IF AMP

Ext. RX.

MECH.

SWB+

UNSWB+

TX.

Vdda

Reg.

Int/Ext Vdd

R5 R2 R3

Vdda

Accessories

20 pin Connector

Keypad/Option Board

Prime Expansion Board

Switching

Reg.

Vddd

Battery

Reg.

MCU Micro P, ROM

& EEPROM

Buffer (NU)

Led

Jumpers

Dual Vdd

Regulator

Scheme

Single Vdd

Regulator

Scheme

R1 Y Y

R2 N N

R3 N Y

R4 N N

R5 Y N

Vdda Y N

SW. Reg. N N

All manuals and user guides at all-guidesbox.com

1-2 THEORY OF OPERATION

3.0 Controller Circuits

3.1 Controller Architecture

The controller board is the central interface between the various subsystems of the radio. It is

separated into MCU digital and audio/signalling architectures as shown in Figure 1-2.

Figure 1-2 Controller Block Diagram

3.2 MCU Digital Architecture

(

Refer to Figure 1-2, the Microprocessor and the Memory schematic diagrams

)

The digital architecture portion consists of a microcontroller and associated EEPROM, RAM, and

ROM memories. The architecture is commonly used for both low-tier and high-tier products and also

includes conventional and trunking portables. Combinations of different size RAM and ROM are

available to support various application software. RAM supports 8KB and 32KB sizes. ROM

supports 128KB, 256KB, and 512KB sizes. Table 1-1 shows the ROM, RAM and EEPROM

requirements for different applications.

External

Microphone

Internal

Microphone

External

Speaker

Internal

Speaker

SCI to Side

Connector

Audio/Signalling

Architecture

To Synthesizer

Mod

Out

16.8 MHz

Reference Clock

from Synthesizer

Recovered Audio

Squelch

To RF Board SPI

MCU Digital

µP Clock

3.3V

Regulator

(Vddd)

RAM

EEPROM

ROM

Microcontroller

ASFIC_CMP

3.3V

Regulator

(Vdda)

Architecture

Audio Power

Amplifier/Filter

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

Controller Circuits 1-3

3.3 Real Time Clock

(

Refer to Figure 1-3 and the Microprocessor schematic diagram

)

Radios with displays support a Real Time Clock (RTC) module for purposes of message time

stamping and time keeping. The RTC module resides in the microcontroller.The clock uses a back-

up Lithium Ion battery for operating power when the primary battery is removed.

3.3.1 Circuit Description

The RTC module circuit, shown in Figure 1-3, is powered by the ModB/Vstby pin and PI6/PI7 from

the crystal oscillator circuit. A clock frequency of 38.4kHz from a crystal oscillator provides the

reference signal which is divided down to 1 Hz in the processor.

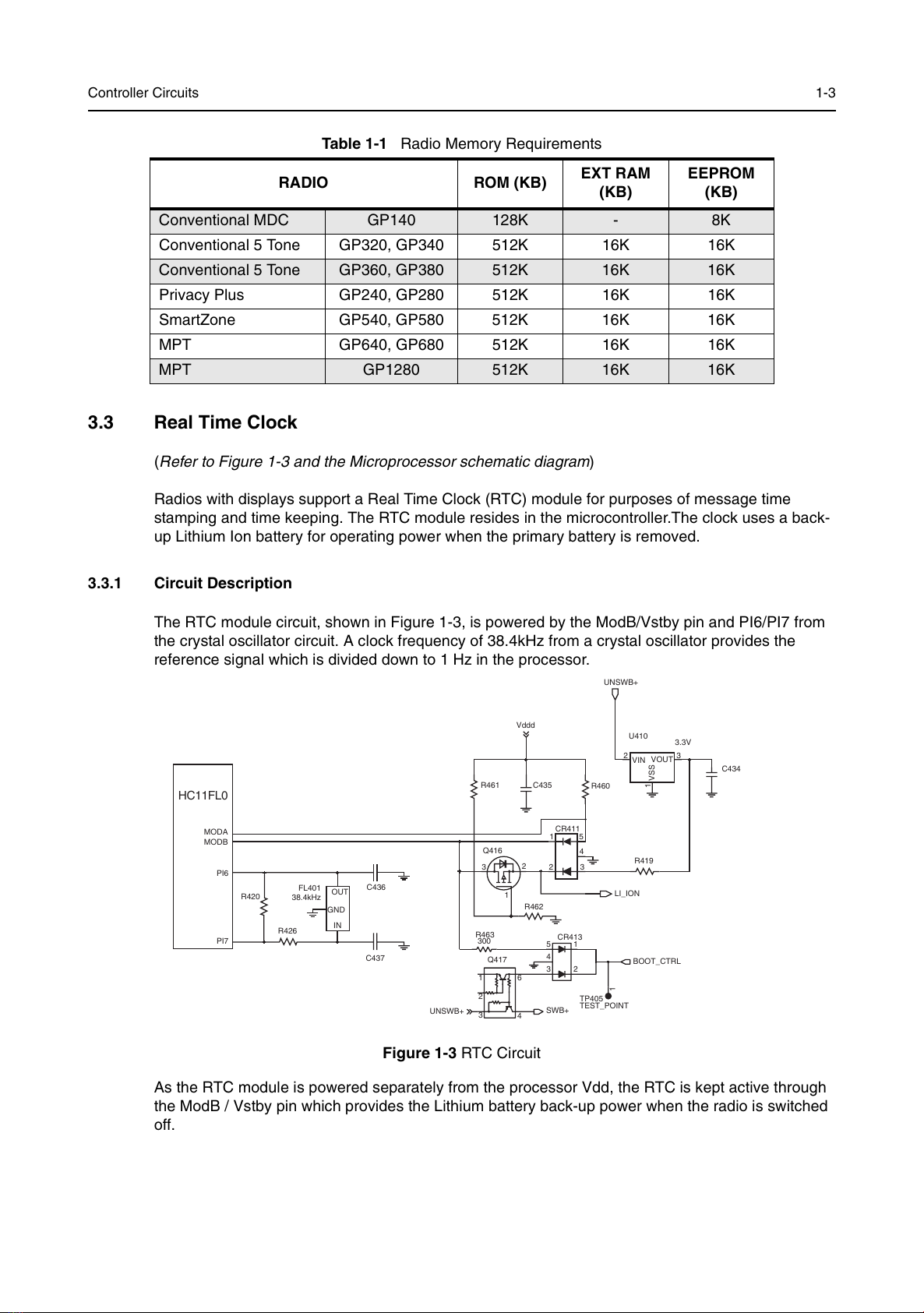

Figure 1-3 RTC Circuit

As the RTC module is powered separately from the processor Vdd, the RTC is kept active through

the ModB / Vstby pin which provides the Lithium battery back-up power when the radio is switched

off.

Table 1-1 Radio Memory Requirements

RADIO ROM (KB) EXT RAM

(KB)

EEPROM

(KB)

Conventional MDC GP140 128K -8K

Conventional 5 Tone GP320, GP340 512K 16K 16K

Conventional 5 Tone GP360, GP380 512K 16K 16K

Privacy Plus GP240, GP280 512K 16K 16K

SmartZone GP540, GP580 512K 16K 16K

MPT GP640, GP680 512K 16K 16K

MPT GP1280 512K 16K 16K

LI_ION

R462

R419

CR411

Q416

C434

U410 3.3V

VIN VOUT

VSS

UNSWB+

R460

C435

R461

Vddd

HC11FL0

MODA

MODB

R420

R426

FL401 C436

C437

PI6

PI7

OUT

GND

38.4kHz

UNSWB+ SWB+

CR413

R463

300

Q417

TEST_POINT

TP405

BOOT_CTRL

All manuals and user guides at all-guidesbox.com

1-4 THEORY OF OPERATION

A MOSFET Q416 switches in the LiO supply when Vdd is removed. Q416 also provides isolation

from BOOT_CTRL function in the event of radio program flashing. The 3.3V regulator charges the

Lithium battery.

3.4 ModB/Vstby Supply

The supply to the ModB/Vstby pin varies depending on the conditions listed in Table 1-2.

3.5 Audio/Signalling Architecture

(

Refer to Figure 1-2 and the ASFIC/ON_OFF and Audio Power Amplifier schematic diagrams

)

The audio/signalling/filter/companding IC (ASFIC_CMP) and the audio power amplifier, shown in

Figure 1-2, form the main components of the audio/signalling architecture section of the controller

board. Inputs include a 16.8 MHz clock from the synthesizer, recovered audio and squelch, MCU

control signals, and external or internal microphones. Outputs include a microprocessor clock (uP),

modulator output to the synthesizer, and amplified audio signals to an internal or external speaker.

Table 1-2 ModB/Vstby Supply Modes

Condition Circuit Operation

Radio On Vdd supply voltage via CR411

Radio Off • Vdd turned off

• Q416 gate pulled low by R462

• Q416 switched on

• U410 supplies 3.2V to ModB/Vstby

Primary battery removed • Vdd turned off

• Q416 gate pulled low by R462

• Q416 switched on

• Lithium battery provides 3.2V to ModB/Vstby

Flash Mode • Boot_Ctrl line pulled low

• ModA & ModB go low

• Processor in boot-strap mode
