QUICKSTART GUIDE
QUICKSTART GUIDE | VB400 2
TABLE OF CONTENTS
INTRODUCTION 3
HOW TO CHARGE YOUR VB400 4
CHARGING WITH A 1-PORT DOCK 5
CHARGING WITH A 14-PORT DOCK 6
BATTERY STATUS LED 7
CONFIGURING YOUR VB400 8
IDENTIFYING AN RFID ASSIGNED VB400 9
USING YOUR VB400 10
TO START / STOP RECORDING 10
WEARING YOUR VB400 12
ACCESSORIES 13
REGULATORY INFORMATION 14
QUICKSTART GUIDE | VB400 3
INTRODUCTION
Thank you for choosing the VB400 Body-worn camera. This simple guide will lead you through the set up and
use of your VB400.
Lens
Buzzer Speaker
Function
Button A
LED
LED
Function
Button C
Slider
Dual
Microphone
Front
Function Button
Function
Button B
LED
QUICKSTART GUIDE | VB400 4
HOW TO CHARGE YOUR VB400
Upon receiving your VB400, it is recommended that you fully charge the device before usage.
When charging using a 1-Port Dock or 14-Port Dock, insert the camera into the slots as shown below,
ensuring the camera clicks securely in place. Check that the top LED blinks green to indicate charging.
Slide down to
click into place
QUICKSTART GUIDE | VB400 5
CHARGING WITH A 1-PORT DOCK
(VB-400-DOCK-SOLO)
• Connected to your laptop or DockController.
If you are charging your VB400 camera via a 1-Port Dock
(VB-400-DOCK-SOLO) your camera will bleep to indicate
charging has commenced, and the LED, as indicated, will
flash green to show charging.
Once fully charged, the same LED will turn solid green. If the LED is not lit, the device is not charging.
Your VB400 will be fully charged within 8 hours from a flat battery.
Charging: Flashing green LED Fully Charged: Solid green LED
QUICKSTART GUIDE | VB400 6
CHARGING WITH A 14-PORT DOCK
(VB-400-DOCK-14)
• Connected to a power supply
and DockController
If you are charging your VB400 camera via a
14-PortDock (VB-400-DOCK14) the top LED will flash
green to show charging, and the camera will bleep
when successfully connected to VideoManager.
Once fully charged, the same LED will turn solid green. If the LED is not lit, the device is not charging. Your
VB400 will be fully charged within 8 hours from a flat battery.
Charging: Flashing green LED Fully Charged: Solid green LED
QUICKSTART GUIDE | VB400 7
BATTERY STATUS LED
To quickly understand the current battery status of your VB400, press the bottom button on the front face of the
camera and refer to the bottom LED.
Colour Key:
Green LED: OK
Orange/Yellow LED: Low
Red LED: Critical
Battery Status Button
(Configurable)
QUICKSTART GUIDE | VB400 8
CONFIGURING YOUR VB400
Prior to using your VB400, your device must be
configured and assigned to you using VideoManager.
For detailed information on how to configure your
device, please refer to the VideoManager User Guide.
Each VB400 requires a valid VideoManager Licence, or
access to the VideoManager Cloud Service, in order for
you to assign devices and access footage. For further
details, see the VideoManager User Guide.
To ascertain whether your VB400 has been configured,
please view the top LED on your device. This LED will
turn solid green once configured and assigned. Your
VB400 is charged, assigned and ready to use when the
LEDs shown are both solid green.
Please Note: If you try to use your VB400 before it has been assigned, the bottom LED on the front face of the
camera will start to flash red and you will hear an alarm tone. You will not be able to use your camera until it
has been assigned.
Configured, charged &
assigned Solid green light
QUICKSTART GUIDE | VB400 9
IDENTIFYING AN RFID ASSIGNED VB400
Once your device is configured, your system administrator may wish badge users to utilise an RFID system
for camera assignment. For further information on assigning VB400s using an RFID reader, please refer to the
VideoManager User Guide.
Having presented your RFID card, your docked, assigned VB400 will identify itself with a solid red LED as
shown.
RFID
Assigned Badge
RFID Reader
(RF-220)
RFID-Card
(RF-CARD-10)
QUICKSTART GUIDE | VB400 10
USING YOUR VB400
The VB400 series of cameras are intuitive and simple to use.
TO START / STOP RECORDING (CONFIGURABLE)
Users can activate recording by pressing on the single front button located in the centre of the badge as shown.
Recording is stopped by pressing and holding the front button.
Record activation and deactivation buttons are
configurable by Administrators.

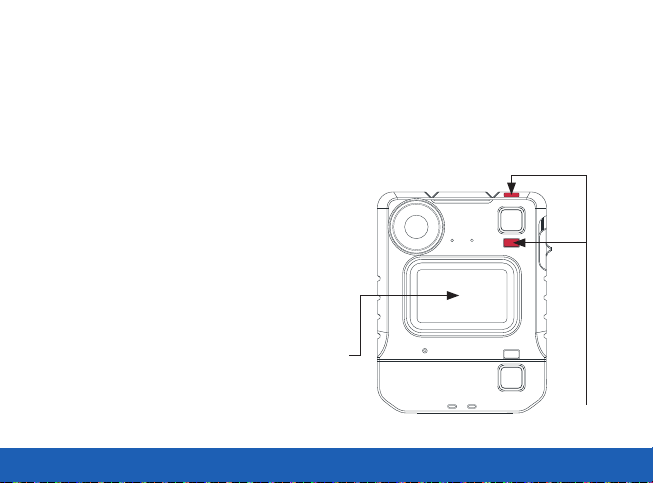

Start Recording initiated will be indicated by a short
bleep, the two upper LEDs showing red.
Press centre button to
start/stop recording
Solid red LED
