Motorola SYMBOL LS7708 Manual de usuario

Symbol LS7708

Quick Reference Guide

2 Symbol LS7708

Motorola reserves the right to make changes to any product to improve reliability,

function, or design.

Motorola does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under

any patent right or patent, covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Motorola products might be used. An

implied license exists only for equipment, circuits, and subsystems contained in

Motorola products.

MOTOROLA, the Stylized M Logo and Symbol and the Symbol logo are registered

trademarks of Motorola, Inc. Other product names mentioned in this manual may be

trademarks or registered trademarks of their respective companies and are hereby

acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300

http://www.motorola.com/enterprisemobility

Warranty

For the complete Motorola hardware product warranty statement, go to:

http://www.motorola.com/enterprisemobility/warranty

Quick Reference Guide 3

Introduction

This Quick Reference Guide is designed to assist during routine LS7708 operation.

Detailed information about unpacking, installation, performance specifications, and

troubleshooting can be found in the LS7708 Product Reference Guide.

Product Description

The LS7708 high performance omni-directional laser scanner reads bar codes

quickly and accurately with a minimum of effort. The scanner includes an Electriconic

Article Surveillance (EAS) antenna, which allows simultaneous bar code reading and

security tag deactivation.

The LS7708 can rest on top of a counter or be attached to a mounting surface.

Operating the LS7708 Scanner

Power

The LS7708 does not have an on/off switch. It’s ready to scan when connected to a

power supply.

Indicator Lights

The scanner employs an LED with a combination of red and green lights to indicate

operation and decode status. The Standard LED Definitions Table on page 13 lists

the different light combinations and their meanings.

If the scanner is not operating normally, contact the technical person in charge of

scanning, or contact Motorola Enterprise Mobility Support.

Speaker

Volume Control &

Wakeup Button

LED

4 Symbol LS7708

Controls

The Volume Control & Wakeup button adjusts the volume of the beeper and wakes the

scanner from rest or sleep mode.

When the scanner is operating, depress this button to adjust the volume. Hold down the

button until the desired volume is obtained (approximately five seconds). There are

three volume levels. The scanner beeps twice at each volume level before cycling to

the next.

If the scanner is in a rest or sleep mode, briefly depressing the Volume Control &

Wakeup button also awakens the scanner.

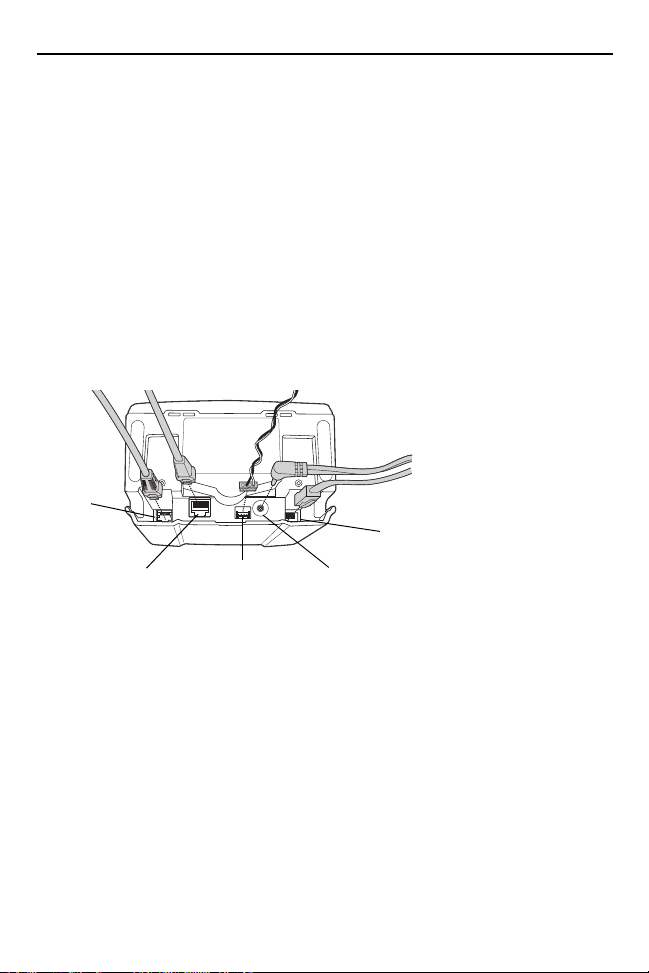

Connections

The scanner’s ports are at the bottom of the scanner. Turning the scanner upside down

allows access to the scanner’s ports.

Routing the Cables

The scanner case has several channels to route the outgoing cables so that they are

organized and don’t hinder the scanner’s placement. After placing the cable connectors

in the appropriate scanner ports, route the cables through the nearest channel.

Secondary Scanner

Power Port

EAS Interlock PortRS-232 Aux Port

Host Port

(Synapse)Port

Quick Reference Guide 5

For a cable with a Y-connector (containing both power and interface connectors):

1. Connect the power and interface cables to the appropriate ports.

2. Route the cables according to the following diagram.

Mounting the Scanner to a Surface

Caution: The LS7708 requires use of the mounting bracket for proper

operation and saftley. Failure to use the bracket can result in

scanner instability.

The LS7708 is designed to sit on top of a counter or be mounted to a wall. The slot on

the back of the scanner accepts a mounting bracket to secure it to the mounting

surface. This bracket accommodates either configuration.

Connections to power and

hand-held scanner ports, side exit:

curl power cable and route it back

towards interface cable.

Connections to power and host

ports, side exit: keep power cable

straight and route it ahead with

interface cable.

Plastic Tab

Rubber Feet

6 Symbol LS7708

Attaching the Mounting Bracket

Freestanding Configuration

Use this method if the scanner will not be secured to a mounting surface.

1. Invert the scanner so that its bottom is facing up and the connections are

visible.

2. Connect all interface and power cables to the scanner. Refer to the LS7708

Product Reference Guide for detailed information.

3. Orient the mounting bracket so that the plastic tab is facing downward and

toward the slot on the back of the scanner. The square cushion on the

mounting bracket should be positioned above the power cable.

Quick Reference Guide 7

4. Tilt the plastic tab into the slot on the scanner, and rotate the opposite edge

downward. As the bracket rotates, push it toward the slot so that the feet of the

bracket lie flat against the scanner’s bottom (see arrows).

5. When the bracket is flat against the scanner bottom, release pressure so that

the feet slide forward into the front of the scanner.

Mounted Configuration

Use this method if the scanner will be secured to a mounting surface.

1. Determine where the LS7708 is going to be mounted.

2. Use a pencil to mark the four mounting holes. (A mounting template is provided

in the LS7708 Product Reference Guide.)

3. Remove all rubber feet (from the bracket or from the scanner).

4. Place the mounting bracket in position over the drilled holes with its flat surface

facing the mounting surface.

8 Symbol LS7708

5. Insert four screws through the holes and fasten to the mounting surface.

6. Align the slot at the back of the scanner with the plastic tab on the mounting

bracket.

7. Angle the scanner slightly to allow the bracket plastic tab to slide into the slot.

8. Push the scanner towards the plastic tab and rotate it so that it is perpendicular

to the mounting surface.

9. Release the pressure on the scanner. The bracket locks into place.

Quick Reference Guide 9

Detaching the Scanner from the Mounting Bracket

To detach the scanner:

1. Grasp the scanner firmly on both sides.

2. Squeeze the back of the scanner slightly while pushing the scanner in the

direction of the slot on the back.

3. Rotate the front of the scanner away from the mounting bracket until the

bracket pops out of the slot.

Scanning Bar Codes

Install and program the scanner. (Refer to the LS7708 Product Reference Guide for

programming instructions.) For assistance, contact the local supplier or Motorola

Enterprise Mobility Support.

For the best scanning performance, the counter top or surface area covered by the

active scan area should be free of any designs (e.g. stripes or patterns). Ideally, that

area should be a light, solid color. A rastering omni-directional scan pattern provides

rapid, orientation-free scanning.

To scan a bar code:

1. Ensure all cable connections are secure.

2. Orient the item with the bar code facing the scanner window.

3. Move the item through the active scan area in the direction of the arrows, or

place the item in front of the scanner.

4. Upon successful decode, the scanner beeps and the green LED flashes

momentarily.

10 Symbol LS7708

Active Scan Area

The active scan area is the area in front of the scanner window in which a bar code can

be decoded. The dotted area represents the active scan area.

Sleep Mode

The scanner automatically enters Sleep mode when it has been inactive for a specified

length of time. The scanner has two levels of sleep: laser and motor. In laser sleep

mode, after ten seconds of inactivity the laser pulses at a 50% rate, and then drops to

3% after a specified time. In motor sleep mode, the scanner is programmed to turn off

the motor and the laser.

The scanner is awakened from either sleep mode by pressing the Volume Control &

Wakeup button. In laser sleep mode, the scanner also is awakened by presenting a bar

code at the scanner window.
