QUICK START GUIDE
2 RFD8500 Quick Start Guide
Zebra reserves the right to make changes to any product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Zebra products might be used. An implied license
exists only for equipment, circuits, and subsystems contained in Zebra products.
Warranty
For the complete Zebra hardware product warranty statement, go to: http://www.zebra.com/warranty.
Service Information
If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a
problem with the equipment, they will contact the Zebra Global Customer Support Center at:
http://www.zebra.com/support.
For the latest version of this guide, localized translations, and related product guides, visit the Zebra website
at: http://www.zebra.com/support.
RFD8500 Quick Start Guide 3
Introduction
The RFD8500 reader provides Radio Frequency Identification (RFID), with optional bar code scanning
functionality. The unit can be used stand alone, or paired with a Bluetooth® wireless technology enabled host
device (such as a mobile computer and/or smartphone).

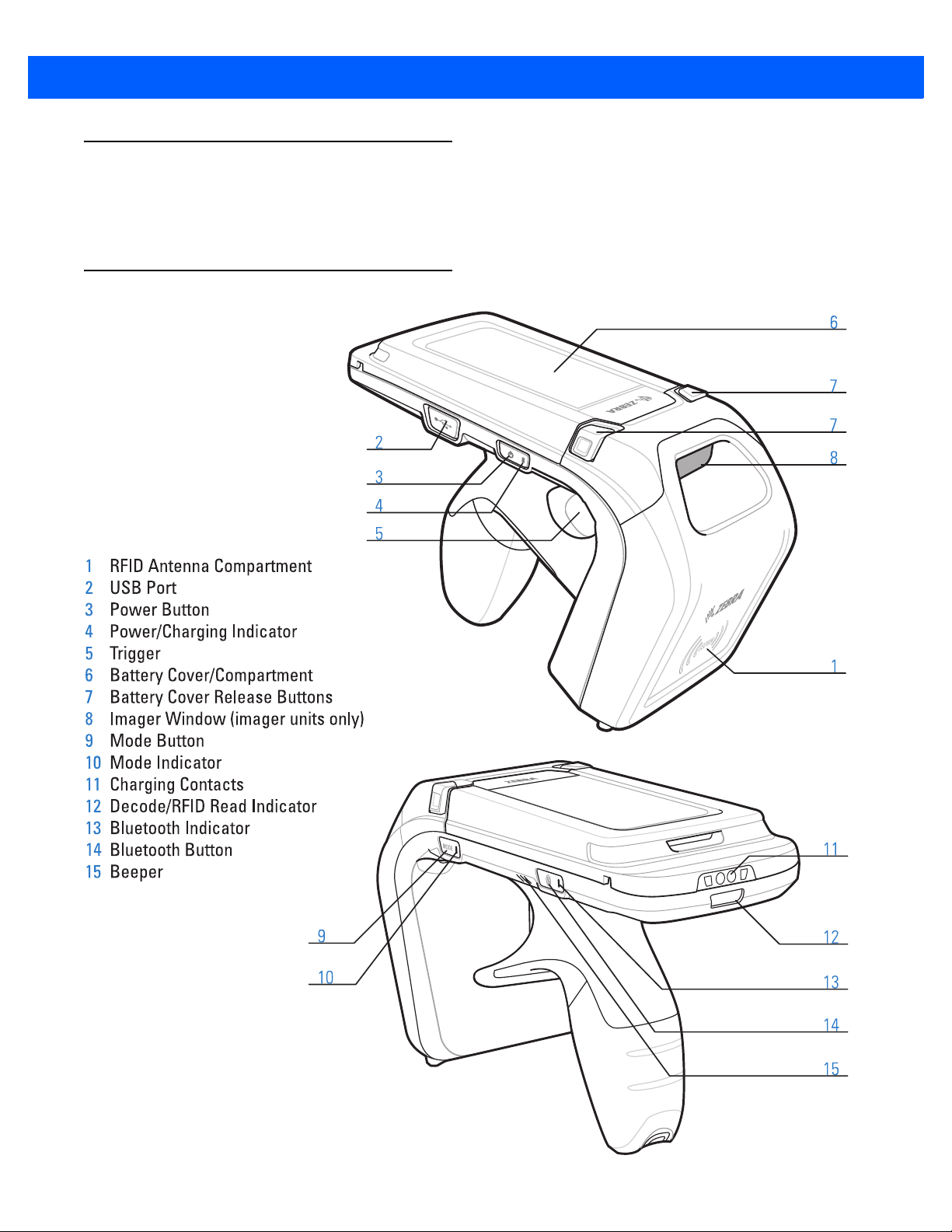

Features
4 RFD8500 Quick Start Guide
Using the RFD8500
To use the RFD8500 for the first time with a mobile computer, or iOS device:
•
Install the battery.
•
Charge the RFD8500.
•
Power on the RFD8500.
•
Pair the RFD8500 over Bluetooth with a mobile device.
•
Install the Demo Application, or the partner application (Android or iOS).
•
Set the region and power level (using the Demo Application, or the partner application).
Installing the Battery

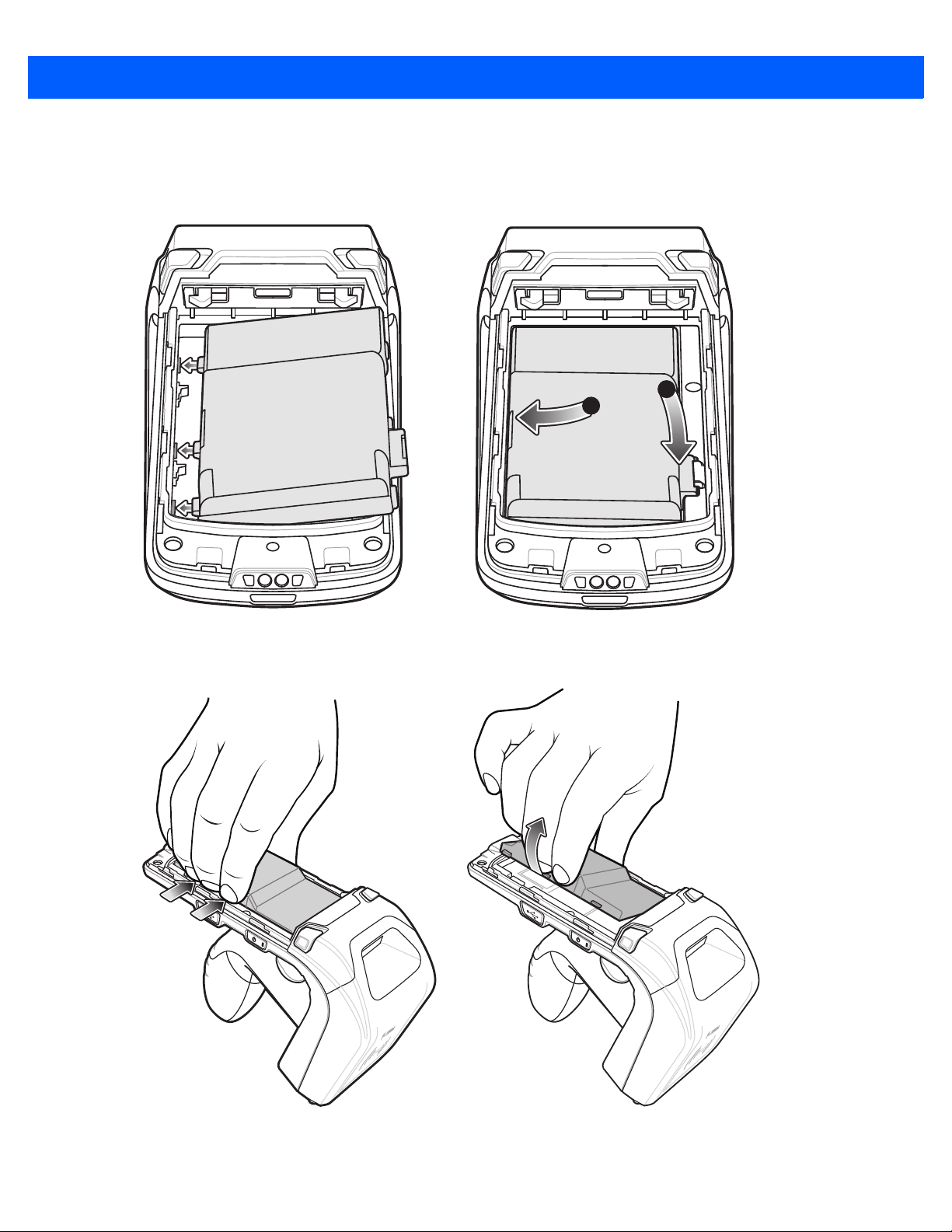

Removing the Battery Cover
1. Depress both battery cover release buttons.
2. Slide back, and remove battery cover.
RFD8500 Quick Start Guide 5
Inserting the Battery
1. Align the three tabs on the bottom of the battery with the three slots in the battery compartment.
2. Press battery towards three battery slots then press down until it locks into place.
Removing the Battery
Press in and remove battery as shown.
1
2
6 RFD8500 Quick Start Guide
Charging
Before using the RFD8500 for the first time, charge the battery until the LED Power/Charging Indicator turns
solid green. To charge the RFD8500, use the Micro USB cable, cup charger, or cradle. The Three Slot Charge
Only cradle can be used to charge any combination of devices including the RFD8500, TC55, and a dual
battery charger.
Pairing
Pairing with an Android Device
To pair with an Android device, such as the TC55:
1. Power on the TC55.
2. Touch the Settings icon.
3. Turn Bluetooth on.
4. Touch Search for Devices to display available discoverable devices.
5. Turn the RFD8500 on and ensure Bluetooth is enabled. If not, press the Bluetooth button on the RFD8500
for one second to make it discoverable. When discoverable, the Bluetooth LED slowly flashes blue.
6. Touch the RFD8500 in the list of available discoverable devices, and press the RFD8500 trigger to pair
when the Bluetooth LED starts flashing fast.
7. Exit the TC55 Device Settings screen, and run the RFID Demo Application.
8. From the Demo Application, select Settings > Readers List, and confirm the RFD8500 serial number with
which you paired is displayed. Select it in the list of Available Readers to connect the RFD8500 to the
TC55.
RFD8500 Quick Start Guide 7
Pairing with an iOS Device
To pair with an iOS device, such as the iPhone 6:
1. Power on the iOS device.
2. Touch the Settings icon.
3. Touch Bluetooth to display the Bluetooth Settings screen, and ensure it is on.
4. Turn the RFD8500 on and ensure Bluetooth is enabled. If not, press the Bluetooth button on the RFD8500
for one second to make it discoverable. When discoverable, the Bluetooth LED slowly flashes blue.
5. Touch the RFD8500 in the list of available discoverable devices, and press the RFD8500 trigger to pair
when the Bluetooth LED starts flashing fast.
6. Exit the iPhone Device Settings screen and run the RFID Demo Application.
7. From the Demo Application, select Settings > Readers List and confirm the RFD8500 serial number with
which you paired is displayed. Select it in the list of Available Readers to connect the RFD8500 to the
iPhone.
Using the Locate Device Bar Code
The Locate Device bar code appears on the RFD8500 under the antenna compartment. When you pair several
RFD8500 devices with your Android or iOS device via Bluetooth, use the serial number represented by the
Locate Device bar code to identify a specific paired RFD8500.
8 RFD8500 Quick Start Guide
Inserting the Mobile Computer into the RFD8500
Remove the RFD8500 battery cover. Remove the plastic tip from the cover. Attach the mobile computer to its
case accessory. Attach the mobile computer case to the RFD8500 battery cover. Slide the battery cover onto
the RFD8500 until it locks in place. The battery cover buttons secure the mobile computer to the RFD8500.
Removing the Mobile Computer from the RFD8500
To remove the mobile computer, press the battery cover release buttons, and pull the mobile computer back
and up.
1
2
1
2
RFD8500 Quick Start Guide 9
LED/Beeper Indicators
Condition Power LED Beeper
Power State Indicator (Power Button)
Low battery (20%) Solid amber No beep
Lower battery
(equal to, or less than 10%) Solid red Short beep sounds repeat
ONLY when the device is
NOT connected to a charger
AND when the unit is active
(not in low power mode, or
off mode)
Critical battery (less than 5%) Solid red, then turns off Descending
high/medium/low beeps
before automatically
powering off
Charging Blinking amber Short beep when charger is
connected
Charged Solid green One beep
Charging error Fast blink red One beep, or repeated
beeps
Power on
•
Green if battery charge > 20%
•
Amber if battery charge between
10% - 20%
•
Red if battery charge < 10%
Low/medium/high beeps
Mode Indicator (Mode Button)
RFID mode Off Short high button
confirmation beep
Bar code mode Solid green Short high button
confirmation beep
Decode/RFID Read Indicator
Good decode Solid green Short low beep
Transmit error Solid red for 2 seconds No beep for RFID/four beeps
for scanner read
Good RFID read Solid green (for each read) Short medium beep
RFID error Solid red No beep
Other error message Solid red No beep
BT Indicator (BT Button)
BT turning off Off Long beep
10 RFD8500 Quick Start Guide
BT on/not connected Off No beep
BT discoverable Medium flash (40 seconds only) No beep
BT on/pairing in process Fast flash No beep
BT application connected Solid blue Short low/high beeps
BT out of range Slow flash (40 seconds only) Short high/low beeps
Condition Power LED Beeper
