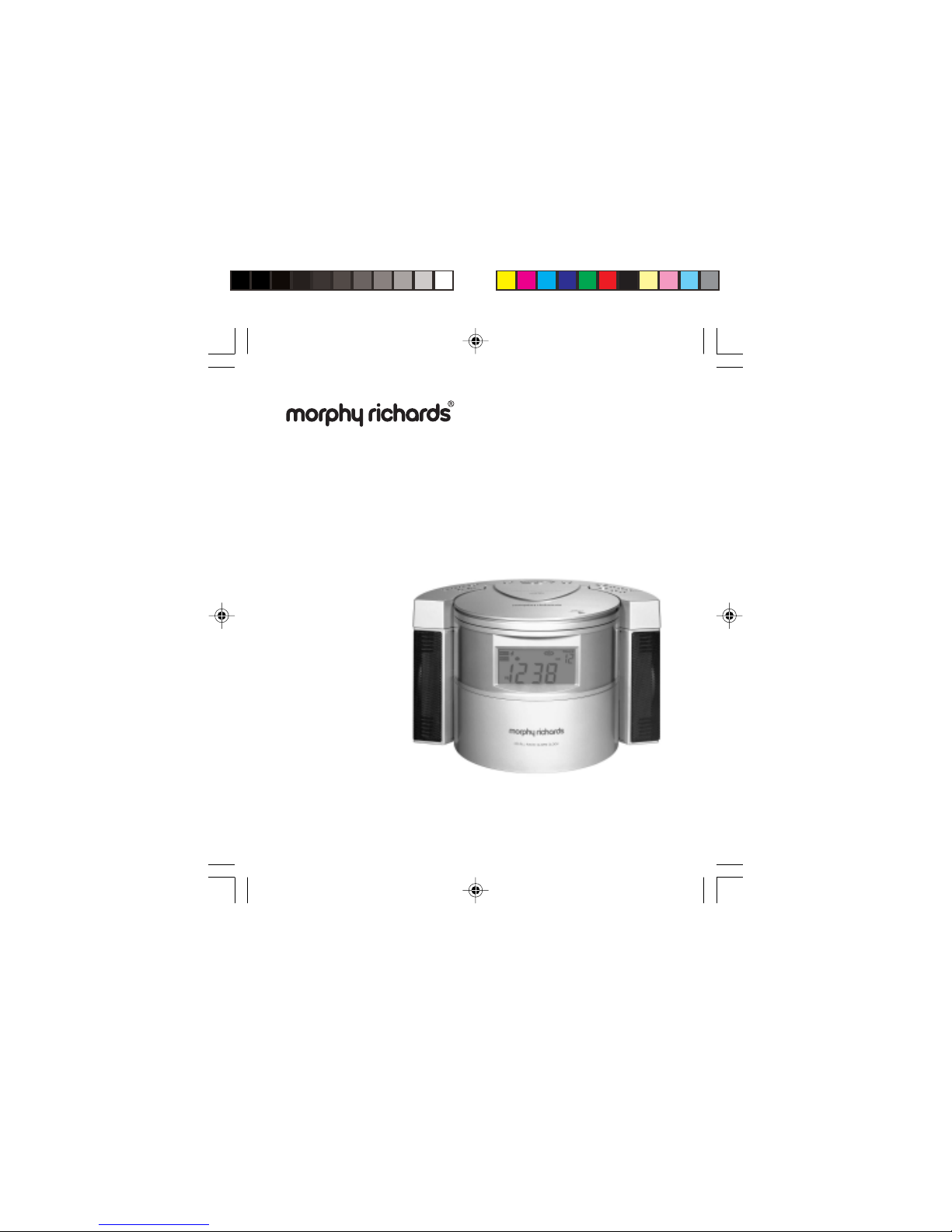

Morphy Richards 29007 Manual de usuario

PLL Digital CD Clock Radio

29007 OPERATING INSTRUCTIONS

Illustration

1PTS button

2Set / clock wake button

3Down button

4Mode button

5Up button

6Stop button

7Play / pause button

8Off button

9Snooze button

10 Sleep button

11 Radio on / band button

12 Wake 1 button

13 Cancel button

14 Wake 2 button

15 Preset recall button

16 Preset set button

17 Speakers

18 Battery compartment (underneath)

19 Volume control

20 CD open / close button

21 LCD display

22 Earphone socket (rear of unit)

78910111213

17 17

1Track number / radio preset

number indicator

2Random playback indicator

3Repeat all indicator

4Clock setting indicator

5Wake to Radio indicator

6Wake to cd indicator

7Wake to buzzer indicator

8Alarm / wake 1 indicator

9Alarm / wake 2 indicator

10 AM / PM indicator

11 Clock digits

12 Function indicator

13 Radio frequency scale

14 Stereo indicator

15 Memory indicator

Display illustration

Speakers

The speakers are detachable

1To remove the speakers hold in the clip at the rear of each speaker and slide the

speaker backwards.

2Unwind the speaker wire to the length required. Position the speaker where

required (up to 2 metres away).

To re-insert the speakers

1Wind the speaker wire back onto the pegs in the direction indicated on the

speaker.

2Position the speaker flush with the main unit and slide forwards until a click is

heard.

Electrical requirements

Check the voltage on the rating plate of your clock radio corresponds with

your house electricity supply which must be A.C. (alternating current).

If the socket outlets in your home are not suitable for the plug supplied with

this appliance the plug should be removed and the appropriate one fitted.

IMPORTANT : THE PLUG IF SEVERED FROM THE MAINS LEAD MUST BE

DESTROYED AS A PLUG WITH A BARED FLEXIBLE CORD IS

HAZARDOUS IF ENGAGED INTO A LIVE SOCKET OUTLET.

Should the fuse in the 13 amp plug require changing a 3 amp BS1362 fuse

must be fitted.

Battery back-up facility (unit will work without a battery being fitted)

Your cd clock radio is equipped with a battery back-up facility.

1 Remove the battery compartment cover (underneath the unit) by

pushing in the clip and lifting off.

2 Insert a battery size 9 volts PP3/6LR61 (Ensure battery is inserted correctly).

3 Replace the battery compartment cover.

Should a power interruption occur the clock will continue to run, however, time

keeping will not be accurate. The time will be displayed but the backlight will be

extinguished to conserve battery life. The memory will retain details of the clock time

and alarm settings.

If the optional battery is not installed in case of the AC power failure the clock will

flash at 12:00 when power is restored. You will need to reset the clock and

alarm settings.

Battery back-up is designed to operate for a short period only.

If the unit is not to be used for a prolonged period, remove the battery to

avoid battery leakage.

In the interests of environmental safety : dispose of batteries safely.

Setting the time

1Press the SET CLOCK WAKE button and the indicator will appear on the

display.

2Press the DOWN button or UP button to adjust the time whilst the clock symbol

is displayed.

Note:

Press and hold the UP or DOWN buttons to skip through the settings with speed.

The time display has a 12 hour format. The AM / PM indicator will change to AM

or PM time respectively.

3After a few seconds the indicator will disappear.

Setting wake up time

1Press the SET CLOCK WAKE button twice to set the alarm 1 time. will

appear on the display.

2Press and hold UP or DOWN buttons to set the alarm / wake up time.

3After a few seconds, will disappear.

4To set alarm 2, press the SET CLOCK / WAKE button until appears on

the display and repeat the above steps.

• To change to another alarm / wake mode (e.g. from CD to radio), simply press

WAKE 1 or WAKE 2 to scroll through the wake options.

Setting wake to buzzer alarm

1Press the WAKE 1 button to select wake to buzzer alarm until the buzzer alarm 1

symbol appears on the display. Repeat for wake 2 if required.

2The clock radio has a graduwake feature, the alarm tone will increase gradually to

a maximum volume in about 30-45 seconds. It is not possible to adjust the alarm

tone with the volume control.

Setting wake to radio alarm

1Press the WAKE 1 button until the radio symbol appears on the display.

Repeat for wake 2 if required.

2Press the RADIO ON / BAND button to select MW / FM and press and hold

UP or DOWN button to tune to your desired station.

3Press the PRESET / SET button to enter preset mode.

4Press PRESET / RECALL button repeatedly to

select Alarm Memo. ‘AL MEMO’ will appear on the

display in the 11th preset station position.

5Press the PRESET / SET button to confirm your

selection. This has now set your radio station for the

radio alarm function.

6Rotate the VOLUME control to the desired level.

7Press the OFF button to turn off the unit.

• If you have not set a radio station for the alarm, (via alarm memo) the wake

up station will be at the last station tuned.

• Ensure that the station set as the wake up station will be transmitting at the

wake up time.

Setting wake to cd

1Press the WAKE 1 button until the cd symbol appears on the display.

Repeat for WAKE 2 if required.

2Press the CD OPEN button and insert a disc in the compartment.

3To wake up to your preferred CD track (default is track 1).

Press and hold the PTS (programmable cd alarm track system) button while

pressing UP or DOWN button to select track.

4Press PLAY/PAUSE to listen to the wake up volume level.

5Rotate the volume to the desired wake-up volume level.

6Press the OFF button to turn off the unit.

• If the cd compartment is empty, the alarm tone will default to the buzzer.

Adjusting snooze duration

The snooze control temporarily silences the alarm and allows extra sleep time

after the alarm has sounded. You can use the SNOOZE feature repeatedly for

up to 2 hours, after which time the unit will turn off.

1Press and hold the SNOOZE button.

2Press the UP or DOWN button to set the snooze period (default is 9

minutes). Snooze can be set from 1 minute to 30 minutes. The alarm will

repeat after the set period.

Stopping the alarm

1To silence the alarm temporarily:

• Press the SNOOZE button and the alarm will sound again when the

snooze period is over (see ‘Adjusting snooze duration’ above).

2To stop alarm from sounding:

• Press the OFF button and the alarm will sound again the following day

at the set time.

3To cancel the alarm completely:

Press the CANCEL button, then press the WAKE 1 or 2 buttons and the

selected alarm will be cancelled. The wake / alarm indicators will also be

cancelled.

• If you press WAKE 1 or 2 button again, the previous set alarm time/s will

be used.

Note: If the alarm is uninterrupted it will stop sounding after 2 hours.

Listening to radio

1Press the RADIO ON / BAND button to switch on the radio.

2Press the RADIO ON / BAND button to select FM, MW.

3Press the UP or DOWN buttons to manually set to your desired station.

4Adjust the VOLUME control to your desired listening level.

FM wire aerial

To obtain the maximum FM reception fully extend the wire FM aerial (which is

located at the rear of the unit) and alter the direction of the wire for best results.

The aerial for the MW waveband is located inside the unit. To obtain the

maximum MW reception rotate the cd clock radio.

Automatic station search

1Press and hold the UP button until ‘UP’ is displayed on the display panel and

it will automatically search up the radio frequency.

2Press and hold the DOWN button until ‘DN’ is displayed and it will

automatically search down the frequency.

Radio presets

1Refer to ‘listening to the radio’ to tune to the desired radio station.

2To store the frequency into the memory, press PRESET / SET button, the

preset station number will be automatically assigned the next available

number and will appear on the display.

3Press the PRESET / RECALL to select another preset location.

4Press PRESET / SET to confirm your settings.

Radio frequency tips

• There is a maximum of 11 (10 preset locations and 1 alarm memory location)

preset stations that can be stored.

• You can also overwrite preset station numbers by pressing PRESET / SET

button when listening to the chosen station. Press the PRESET / RECALL

button to select the preset to be overwritten and then press PRESET / SET

again to confirm.

Preset / recall

• Press the PRESET / RECALL button repeatedly to move between preset

stations when the radio is on.

Listening to a compact disc

1Press the CD OPEN / CLOSE button to open the cd door.

2Insert your disc, then close the door.

3Press the PLAY / PAUSE button.

4Adjust the VOLUME control to your desired listening level.

If you have not inserted a cd / or the disc is faulty, the display will show ‘nd’

when you press play.

• Press the UP or DOWN buttons to search reverse or forward to select a track.

• Press and hold UP or DOWN buttons to search within a track.

• Press PLAY / PAUSE to pause playback.

• Press STOP to stop playback.

Repeat function

1Press the MODE button to repeat all the tracks on the cd, the indicator will

appear on the display.

Random function

1Press the MODE button twice to randomly play all the tracks on the cd, the

indicator will appear on the display.

Repeat and random can be used together.

1Press the MODE button 3 times until the and indicators appear on the

display. This will play all cd tracks randomly and continuously.

2Press mode button again to cancel all functions.

ATTENTION: To reduce the risk of electric shock, do not remove

the cover. There are no user serviceable parts inside the unit.

Refer any servicing to qualified personnel.

The lightning flash with arrowhead symbol within the triangle is a warning sign

alerting the user of ‘dangerous voltage’ inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of

important instructions accompanying the product.

To prevent fire or shock hazard do not expose this apparatus to dripping or

splashing.

Warning labels

WARNING: to reduce the risk of electric shock, do not expose this appliance

to rain or moisture.

Sleep to cd / radio

You can drift off to sleep listening to cd or radio and the unit will automatically

switch off after an allocated time. If the alarm has been set the unit will operate at

the set alarm time.

1Press and hold down the SLEEP button.

2Press the UP or DOWN buttons whilst holding down the SLEEP button to select

a time from 1 minute to 1 hour 59 minutes.

CD: Press PLAY / PAUSE button. CD play mode will automatically be in repeat

all mode when using the sleep to cd setting. (The unit will turn off

automatically once the sleep time has been reached).

• Press the SNOOZE or OFF button to turn the unit off before the sleep time

has elapsed.

RADIO: When the sleep is activated it will automatically default to the last station/

preset that was used for the sleep function.

Note:

• The next time you reactivate the sleep function by pressing SLEEP, the time

setting will remain the same as the last time it was set.

• If you decide to turn off the unit before the end of the sleep period, press the

SNOOZE or OFF button and this will shut off the sleep cycle.

• When the sleep mode is active, press the SLEEP button to show the

time remaining before the unit goes off.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Radio reloj de Morphy Richards

Morphy Richards

Morphy Richards CR1905 Manual de usuario

Morphy Richards

Morphy Richards 29005 Manual de usuario

Morphy Richards

Morphy Richards IB28050 Manual de usuario

Morphy Richards

Morphy Richards 28026 Manual de usuario

Morphy Richards

Morphy Richards IBCR1908 Manual de usuario

Morphy Richards

Morphy Richards 29000 Manual de usuario

Morphy Richards

Morphy Richards 28044 Manual de usuario

Morphy Richards

Morphy Richards 28009 Manual de usuario

Morphy Richards

Morphy Richards IBCR1910 Manual de usuario

Morphy Richards

Morphy Richards IB29015 Manual de usuario

Morphy Richards

Morphy Richards 28037 Manual de usuario

Morphy Richards

Morphy Richards IB28011 Manual de usuario

Morphy Richards

Morphy Richards 28009 Manual de usuario

Morphy Richards

Morphy Richards 28034 Manual de usuario

Morphy Richards

Morphy Richards 29003 Manual de usuario

Morphy Richards

Morphy Richards 28025 Manual de usuario

Morphy Richards

Morphy Richards 28049 Manual de usuario

Morphy Richards

Morphy Richards 29000 Manual de usuario

Morphy Richards

Morphy Richards CR1905 Manual de usuario

Morphy Richards

Morphy Richards IB28017 Manual de usuario

Morphy Richards

Morphy Richards IBCR1909 Manual de usuario

Morphy Richards

Morphy Richards IB28010 Manual de usuario

Morphy Richards

Morphy Richards 28027 Manual de usuario

Morphy Richards

Morphy Richards 28043 Manual de usuario

Manuales populares de Radio reloj de otras marcas

Denver

Denver CRQ-105 Manual de usuario

Audiovox

Audiovox CE90 Manual de usuario

Sony

Sony Dream Machine ICF-C763L Manual de usuario

Sanyo

Sanyo DMP-P6 Manual de usuario

RCA

RCA RPC100 Manual de usuario

Yamaha

Yamaha ISX-80 Manual de usuario

Pyle

Pyle PLMR20W Manual de usuario

Blaupunkt

Blaupunkt CR7BK Manual de usuario

Philips

Philips AJ3180 Manual de usuario

HoMedics

HoMedics SS-5500-2EU Manual de usuario

RCA

RCA RC66i Manual de usuario

Versaudio

Versaudio Vers Manual de usuario

SOUNDMASTER

SOUNDMASTER UR8100 Manual de usuario

Audiovox

Audiovox CE90 Manual de usuario

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Manual de usuario

Roberts

Roberts ChronoDAB Manual de usuario

AEG

AEG MRC 4132 BT Manual de usuario

Tokai

Tokai TC-155 Manual de usuario
