Mopar Remote Start System Manual de usuario
Technical Support
For Authorized Dealers - (800) 34-MOPAR
Hours: 9:00 a.m. - 6:00 p.m. EST Monday thru Friday
10:00 a.m. - 2:00 p.m. EST Saturday
1030213
REV.B
10/04 K6859234
Système de démarrage à distance
NOTICE D’INSTALLATION
Installation par un spécialiste conseillée
Warning! Remote Start Systems are only appli-
cable to vehicles with automatic transmission!
Jeep Liberty (KJ)
Remote Start System
INSTALLATION INSTRUCTIONS
Professional Installation Is Recommended
2
This device complies with part 15 of the FCC rules and with RSS-210 of the
industry Canada. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
This product was manufactured in environmentally friendly manufacturing
facility and may contain certain recycled materials. All materials meet or
exceed original specifications for quality and reliability.
Jeep Liberty (KJ)
Remote Start System
Table of Contents
VehiclePreparation..................................................................................4
ModulePreparation..................................................................................5
ComponentInstallation.............................................................................6
SystemProgramming.............................................................................10
SystemTesting.........................................................................................14
ServiceMode...........................................................................................14
Reassembly..............................................................................................15
OptionBankChart...................................................................................16
Troubleshooting.......................................................................................17
ChangingTransmitterBatteries.............................................................17
SystemLayout.........................................................................................18
The soldering procedure illustrated below must be followed when perform-
ing wire connections under the hood. Failure to use this procedure could
result in improper performance of the remote start system.
3
PARTS REQUIRED
Part Number 82208859
5 AMP 1X 15 AMP 4X
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
avant d'effectuer des travaux d'entretien sur celui-ci.
Owner's Manual
VehicleRemote Start System
TM
FeaturingPowerCodeTechnology
FortheUltimate inComfort,Convenience andSecurity
TM
®
1024256 12/03
Remote Control
CarStarterSystem
Remote Start
Activation
2X
Remote Start
Shutdown
2 sec.
2X 4X 10X
2X
Part Number 82208998 (2005 KJ) 82209474(2004 KJ)
TOOLS REQUIRED
10mm 1/4”
RTV SEALENT
VEHICLEPREPARATION
1. Lower one or more of the passenger windows so the keys do not get locked
in the vehicle.
2. Disconnect and isolate the negative battery cable. The battery will need to be
re-connectedbeforeprogramming.
3. Vehicle requires 2 valid Sentry Keys present at the time of installation.
2X(French&English)
4
Vehicle Preparation
1. Remove driver’s side lower dash
panels, located directly under the
steering column.
A.Pull downlowerdash &remove.
B.Remove(2) screwsholding lower
under-dashpanel. Removepanel.
C.Remove (2)screws on bottomof
steeringcolumnshroud.
D.Unsnap &remove steeringcolumn
shroud.
Overview
The remote starter module harness will interface with the existing KJ ignition switch
connector, four center-spliceconnections, anda ground termination. Twowireswill
berouted through thecowl panel, toahood-mounted safety switchand tachometer
connection.
2. Remove driver’s side dash panel,
located on left side of dash.
A. Gently pull to remove dash panel.
3. Remove driver kick panel cover.
A. Gently pull up & remove driver sill
cover. Gently pullandremove
driverkickpanelcover.
5
Module Preparation
1. Place fuses into the control module.
A.Observefuseamperageratings.
Place the 5 Amp fuse into the
“MainB+” location. Populatethe
remaining fuse locations, as
shown in the diagram, with the 15
Amp fuses. Ensure the 15Amp
fuse is placed in the “OPEN”
locationnext to “PK LIGHTS”.
2. Install DNA into the control module
A. Insert DNA into the control module.
Ensure the DNA assembly snaps
completely in place.
DNA
6

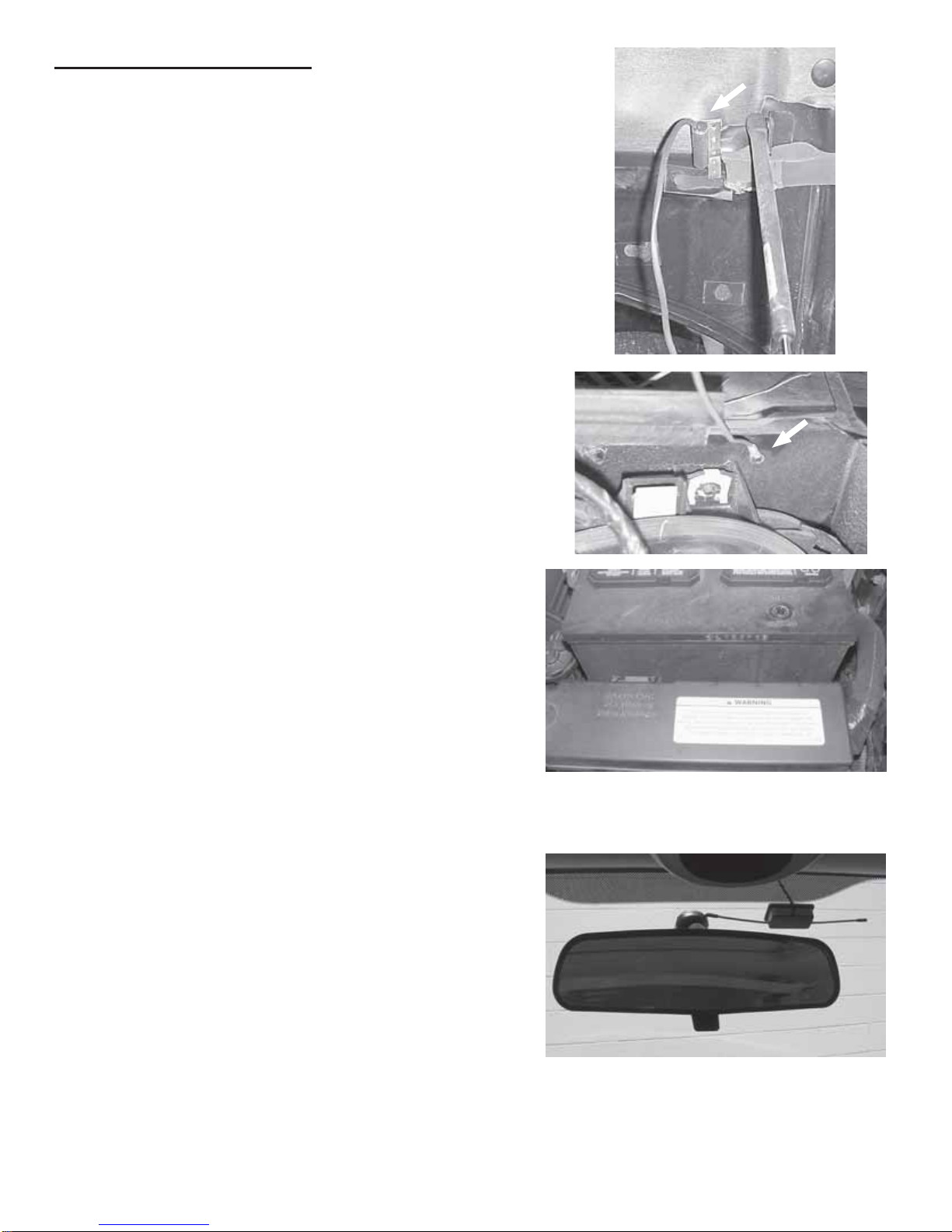

Component Installation
1. Install Hood Safety Switch.
A.Using (2) of the supplied1/4”
screws, secure hood safety switch
ondriver’sside rear cornerof hood
perthediagram. Note:Wire exits
top of switch. Switch must be
bentat 45degree angle.
B. Using a supplied 1/4” screw,
securethe groundlead fromthe
switch to the cowl as shown in the
diagram. Theremaining wirewill be
connectedlater.
C. Locatea visible areain the frontof
theengine compartmenttomount
theunderhood warningsticker as
shownin thediagram.
2. Install Dipole Antenna
A.Mount dipole antenna to the
windshieldabove andtotherightof
therearviewmirrorandbelow the
black windshield trim.
B.Run theantennawire abovethe
headlinertothe driver’sA-pillar.
Temporarilyremove theA-pillar
rubbergasket andrun theantenna
leaddown through the left side
dashopening. Replace therubber
gasket. Ensure the antenna is
securelytuckedabovethehead-
liner and is not visible along the
entirelength.
7
B.Connect the harness10-way
femaleconnector tothe vehicle’s
ignition switch.
C. Connect the harness 10-way male
connectorto thevehicle’s 10-way
ignitionconnectorpreviously
removedfromthe ignitionswitch.
Using a supplied wire tie, secure
the custom harness away from the
tilt steering assembly as shown.
D. Using a supplied 1/4” screw,
securethe black groundwire with
ring terminal to the left kick panel
metal as shown in the diagram.
aasshown indiagram.
3. Install Custom Harness.
A. Locate ignition switch connector,
located on the left side of the
steering column. Release the red
secondary lock. While pushing on
mainrelease,removeconnector
fromignition switch.
E. Run the harness White/Tan wire to
the brake switch. Connect by
center-splice to the White/Tan wire
inCavity #2 ofthe 6-way brake
connectorfollowingthe center-
spliceprocedureabove.
Caution: Keep wire away from the
exposed steering column!
Caution: Do not remove the brake
lamp switch from the mounting
bracket. If the switch is re-
moved from the mounting
bracket, it MUST be replaced
with a new switch.
Center-SpliceProcedure
8
I. Using the supplied butt connector,
connect the black/white wire to the
remaining wire from the hood
safety switch.
J. For gas engines, route the Red/
Yellow wire to the top of the engine
at the coil connection point as
shown. Center-splicethe Red/Yellow
harnesswire into theBlue/Yellow
wire(2005 KJ)or Red/Yellow wire
(2004KJ)at the coil following the
center-spliceprocedureon page7.
Solderthe connection.
K. For diesel engines, route the Red/
Yellow wire tothedriver’sside ECM
at the connection point as shown.
Center-splicetheRed/Yellowwire
into the Dk Blue/Grey wire at pin #38
ofthe 57-wayECM connector.
Solderthe connection.
Gas Engines
Diesel Engines
F. Locate the Pink/Red wire (2005 KJ)
orLtGreen/Orange wire(2004 KJ)in
pin#5 of thegrey 10-way multifunc-
tionswitchconnector,foundabove
thesteering column. Center-splice
theharnessLt Green/Orangewire
intothis wire, followingthe center-
spliceprocedure onpage 7.
G. Locate the Green/Violet wire (2005
KJ)or Black/Red wire(2004 KJ) in
pin#2 of thewhite6-way connec-
tor, founddirectly below thesteer-
ing column. Center-splice the
harness Black/Red wire into this
wirefollowingthe center-splice
procedureonpage7.
H. Route the two remaining wires
(Black/Whiteand Red/Yellow)
throughthe cowl panel and intothe
enginecompartment.
9
4. Install SKIM/SKREEM Interface
Module.
A. Following the directions on the
suppliedampule ofadhesive
primer, apply a thin coating of
primer to the entire SKIM/SKREEM
transceiverantenna coil. Allow the
primerto dry for5 minutes before
proceeding to the next step.
Note: Use goggles and gloves to
protect yourself from any acci-
dental contact.
B. Remove backing from one side of
thesupplied two-waytape and
applytapearound thetransceiver
antennacoil.
C. Routethe antennaloop fromthe
SKIM/SKREEMInterface moduleto
theignition cylinder.
D. Removethe remainingbacking on
thetape and positionthe antenna
loopon the tapearound the trans-
ceiverantenna coil. Ensure thered
stripe faces out towards key.
Press down on antenna coil to
ensurea strongbond.
E. Using a supplied wire tie, secure
the antenna coil as shown.
L. Connectthe 24-way and10-way
connectorsinto thePC-12 Remote
Start module. Also, connect the 2-
wayantennaconnector (onend
oppositethe mainharness connec-
tions).
24-Way 10-Way
Antenna
10
Notes:
1. Reconnectthe negativebattery terminal priorto programming.
2. Up to a total of 8 transmitters can be programmed into memory.
3. Transmittersshipped with completekits are pre-programmed tothe DNA
and do not need to be programmed at this time.
1. Transmitter Programming.
A. Make sure battery is connected.
B.Close hood.
C.Turn theignition tothe “on”position.
D. Press and hold the programming button. After 10 seconds the horn will
chirp and the lights will flash 3 times indicating the system is now in
transmitterlearn mode.
E.Releasethe programmingbutton.
F. Press button on transmitter to be programmed. The horn will chirp and the
lights will flash 1 time indicating that the transmitter has been learned.
G. Repeat step F for additional transmitters.
2. Option Programming.
The remote start system has several installer programmable options which
can be changed to accomodate different circumstances. In most cases, there
will be no need to change any default settings. There will be cases (such as
dieselvehicles),where the delay before crank option must be set.
Note:
This system has 2 option banks. Bank 1 has 7 options, and Bank 2 has 2
options. Refer to the Option Bank Chart on page 16 for details.
A.Follow the steps above toenterTransmitterLearn Mode.
B.Press and releasetheprogramming button. The hornwill chirp andthe
lights will flash 4 times indicating the system has entered Option Bank 1.
C. Press and release the brake pedal. The horn will chirp and the lights will
flash 1 time indicating the system is at option 1. Additional press and
releases of the brake pedal will advance to the next option. The horn will
chirp and the lights will flash according to which option is selected (i.e.
Two chirps and flashes indicates option 2).
D. Pressing the transmitter button changes the setting of the option. The
status LED (located in the main harness approximately 4” from the
module) indicates the setting of the option. LED “on” indicates the option
is on, LED “off” indicates the option is off.
System Programming
Otros manuales para Remote Start System
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Arranque remoto de Mopar
Mopar
Mopar CHRYSLER 300C Manual de usuario
Mopar
Mopar 82212610AB Manual de usuario
Mopar
Mopar 82211023 Series Manual de usuario
Mopar
Mopar XBM Manual de usuario
Mopar
Mopar 82212517 Manual de usuario
Mopar
Mopar 82208861 Manual de usuario
Mopar
Mopar 82212895 Manual de usuario
Mopar
Mopar 82215575AB Manual de usuario
Mopar
Mopar K6861211 Manual de usuario
Mopar
Mopar 82215277AB Manual de usuario
Mopar
Mopar 82209870AG Manual de usuario
Mopar
Mopar 82211019xx Jeep Commander (XK) 2008 Manual de usuario
Mopar
Mopar Remote Start System Manual de usuario
Mopar
Mopar 82213587 Manual de usuario
Mopar
Mopar 82209982AH Manual de usuario
Mopar
Mopar 82212423AB Manual de usuario
Mopar
Mopar EVS II Manual de usuario
Mopar
Mopar Jeep Commander 82211019xx Manual de usuario
Mopar
Mopar 82208859 Manual de usuario
Mopar
Mopar DR Manual de usuario
