Moog Videolarm SM5C8N Manual de usuario

•

Rugged polycarbonate camera enclosure

•

Low prole design ideal for smaller camera systems

•

Simple camera installation

•

Designed for use with IP and analog camera systems

(xed & PTZ)

•

Includes impressive 5-year warranty

•

PoE models are also available

Key Features

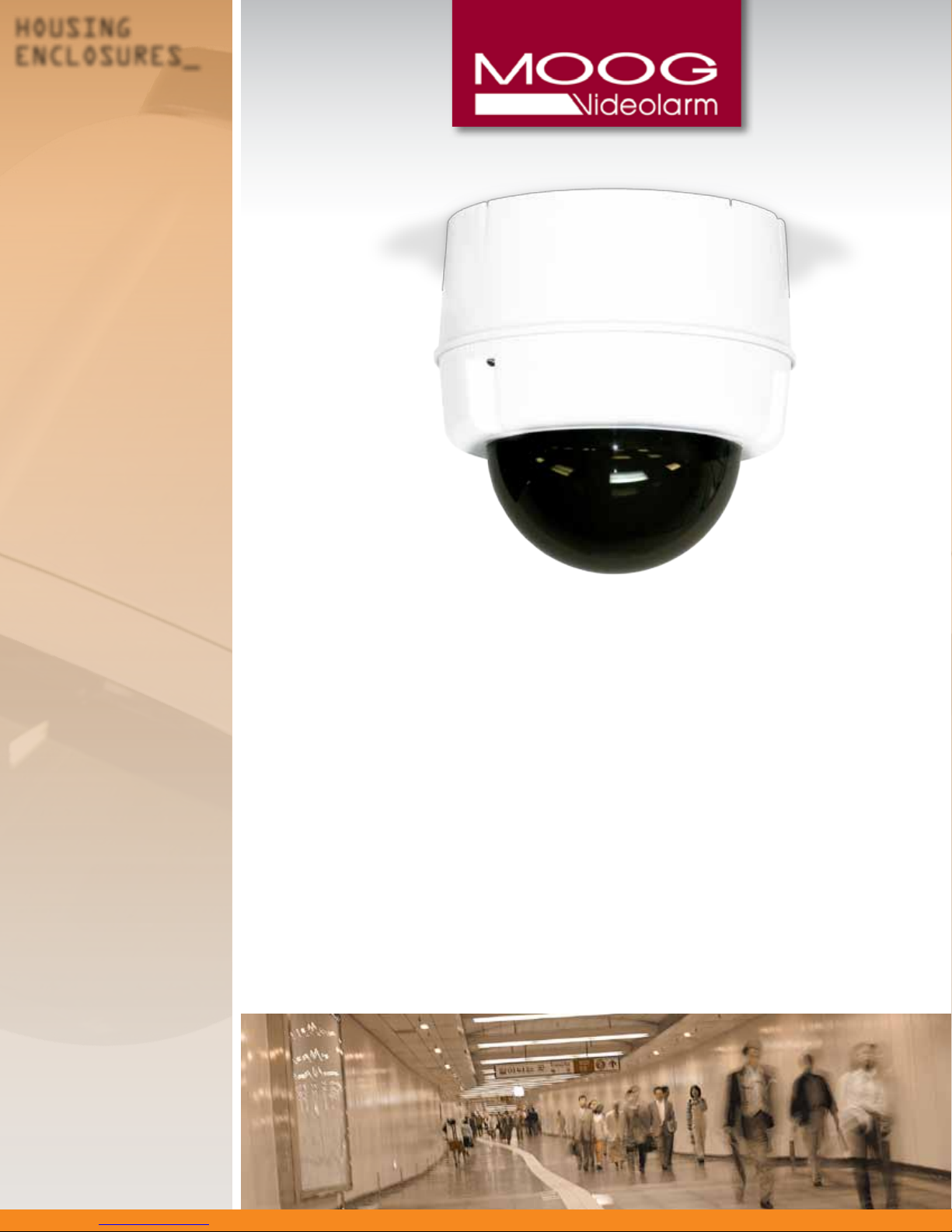

Moog Videolarm’s SM5 Series of vandal-resistant, surface-mount enclosures provides superior camera protection in a compact size.

Engineered with rugged, high-impact polycarbonate, the SM5 is designed to withstand volatile attacks and varying harsh weather conditions.

The versatile enclosure is compatible with several of today’s leading camera systems (xed & PTZ), and includes a 5.9” (149.9mm) optically

transparent, UV-stabilized, thermoplastic polycarbonate dome ensuring optimal performance. A thermostatically controlled heater/blower is

standard for all outdoor models.

SM5

•

Surface mount or pendant mount, using a

1” (25.4mm) standard pipe thread

•

Meets IP66 standards

•

Outdoor models available with thermostatically

controlled heater/blower option

•

Great for: schools, parking garages, warehouses,

and other applications

Compact Vandal-Resistant, Surface-Mount Dome

HOUSING

ENCLOSURES_

SM5_

SM5C2N / ISM5CN

The SM5C2N is the outdoor model for a PTZ camera.

Compact vandal-resistant polycarbonate surface mount

dome. Clear dome, heater/blower, and a 24Vac / 12Vdc

power supply ideal for a network IP PTZ camera. Includes

a bracket for xed cameras. 50 watt wall transformer

ISM5CN Indoor version with no electronics

SM5C24N

The SM5C24N is the outdoor model for a PTZ camera.

Compact vandal-resistant polycarbonate surface mount

dome. Clear dome, heater/blower, and 24Vac input,

ideal for a network IP PTZ camera. Includes a bracket for

xed cameras

Tinted and clear domes available. Specify “C” for Clear or “T” for Tinted

OUTDOOR / INDOOR PTZ MODELS:

Dimensions / Architectural Drawings

Dimensions are in inches and (mm)

SPECIFICATIONS:

Mechanical Specications

Size (h*w*d):

8” x 8.5” x 8.4” (203.2 x 215.9 x 213.36mm)

Weight:

2.3 Lbs. (1.04 Kg)

Construction

BODY:

Polycarbonate

TRIM RING:

Polycarbonate

DOME:

Polycarbonate

Electrical Specications

Power Requirements:

Heater and Blower:

40W max

Camera:

24Vac

Environmental Specications

Operating Temperature:

-40ºF to 122ºF (-40ºC to 50ºC)

Heater activates at:

60ºF (15ºC)

Operating Humidity:

Up to 100%

Meets IK10 Specications

Shipping Specications

Model Shipping Weight Box Dimensions

SM5 5 Lbs. (2.27 Kg) 9” x 9” x 11.375” (228.6 x 228.6 x 288.92mm)

8.49

215.8

2.90

73.7

8.36

212.2

1/2" Conduit Knockout

1" NPT Pipe Enterance

8.49

215.8

Certications and Ratings

RoHS

Product and company names listed are trademarks or trade names of their respective companies.

ACCESSORIES:

WM10G

Aluminum gooseneck wall mount (shown with SM5 attached), with a 1” NPT thread

PMSM5

Sunshield (shown with optional WM20G wall mount attachment), with a 1½” NPT thread

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com

500-677 08-08-2011

ACM-8201/8211,ACM-8511

AVS100

213, 215, 216

VB-300, VB-C10R, VCB-C50iR

COMPATIBLE CAMERAS:

Mounting brackets are included and can accommodate most of today’s popular cameras.

To view the latest listing of compatible cameras please visit

www.videolarm.com/thirdparty.jsp

PTZ:

FIXED COMPATIBLE CAMERAS ALSO AVAILABLE:

For detailed list see visit www.videolarm.com/3rdParty.pdf. Accepts maximum camera

length (MCL) 5”

Arecont Vision

WV-NS202A, WV-SC385, WV-SF300 Series

BB-HCM381,BB-HCM580, WV-CF294, WV-

CF284, WV-NF284, WV-NF302, WN-NS202

SNC-RZ50

IK-WB21A

SM5C8N

Compact, outdoor surface-mount dome housing for

PoE enabled xed and PTZ cameras. DPA system,

30W, 100-240Vac input, midspan included (see

supported cameras)

SM5C8NE Does not include midspan
