Moog Videolarm QView QFDPT3-50NA Manual de usuario

KEY FEATURES

• Availablein7distinguishingenclosures

• Upto4camerasw/4-9mmauto-irislens

• IRcorrectivelensonDay/Nightcameras

• One24Vacpowerinput;Separatevideooutputs

• AvailablewithNVTtwowirevideooutputs

• Factoryinstalledsystem,readytoplugn’play

• BackedbyVideolarm’sindustryleading5YearWarranty

• Fixedcamerasrequireverylittleservicingandusethe

leastamountofharddrivespace;PTZsystemscanonly

faceonedirectionatatime

• Onehousingtoinstallratherthanthreeorfoursaves

moneyontheinitialinstallationandanyfutureservice

calls

• Multiplecamerasinasingledometakeupless

geographythanmanycamerasinmultiplelocations

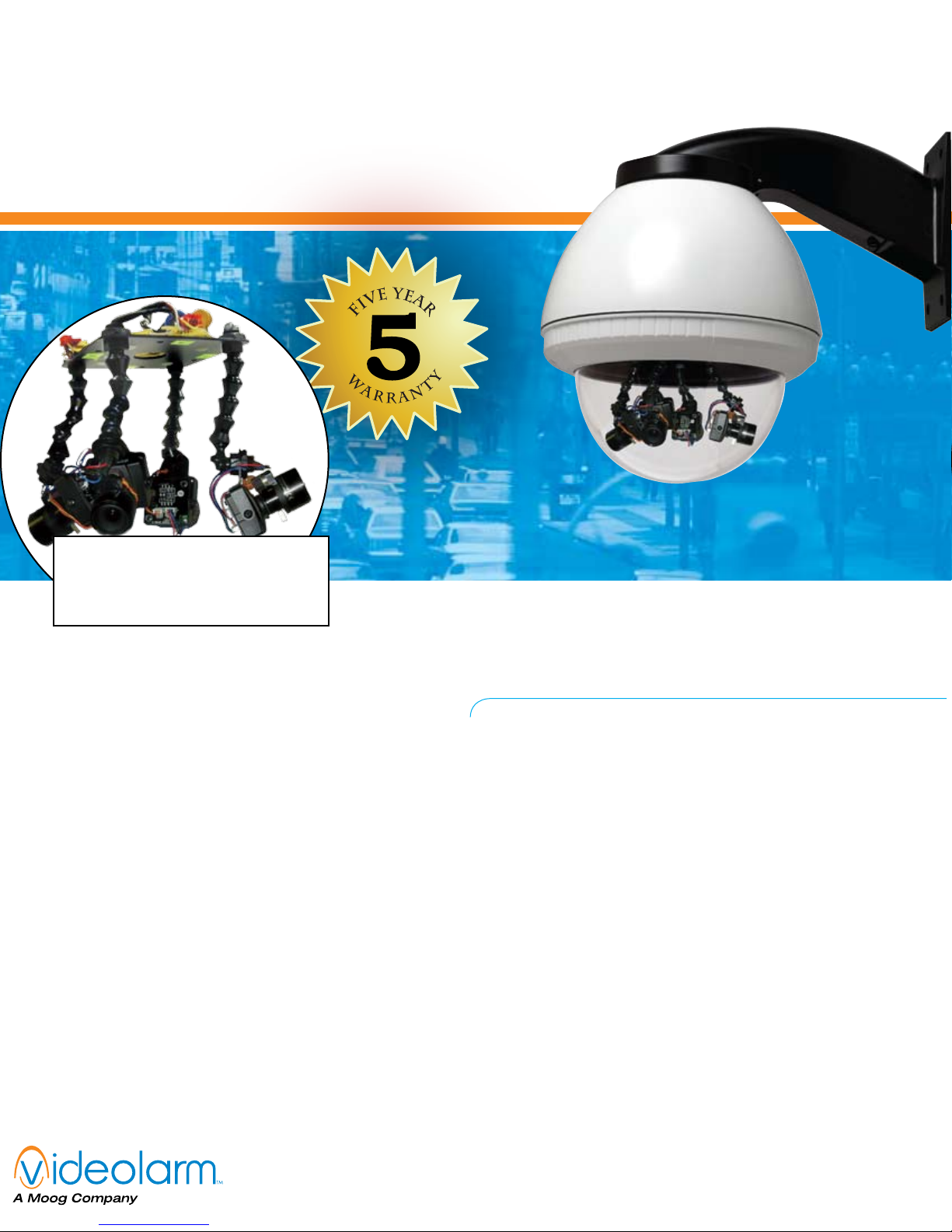

Fully Adjustable Camera Arms

Fully articulated segmented arms for adjustable

viewing angles. Designed to prevent movement

once positioned.

Multiple Camera System

Limited on space and additional funds? Videolarm’s

Q-View camera system provides you with the

advantages of a multi-camera system in one

discrete housing.

Up to 4 cameras are mounted to fully articulated,

segmented arm brackets which can be adjusted

to t a wide range of viewing angles; all without

the use of pan/tilt devices, controllers, or motors.

Available in 7 distinct housing models, the Q-View

system is an ideal solution for monitoring multiple

areas for the budget conscious.

Q-View

2525 Park Central Blvd., Decatur, GA 30035 USA |1.800.554.1124 |www.videolarm.com

2525 Park Central Blvd., Decatur, GA USA 30035 |1.800.554.1124 |www.videolarm.com

Q-View Model Number System

Color Camera Specications

Minimum Illumination: Less than 2.0 lux

Image Sensor: ¼” Interline Transfer CCD

Horizontal Resolution: 470 TVL

Day/Night Camera Specicationsions

Minimum Illumination: 0.21 lux

Image Sensor: ¼” Interline Transfer CCD

Horizontal Resolution: 480 TVL

Q F D WC4-50NA-X2

Wall Mount W

Pendant Mount P

}

Clear Dome C

Tinted Dome T

Four (4) Cameras 4

Three (3) Cameras 3

Two (2) Cameras 2

Color Camera(s) 50

Day/Night Camera(s) 70

4-9mm lens(es) NA

7-50mm lens(es) NA5

NVT Twisted Pair X2

}

Fusion Dome QFD

Indoor Fusion Dome QIFD

Rugged Dome Housing QRH

Surface Mount Dome QSM

Super Dome - 12” QSD

Overhead Drop Ceiling Dome QOD

Recessed Ceiling Mount Dome QMR

QSD model only

Power

Power: All models power 24Vac

For detailed specications on each

Q-View model, please contact your

Videolarm representative or visit

www.videolarm.com

7 Distinct Q-View Housings

Q-View:

To better address the needs of your specic monitoring application’s requirements,

Videolarm oers 7 distinguishing Q-View model enclosures. Simply select the housing of

your choice, based on your environment, then the number of cameras. It’s that easy!

Q-View Camera Features / Options

After selecting the appropriate housing, your nal steps are to pick out the camera

features to be included into your housing.

Quantity of Cameras (2, 3, 4)

All Q-View housings are capable of holding

up to 4 cameras. Simply identify the number

of areas you would like to monitor, and select

the amount of cameras in correspondence.

CameraTypes(ColororDay/Night)

Incorporating auto-iris, varifocal lenses, the

Q-View camera system is available in either

hi-res color or hi-res day / night cameras.

TwistedPair(X2)

Depending on your application’s needs, the

Q-View system is available with an optional

twisted pair conguration.

QFD

FusionDome: Standard 7”

dome available in outdoor or

indoor models. Pendant mount or

wall mount available.

QSD

SuperDome:

12” outdoor dome

available with either a

pendant or wall mount.

QRH

Vandal-Resistant Dome:

Available with a pendant or

wall mount with heater / blower.

QRM

Recessed Ceiling Dome:

Outdoor or indoor models;

extends only 3.5” below ceiling.

QSM

Vandal Resistant

Surface Mount Dome:

IP66 Rating, capable of mounting

either facing down or towards the sky.

QMR

Recessed Ceiling Dome:

Extends only 3.5” below ceiling.

QOD

Drop Ceiling Dome:

Replaces 2’x 2’ ceiling tile.

Outdoor Surveillance

Severe & Volatile Environments

Oce Environments

Tinted and Clear

Domes available for all models.

Change: “C“- Clear or “T“- Tinted.

Cameras can be adjusted to t a wide range of angles
