Monacor TVCCD-623COL Manual de usuario

VersionE.1.1

Professional

ColorCameras

WithEFFIO-E System

1PRODUCT OVERVIEW

1.1ProductInstructions

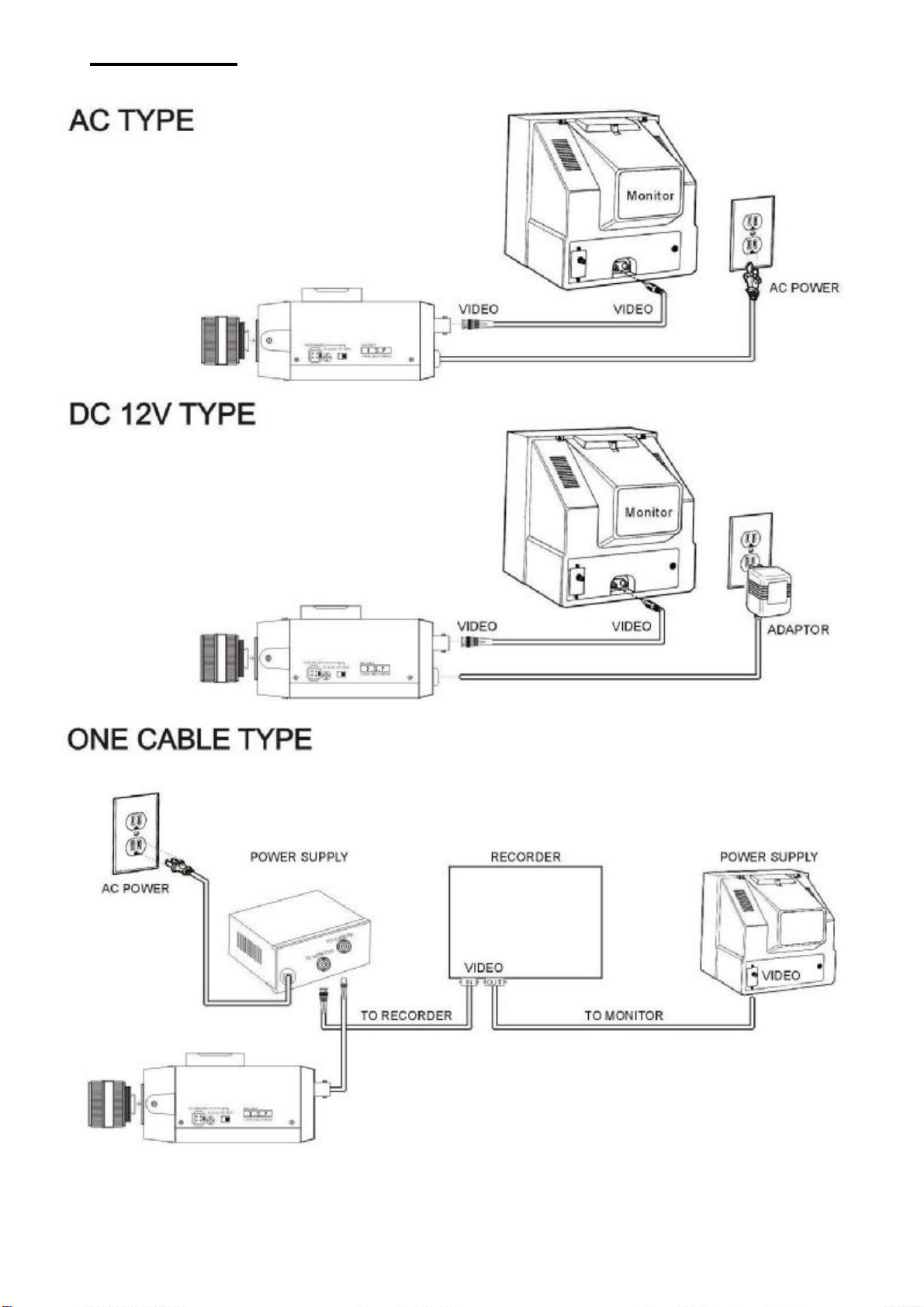

1.2Installation

1.3ProductSpecifications

Model Profession Color Camera

With EFFIO-E System

Imagesensor(device) SONY EXVIEWHAD Ultra High SensitivityCCDSensor

Imagesize 1/3”(approx. 4.8mmx3.6mm)

DSP Effio-EDSP

Chip size 6.0mm(H)*4.96mm(V)

Scanningsystem NTSC orPALsystemas optional

Super High Res.

&Ex-viewEx-view

&High Res. Super

High Resolution

High

Resolution

Picture element

PAL 1020(H)×596(V) 795(H)×596(V) 1020(H)×596(V) 537(H)×597(V)

NTSC 1020(H)×508(V) 795(H)×596(V) 1020(H)×508(V) 537(H)×505(V)

HorizontalResolution 680 TV Line 600 TV Line 680 TV Line 520 TV Line

Minimumillumination 0.005Lux 0.005 Lux 0.01 Lux 0.01 Lux

LightWavelength 400-850nm

Infra-red 400-850nm

Infra-red 400-700nm 400-700nm

Horizontal 3:in front, 40:in backOpticalblack

elements Vertical 12:in front, 2:in back

ExternalSynchronizingsystem

LL:LINE LOCKSync

InternalSynchronizingsystem

INT:InternalSync.

Interlace 2:1 interlace

Aperture correction Haperture Vaperture

Video outputlevel 1.0v(p-p)(75 ohms, composite)

Video S/Nratio More than 52 dB(AGCoff)

DSP ExternalA/Dconverter 12 bits, 1024 gray

WhiteBalance ATWlargerange:2400 Kto 11000 K

Lens Mount C/Cs Mount, Back Focus Adjustable

Back Lightcompensation ActiveHistogramPlus windows weightBLC

V-PhaseControl Adjustable+/-90°

LANGUAGESupport

(English/Japanese/German/French/Russian/Portuguese/Spanish)

Camera IDsetting

LENS(IRISSetting )

SHUTTER/AGC(AEorMEsetting)

BACKLIGH

WHITE BALANCE

PICTUREADJUST

ATR

DAY/NIGHT setting

NR (NoiseReduction)

PRIVACY setting

OSDFunction

SYNC.(INTorLL)

Communication Interface RS 232CCommunication

Camera Mount 1/4”—20 UNC(top/bottomselectable)

Lightcontrol Electroniciris (indooruse) oroptionalauto iris lens

Auto Exposure (AE)system Auto electroniciris:1/50(1/60)– 1/100,000 sec

Auto Iris Output Video:+12VDC(Max.50mA), Video signal(hi-Z), GND

Auto output(optional) 15mVVp-p/10KoamRCAConnector

Auto Iris Sockets

Video Iris

Pin1:+VPin2:VIDEOPin3:Gnd Pin4:GNd

DCIris Pin1:Cont.(-),Pin2:Cont(+), Pin3:Drive(+) Pin4:Drive(-)

Environmentalconditions

Operatingtemperature

Storagetemperature

Temperature:-10 Cto +50 C, Humidity:within 90%RH

Temperature:-20 Cto +70 C, Humidity:within 70%RH

Power Requirement 3.2W

Power consumption (approx.) AC85V-265V, AC24V/DC12V, ONE CABLE

Dimensions (approx.) 130(L)x70(W)x58(H)mm

Weight(approx.) 450g

Coaxial CablePower Supply

To Camera VS1.0.Vp-p/75 ohm

To Monitor VS1.0.Vp-p/75 ohm

Camera Power SupplySystem DCConstantCurrentOver CoaxialCable

ConstantCurrent270mA

MaximumCableLength

RG-58U

RG-59U

RG-6U

200M Copper wire impedance 20!(ohm)"

350M Copper wire impedance 20!(ohm)#

500M Copper wire impedance 20!(ohm)$

Operation Temperature Temperature:-15%to +55&

Humidity Less Than 90%

Power Consumption (approx.) 6 W

Power Requirements 110VAC/60.50Hz, 230VAC/50,60Hz

Dimensions 106mm(L)×44mm(W)×96mm(H)

Weight(approx.) 620g

2OSDMENU

OSD Meun

,1.!UP ,2."DOWN

,3.τLEFT ,4. υRIGHT

,5. ENTER

1. LANGUAGE

2. CAMERAID

3. LENS

4. SUTTER/AGC

5. BACKLIGHT

6. WHITEBAL

7. PICTADJUST

8. ATR

9.DAY/NIGHT

10.NR

11.MOTIONDET

12.PRIVACY

13.SYNC

14.CAMERARESET

15.SAVE ALL

,3 ,4

OSDCONTENT

2.1LANGUAGE

Function Option Description

LANGUAGE

English

Japanese

German

French

Russian

Portuguese

Spanish

Selectthelanguageinwhichtodisplaythe

internal OSDmenu.

The menuscanbechangedin realtimein

the selected language.

2.2CAMERAID

This function is used toset the camera ID

Function Option Description

CAMERAID OFF

ON 8

Set the camera IDtoONor OFF

SettheCAMERA_IDparameter asshown

below.

OFF : Camera IDdisplayOFF

ON: Camera IDdisplayON

The displayswitchestothe“CAMERAID”

branchmenuscreen when the Enter

operationinputisperformedfromtheON

selected status.
