molex Shielded DataGate Manual de usuario
INSTALLATION INSTRUCTIONS
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Shielded DataGate Jack
1. Termination Tool
110 termination tool set on low impact.
Terminated with F/UTP cable .............................................................................................page 1-3
Terminated with S/FTP cable .............................................................................................page 4-5
Terminated with U/FTP cable .............................................................................................page 6-8
1
2c. 90° cable entry.
2d. Remove can cut-out for 90° cable entry.
2. Preparation and termination (F/UTP)
2a. Slide rear can and plastic cable clamp on to cable.
2b. 180° cable entry.
TERMINATED WITH F/UTP CABLE
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
2e. Remove 100mm of cable sheath. Cut central separator back to sheath.
Cut cellophane wrap back to sheath. Wrap foil around cable.
100mm
Untwist -
Max 6mm
Cut Wrap foil around
cable
2
2f. Wrap drain wire around foil and tighten, leaving a length of drain wire available
for wrapping around rear can cable clamp.
2g. Wiring Map.
2h. Terminate the jack before inserting it in front can.
2i. Ensure that the cable sheath is maintained up to the connector.
2j. Once terminated, the stuffer cap must be fitted to the connector.
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
3 Fitting Can and Securing Cable (F/UTP)
3a. Slide the rear can over the front can. Ensure that the two halves are latched
together securely.
3b. Ensure that sufficient foil and drain wire makes contact with rear metal collar.
Trim off excess foil.
3c. Tighten the drain wire over the metal cable collar to maintain shield continuity.
3d. Secure the cable with the plastic cable clamp, placed and tightened over the metal
cable collar.
3
2k. Ensure cables are trimmed off flush with IDC, if not use side cutters to remove excess
cable after termination.
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
4d. Wiring Map.
4e. Terminate cable ensuring that enough twisted braid is available to make contact
when the rear can is fitted.
Untwist -
Max 6mm
4f. Ensure cables are trimmed off flush with IDC, if not use side cutters to remove excess
cable after termination.
4. Preparation and termination (S/FTP)
4a. Slide plastic cable clamp and rear can on to cable.
4b Remove 100mm of cable sheath.
4c. Remove foil from pairs of cable. Twist braid and wrap around the cable sheath
4
TERMINATED WITH S/FTP CABLE
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
5. Fiting Can and Securing Cable (S/FTP)
5a. Slide the rear can over the front can. Ensure that the two halves are latched
together securely.
5b. Wrap braid around the metal cable collar to maintain shield continuity.
5c Secure the cable and braid with the plastic cable clamp, place and tighten over the
metal cable collar.
4g. Fit stuffer cap after termination.
5
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
6d. Wrap the foil around the sheath with the conductive side of the foil facing outward.
Trim off excess foil.
6. Preparation and termination (U/FTP)
6a. Slide plastic cable clamp and rear can on to cable.
6b. Remove 100mm of cable sheath.
6c. Remove 3 of the 4 foils from the cable pairs. Unwrap the foil from 1 pair in
preparation for wrapping around the cable sheath.
The dark side of foil is the non-conductive side. Ensure that this side faces the cable
sheath when wrapped. The silver colour is the conductive side and must face outward.
TERMINATED WITH U/FTP CABLE
6
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.

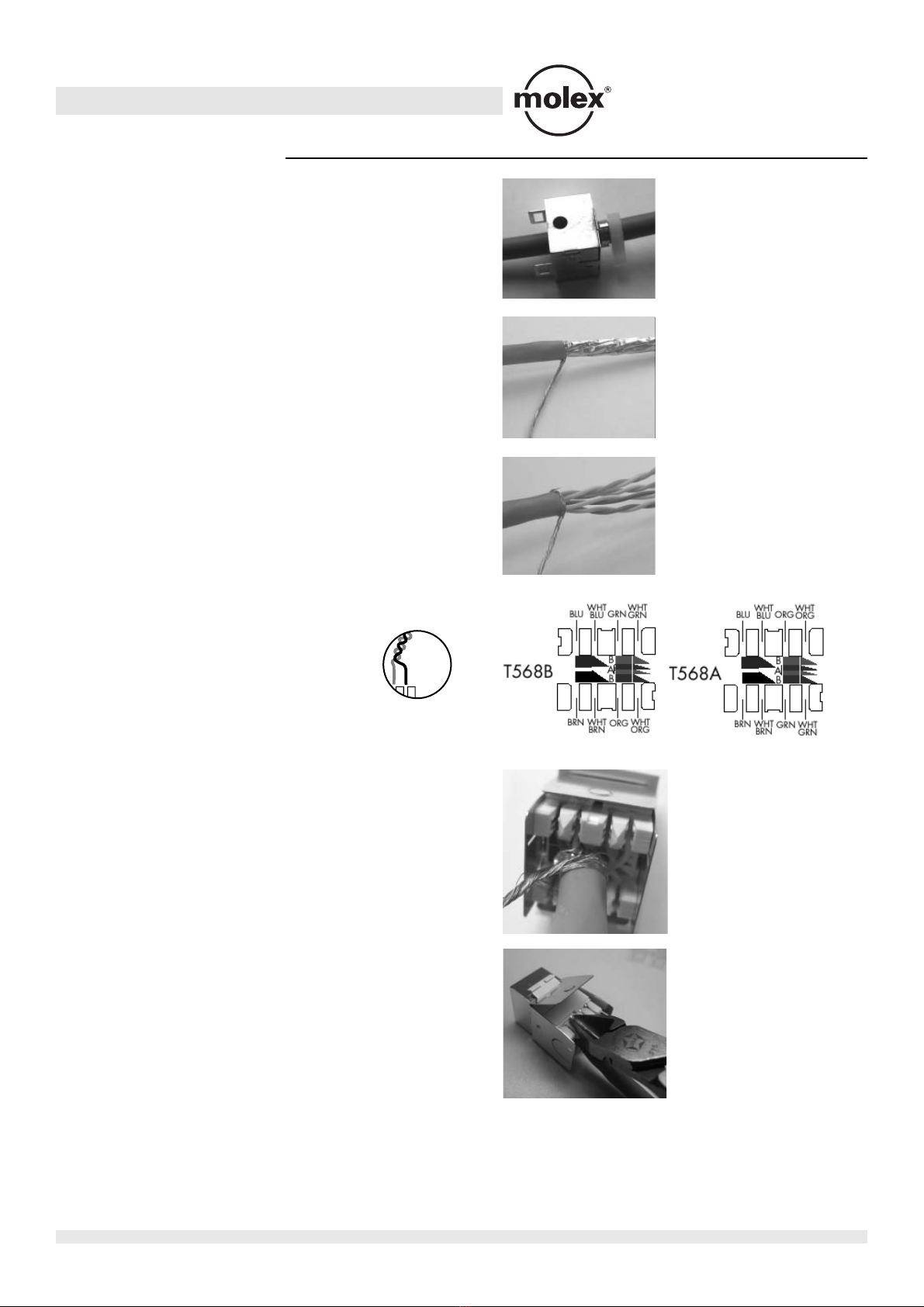

6e. Wrap drain wire around foil and tighten, leaving a length of drain wire available
for wrapping around rear can cable clamp.
6f. Wiring Map.
6g. Terminate the jack before inserting it in front can.
6h. Ensure that the cable sheath is maintained up to the connector.
6i. Once terminated, the stuffer cap must be fitted to the connector.
6j. Ensure cables are trimmed off flush with IDC, if not use side cutters to remove excess
cable after termination.
7
INSTALLATION INSTRUCTIONS Shielded DataGate Jack
Doc. # AS-18700-002, Rev C Form # 315-234 Rev. Date: July 2008 SAP # 187000294
Molex Premise Networks
Corporate Headquarters
Tel: 1 866 733 6659
www.molexpn.com
European
Headquarters
Tel: 44 (0) 1489 572111
www.molexpn.co.uk
Pac Rim
Headquarters
Tel: 61 3 9971 7111
www.molexpn.com.au
Molex
Incorporated
Tel: 630 969 4550
www.molex.com
MOLEX PREMISE NETWORKS
This information is correct as at the time of publication, specifications are subject to change.
7 Fitting Can and Securing Cable (U/FTP)
7a. Slide the rear can over the front can. Ensure that the two halves are latched
together securely.
7b. Ensure that sufficient foil and drain wire makes contact with rear metal collar.
Trim off excess foil.
7c. Tighten the drain wire over the metal cable collar to maintain shield continuity.
7d. Secure the cable with the plastic cable clamp, placed and tightened over the metal
cable collar.
8
