Moducase Df Series Manual de usuario
DF Series
DF30/DF60/DF130 &
Sixth Series
Sixth55/Sixth98/Sixth110
Quick overview of aluminum frame
Front Frame
Side frame back bar
Joints uses M5x20mm (3/4”) bolts x 16 and washers x 16
*Note
If you have adjoining displays, please DO NOT insert Rubber slots on the back of the front frame and
Side frame bar before assembly of displays.
*Orientation of Front frame
Centre screw hole upward
Lips facing outward
*Rubber slot facing up
Insert rubber slot if you are
installing the sidepanel.
*The rubber slot facing inward, opposite of the
front frame lips
Side panel
Side panel
Top panel

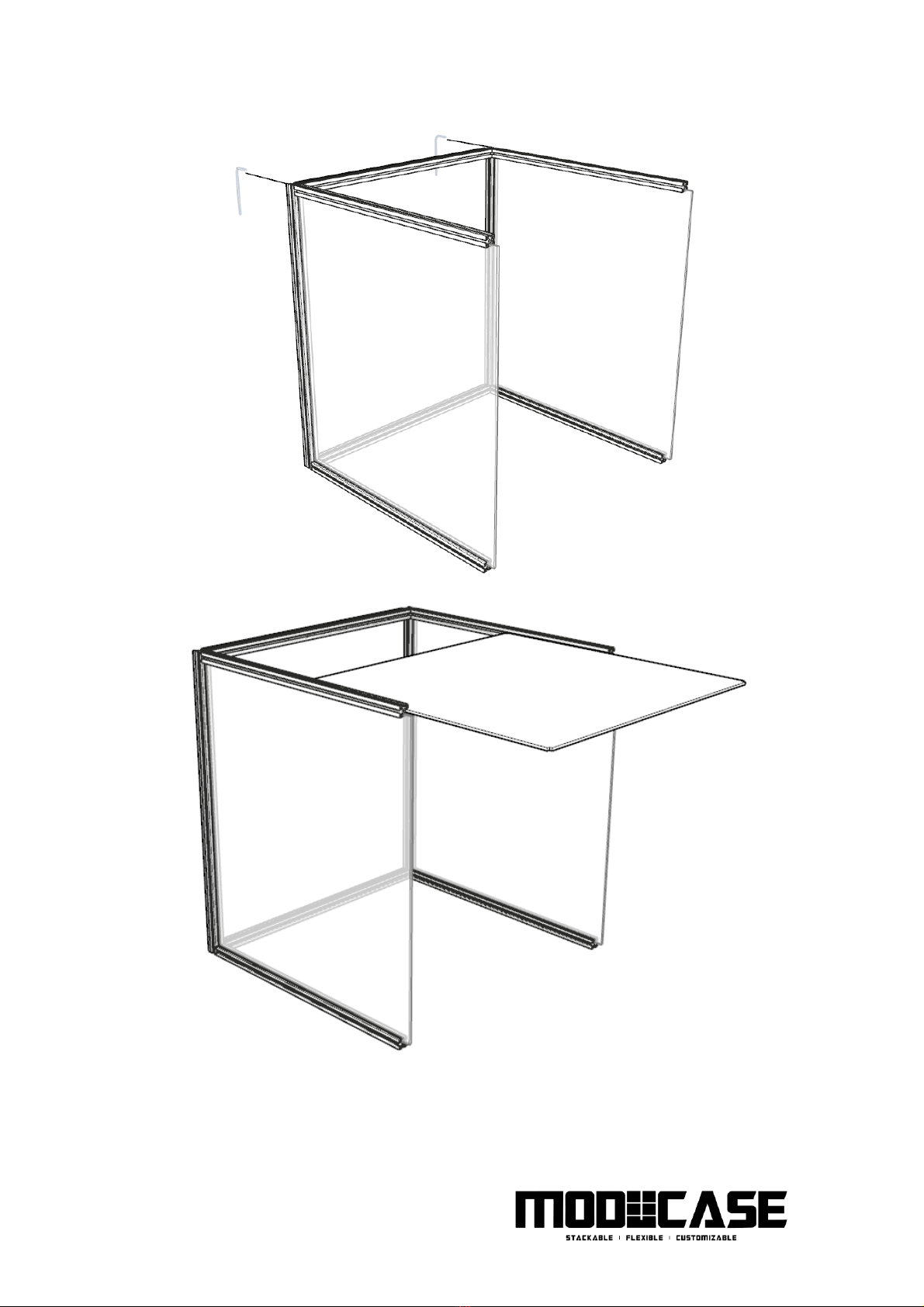

*Do not tighten the bolts
*Leave at least a 5mm or ¼” gap
