Modern Flames Sedona Pro Multi Instrucciones de funcionamiento

SERIAL NUMBER:________________________________________

Sedona Pro Multi

SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT

WORLD INSTALLATION/OWNERS MANUAL

CE RATED FOR 220-240VAC 50/60HZ INSTALLATIONS

REV 20210127

USER INSTRUCTIONS

SEDONA PRO MULTI

SPM-2426/INT • SPM-3026/INT • SPM-3626/INT • SPM-4226/INT

SAFETY INFORMATION AND OPERATIONS MANUAL

Read these instructions completely before beginning installation. Failure to follow them could

cause a heater malfunction resulting in serious injury and/or property damage.

WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in

areas where gasoline, paint or ammable liquids are or are stored.

This replace meets the construction and safety standards of H.U.D. for application in

manufactured homes when installed according to these instructions.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

PAGE 8 PAGE 7 PAGE 8

PAGE 9

USER INSTRUCTIONS

TABLE OF CONTENTS

When using electrical heaters, basic

precautions should always be followed to

reduce the risk of re, electric shock and injury

to persons, including the following:

1. Read all instructions before installing or

using this heater.

2. This heater is hot when in use. To avoid

burns, do not let bare skin touch hot

surfaces. Keep combustible materials,

such as furniture, pillows, bedding, papers,

clothes, and curtains at least 3 feet (0.9m)

from the front of the heater and keep them

away from the sides and rear.

3. Extreme caution is necessary when any

heater is used by or near children or

disabled people and whenever the heater is

left operating and unattended.

4. Do not operate any heater after it

malfunctions, has been dropped, or

damaged in any manner. Disconnect power

at service panel and have heater inspected

by an authorized technician or a reputable

electrician before using.

5. Do not use outdoors.

6. To disconnect heater, turn controls to off

and turn off power to heater circuit at main

disconnect panel.

7. Do not insert or allow foreign objects to

enter any ventilation or exhaust opening as

this may cause an electric shock or re, or

damage the heater.

8. To prevent a possible re, do not block air

intakes or exhaust in any manner.

9. A heater has hot, arcing or sparking parts

inside. Do not use in areas where gasoline,

paint or ammable vapors or liquids are

used or stored.

10.Use this heater only as described in this

manual. Any other use not recommended

by the manufacturer may cause re,

electric shock or injury to persons.

11. SAVE THESE INSTRUCTIONS

WARNING: Improper installation,

adjustment, alteration, service or

maintenance can cause injury or property

damage. Refer to this manual. For

assistance or additional information,

consult a qualied installer.

CAUTION: Do not expose the heater to the

elements (such as rain, etc).

Do not place clothing or other ammable

material on or near rebox. Never place

any objects on the replace.

Carefully supervise young children when

they are in the room with replace.

Fireplace becomes very hot when running.

Keep children and adults away from

hot surfaces to avoid burns or clothing

ignition. Fireplace will remain hot for a

time after shutdown. Allow surfaces to

cool before touching.

CAUTION: In order to avoid

overheating, do not cover the

heater.

IMPORTANT INSTRUCTIONS

Important Instructions 3

Power Data 4

Product Guide 4

Box Contents 5

Installation 6

Operation 12

Service Parts 13

Troubleshooting 15

Frequently Asked Questions 16

Cleaning and Maintenance Instructions 17

Wiring Diagram 17

USER INSTRUCTIONS

POWER DATA

PRODUCT GUIDE

SPM-2426/INT SPM-3026/INT SPM-3626/INT SPM-4226/INT

Volts/HZ

Amps

AC 220-240V

50/60Hz 9 Amps

AC 220-240V

50/60Hz 9 Amps

AC 220-240V

50/60Hz 9 Amps

AC 220-240V

50/60Hz 9 Amps

Heater AC 220-240V

2000W

AC 220-240V

2000W

AC 220-240V

2000W

AC 220-240V

2000W

Lamps LED 12V LED 12V LED 12V LED 12V

Rotor Motor

AC 220-240V

50/60Hz

4.5W 15/18RPM

CCW

AC 220-240V

50/60Hz

4.5W 15/18RPM

CCW

AC 220-240V

50/60Hz

4.5W 15/18RPM

CCW

AC 220-240V

50/60Hz

4.5W 15/18RPM

CCW

Model Viewing Area Firebox Dimensions Framing Dimensions

SPM-2426/INT

23-7/8"W X 26" H

(606mm W x 660mm H)

24"W X 35"H x 12-1/2" D

(

610mm W x 889mm H x 318mm D)

24-1/4"W X 35-3/8"H x 13" D

(

616mm W x 899mm H x 330mm D)

SPM-3026/INT

29-7/8"W X 26" H

(759mm W x 660mm H)

30"W X 35"H x 12-1/2" D

(

762mm W x 889mm H x 318mm D)

30-1/4"W X 35-3/8"H x 13" D

(

768mm W x 899mm H x 330mm D)

SPM-3626/INT

35-7/8"W X 26" H

(911mm W x 660mm H)

36"W X 35"H x 12-1/2" D

(

914mm W x 889mm H x 318mm D)

36-1/4"W X 35-3/8"H x 13" D

(

920mm W x 899mm H x 330mm D)

SPM-4226/INT

41-7/8"W X 26" H

(

1064mm W x 660mm H)

42"W X 35"H x 12-1/2" D

(

1067mm W x 889mm H x 318mm )

42-1/4"W X 35-3/8"H x 13" D

(1073mm W x 899mm H x 330mm D)

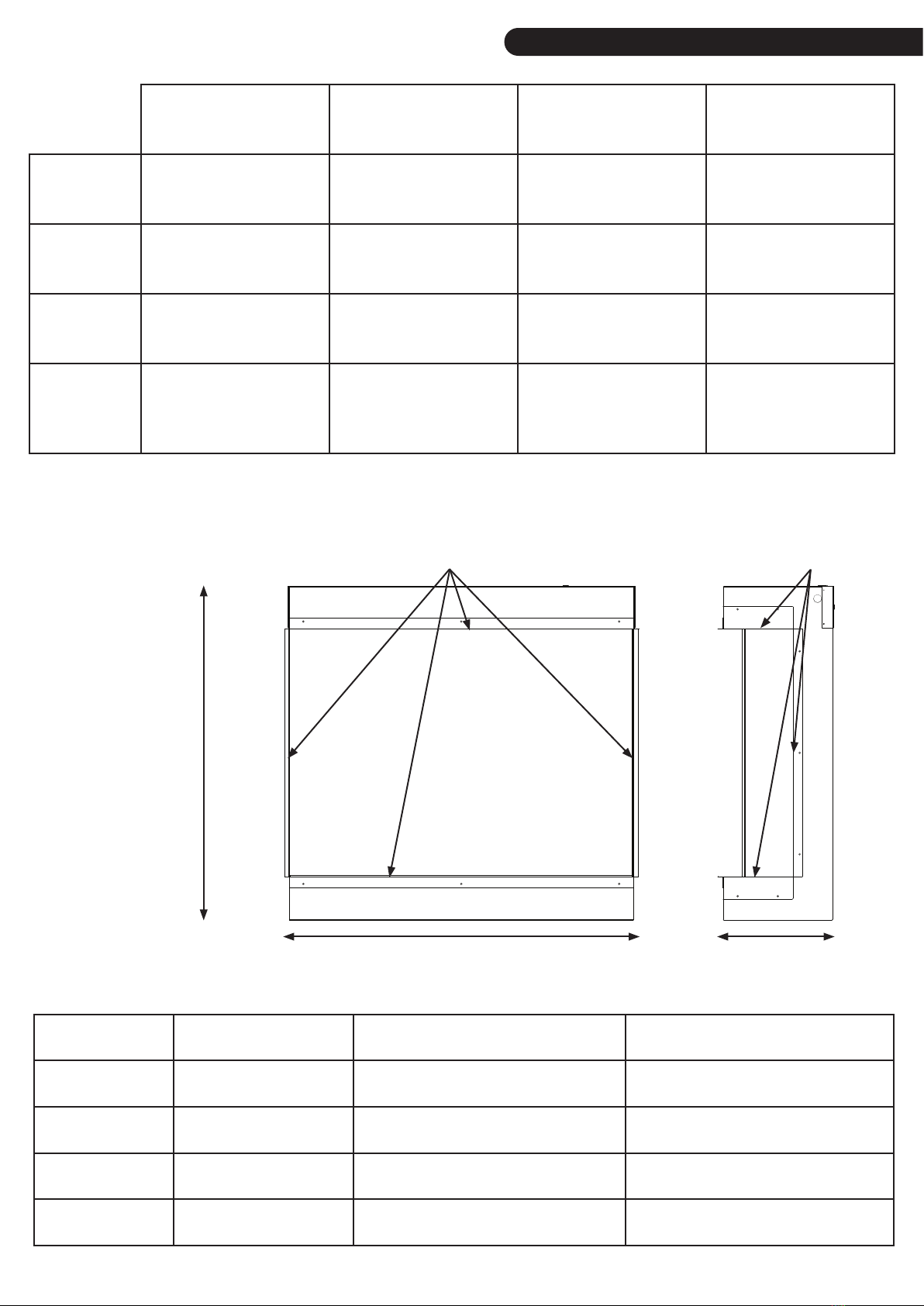

889mm

(all models)

Width varies (see chart below) 13" (330mm)

all models

Drywall stops Drywall stops

INSTALLATION

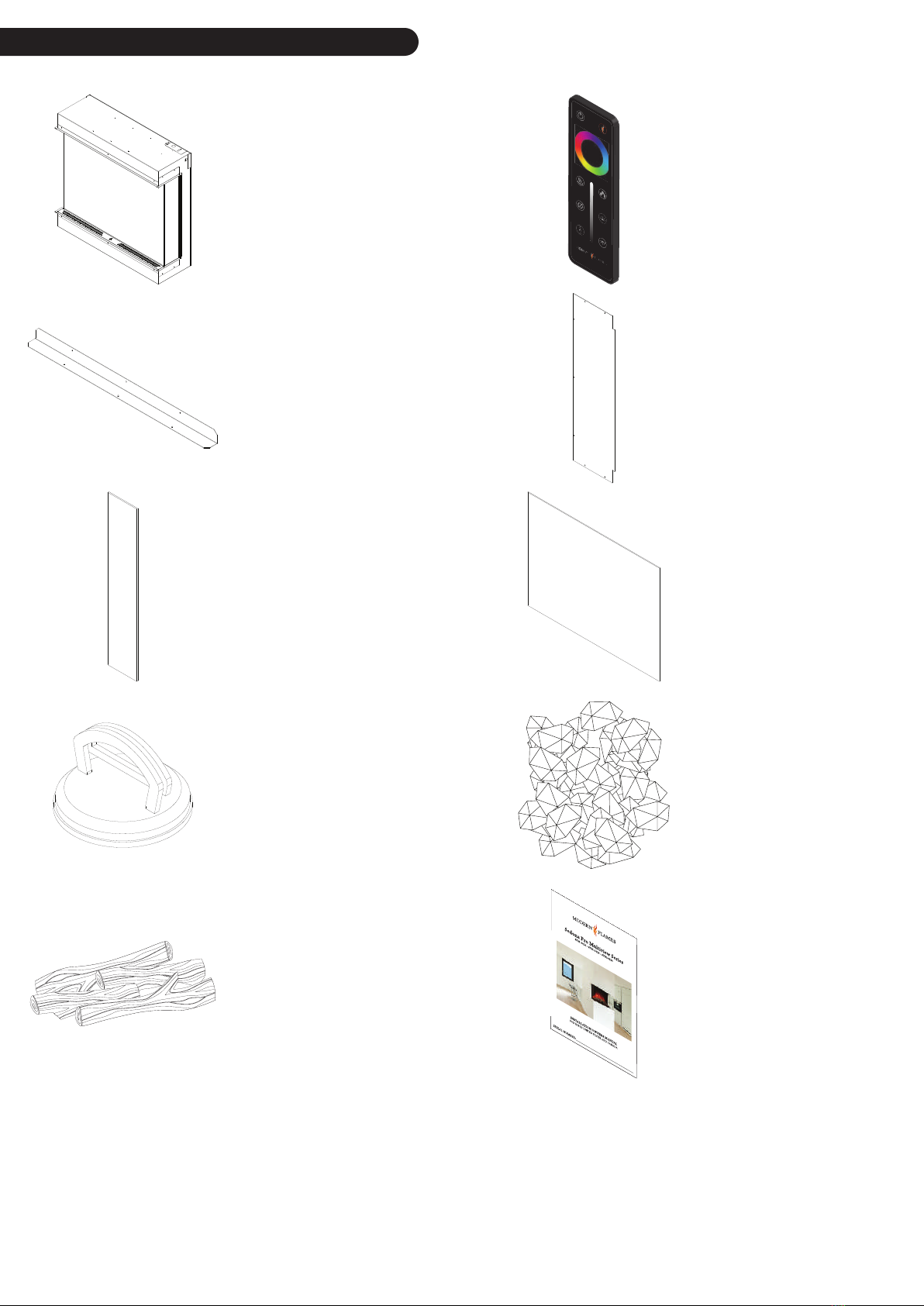

BOX CONTENTS

(A) 1 Fire Unit (B) 1 Remote

Brackets

(E) 2 Side Glass

Pieces

(D) 2 Side Covers

(F) 1 Front Glass

(H) Smoke Acrylic

Crystals

(J) 1 Owner's Manual

(G) 2 Suction Cups

(I) Log Set

INSTALLATION

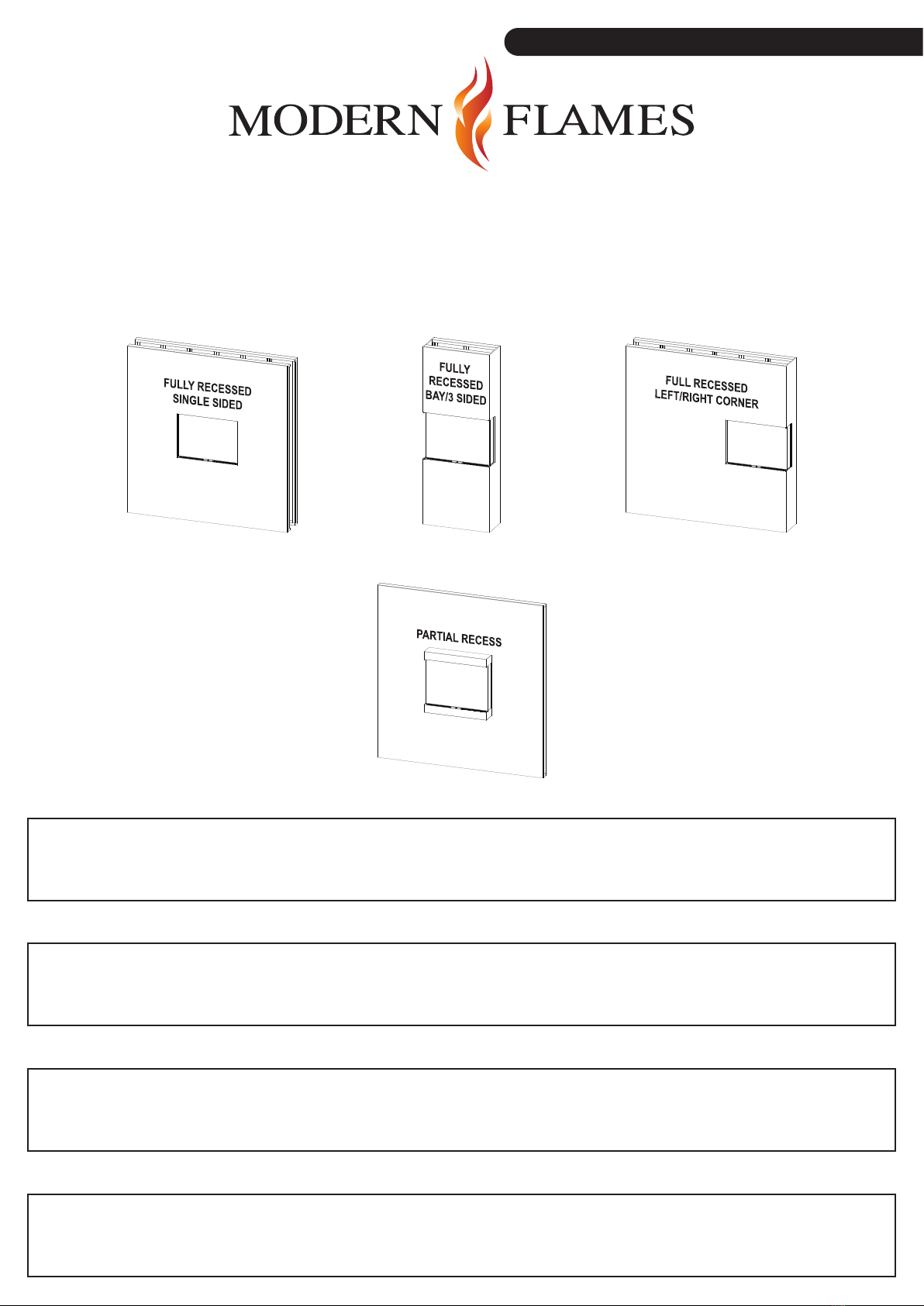

This replace has a number of installation options. It can be installed fully recessed, half recessed, wall

mounted with a oating cabinet or with a simple slide-in cabinet. In addition, to the partial recessed

option, the replace can be installed fully recessed for a singled sided install, a 3 sided install, or left and

right corner.

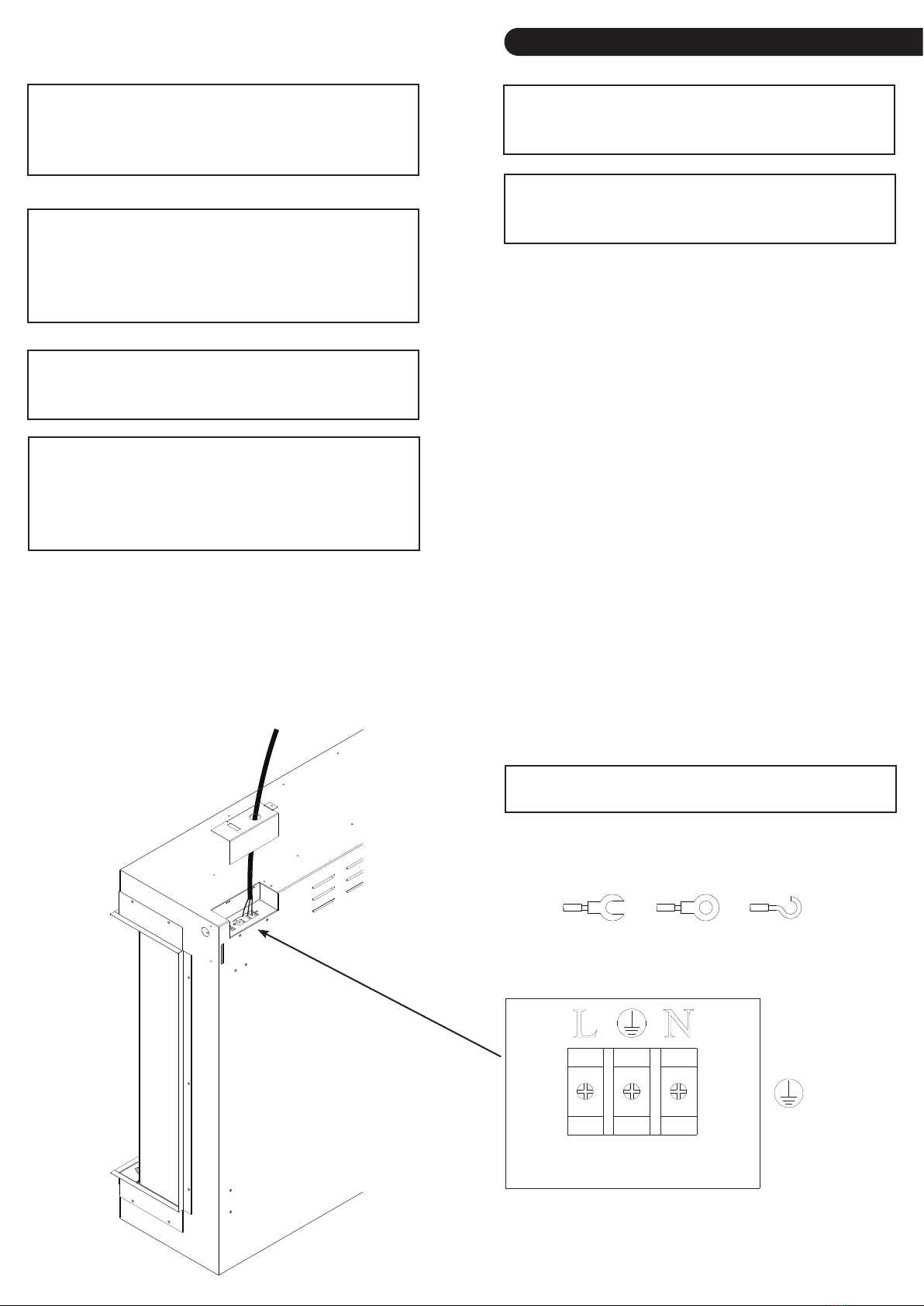

To prepare for installation, connect the hard wire to the terminal block located on top back right of

replace according to the diagram below. Choose any connector type according to local building code.

To be performed by a qualied electrician

according to local building codes.

L - Line (Hot)

- Ground

N - Neutral

INSTALLATION

WARNING: If the information in these

instructions is not followed exactly, a re

or explosion may result causing property

damage, personal injury or death.

WARNING - RISK OF FIRE!

To prevent a possible re, do not block air

intake or exhaust in any manner. Do not

use on soft surfaces where openings may

become blocked.

WARNING - RISK OF FIRE!

Do not blow or place insulation against the

rebox.

To reduce the risk of re do not store or

use gasoline or other ammable vapors in

the vicinity of this or any other heater.

CAUTION: Keep combustible materials,

such as furniture, pillows, bedding,

papers, clothes and curtains at least 3

feet (0.9m) from the front of the heater and

keep them away from the sides and rear.

CAUTION: Wear gloves and safety glasses

for protection during installation and

maintenance.

Installing replace

Select a suitable location that is not susceptible

to moisture and is a safe distance from drapes,

furniture and high trafc areas. A 13 amp

(EU) or 10 amp (AU/NZ) circuit is required. A

dedicated circuit is preferred but not essential

in all cases. A dedicated circuit will be required

if after installation, the circuit breaker trips

on a regular basis when heater is operating.

Additional appliances on the same circuit may

exceed the current rating of the circuit breaker.

Note: Follow all national and local electrical

codes.

INSTALLATION

Framing Dimensions

Model WHD

SPM-2426/INT 24-1/4" (616mm) 35-3/8" (899mm) 13" (330mm)

SPM-3026/INT 30-1/4" (768mm) 35-3/8" (899mm) 13" (330mm)

SPM-3626/INT 36-1/4" (920mm) 35-3/8" (899mm) 13" (330mm)

SPM-4226/INT 42-1/4" (1073mm) 35-3/8" (899mm) 13" (330mm)

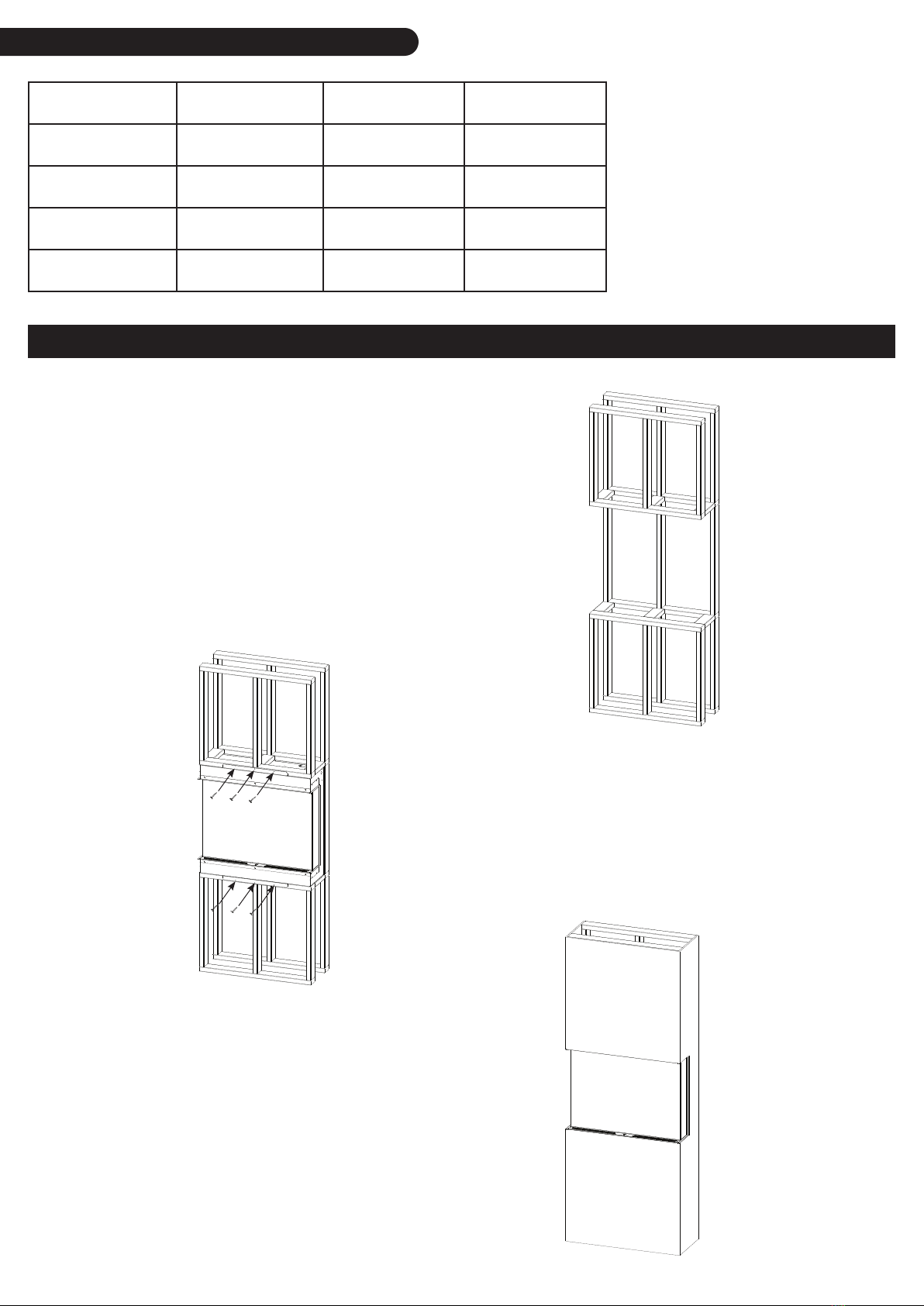

1. Prepare the framed opening according from the

dimension chart above. Provide a 13 amp (EU) or

10 amp (AU/NZ) circuit for hard wire install at the

top right of the framed opening.

2. Install L Metal Mounting Brackets (C) to the

top and bottom of the re unit.

3. Install the re unit in the framed opening with a

minimum 1-1/4" (32mm) drywall screws to secure

the unit.

4. Mask the exposed re unit during the drywall

process. Install drywall to the drywall stops on the

perimeter of the re box.

For more information on the drywall stops

see page 4.

5. Install log set and glacier crystals, see page 10.

6. Install the side and front glass pieces according to

installation diagram on Page 11.

3-SIDED INSTALLATION (BAY)

INSTALLATION

4. Install the replace in the framed opening with a

minimum 1-1/4" (32mm) drywall screws to secure

the unit.

5. Mask the exposed re unit during the drywall

process. Install drywall to the drywall stops on the

perimeter of the re box. For more information on

the drywall stops see page 4.

6. Install log set and glacier crystals, see page 10.

7. Install the remaining side glass and front glass

according to installation diagram on Page 11.

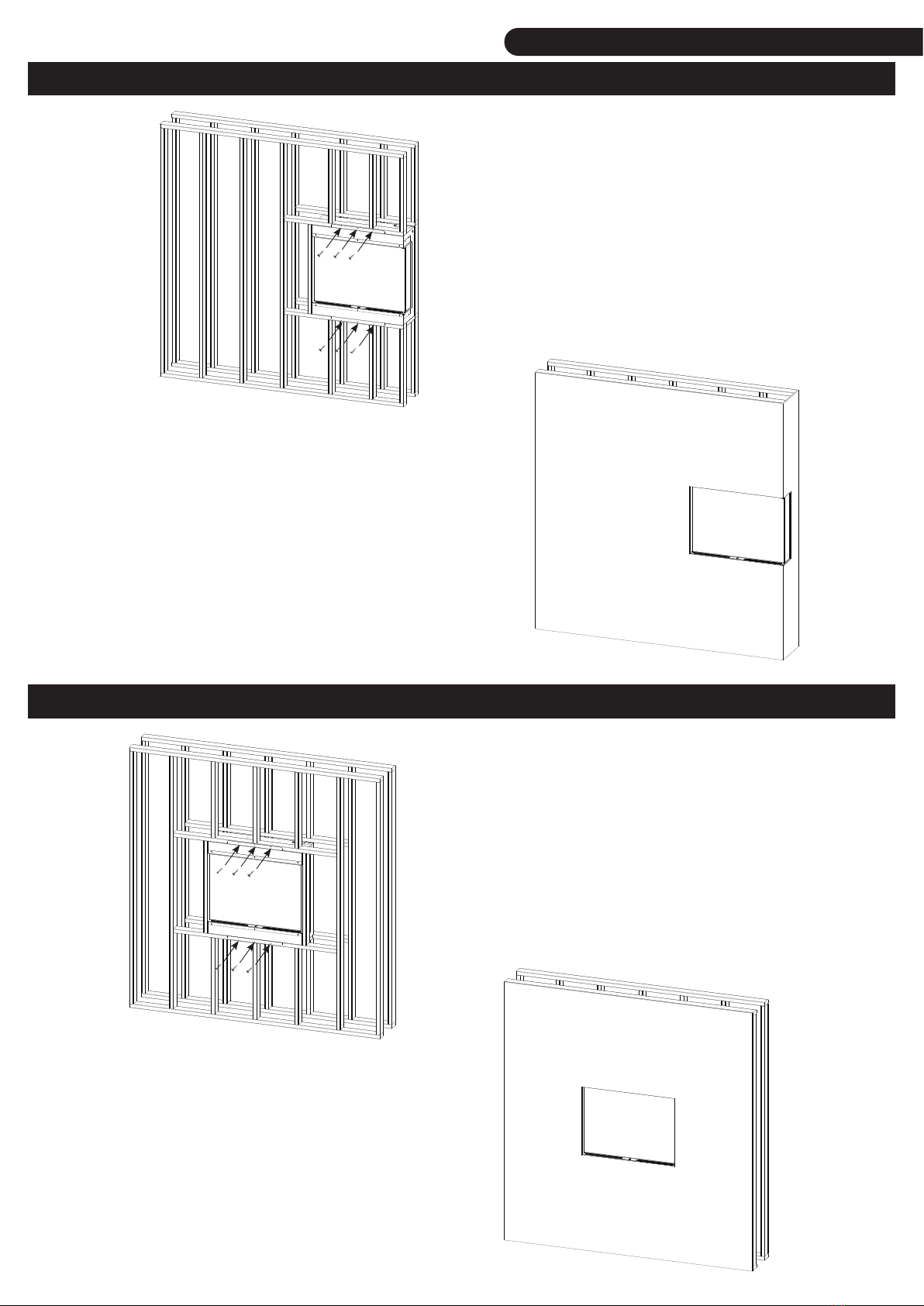

1. Follow steps 1 & 2 from the 3 sided installation

instructions.

2. Remove the drywall stops on both sides of the replace.

3. Install the side glass then side covers on both sides of

the replace (the side glass must be installed before

the metal side cover. See installation diagram on

Page 11.)

4. Install the replace in the framed opening with a

minimum 1-1/4" (32mm) drywall screws to secure the

unit.

5. Mask the exposed replace during the drywall

process. Install drywall to the drywall stops on the

perimeter of the replace. For more information on

the drywall stops see page 4.

6. Install log set and glacier crystals, see page 10.

7. Install the front glass according to installation

diagram on Page 11.

1. Follow steps 1 & 2 from the 3 sided installation

instructions.

2. Remove the corresponding drywall stops according

to your installation (in the example, the drywall

stops on the left end would be removed.)

3. Install the side glass then the corresponding side

cover according to your installation (the side glass

must be installed before the metal side cover.

See installation diagram on Page 11.)

FULLY RECESSED INSTALLATION (LEFT/RIGHT CORNER)

FULLY RECESSED INSTALLATION (SINGLE SIDED)

INSTALLATION

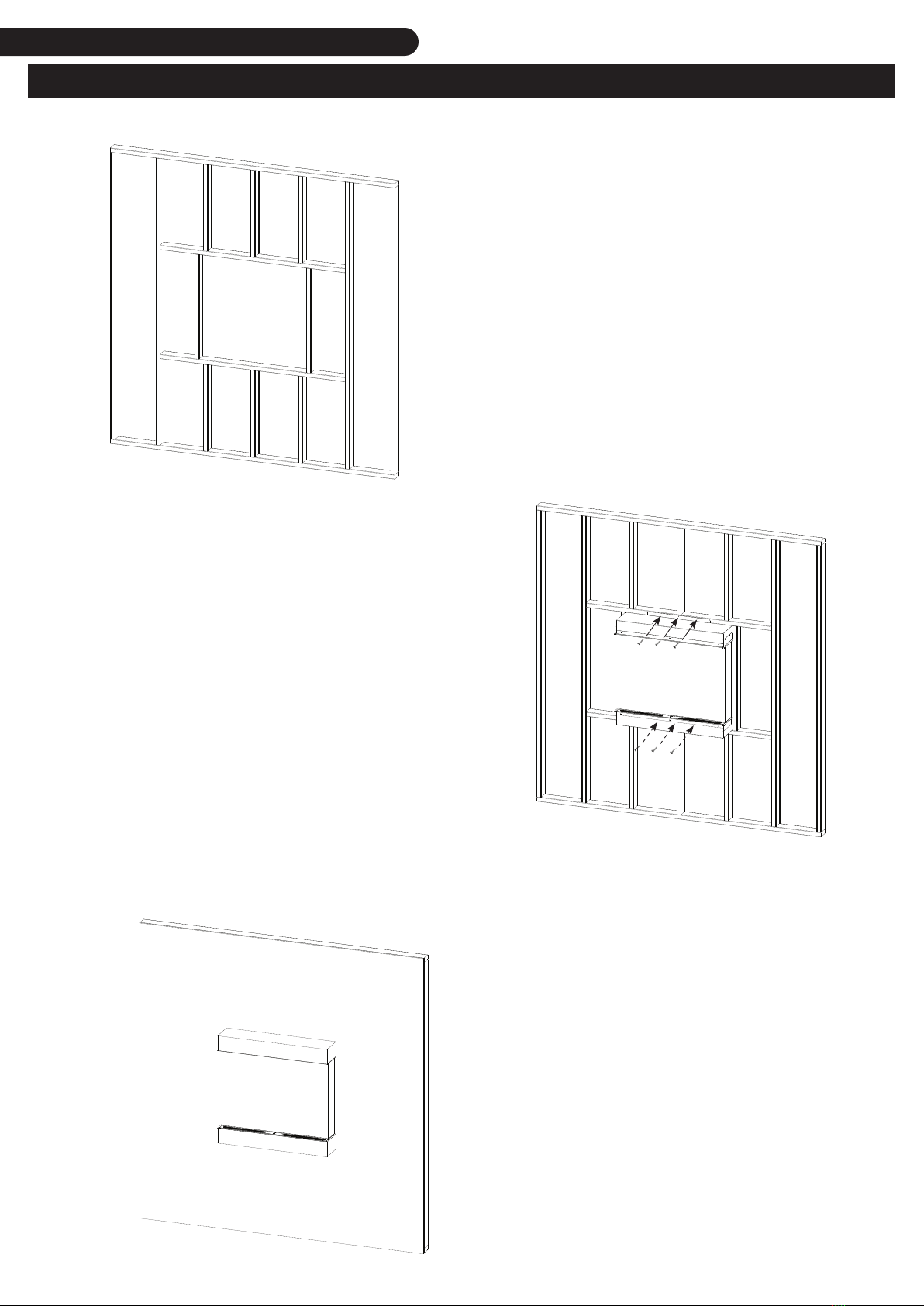

1. This installation is optimized for a 2"x6" (51mm X

152mm) framed wall. Prepare the framed opening

according to the height and width of the chart on

page 7. Provide a 13 amp (EU) or 10 amp (AU/

NZ) circuit for hard wire install at the top right of the

framed opening.

2. Install L Metal Mounting Brackets to the top and

bottom of the replace. Mounting holes located

approximately 8-3/4" (223mm) from front surface.

3. Install the re unit in the framed opening with a

minimum 1-1/4" (32mm) drywall screws to secure

the replace.

4. Mask the exposed replace during this process.

Install drywall, tile or material of your choice to the

drywall stops on the perimeter of the replace. For

more information on the drywall stops see page 4.

5. Install log set and glacier crystals, see page 10.

6. Install the side and front glass pieces according to

installation diagram on Page 11.

PARTIAL RECESSED INSTALLATION

INSTALLATION

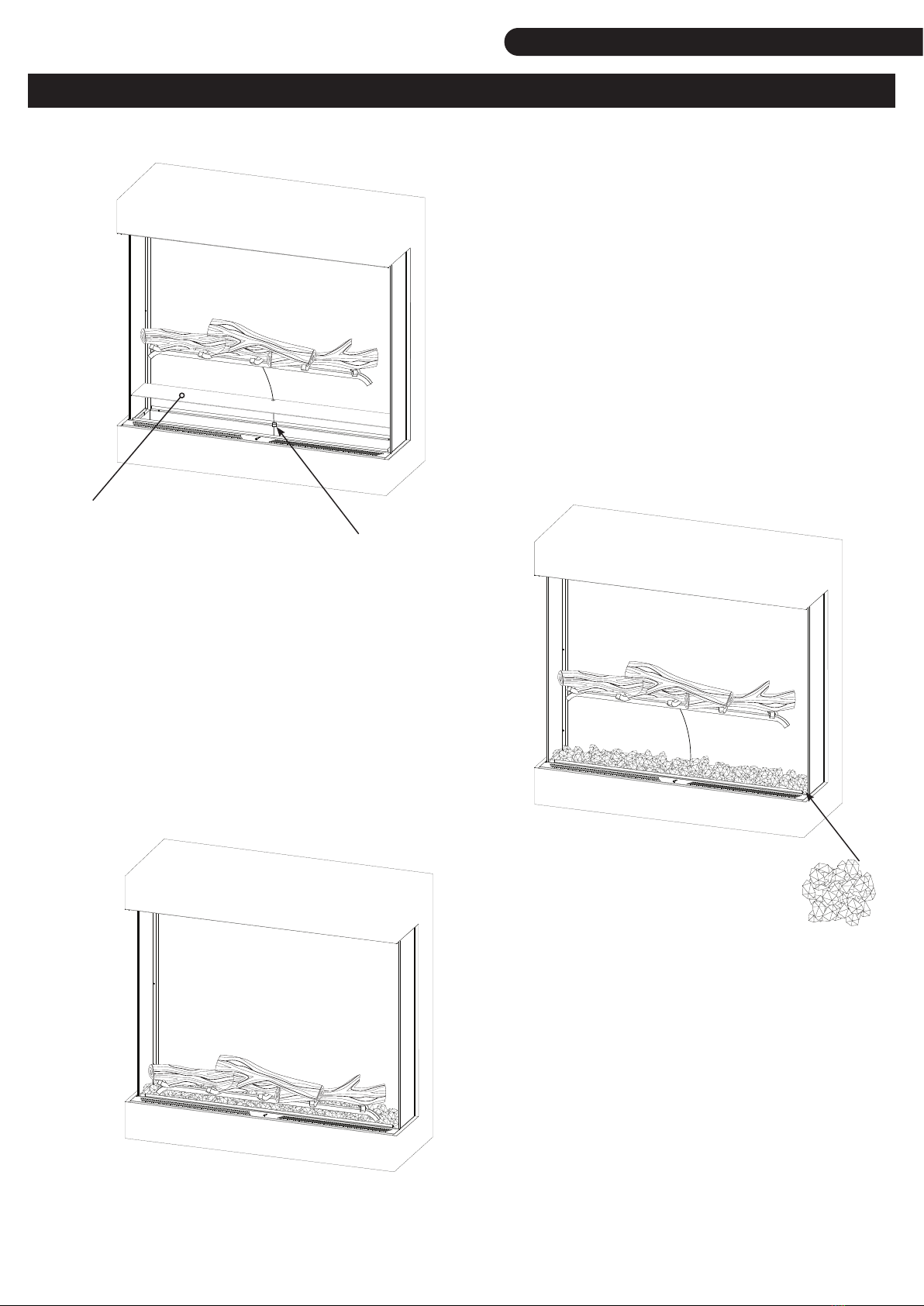

1. Before installing the front glass, connect the logset

to the electrical connection below the ember bed

plastic screen. The electrical connection can be

routed through the hole on the back side of the

ember bed.

2. Evenly spread glacier crystals along the

ember bed.

3. Place the logset on top of the acrylic crystals.

4. The front glass can now be installed.

INSTALLING LOG SET & GLACIER CRYSTALS

Electrical connection

Ember bed

plastic screen

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de Modern Flames

Modern Flames

Modern Flames LPM-4416V2 Manual de usuario

Modern Flames

Modern Flames OR26-TRAD-INT Manual de usuario

Modern Flames

Modern Flames RS-2621-EU Manual de usuario

Modern Flames

Modern Flames RS-2621 Manual de usuario

Modern Flames

Modern Flames CEF-50B Manual de usuario

Modern Flames

Modern Flames WMC LPM Series Manual de usuario

Modern Flames

Modern Flames Sunset Charred Oak Instrucciones de funcionamiento

Modern Flames

Modern Flames OR52-SLIM Manual de usuario

Modern Flames

Modern Flames AL1500CLX Guía rápida

Modern Flames

Modern Flames Sedona Pro multi Series Instrucciones de funcionamiento

Modern Flames

Modern Flames AL45CLX Instrucciones de instalación y mantenimiento

Modern Flames

Modern Flames SPS-50B Manual de usuario

Modern Flames

Modern Flames Sunset Charred Oak Instrucciones de funcionamiento

Modern Flames

Modern Flames LFV100015-SH Instrucciones de instalación y mantenimiento

Modern Flames

Modern Flames SPS-50B-AU Manual de usuario

Modern Flames

Modern Flames Landscape Pro Multi Series Instrucciones de funcionamiento

Modern Flames

Modern Flames SPM-2426V2 Manual de usuario

Modern Flames

Modern Flames OR30-MULTI-INT Manual de usuario

Modern Flames

Modern Flames SPECTRUM SLIMLINE SPS-50B-EU Manual de usuario

Modern Flames

Modern Flames Landscape Pro Multiview Series Instrucciones de instalación

Modern Flames

Modern Flames Landscape Pro Slim LPS-4414V2 Manual de usuario

Modern Flames

Modern Flames Landscape Pro Multi Manual de usuario

Modern Flames

Modern Flames LFV2-40/15-SH Instrucciones de instalación y mantenimiento

Modern Flames

Modern Flames INSERT FIRE 3824 Instrucciones originales

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
