Modern Flames NOVA 60 Instrucciones originales

Read these instructions completely before beginning instal-

lation. Failure to follow them could result in serious injury.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

NOVA 60

INDOOR/OUTDOOR RECESSED ELECTRIC FIREPLACE

SAFETY INFORMATION AND OPERATIONS MANUAL

Wall Switch Ready for on/off operation, no remote control

option for this fireplace.

TABLE OF CONTENTS

When using any electrical devices, basic

precautions should always be followed to

reduce the risk of fire, electric shock and

injury to persons, including the following:

1. Read all instructions before using this

device.

2. Always use properly grounded fused and

WARNING: Improper installation,

adjustment, alteration, service or

maintenance can cause injury or

property damage. Refer to this manual.

For assistance or additional information,

consult a qualified installer.

polarized outlets.

3. Use this device only as described in this

manual. Any other use not recommended

by the manufacturer may cause fire,

electric shock or injury to persons.

4. Always use ground fault protection where

required by electrical codes.

5. Always disconnect power before

performing any cleaning, maintenance or

relocation of device.

6. To prevent electric shock or fire, always

use a certified electrician should new

circuits or outlets be required.

7. When transporting or storing device, keep

in a dry place.

8. Do not let children play with the appliance

Carefully remove unit from box. Prior to

permanently installing unit, test to make sure

unit operates properly. A qualified electrician

should add a flexible 15 amp 120V circuit per

local building codes.

WARNING: Do not operate the unit if it is

damaged or has malfunctioned. If you

suspect the unit is damaged, return the

unit to an authorized service facility for

examination, electrical or mechanical

adjustment or repair.

USER INSTRUCTIONS

Important Instructions .................................. 2

Contractor Instructions ................................. 2

Unpacking and Testing ................................ 2

Product Dimensions ..................................... 3

Box Contents ............................................... 3

Power Data .................................................. 3

Locating Fireplace ....................................... 4

Installation ................................................... 4

Operation .................................................... .6

Service Parts .............................................. .6

IMPORTANT INSTRUCTIONS

UNPACKING AND TESTING

Home builder or contractor must provide the following:

 Framed opening according to chart on page 5. Opening should be waterproof if on an exterior

wall.

 Switched 120V electrical flexible hardwire power supply. Switch may be 120V wall switch, time

clock or circuit breaker at customer’s option.

CONTRACTOR INSTRUCTIONS

Model Viewing Area Face Dimensions Framing Dimensions

NOVA 60 54” W x 12 7/8” H 60” W x 18 7/8” H 57 1/4” W x 17 7/8” H x 5” D

USER INSTRUCTIONS

PRODUCT DIMENSIONS

POWER DATA

60”

18 7/8”

7 1/8”

BOX CONTENTS

 Nova 60 Fireplace

 Coal Bed Media

 Installation Hardware

 Installation Manual/Owners Manual

Model Voltz/HZ Amps Lamps Rotor motor

NOVA 60 AC 120V/60Hz

1.5 Amps LED DC 12V

CCW 15/18 r/min

54”

12 7/8”

CAUTION: Wear gloves and safety

glasses for protection during installation

and maintenance.

This electric fireplace must be installed

framed in to a wall. The Modern Flames Nova

60 is gasket sealed around the perimeter and

can be used in interior or exterior applications.

Modern Flames suggests that exterior

applications be under cover such as a patio.

Installing fireplace

Select a suitable location that is not susceptible to moisture. A qualified electrician should add a

flexible 15 amp 120 volt circuit per local building codes. Note: Follow all national and local

electrical codes.

INSTALLATION

LOCATING FIREPLACE

INSTALLATION

Recessed

Home builder or contractor must provide the following:

 Framed opening according to chart on page 5. Opening should be waterproof if on an exterior

wall.

 Switched 120V electrical flexible hardwire power supply. Switch may be 120 wall switch, time

clock or circuit breaker at customer’s option.

Recessed Installation:

1. Prepare frame opening according to chart.

Frame opening is larger than the fire unit.

2. Set the fireplace on a clean flat surface with the glass face face-up. Start from any corner of the

decorative glass face and gently pull up until the ball-catches start to separate. Once you have

separated the glass face from the fire unit, place the decorative glass face in a safe location.

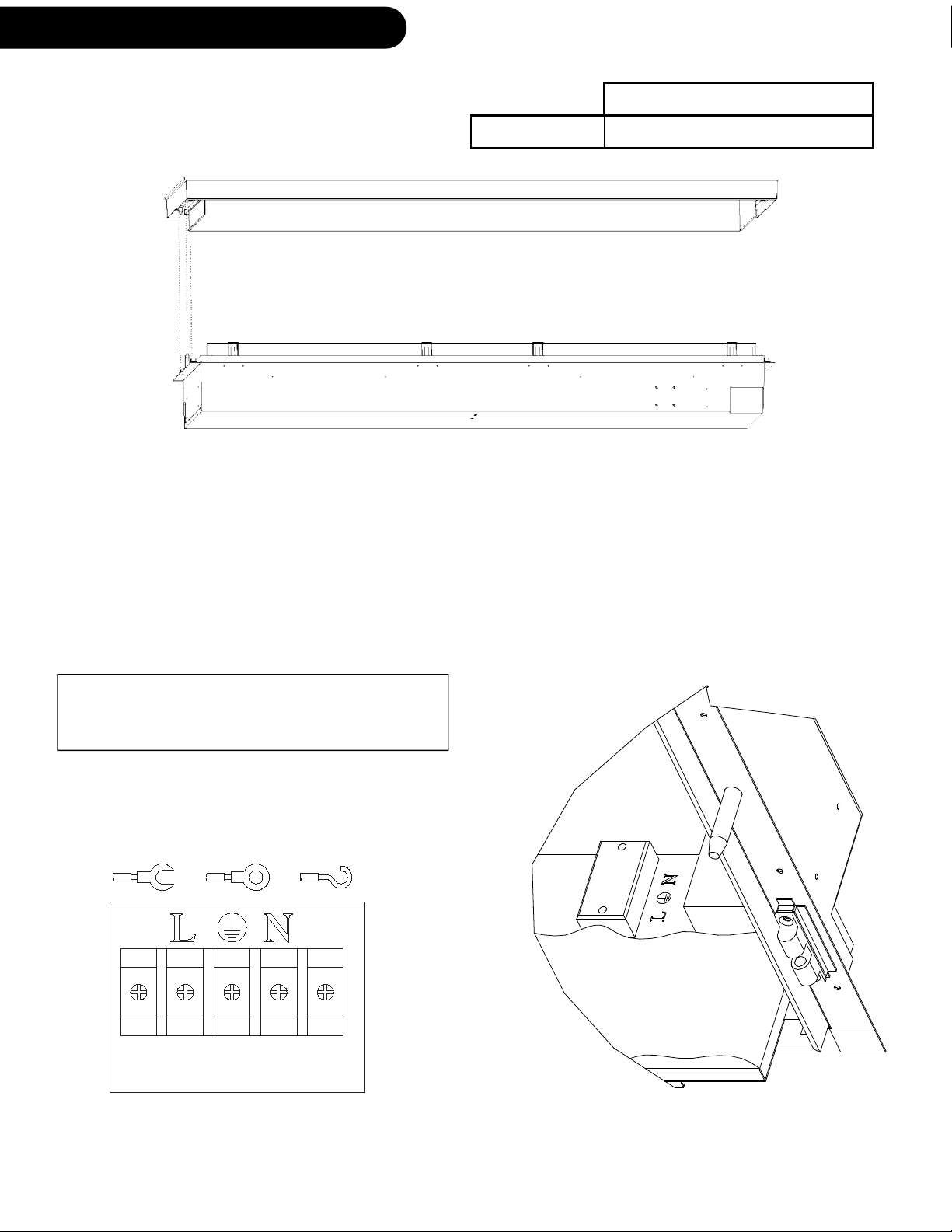

3. Connect hard wire to the terminal block

according to the diagram below. Choose any

connector type according to local building

code.

Framing Dimensions

Nova 60 57 1/4” W x 17 1/8” H x 5” D

INSTALLATION

Terminal block

To be performed by a qualified

electrician according to local building

codes.

Bottom right corner of fire unit

INSTALLATION

4. Secure fire unit to the finished framed opening with the provided screws. This installation should

only be made in to wood studs or solid surface and should not use drywall anchors to secure the

fireplace. Home builder or contractor will provide appropriate anchors for solid surface installation.

Fireplace will stand proud of the finished wall opening by 2 1/4 inches. This is a semi-permanent

installation. Remove screws to relocate.

5. To secure the glass face, line up the index posts (center right and center left) on the fire unit with

the holes on the back of the decorative glass face. Gently push the glass face onto these posts,

starting at any corner, until you hear the ball-catches start to engage. Continue around the entire

OPERATION

This fireplace has no controls or remote for operation. It is simply operated by the wall switch (time

clock or circuit breaker) installed by the contractor or home builder. REMINDER: If there is no wall

switch installed, fireplace will turn on if there is power to the fireplace.

Index posts

PART# DESCRIPTION

NOVA-SM2 SPINDLE MOTOR

NOVA-LED60 LED LIGHT STRING NOVA 60

NOVA-PA12 POWER ADAPTOR 12V DC

NOVA-PCB2 PC BOARD

NOVA60G-FACE BLACK GLASS DECORATIVE FACE

NOVA60BS-FACE BLACK STAINLESS DECORATIVE FACE

SERVICE PARTS

MAINTENANCE

NOTES

www.modernflames.com

Please dispose of properly.
