Mocka Essentials 3 Cube Manual de usuario
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child attempts
to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
Hardware Supplied
x16
B
A
x16
CD
EF G HIJ
x8
x4
x2
x4
x4 x12
x2
x16
8 mm
12 mm
35 mm
x1
washer
Z
Wall
Screw
r/washer
screw
x1
Y
wall
anchor
x1
X
Safety
Strap
W
Wall Strap
Phillips & Flathead
screwdrivers required
*We recommend using a athead screwdriver to tighten all locking nuts 100% before rt use.
1
mocka.co.nz | mocka.com.au
Mocka Essentials 3 Cube
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
12
First screw hardware (B) into side panels [1] and [4]. Slide both panels
together with the middle shelf, making sure the grooved ends line up.
Insert hardware (A) into holes on shelves [2] and [3].
Tighten (A) with screwdriver. Slide cupboard back panel into grooves.
Screw hinge pins (F) into the holes in the cupboard door. Lower door into
pin hole in shelf [3] and swing door closed to hold in place.
x2
H
F
x8
A
B
x8
6
A
B
4
31
2
5
2
mocka.co.nz | mocka.com.au
Mocka Essentials 3 Cube
Assembly Instructions
12
First screw hardware (B) into side panels [1] and [4]. Slide both panels
together with the middle shelf, making sure the grooved ends line up.
Insert hardware (A) into holes on shelves [2] and [3].
Tighten (A) with screwdriver. Slide cupboard back panel into grooves.
Screw hinge pins (F) into the holes in the cupboard door. Lower door into
pin hole in shelf [3] and swing door closed to hold in place.
x2
H
F
x8
A
B
x8
6
A
B
4
31
2
5
34
Screw hardware (B) into base panel [7]. Place base panel on top of
side panels while sliding the ends of (B) into holes on the top of side
panels. Make sure the door hinge pin (F) also fits into the base panel
[7]. Tighten (A) with a screwdriver.
Attach feet blocks (D) to base panel [7] using long screws (C) and the
pre-drilled holes in the base panel. Fasten clip plate (E) to the cupboard
door using screws (H).
x1
H
E
B
C
D
7
A
A
x4
3
mocka.co.nz | mocka.com.au
Assembly Instructions
Mocka Essentials 3 Cube
56
Flip the unit over so the feet stand on the floor. Attach the magnetic clip
(I) inside the cupboard using screws (G). Check that the door closes.
Slide back panel [6] into grooves at the top.
Screw hinge pins (F) into the holes in the cupboard door [5]. Then lower
the door into the pin hole in the top shelf and swing door closed to hold
in place.
x1
G
I
x2
HF
F
6
5
Mocka Essentials 3 Cube
Assembly Instructions
4
mocka.co.nz | mocka.com.au
Jolt Wardrobe
ASSEMBLY INSTRUCTIONS
5
mocka.co.nz | mocka.com.au
56
Flip the unit over so the feet stand on the floor. Attach the magnetic clip
(I) inside the cupboard using screws (G). Check that the door closes.
Slide back panel [6] into grooves at the top.
Screw hinge pins (F) into the holes in the cupboard door [5]. Then lower
the door into the pin hole in the top shelf and swing door closed to hold
in place.
x1
G
I
x2
HF
F
6
5
78

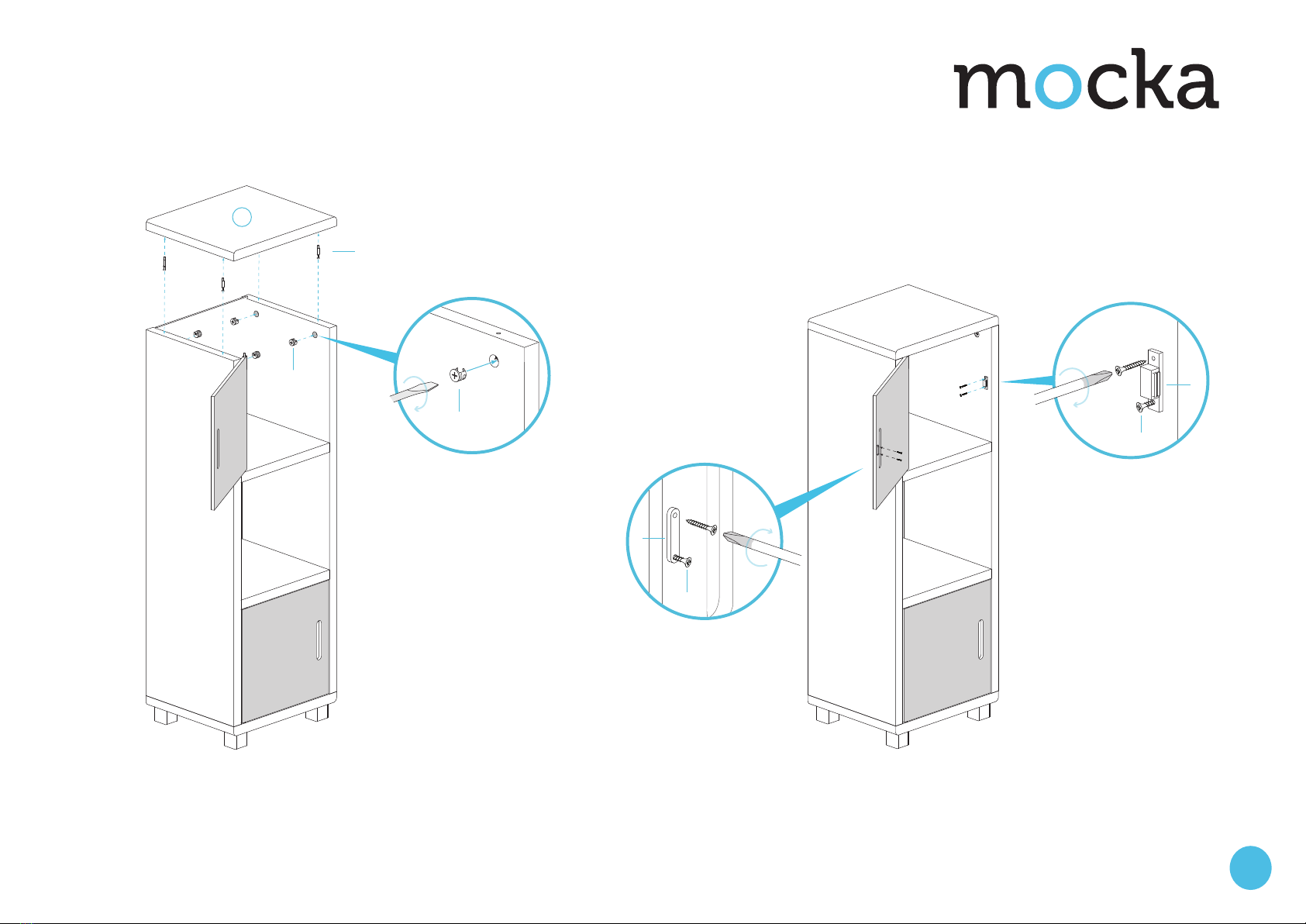

Screw in hardware (B) into top panel [8]. Place panel on top of side
panels and slide the ends of (B) into holes. Insert hardware(A) into
upper holes in side panels and tighten.
Fasten clip plate (E) to the cupboard door using screws (H). Attach
magnetic clip (I) inside the cupboard using screws (G). Check that the
door closes. Use stickers (J) to cover the holes where hardware (A) is
used.
A
x4 x1
G
I
B
A
8
x1
H
E
Mocka Essentials 3 Cube
Assembly Instructions
5
mocka.co.nz | mocka.com.au
910
Once assembled lift furniture into place, do not drag. Attach safety
strap (W) to the top of the back side of the unit using screw (Y). Tighten
with a screwdriver.
Use a drill to create a small hole lining up with the top of the safety strap
(W). Fasten to wall using wall anchor (X), washer (Z) and screw. Ensure
the unit is balanced and steady before use. You’re done, enjoy!
Y
W
x1
Y
W
W
WZ
X
x1
W
Y
wall
screw
Washer
Strap
wall
anchor
wall
screw
Safety Strap
Mocka Essentials 3 Cube
Assembly Instructions
6
mocka.co.nz | mocka.com.au
