Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
1
bolt
x12
A B C D EFG H
JKLM
I
Hardware Supplied
dowel
x20
screw
x24
locking
nut x12
screw
x8
screw
x4
handle
x2
hinge
x4
N
bolt
x8
plastic
glide
x4
Allen
Key
x1
bracket
x4
bolt
x16
wedge
x4
screw
x4
bolt
x5
OP
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
Phillips & Flathead screwdrivers
and hammer required
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
Wall Strap
x2
washer
Z
Y
wall
anchor
x1
X
safety
strap x1
WV
screw
x1
wall
screw
x1
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
2
1

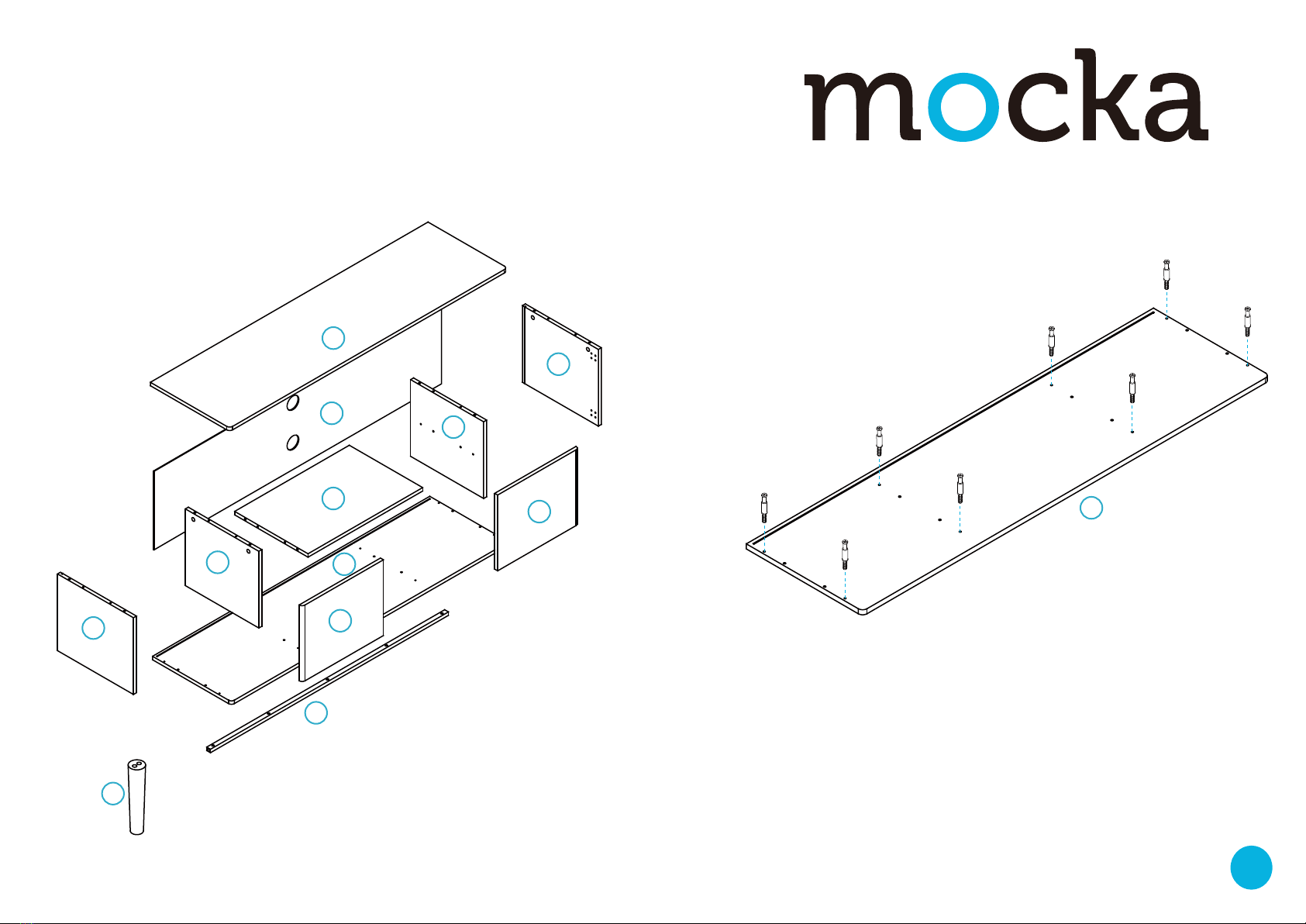

Insert 8x bolts (C) into panel [1] and tighten with a screwdriver.
C
Panel layout
C
C
C
C
C
C
C
C
1
2
3
40
4
5
6
8
10
9
7
6
x4
1
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
3
2 x2 3

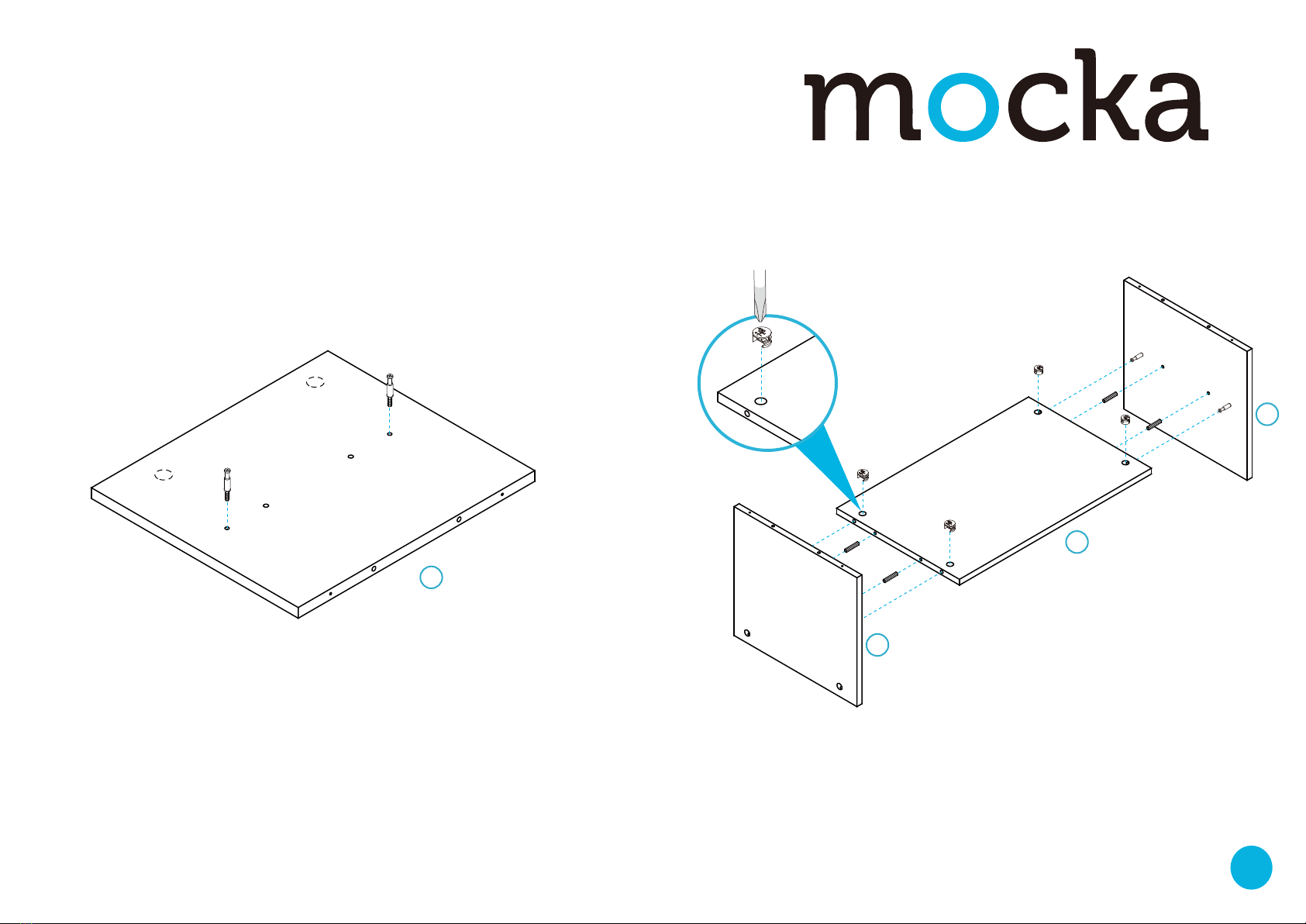

Insert 2x bolts (C) into panel [6] and tighten with a screwdriver. Attach panels [6] to panel [7] with 4x dowels (A) and secure with 4x locking
nuts (D). Tighten with a screwdriver.
C
C
D
D
D
D
A
A
A
A
D
6
7
6
6
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
4
54
Attach panels [3], [4] and [6] to panel [1] with 8x dowels (A) and secure
with 8x locking nuts (D). Tighten with a screwdriver.
A
A
A
A
A
A
D
D
D
D
D
D
A
A
1
3
4
4
6
6
5
3
Slide panel [5] down along the grooves between the panels [3] and [4] to
form the back of the unit as shown.
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
5
6 7
Attach panel [2] to panels [3], [4] and [6] with 8x dowels (A) and
secure with 8x screws (B). Tighten with a screwdriver.
Attach panel [10] to panel [2] using 5x bolt (O). Tighten with an Allen key (F).
A
A
A
A
A
B
B
B
B
B
B
B
B
B
O
O
O
OO
O
F
2
3
4
6
62
10
Denham Entertainment Unit
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
6
8 9
Assembly Instructions
Attach 2x hinges (H) to panel [8] and 2x hinges (H) to panel [9] as shown
using 8x screws (P).Tighten with a screwdriver.
K
K
K
K
L
LL
L
LLL
L
40
J
F
F
II
K
L
L
front
back
J
J
J
PP
PP
PP
PP
H
H
H
H
H
PP
2
40
40
40
40 8
9
Attach 4x leg brackets (J) to legs [40] using 8x bolts (I). Tighten with a
screwdriver. Attach legs [40] to panel [2] using 16x bolt (L) as shown.
Tighten with an Allen key (F). Attach 4x plastic glide (K) to the ends of
the legs.
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
7
1110
G
P
P
P
P
EE
P
PG
EE
8
3
4
9
Attach hinges on panels [4] to the unit using 8x screws (P). Tighten
with a screwdriver. Ensure the doors open and close easily.Attach
1x handle (G) to panel [9] secure with 2x screws (E).Tighten with a
screwdriver.
Attach hinges on panels [3] to the unit using 8x screws (P). Tighten
with a screwdriver. Ensure the doors open and close easily. Attach
1x handle (G) to panel [8] secure with 2x screws (E).Tighten with a
screwdriver.
NOTE: If the doors are uneven or there is a gap
in the middle, loosen or tighten the screw on the
door hinge until they are sitting flush.
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
8
1312
M
M
M
N
N
N
M
M
N
N
5
V
Z
W
V
X
Y
wall
anchor
screw
strap
washer
V
Z
W
Attach 4x wedges (M) into the corners of the back of the unit and
secure with 4x screws (N). Tighten with a screwdriver. Attach 1x
safety strap (V) to the top of the back side of the unit as shown
using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver.
Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and
1x wall screw (Y). Ensure unit is balanced and steady before
use.You’re done, enjoy!
Denham Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
9
HOW TO ADJUST THE HINGES TO
ALIGN THE DOORS IF NEEDED.
Open the door.
1. 2. 3.
1. 2. 3.
1. 2. 3.
STEP 1
Adjuse the door panelsupward or downward
STEP 2
Adjuse the flush between door panel and side panel
STEP 3
Adjuse the Gap beteen door
panel and side panel
STEP 4
Loosen this screw a bit. MOVE DOOR BACK OR
FORTH Re-tighten this screw.
Panel
Door
Unscrew 2 screws in round
holes loosen 2 screws in oval
holes a bit.
Tighten 2 screws in oval
holes. Screw in 2 screws in
round holes
MOVE DOOR UPWARD
OR DOWNWARD
MOVE DOOR OUTWARD
by turning this screw
counter-clockwise
KEEP DOOR IN RIGHT
POSITION MOVE DOOR OUTWARD
by turning this screw clockwise
