Q24M: Camera Manual

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost efﬁcient.

MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • [email protected]

Version 09/06/Latest PDF ﬁle:

www.mobotix.com > Support > Manuals

Allround Easy. Allround Secure.

High-resolution 180° Panorama

2/1�61�6

www.mobotix.com • [email protected]

Q24M Camera Manual: Camera Data

High-resolution 180° Panorama

MOBOTIX Camera Data

Enter your camera data here.

Camera model:

Camera name:

Factory IP address:

Current IP address:

DHCP:

Admin user name:

Admin password:

Original Q24M image;

Wall mounted at a height

of 2.3 m in a bank

Note

MOBOTIX offers inexpensive seminars which include workshops and practical

exercises: Basic Seminar three days, Advanced Seminar two days.

For more information, please visit www.mobotix.com

3/1�61�6

www.mobotix.com • [email protected]m

Contents

Foreword 6

The MOBOTIX Concept 8

Innovative Hemispheric Technology 10

MOBOTIX Hemispheric Technology 12

Superior Storage Solution 14

Added Security Value 16

Cost Benets And Technical Advantages 18

1 INTRODUCTION 20

1.1 Q24M Overview 20

1.2 Q24M: Next Generation Hemispheric Technology 29

1.3 General MOBOTIX Camera Functions 30

1.4 Lens Options, Hardware And Software Features 36

2 INSTALLATION 40

2.1 Preparing The Installation 40

2.1.1 Wall-Mounted 41

2.1.2 Ceiling-Mounted 44

2.1.3 Mounting Options 47

2.1.4 Network Connection And Power Supply, UPS 48

2.1.5 Preparing The Camera Connections, Wall Outlets 49

2.1.6 Wiring, Fire Prevention, Lightning And Surge Protection 50

2.2 Q24M Basic/Secure: Delivered Parts, Components, Dimensions �2

2.2.1 Delivered Parts And Camera Components 52

2.2.2 Camera Housing And Connectors 53

2.2.3 Q24M: Dimensions Without Mounting Options 54

2.3 Available Q24M Accessories - Overview �6

2.4 Mounting The Camera Without Accessories 60

2.4.1 Mounting Instructions 60

2.4.2 Required Tools 61

2.4.3 Procedure 62

2.� Mounting The Camera With The On-Wall Set 66

2.5.1 Mounting Instructions 66

2.5.2 On-Wall Set 67

2.5.3 Procedure 70

4/1�61�6

www.mobotix.com • [email protected]

Q24M Camera Manual: Contents

2.6 Mounting The Camera With The In-Ceiling Set 72

2.6.1 Mounting Instructions 72

2.6.2 In-Ceiling Set 73

2.6.3 Procedure 76

2.7 Installing The Vandalism Set 78

2.7.1 Mounting Instructions 78

2.7.2 Vandalism Set 79

2.7.3 Procedure 82

2.8 Installing The Wall Mount 84

2.8.1 Mounting Instructions 84

2.8.2 Wall Mount 85

2.8.3 Procedure 88

2.9 Installing The Corner And Pole Mount 90

2.9.1 Mounting Instructions 90

2.9.2 Corner And Pole Mount 91

2.9.3 Mounting To A Pole 93

2.9.4 Mounting To A Wall Or Building Corner 94

2.9.5 Mounting The Wall Mount To The Corner And Pole Mount 95

2.10 Replacing The MicroSD Card 96

2.10.1 Removing The MicroSD Card 96

2.10.2 Inserting A MicroSD Card 97

2.11 Network And Power Connection 98

2.11.1 Notes On Cable Lengths And Power Supply 98

2.11.2 PoE Variables 98

2.11.3 Power Supply Using A Switch 99

2.11.4 Power Supply When Connected Directly To A Computer 100

2.11.5 Power Supply (PoE IEEE 802.3af) Using Power-over-Ethernet Products 100

2.11.6 Camera Startup Sequence 101

3 OPERATING THE CAMERA 102

3.1 Manual And Automatic Operation - Overview 102

3.1.1 Manually Using A Computer In The 10.X.X.X IP Address Range 103

3.1.2 Automatically Using MxControlCenter Or MxEasy 104

3.1.3 Automatically Using DHCP 105

3.2 First Images And The Most Important Settings 106

3.2.1 Manually Setting Up The Network Parameters In A Browser 106

3.2.2 First Images And Conﬁguration In The Browser 108

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter 110

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy 116

3.2.5 Starting The Camera With An Automatic IP Address (DHCP) 120

3.2.6 Starting The Camera With The Factory IP Address 121

�/1�61�6

www.mobotix.com • [email protected]m

3.3 Virtual PTZ And Special Q24M Conguration 122

3.3.1 Preparing The Virtual PTZ Function 122

3.3.2 Special Q24M Conﬁguration In The Browser 124

3.3.3 Overview Of The Available Camera Views 130

3.4 MicroSD Card Recording 134

3.4.1 Introduction 134

3.4.2 Formatting The Card 136

3.4.3 Activate Recording: 137

3.4.4 Accessing Camera Data 138

3.4.5 Deactivating The Card Memory 138

3.4.6 Using A MicroSD Card In A Different MOBOTIX Camera 139

3.4.7 Limitations On Warranty When Using Flash Storage Devices 139

3.� Q24M Storage Options - Full Image Storage 140

3.6 Further Conguration In The Browser 142

3.6.1 Overview 142

3.6.2 General Browser Settings 142

3.6.3 Additional Conﬁguration Options 145

3.7 Additional Notes 146

3.7.1 Weatherproof Qualities 146

3.7.2 Password For The Administration Menu 146

3.7.3 Permanently Deactivating The Microphone 146

3.7.4 Starting The Camera With The Factory IP Address 147

3.7.5 Reset The Camera To Factory Settings 147

3.7.6 Activate Event Control And Motion Detection 147

3.7.7 Deactivate Text And Logo Options 147

3.7.8 Deactivating The Daily Automatic Camera Reboot 148

3.7.9 Browser 148

3.7.10 Cleaning The Camera And Lens 148

3.7.11 Safety Warnings 149

3.7.12 Additional Information 149

Notes and Copyright Information

The enclosed Camera Software Manual contains detailed information on the cam-

era software. Download the latest version of this manual and the MxEasy and

MxControlCenter manuals as PDF ﬁles from www.mobotix.com (Support > Manuals).

nationally protected trademarks of MOBOTIX AG. Microsoft, Windows and Windows

Server are registered trademarks of Microsoft Corporation. Apple, the Apple logo,

Macintosh, OS X and Bonjour are trademarks of Apple Inc. Linux is a trademark of

Linus Torvalds. All other brand names mentioned herein may be trademarks or reg-

Langmeil, Germany. Information subject to change without notice!

Additional Information:

www.mobotix.com

6/1�61�6 Q24M Camera Manual: Foreword

www.mobotix.com • sales@mobotix.com

FOREWORD

Dear MOBOTIX customer,

Congratulations on purchasing this globally unique and discreet hemispherical network

camera "Made in Germany". With its wide range of image display options such as

the panorama function, a virtual PTZ function and live distortion correction, the

Q24M offers whole new application possibilities. Proven MOBOTIX concept

advantages such as

integrated event, alarm and telephony functions

, as well

as modern and highly beneﬁcial long-term ﬂash storage located directly in

the camera, are also available.

This Camera Manual Part 1 will give you an initial overview of the innovative

underlying MOBOTIX concept. This includes all the information you need to

unpack and install the camera (Chapter 2) and to view initial images on a PC

(Chapter 3).

Please see the Software Camera Manual Part 2, included in the camera packaging, for

information on how to work with the many camera functions, such as e.g. event control

or image storage.

If you would prefer to work with MxEasy or MxControlCenter instead of the browser con-

trolled MOBOTIX camera software, you can download these programs for free including

a manual (PDF) from the MOBOTIX website:

www.mobotix.com/eng_US/Support/Software-Downloads

If you have any questions, our support and international sales staffs are available under

[email protected] from Monday to Friday, 8 a.m. to 6 p.m (German time).

We would like to thank you for your trust and wish you all the best with your new MOBOTIX

camera!

7/1�61�6

www.mobotix.com • [email protected]m

Q24M with 10°

On-Wall Set

Q24M in the

In-Ceiling Set

8/1�61�6 Q24M Camera Manual: The MOBOTIX Concept

www.mobotix.com • [email protected]

THE MOBOTIX CONCEPT

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera

technology since its founding in 1999, and its decentralized concept, has made high-

resolution video systems cost efﬁcient. Whether in embassies, airports, railway stations,

ports, gas stations, hotels or on highways - over one hundred thousand MOBOTIX video

systems have been in operation on every continent for years.

Technology Leader Of Network Cameras

In a short time, MOBOTIX has gained the second place in Europe and the fourth place

worldwide in terms of market share. MOBOTIX has been solely producing megapixel

cameras for years and, in this area, ranks as global market leader in high-resolution

video systems with a market share of over 60%.

Why High-Resolution Systems?

The higher the resolution, the more accurate the detail in the image. With the old analog

technology, a live image has no more than 0.4 megapixels and a recorded image generally

0.1 megapixels (CIF).On the contrary, one MOBOTIX camera with 3.1 megapixels records

around 30 times more detail. As a result, larger image areas with up to 360° allround

views are possible, thus reducing the number of cameras and therefore the costs. For

example, four lanes of a gas station can be recorded with one MOBOTIX camera instead

of four conventional cameras.

Disadvantages Of Old Centralized Solution

Usually cameras only supply the images while the processing and recording is done later on a

central PC using video management software. This traditional centralized structure has many

limitations, since it requires a high network bandwidth and the PC processing power is not

enough for several cameras. A HDTV MPEG4 ﬁlm already puts considerable strain on a PC,

how can it be expected to process dozens of high-resolution live cameras? Traditional central-

ized systems are there-

fore less suitable and

unproﬁtable than high-

resolution systems due

to the high number of

PCs needed.

9/1�61�6

www.mobotix.com • [email protected]m

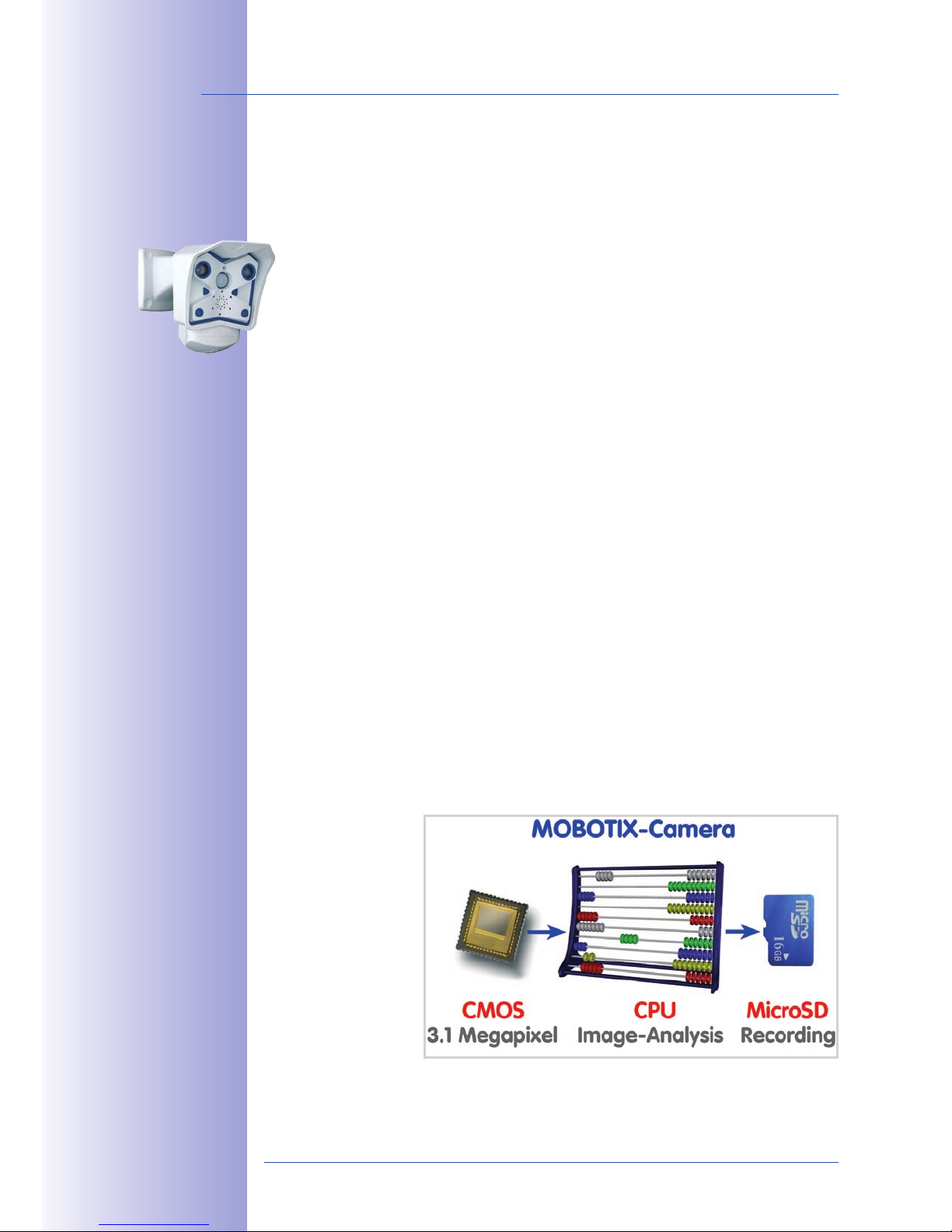

The Decentralized MOBOTIX Concept

Unlike with other systems, with the decentralized MOBOTIX concept a high-speed

computer and, if requested, digital memory (MicroSD/SD card) is built into every camera

for long-term recording. The PC now serves purely for viewing, not for analysis or

recording. As a result, MOBOTIX cameras can record in response to an event even

without the PC being switched on and digitally store the videos with sound.

The Benets

MOBOTIX video solutions therefore require signiﬁcantly:

fewer cameras • due to the more accurate detail of panoramic images with mega-

pixel technology,

fewer PCs/DVRs

•

, because around 40 cameras can store high-resolution videos with

sound efﬁciently on a single PC, or no PC at all when recording in the camera using

digital memory (USB, MicroSD/SD card),

lower network bandwidth• , because everything is processed in the camera itself

and the high-resolution images therefore do not have to be constantly transported

for analysis.

Robust And Low-Maintenance

MOBOTIX cameras have no mechanical motors for lenses or for movement. Without any

moving parts, they are therefore so robust that maintenance is reduced to a minimum.

The unique temperature range from -30°C to +60°C is achieved without heating or fan

at approximately 3 watts. Since no PC hard disk is required for recording, there are no

parts that wear out in the entire video system.

Software Included - For Life

There are no software and licensing costs with MOBOTIX, because the software is always

supplied with the camera; for an unlimited number of cameras and users. The software

package supplied with the camera also includes professional control room software, like

that used in football stadiums, for example. Updates are supplied free of charge on the

website. The system price for a weatherproof camera including lens, query software and

day-to-day recording on the MicroSD/SD card is under 1,000 euro.

One Camera for 4 Gas Pumps - Long-Term Recording Without Peripheral Devices

10/1�61�6 Q24M Camera Manual: Innovative Hemispheric Technology

www.mobotix.com • [email protected]

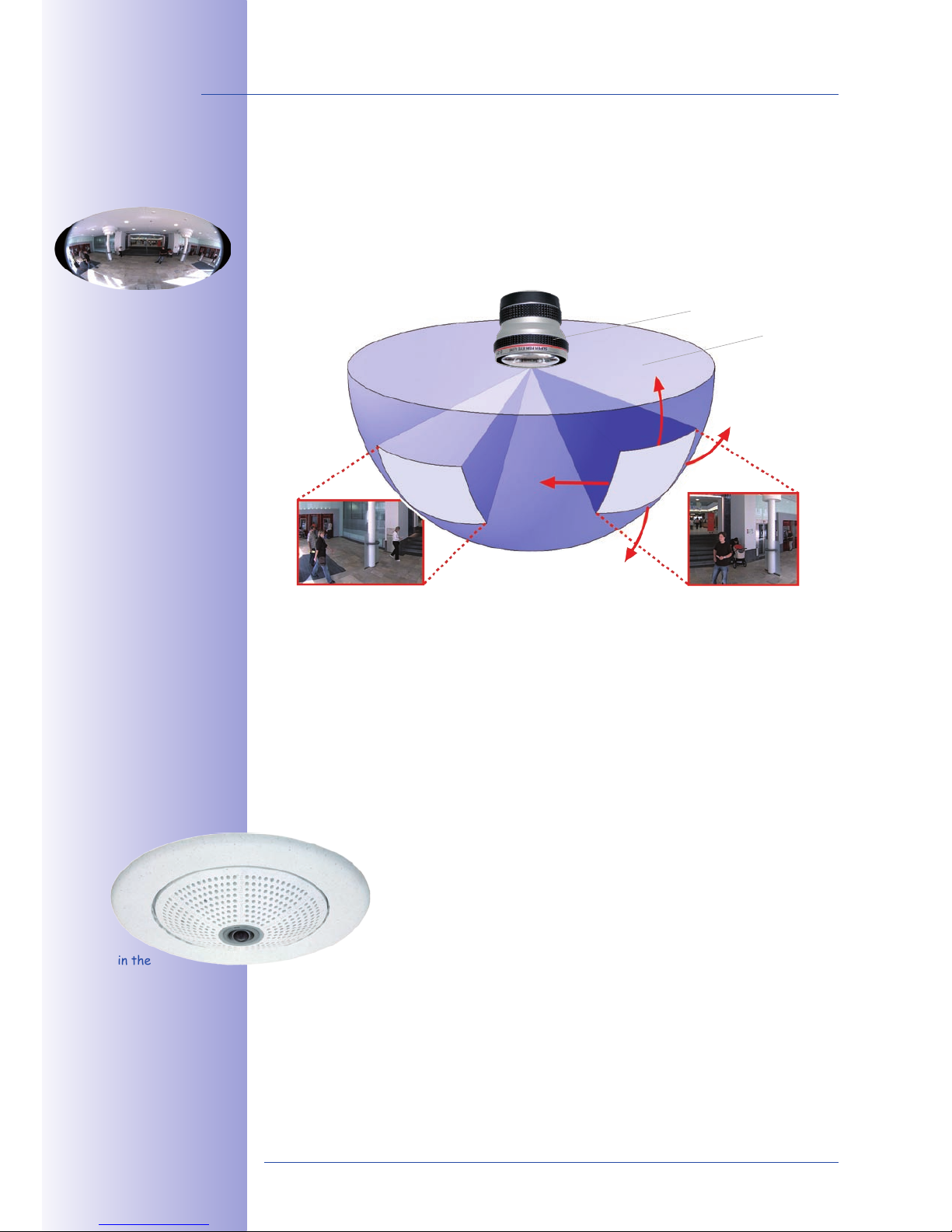

INNOVATIVE HEMISPHERIC TECHNOLOGY

The Hemispheric Camera

The primary components of the hemispheric camera include a ﬁsheye lens, a high-reso-

lution image sensor and image correction software that is integrated into the camera.

Using an ultra-wide angle ﬁsheye lens, the camera captures a 180° hemispheric image

of the room and projects it onto a high-resolution image sensor.

When ceiling mounted, the image area of the hemispheric camera covers the entire room.

The image in the hemisphere is convex, particularly near the image borders. These image

sections are corrected for the viewer by the integrated distortion correction software,

allowing a view of the scene from the usual perspective. The virtual PTZ feature allows

you to enlarge or move image sections within the hemisphere, just like a PTZ camera yet,

with MOBOTIX, this is achieved with no moving parts.

Handle Several Image Sections At Once

One or more image sections can be corrected for perspective in the hemispheric view,

allowing you to monitor and record several different areas of a room at the same

time, something that a mechanical PTZ camera is not capable of doing.

Discreet And Low Maintenance

Hemispheric cameras are extremely discreet because they manage their

task with only one lens, which is generally focused on the entire room

and not a speciﬁc object. MOBOTIX hemispheric cameras are without

mechanical moving parts and require low maintenance. In addition, they

are silent when panning and focusing on a speciﬁc image area.

A Fisheye Perspective

Q24M in the

In-Ceiling Set

Fisheye

Hemispheric View

vPTZ 2

vPTZ 1

Otros manuales para Q24M

Tabla de contenidos

Otros manuales de Cámara de seguridad de Mobotix

Mobotix

Mobotix M15 Manual de usuario

Mobotix

Mobotix D26 Dome Instrucciones de uso

Mobotix

Mobotix S14 Manual de usuario

Mobotix

Mobotix Q25M Manual de usuario

Mobotix

Mobotix Allround M26 Instrucciones de uso

Mobotix

Mobotix V16 Instrucciones de uso

Mobotix

Mobotix D16 DualDome Instrucciones de uso

Mobotix

Mobotix AllroundDual M16B Manual de usuario

Mobotix

Mobotix MOVE SD-330 Instrucciones de uso

Mobotix

Mobotix D16 DualDome Manual de usuario

Mobotix

Mobotix S26 Flex Instrucciones de uso

Mobotix

Mobotix p26 Instrucciones de uso

Mobotix

Mobotix Q25 Instrucciones de uso

Mobotix

Mobotix M24M Allround CS-Vario Instrucciones de montaje

Mobotix

Mobotix D25 Instrucciones de uso

Mobotix

Mobotix M25M Series Manual de usuario

Mobotix

Mobotix MOBOTIX M73 Instrucciones de funcionamiento originales

Mobotix

Mobotix VandalDome MOVE VD-2-IR Instrucciones de uso

Mobotix

Mobotix Q26 Instrucciones de uso

Mobotix

Mobotix D26 Dome Manual de usuario

Mobotix

Mobotix D26 Dome Instrucciones de uso

Mobotix

Mobotix S15 Manual de usuario

Mobotix

Mobotix MX-c25 Instrucciones de uso

Mobotix

Mobotix M25 Allround B036 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
