Mobility Sound BTH-600 Manual de usuario

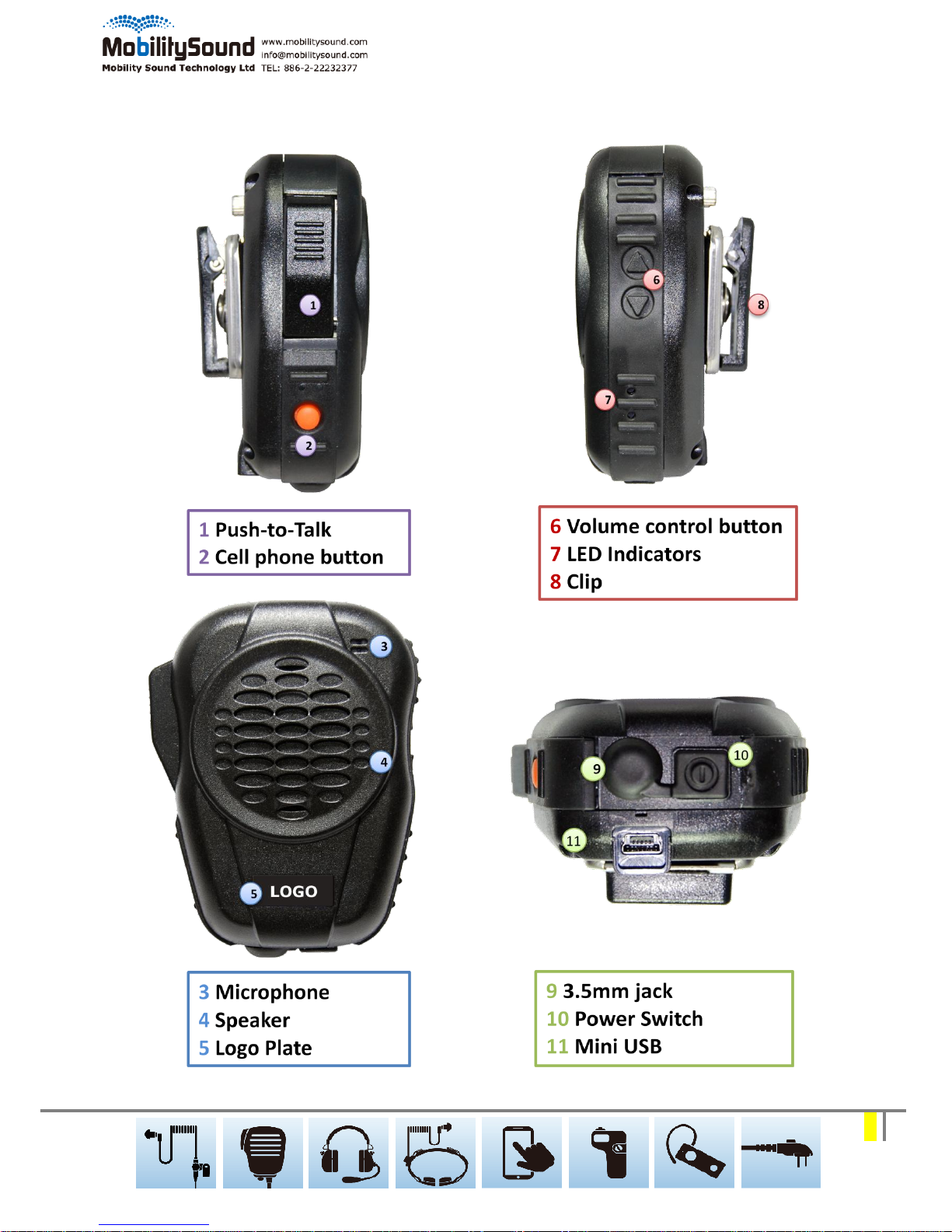

•Heavy duty speaker microphone for

MobilitySound’s BT adapter.

•Volume control buttons, and PTT button are

built in

•Features cell phone key to answer incoming

phone call when BTH-600 links to cell phone.

•Embedded 3.5mm jack for external earphone.

Built-in Mini USB for charging.

Type: Bluetooth Speaker Microphone

Operating Temp: -20℃±2℃~ 50℃±2℃

Approx. Weight: 140g

• Fully Qualified Bluetooth v4.0.

• Echo cancellation, noise reduction, Stereo

audio (A2DP audio), also extended features

• High Quality DAC

• 80MHz RISC MCU and 80MIPS Kalimba DSP

• Fast Current (200mA) battery charge

• SBC, MP3, AAC, Fast stream, APTX codec

support

• RoHS compliant

• HSP / HFP / A2DP / AVRCP/ PBAP / SPP / MAP

profile supports

• Speaker Output: 2W

• PTT function: built-in

• Talking Range: Bluetooth class 2, 10 meters

• Display LED: Blue and Red

• DC Input: 5 Vdc (std.)

• DC Current: 25 mA (Average)

• Battery: 700mAH

• Talk Time: 24+ Hours

BTH-600

BTH-600 State and LED Flashing Pattern

BTH-600 State & Button Press

LED Message

Function

No link/ No paired device

BTH-600 is OFF

No LED

BTH-600 OFF

BTH-600 is OFF; Press Power

button and hold for 3 seconds.

Both Blue & Red LED ON for 1

second

Turn BTH-600 ON

BTH-600 ON; press and hold

power button for 3 seconds

Red LED flashed 3 times then

OFF

Turn BTH-600 OFF

BTH-600 is off; Press and hold

power button for 6 seconds

Red & Blue LED flashes

alternatively

Get BTH-600 into pairing mode

Unpaired or lost link

Blue LED flashes once every 2

seconds

No link, no pair

BTH-600 State & Button Press

LED Message

Function

Link with BT dongle

Stand-By mode

Blue LED flashes 1 time every 6

seconds

Standby

Press PTT button

Red LED lights continuously

while pressing PTT button

Start to talk

BTH-600

BTH-600 State and LED Flashing Pattern (continued)

BTH-600 State & Button Press

LED Message

Function

Link with Cell Phone

Stand-By mode

Blue LED flashes 3 times every 3

seconds

Standby

Press PTT button

Nil

No function

There is a cell phone call coming

Both of Blue and Red LED flash

twice per second

User will hear the ring tone

Press Talk/END button when call

coming

Blue LED flashes 1 time per

second during talking cell phone

Music will be stopped during the

call, and will be resumed when

call ends

Press volume keys during the call

Nil

Make adjustment of volume

Double press the Talk/End

button under stand-by mode

Nil

Redial last number

Double press Volume up/down

buttons during playing music

Nil

Skip to Next/Previous track

Volume UP

Nil

5 steps in volume adjust. When

reaches the maximum volume, a

beep sound is heard over the

speaker

BTH-600

BTH-600 State and LED Flashing Pattern (continued)

BTH-600-AZ State & Button Press

LED Message

Function

Link with Cell Phone

Volume Down

Nil

5 steps in volume adjust. When

reaches the minimum volume, a

short beep is heard over the

speaker and audio is muted

BTH-600

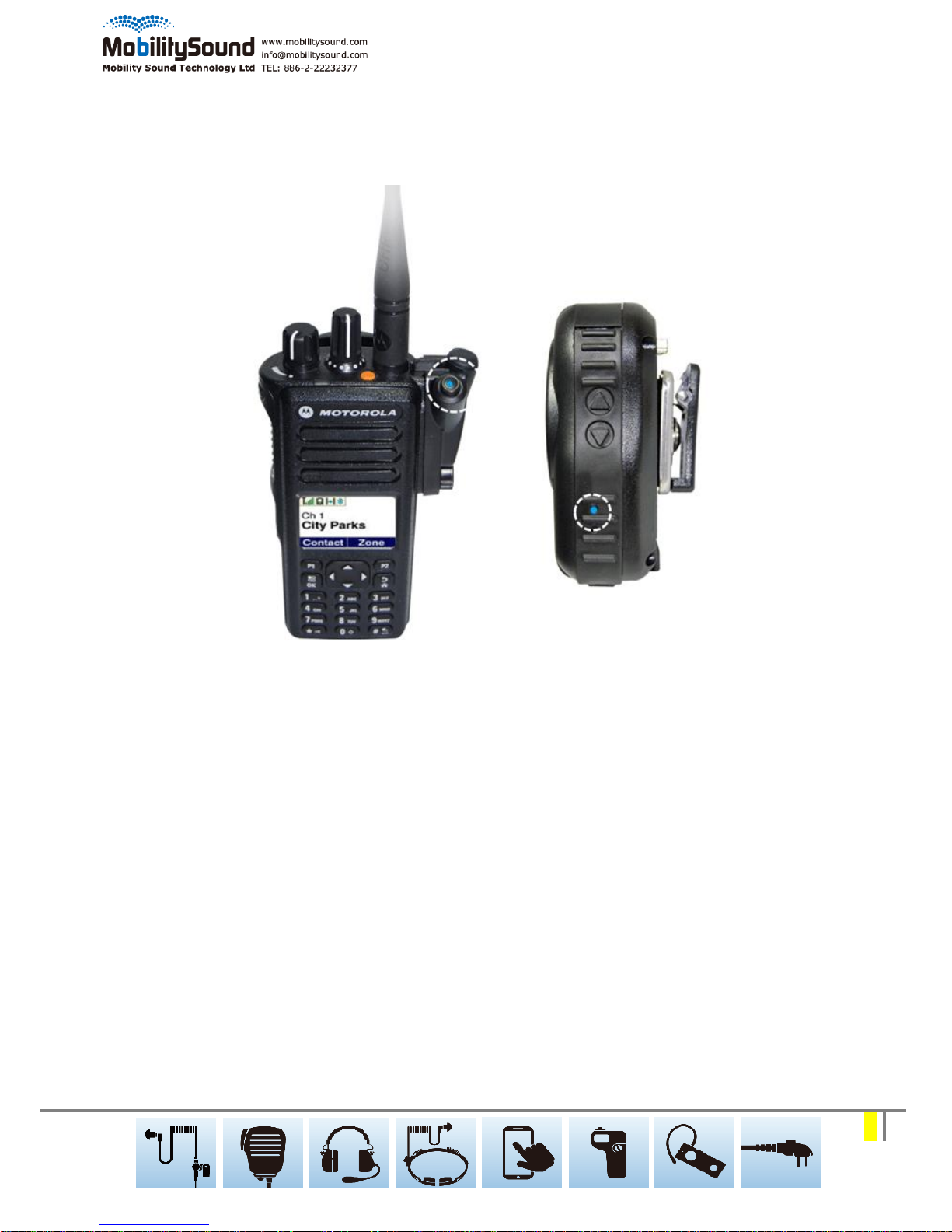

Pairing instruction of BTH-600 with wireless adapter

2. Pressing and holding PTT button on

BT dongle when switch on radio

1. You will see 2 Blue flashes per second

after keep holding few seconds on the

button.

The dongle is in pairing mode.

3. Press and keep holding the power

switch for 6 second from cold start

4. When you see LED flashing in a

pattern of RED-BLUE-RED-BLUE,

BTH-600 is in pairing mode.

BTH-600

Pairing instruction of BTH-600 with wireless adapter

5. You will see a long BLUE led light for 3

second after pairing successfully

6. Pairing work is completed
