Assembly Guide
WP-3
Assembly components:
1
Side panel - 2 pcs
2
3
4
Top shelf - 1 pcs
5
Top drawer - 1 pcs
Spacer - 2 pcs
6
78 9
Screw M6 x 10
- 34 pcs
Nut M10 -
4 pcs
Hex key 4 - 1 pcs Wrench 10 - 1 pcs
Washer
M6 - 4 pcs
10
Screw M6 x 12
- 4 pcs
Hexagonal
coupling cap
- 10 pcs
Fixing kit for
wall- 4 pcs
11
Rubber feet -
4 pcs
Leg M10 x
30 - 4 pcs
Screw M4 x 8
- 26 pcs
Bottom drawer - 1 pcs
13 15
Hex key 2,5 - 1 pcs
Nut M6 -
34 pcs
12
16
Leg clamp - 4 pcs
14
1
2
3
4
5
6
8
Washing machine rack WP-3 with two drawers
Assembly Guide
WP-3

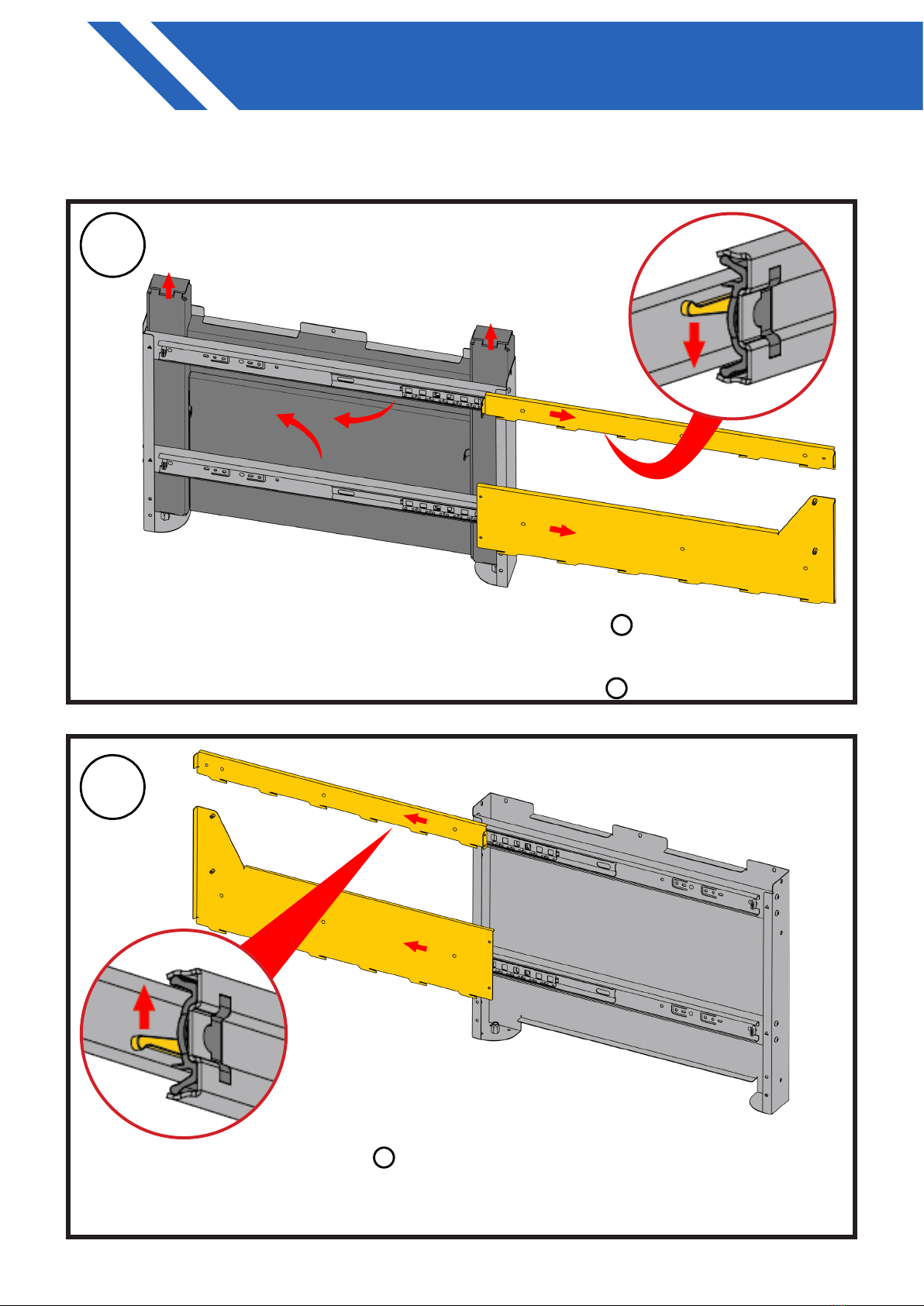

1. Start by unpacking Rack WP-3. From the left Side Panel
1
, remove the side panels
from the rails. They must be extended to the maximum, as shown in the picture. Press the
lever on the rail and at the same time remove the top drawer panel. Do the same with the
bottom panel. Remove all wrapped parts from the Side Panel
1
.
Assembly Instructions:
1
1a
1a. From the right Side Panel
1
, also remove the side panels from the rails. They
must be extended to the maximum, as shown in the picture. Press the lever on
the rail and at the same time remove the top drawer panel. Do the same with the
bottom panel.
Assembly Guide
WP-3
2. Screw both Spacers to the Side Panels with screws and nuts .
11 13
3. Install the Top shelf
2
and fasten with screws and nuts . Put on the nuts
Hexagonal coupling cap .
3
11 13
16
2
1
5
Assembly Guide
WP-3
4. Place the Rack WP-3 on the legs:
screw the nut onto the leg and
screw it in as shown in the picture.
Install all 4 legs. Level the Rack WP-3.
Fix the position of the legs with nuts .
4a. Or place the Rack WP-3 on the
rubber feet .
4a
4
7
8
14
14
5. Install the Leg clamps onto the Top shelf using the screws with
the washer , without tightening them.
Install the Leg clamps mirrored to each other to secure the washing machine
later.
6
15
12
2
6
5
Assembly Guide
WP-3
7. Insert the screws into the mounting holes in the Rack WP-3, put the
bushings on them, attach the rack to the wall so that the screws enter the
holes with the dowels , and screw the Rack WP-3 to the wall.
9
9
9
9
7
6. After installing the legs or feet , measure the distance from the bottom
hole of the Rack WP-3 to the oor. Install wall dowels into the wall as picture to
secure the Rack WP-3 under the washing machine.
8
7
9
6
Assembly Guide
WP-3
Assembly of drawers
9. Screw the sides of the Top drawer as shown with the screws .
9
3
10
8. Place the washing machine on the Rack WP-3, press the legs of the machine
with the Leg clamps and tighten them.
8
6
Assembly Guide
WP-3
10. Turn the frame of the Top drawer over and install the bottom as shown in
the picture. Tighten the screws .
3
10
10
11. Screw the sides of the Bottom drawer as shown with the screws .
10
11
4
Assembly Guide
WP-3
13. Install Top drawer and Bottom drawer on the rails in the Rack WP-3.
Your Rack WP-3 is set up and ready.
13
3
4
12. Turn the frame of the Bottom drawer over and install the bottom as shown
in the picture. Tighten the screws .
10
12
4
