MJ LED LIGHTNING MJ-1012 Manual de usuario

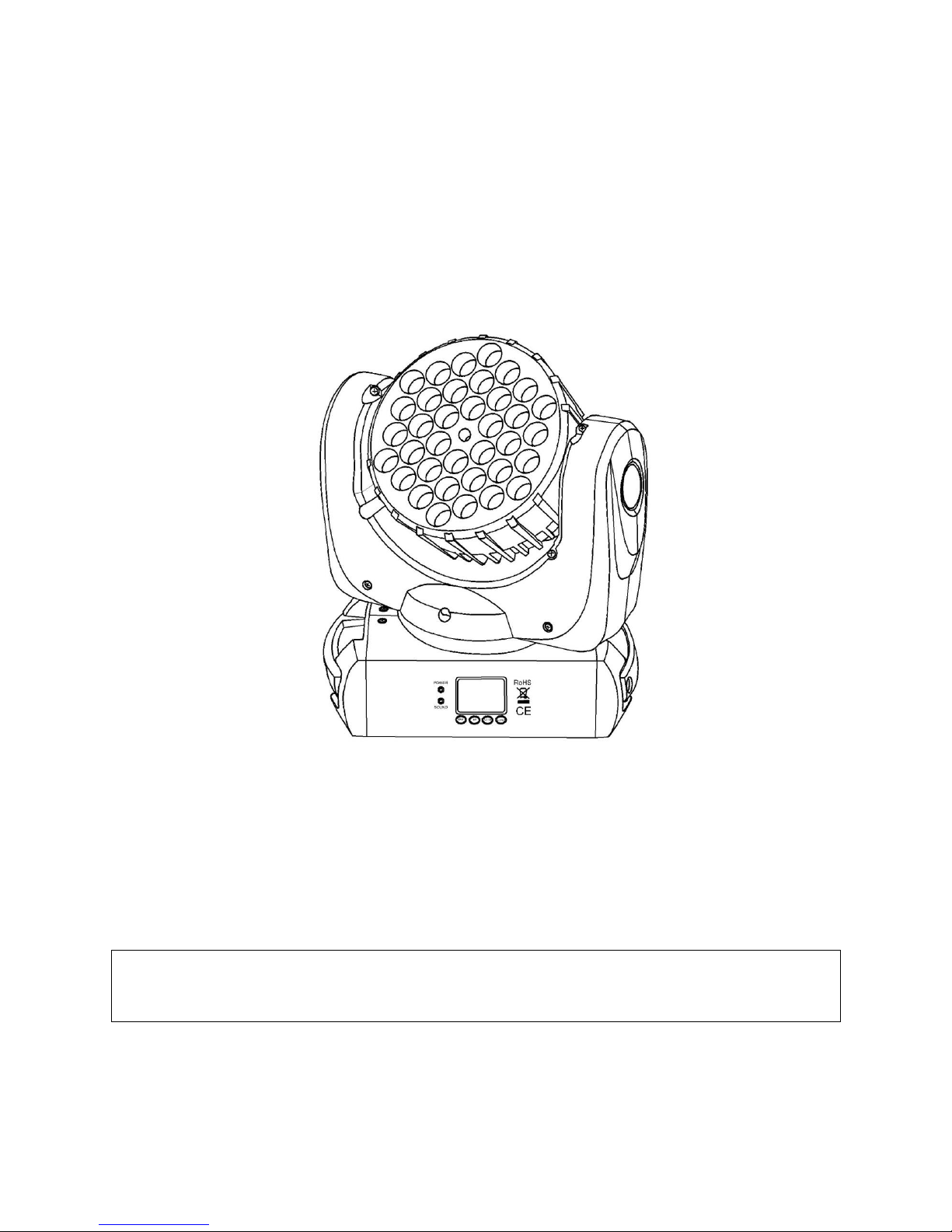

BEAM MOVING HEAD 363

MJ-1012

User Manual

Thank you for choosing our LED moving head light. For the sake of your safety, Please read

and follow these instructions carefully and keep this manual in a safe place for future

reference.

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

Catalogue

Chapter Page

Safe Usage Of The Product ---------------------------------------------------------------------------------------3

Product Characteristic -----------------------------------------------------------------------------------------4

Product Parameter ----------------------------------------------------------------------------------------------4

Menu Description -----------------------------------------------------------------------------------------------4

Channel List--------------------------------------------------------------------------------------------------------6

FAQ-------------------------------------------------------------------------------------------------------------------8

☆Important notice:

·In this instruction for use contains about the installment and the use aspect important information of the LED moving

head. When installing and using, you need to look this usage instruction strictly.

·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the

separation condition.

·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are

in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer

and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.

Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet

carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters

concerned. Our company retains when the product improvement changes the related specification the authority. This

instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot

the related consequence which causes regarding these information be responsible.

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

SAFE USAGE OF THE PRODUCT

When unpacking and before disposing of the carton, check there is no transportation damage before

using the product. Should there be any damage caused by transportation, consult your dealer and do

not use the apparatus.

The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain

and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other

liquids.

The product is not designed or intended to be mounted directly on to inflammable surfaces

The product is only intended for installation, operation and maintenance by professional person.

The product must be installed in a location with adequate ventilation, at least 50cm from adjacent

wall surfaces. Be sure that no ventilation slots are blocked.

Do not product the beam onto inflammable surfaces, minimum distance is 5m.

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power

requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all

relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the

power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull

out the plug by tugging the power-cord.

Keep the optical system clean. Do not touch the LED lens with bare hands.

The product should always be installed with a secondary safety fixing. On the projector base brink,

there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”

section.

LED lens shall be changed if they have become visibly damaged to such an extent that their

effectiveness is impaired, for example by cracks or deep scratches.

Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is

achieved 50°C.

There is no user serviceable parts inside the projector, do not open the housing and never operate the

product with the covers removed.

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

★Always disconnect from the mains, when the device is not in use or before cleaning it or

before attempting any maintenance work !

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

I. Product Characteristic

Use TFT display, interface luxuriant, promote product’s level.

Menu language switch,can change to Chinese or English to kinds,fit for different customer needs.

655536pcs intensity grade, really achieve 16-bit dimming. Eliminated 8-bit dimming low brightness blink’s problem,

make the dimming effect much more smooth.

Master/slave mode, any light can be master light when switch off the control signal, drive other lights.

II. Product Parameter

Power supply: AC90-240V; 50/60Hz

Power consumption: 120W

DMX control channel:11CH,15CH

DMX 512 connection:3-pin XLR

Control mode: DMX 512,Master/slave,Auto,Sound

Maximum PAN 540

Maximum TILT 240

Number of LEDs: 7pcs 12W 4-in-1 OSRAM LEDs( LE RTDUW S2W)

Beam angle: 8°

Weight: 7kg

Dimensions: 320 * 230 *350mm

III. Menu Description

Menu Structure chart

Main menu Sub menu

Address(001-512)

Address

RunMode

DMX (15CH / 11CH)

Auto(Auto1 -Auto8)

TestMode

Sound

Pan（000-255）

Titl（000-255）

Green（000-255）

Red（000-255）

White（000-255）

Blue（000-255）

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

Main menu

Use button control cursor, press “ENTER” to confirm.

Sub menu

Submenu include Address,Runmode,Testmode,Language,Setup,Sysinfo, use soft button to do each set in interface.

1) Address，after setting press “Enter” to keep address code,then go back to main menu.

2) Runmode setting，“√”is mean to the currently run mode.At the same time, only running one mode. When you

Language

中文(Chinese)

English

SetUp

IDCode（0-25）

PanReverse（ON/OFF）

TitlReverse（ON/OFF）

FaderDelay(ON / OFF)

Hand（开启/关闭）

SignellLink (ON / OFF)

CodeWheel（ON/OFF）

TempSwitchSet（ON/OFF）

PanOffSet（-128-+128）

ScreenSaver（OFF/Mode1/Mode2）

ScreenRot（ON/OFF）

TiltOffSit（-128-+128）

FactorySet（YES？）

Motor RESET（YES？）

OnTime（The running time of this time）

SysInfo

RunTime（Total use time）

Ver YJ-LM2C4 D301

RunningMode

DmxAddress

TemperatureSet（50°- 120°）

Temperature（The real temperature of this light）

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

select DMX mode and auto mode, press “ ENTER”, also can choose different DMX mode and auto mode.

When the light in the DMX mode, then also can be slave mode. If the light connect to the DMX control

signal, then it is DMX mode.If you connect the light is Master signal, then it is running slave mode.

Auto mode,auto mode also can be master mode.

When the light in sound mode, it can’t be master mode.

3) Test mode, test mode is a special mode,only can be used when it is in test mode interface,exit interface, then

return to previous running mode.In the test mode,you can adjust Pan,tilt and focus motor’s position,also can

adjust intensity of RGBW color.The RGBW color of test mode can be used by the 16th channel in the DMX

mode.

4) Language, menu language can setted to Chinese or English.

5) Setup,

ID code,ID code is using for DMX mode in the channel15th,when the value of channel 15th over number

9,only ID code corresponding to the front two value which in 16th channel,then other channel value are

available now.

Pan reverse set

Tilt reverse set

Fader delay,when switch on handspike delay,the controller handspike can achieve soft dimming effect.

Handspike delay can be chosen ON/OFF on the controller.

Sinal link: When turn on signal link,cut off control signal will be blackout.

Code wheel: If off,ID code will failure in reset and running mode,can’t record correct position of pan and

tilt.Will recover from wrong running operation.Reset can be max travel reset from code wheel reset.

Temp Switch: Temperature protect’s switch.

Temperature:Protect temperature, when start temp protect function,if test temperature over protect

temperature,then brightness will be reduce a half.

Screen protect:It can be set turn off,mode1 and mode 2.When it’s OFF,then won’t enter screen protect

condition.When in mode 1,it will clear the screen.When in mode 2,after you into screen protection,big letter

display current address code.

Screen Rot: this menu canlet the screen inversion 180 degree.

Factory set: you can set all parameters to factory set.

Motor Reset:reset the motor by hand.

Pan Off Set:Pan adjustment

Tilt Off Sit: Tilt adjustment

6) Sys info : display related information on system

i. ON time: the current time when you power on it.

ii. Run time: Total time of using this light

iii. Ver: current verson of software

iv. Running mode: System running mode currently

v. DMX address

vi. Temperature: Display current temperature

IV. Channel List

15CH

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

Channel

Value

Control function

0-255

Main dimming ON

0-255

Red

0-255

Green

0-255

Blue

0-255

White

0-255

User customs color

0-255

Pan

0-255

Titl

0-255

Pan fine（16Bit）

0-255

Titl fine（16Bit）

0-255

XY motor speed from quick to slow

No strobe

1-255

Strobe from slow to quick

No marco funtion

1~25

Start controller handspike

26-50

Turn off controller handspike

51-90

Program color selection switch

91-130

Pulse change

131-170

Jump change

171-210

fade

211-250

Inside mode 1（can’t be controlled）

251-255

Sound mode（can’t be controlled）

0-255

pulse，jump，fade from slow to quick（CH14is between 91-210）

Can’t use color selection function

1~20

R255 G↑ B0 W0

21~40

R↓ G255 B0 W0

41~60

R0 G255 B↑ W0

61-80

R0 G↓ B255 W0

81-100

R↑ G0 B255 W0

101-120

R255 G0 B↓ W0

121-140

R255 G↑ B↑ W0

141-160

R↓ G↓ B255 W0

161-170

R255 G255 B255 W255

171-200

R0 G0 B0W0

201-205

R242 G204 B5 W227

206-210

R242 G215 B5 W227

211-215

R255 G255 B50 W255

216-220

R255 G255 B90 W255

221-225

R255 G255 B118 W255

226-230

R255 G255 B132 W255

231-235

R255 G255 B151 W255

236-240

R255 G255 B171 W255

241-245

R255 G255 B185 W255

246-250

R255 G255 B197 W255

251-255

R255 G255 B234 W255

0-9

IDcode fail

10-19

ID1

20-29

ID2

Beam Moving Head 363 MJ-1012 User Manual ver2.0

www.mjledlighting.com

30-39

ID3

40-49

ID4

50-59

ID5

60-69

ID6

70-79

ID7

80-89

ID8

90-99

ID9

100-109

ID10

110-119

ID11

120-129

ID12

130-139

ID13

140-149

ID14

150-159

ID15

160-169

ID16

170-179

ID17

180-189

ID18

190-199

ID19

200-209

ID20

210-219

ID21

220-229

ID22

230-239

ID23

240-249

ID24

250-255

ID25

11CH

Channel

Value

Control function

0-255

Main dimming

0-255

Red

0-255

Green

0-255

Blue

0-255

White

0-255

User custom color

0-255

X motor

0-255

Y motor

0-255

Pan fine（16Bit）

0-255

Titl fine（16Bit）

0-255

XY motor speed from quick to slow

V. FAQ

When the motor can reset in correctly,Please check if XY motor or XY code wheel insert wrong postion.

When you reset it,need to corresponding to the XY motor and XY code wheel,then can reset correctly.You can

change the motor wire to test the direction.

If you want to changemotor direction,please change the DMX cable of code wheel,otherwise can’t reset normal.

When it in master/slave mode,need cut off DMX signal,otherwise can’t accept master’s signal correctly.

If code wheel damaged,you can go to set up to turn off code wheel.The light still can use normal.

Tabla de contenidos

Otros manuales de Equipo de iluminación de MJ LED LIGHTNING

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3126A Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3325C-200W26D Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2029E Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3301B-6IN1 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3112A Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010 3W5DRGBW Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2400-2IN1 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1044-6IN1 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-B380 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2610D18-4IN1 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1280 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3343A20W36DCW Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2042CR Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1057 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1034A Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3400-W Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3126-4IN1 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3432A Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2007C-1000 36P1W25DRGB Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2020 3W25DRGBW Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009A Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005 Manual de usuario

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3004 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
