MJ LED LIGHTNING MATRIX BAR 910 Manual de usuario

LED MATRIX BAR LIGHT

MATRIX BAR 910

MJ-3129-4IN1

User manual

======PROFESSIONAL LED LIGHTING ========

Thank you for choosing our LED matrix bar light. For the sake of your

safety, Please read and follow these instructions carefully and keep this

manual in a safe place for future reference.

MATRIX BAR 910 4IN1 MATRIX BAR 910 4IN1

Installation: .

1. In order to secure the safe installation of the light, always use it in the

well-ventilated environment.

2. Always keep this light with a safe distance from any flammable materials.

3. Never install, dismantle and maintain this light when it is powered; and all work

aforesaid must be conducted by professionals.

4. The packing list of this light is as follows:

1) Light ----------------------------------------------1pcs

2)Power Cable-------------------------------------1pcs

3) User Manual------------------------------------1pcs

Effect:

1. This light operation is very simple, Attractive appearance, Humanized design, Dim

without flicker and shake, Energy-efficient, Durable. It is suitable for photography,

television stations, stage, dance hall, KTV, bar, evening show.

2. The program of this light can automatically operate, sound, accept DMX512 signal

control and be connected for use.

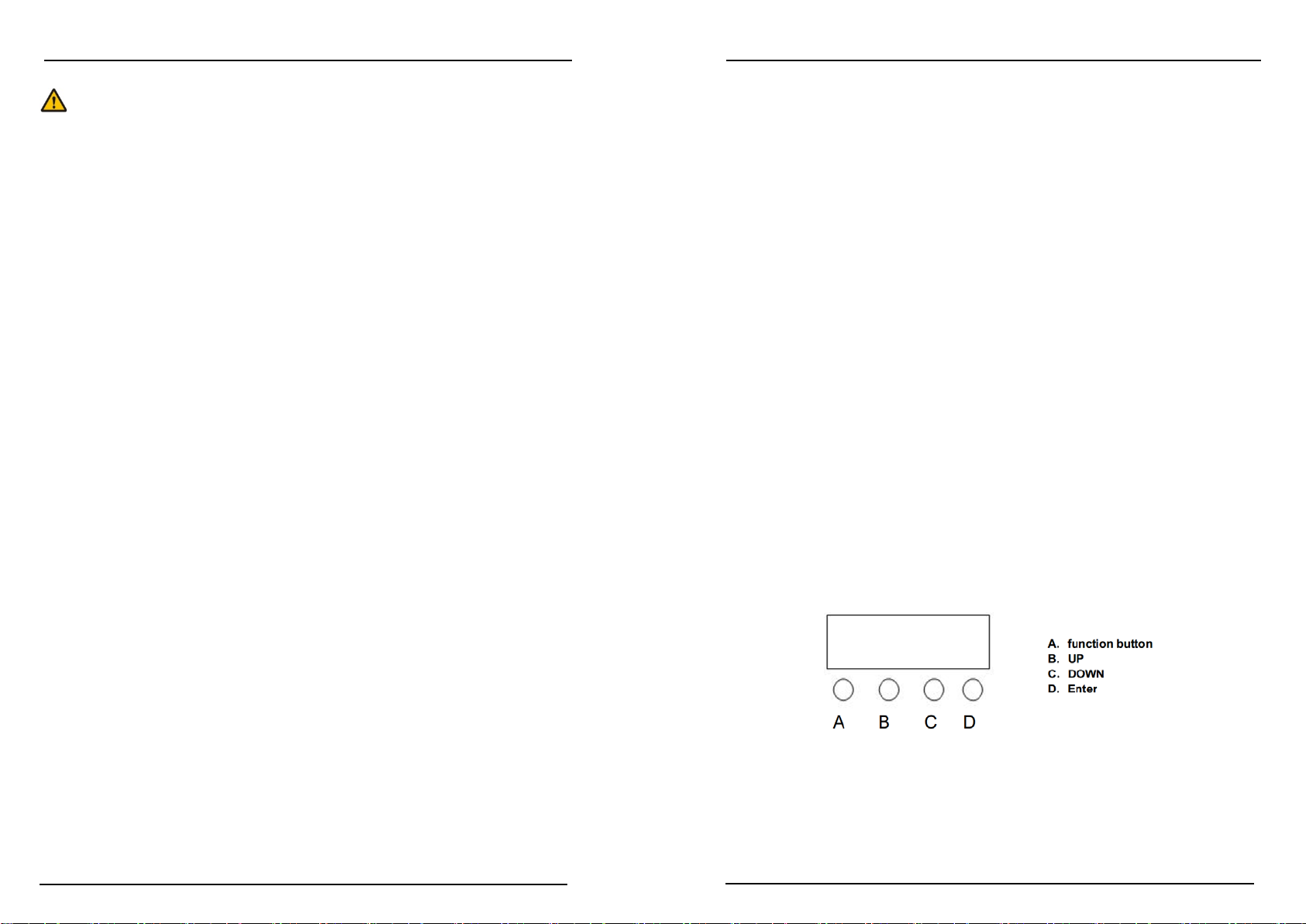

Graphic Part

：

Operation description

：

Press “A” will cycle out 14pcs different functional effect, LED

Top row in represent the current function（Reference function table）。 LED Top row on

behalf of the function in the address code、or speed and other parameters。Press Bor

Ckey can modify the parameter value。Press Dto confirm。

WARNING

Please do NOT connect the power cable hand by hand over 5pcs

Important notice:

Before open the LED matrix bar light and if you want to do the repair

work, please make sure the power source is at the separation

condition.

Unceasingly carries on the product improvement about our company

the policy, in this instruction booklet carries the data will have the

possibility to be able to change in the future, when no longer

separate notice change matters concerned. Our company retains

when the product improvement changes the related specification the

authority. This instruction booklet publisher cannot be responsible

regarding this instruction booklet in information accuracy, also cannot

the related consequence which causes regarding these information

be responsible.

MATRIX BAR 910 4IN1 MATRIX BAR 910 4IN1

Display Menu:（All the functions are selected, press D to confirm.）

No. Display Function

1 A001 DMX address (001—512)

Press “UP” and “Down”

button change the DMX address

2 9CH/14CH/

36CH

Channel choose (09CH/14CH/36CH) Press “UP” and

“Down” button change the DMX Channel

3 CC00 Color change by Snapping (CC01—CC99), press “UP”

and “Down” button change the snapping speed

4 Ed00 Color change by Fading (Ed01—Ed99), press “UP” and

“Down” button change the Fade speed

5 Er00

Colorful Running 1 (Er01—Er99), press “UP” and “Down”

button change the running speed (If setting

ID code1 by 1, it can get running effect in one group)

6 Po00

Colorful Running 1 (Po01—Po99), press “UP” and “Down”

button change the running speed (If setting

ID code1 by 1, it can get running effect in one group)

7 tr00 Running effect (tr01—tr14), press “UP” and “Down”

button change the running effect

8 tU00 Running effect speed (tU01—tU99

), press “UP” and

“Down” button change the running effect speed

9 BE50 Sound control (BE01—BE99), press “UP” and “Down”

button change the sound sensitivity

10 R000 Red dimming by hand (R000—R255)

press “UP” and

“Down” button change the Red brightness

11 G000 Green dimming by hand (G000—G255) press “UP” and

“Down” button change the Green brightness

12 B000 Blue dimming by hand (B000—B255)

press “UP” and

“Down” button change the Blue brightness

76-85 Color change by Fading (It control by CH1,CH2,CH5.

The 5CH is change speed)

86-95 Color Snapping running 1 (It control by CH1,CH5 to

CH9. The 5CH is change speed)

96-105 Color Snapping running 2 (It control by CH1,CH5 to

CH9. The 5CH is change speed)

...... .......

136-145 Color Snapping running 6 (It control by CH1,CH5 to

CH9. The 5CH is change speed)

146-155 Color running 1 (It control by CH1,CH5 to CH9. The

5CH is change speed)

156-165 Color running 2 (It control by CH1,CH5 to CH9. The

5CH is change speed)

...... .......

236-245 Color running 10 (It control by CH1,CH5 to CH9.

The 5CH is change speed)

246-255 Sound control (It control by CH1,CH6 to CH9.)

CH4

Function 1

0-5 No function

6-255

Each one value is a effect (It control by CH1,

CH6 to CH9.)

0-127 Colorful running by Snapping and Fading left

running

128-255 Colorful running by Snapping and Fading

right running

CH5 0-255 Function speed

CH6 0-255 Red dimming

CH7 0-255 Green dimming

CH8 0-255 Blue dimming

CH9 0-255 White dimming

MATRIX BAR 910 4IN1 MATRIX BAR 910 4IN1

13 W000 White dimming by hand (W000—W255)

press “UP” and

“Down” button change the White brightness

14 Id01 Id code setting (Id01-Id14)

press “UP” and “Down” button

change the Id address (It use running effect within one group)

Attention:

1. Setting DMX address by button

1). press MODE button when show the A001 menu, then adjust the DMX address by

pressing UP or DOWN button

2).oPrt is slave mode

Press ENTER to confirm or pressing MODE to return to main menu.

2. Setting ID code.(only for Er00 and Po00 do master to use)

If you set ID code one by one. and connect the light together.

It will be get amazing running effect within one group light.

(e.g. :first light ID is Id01, second light ID is Id02, third light ID is Id03, fourth light ID is

Id04....... those light is a group., it will be running from first light to last light)

Technical Parameters:

Voltage: AC 100-240V, 50Hz/60Hz

Power Consumption: 90 Watts

LED: 9pcs 10W 4in1 RGBW LED

LED Current: 520mA / 1 pc

LED Beam Angle: 25°

Dimming: 0-100% with regulated constant color control

Strobe: 10 Flashes per second (any color)

Operation Modes: DMX512, Sound, Internal Program, Master-slave

DMX Control: 9/14/36 Channels

Maximum Ambient Temperature: 40° C

Gross Weight: 4.2 kg

Package Size: 690 x 180 x 155mm

CH4

Function 1

0-5 No function

6-255

Each one value is a effect (It control by CH1,

CH6 to CH14.)

0-127 Colorful running by Snapping and Fading left

running

128-255 Colorful running by Snapping and Fading

right running

CH5 0-255 Function speed

CH6 0-255 LED 1 color mixing

CH7 0-255 LED 2 color mixing

CH8 0-255 LED 3 color mixing

...... ...... .........

CH14 0-255 LED 9 color mixing

C. 9channel description

Channel Value Function

CH1 0-255 Main dimming from dark to bright

CH2 0-255 Control strobe from slowly to quickly

3CH

Function 1

0-25 No Function

26-35 No Function

36-45

Colorful running by Snapping, It control by 1CH,6CH

to 9CH (If ID code one by one, it can be control within

one group)

46-55

Colorful running by Fading, It control by 1CH,6CH to

9CH (If ID code one by one, it can be control within

one group)

56-65 Color choose (It control by CH1,CH2,

CH5. The 5CH is choose color)

66-75 Color change by Snapping (It control by

CH1,CH2,CH5. The 5CH is change speed)

MATRIX BAR 910 4IN1 MATRIX BAR 910 4IN1

Cleaning and Maintenance:

We recommend a frequent cleaning of the device. Please use a soft lint-free and

moistened cloth. Never use alcohol or solvents!

CAUTION!

Disconnect from mains before starting maintenance operation.

There are no serviceable parts inside the device. Maintenance and service

operations are only to be carried out by authorized dealers.

If you need any spare parts, please use genuine parts.

If the power supply cable of this device becomes damaged, it has to be replaced by

authorized dealers only in order to avoid hazards.

If you have further questions, please contact your dealer.

DMX functions and values:

A. 36 channel description

Channel Value Function

CH1 0-255 R1 dimming

CH2 0-255 G1 dimming

CH3 0-255 B1 dimming

CH4 0-255 W1 dimming

...... ...... ......

CH33 0-255 R9 dimming

CH34 0-255 G9 dimming

CH35 0-255 B9 dimming

CH36 0-255 W9 dimming

B. 14channel description

Channel Value

Function

CH1 0-255 Main dimming from dark to bright

CH2 0-255 Control strobe from slowly to quickly

3CH

Function 1

0-25 No Function

26-35 No Function

36-45

Colorful running by Snapping, It control by 1CH,6CH

to 1CH (If ID code one by one, it can be control within

one group)

46-55

Colorful running by Fading, It control by 1CH,6CH to

14CH (If ID code one by one, it can be control within

one group)

56-65 Color choose (It control by CH1,CH2,

CH5. The 5CH is choose color)

66-75 Color change by Snapping (It control by

CH1,CH2,CH5. The 5CH is change speed)

76-85 Color change by Fading (It control by CH1,CH2,CH5.

The 5CH is change speed)

86-95 Color Snapping running 1 (It control by CH1,CH5

to CH14. The 5CH is change speed)

96-105 Color Snapping running 2 (It control by CH1,CH5

to CH14. The 5CH is change speed)

...... .......

136-145 Color Snapping running 6 (It control by CH1,CH5

to CH14. The 5CH is change speed)

146-155 Color running 1 (It control by CH1,CH5 to CH14.

The 5CH is change speed)

156-165 Color running 2 (It control by CH1,CH5 to CH14.

The 5CH is change speed)

...... .......

236-245 Color running 10 (It control by CH1,CH5 to CH14.

The 5CH is change speed)

246-255 Sound control (It control by CH1,CH6 to CH14.)
