Mitsubishi Electric SmartD90EV Manual de usuario
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Operator manual
V1.3
Operation
&
Maintenance web application
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Operation
Introduction 3
Basics 4
Construction of the image to be printed 5
Built in print web services 8
Sharing SmartD90EV HotFolders with Samba 9
FTP Service 10
Samples 11
The maintenance web application
Login to the maintenance web application as administrator 13
Start maintenance page 14
Top Menu 15
Order Info 16
Printer Info 17
System Info 18
HotFolder Setting 20
Print Setting 25
Service Setting 26
System Setting 31
Additional Setting 33
Maintenance 35
Appendix
How to realize frequent tasks 37
Glossary 38
Troubleshooting 39
Warnings 40
Index
-1 -
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Operation
i
-2 -
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Introduction
The SmartD90EV is a new concept of photo printer system designed to offer an outstanding user experience while print your
camera shoots, memories, and any instant moment taken at any event: Private parties, ceremonies, corporate evens, …
The system consists of the multi format dye sublimation photo printer CP-D90DW combined with a powerful small computer. The
built in software of this new generation computer provides the capability of wireless connection from different devices
(Smartphones, Tablets, PCs, high end photo cameras, …) and with multiple transfer protocols ( ftp, http, Smb )
-3 -
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
The SmartD90EV software offers two different built in printing services based on web technology than can be selected and setup
from the maintenance application, that is also based on web technology and provided by the internal web server.
The built in printing web services available are the EasyPrint service and the FunPrint service.
The SmartD90EV also offers printing services from external applications, like the Kiosk Print app available for Android and iOS
Smartphones and Tablets, high end photo cameras, and other applications and systems developed by authorized third parties.
The SmartD90EV’s input photo/image area is structured in smart containers called HotFolders. The unique combination of the
HotFolders, the Smart Image Processor and the Print Module gives large flexibility to print out high quality multi format photos
,add frames and text, and allows the SmartD90EV offer several print services simultaneously: EasyPrint, Kiosk Print app, third
parties apps , …,

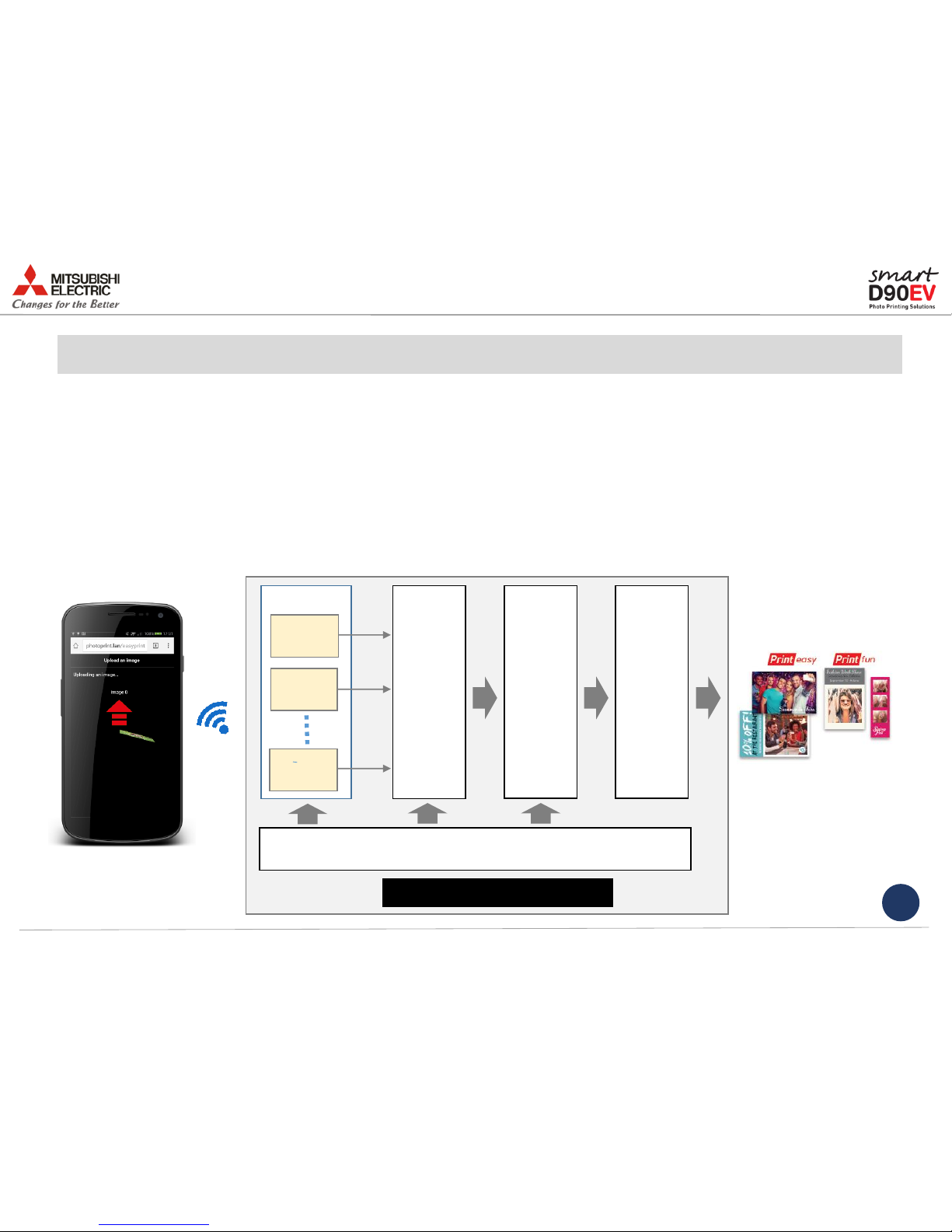

Basics
Smart
Processor
&
constructor
Print
Module
&
Print
Control
System control
HotFolder
2
HotFolder
n
HotFolder
1
Input
Print
Output
SmartD90EV Block diagram
-4 -
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Construction of the image to be printed 1/3
Each one of the input HotFolders has its own image constructor parameters. The image processor uses these parameters to build
the image to be printed.
The construction of the image is based on a canvas concept. The SmartD90EV’s image processor creates a solid surface base on
where the different layers that will create the final image are painted following a certain order. The availability of some layers
depends on the selected service mode and the settings of the HotFolder used by the service selected.
Each layer has its own group of settings that can be adjusted from the SmartD90EV’s maintenance application.
All the layers are referenced to the upper left corner of the base canvas, being this point the 0,0 coordinate. In order to create a
correct final image, all the layers have to be equally sized.
The image/photo layer has four parameters for the image constructor: X, Y W, H. The values must be in pixels and defines the are
where the image will be fitted. If these values are blank, the image/photo will match the canvas size.
Canvas
Height
Canvas Width
X
Y
Canvas X = 0
Canvas Y = 0
H
W
-5 -
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual

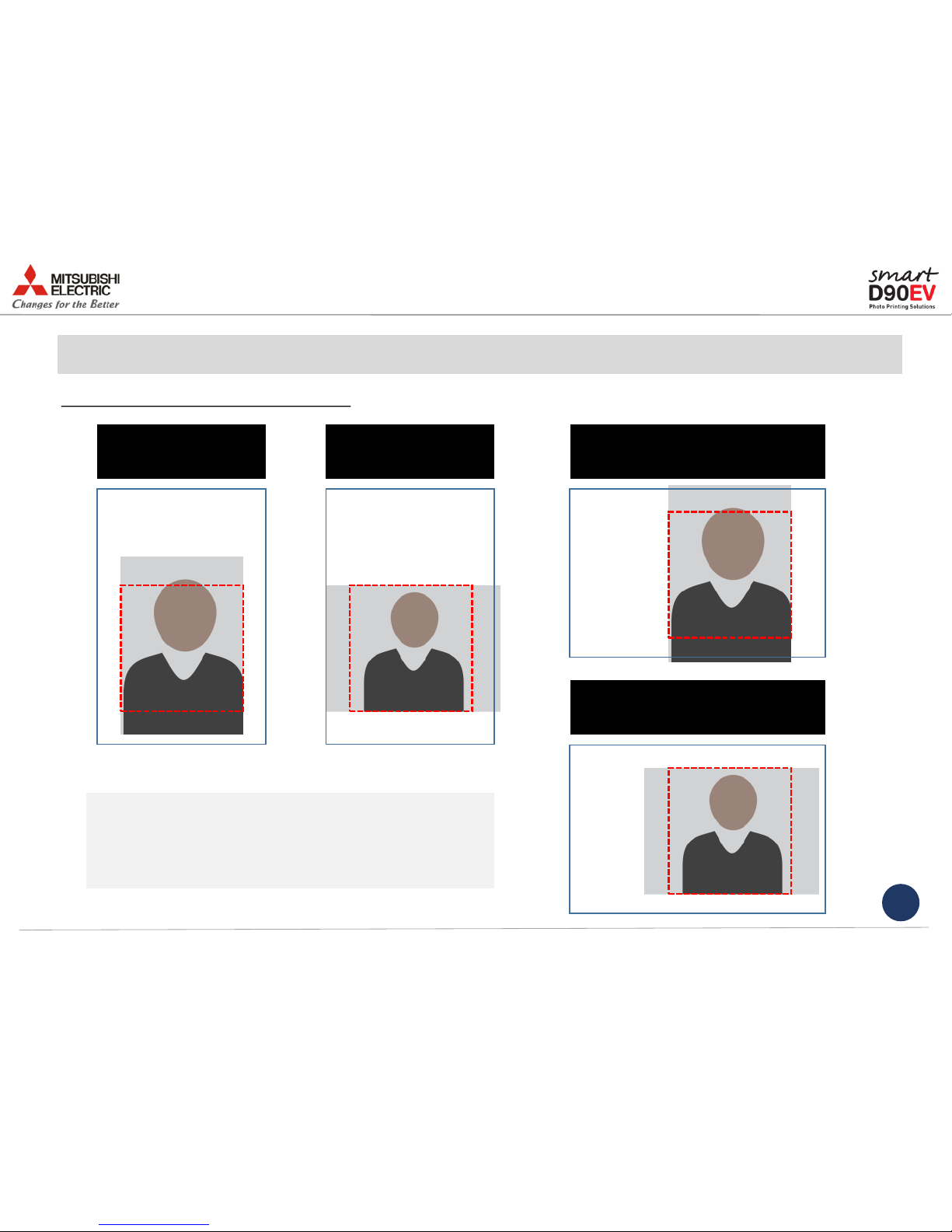

Construction of the image to be printed 2/3
When a specific area is defined for the image, it will be processed and fitted according to the canvas format
Portrait canvas
Portrait image
Portrait canvas
Landscape image
Landscape canvas
Portrait image
Landscape canvas
Landscape image
The parts of the image out of the red
doted square (defined area for the
image) are not printed.
Canvas Canvas Canvas
Canvas
-6 -
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Background
(Only FunPrint)
Image/Photo
Frame
(Only EasyPrint)
Text
(Only EasyPrint)
Print out
Layers overlap to construct the image to be printed
Clip Arts
(Only FunPrint)
Canvas
Construction of the image to be printed 3/3
Main parameters to construct the image:
Text: Disable/Enable, Color, Size, Shadow, Background, horizontal and vertical position
Clip Arts: Select built in Clip Art images.
Frame: Disable / Enable. If enabled, then select the type of frame ( *.png file)
Canvas: Width, Height
-7 -
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Built in print web services
-8 -
EasyPrint1 FunPrint 5x15(2x6”)EasyPrint2
Needs confirmation (Click
“Order”) to send the
images after selected
Images are send to the
SmartD90EV as soon as
they are selected
Image on a decoration
background with Polaroid
style
Strip with 3 images +
decoration, logo, …
5x15 (2x6”) size
FunPrint 15x8.9(6x3.5”)
i
- Mitsubishi Electric Europe, BV
Spanish Branch
March 2017
Operator manual
Windows
Sharing SmartD90EV HotFolders with Samba
Finder -> Go -> Connect to server -> Smb://192.168.110.1
Windows File Explorer -> type: \\192.168.110.1
Windows mac OSX Sierra
The SmartD90EV implements Samba (SMB) protocol to share its internal HotFolders. It makes very easy create a network
connection between computers (MAC, Windows, Linux) and the SmartD90EV and then send the file images stored in these
devices by simply “Click” ->”Drag” and “Drop” the files into the HotFolders.
-9 -
