Mitsubishi Electric FR-A7ND E kit Manual de usuario

FR-A7ND E kit INSTRUCTION MANUAL

INVERTER

Plug-in option

INSTRUCTION MANUAL

INVERTER

HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

FR-A7ND E kit

communication function

IB(NA)-0600342ENG-C(1209) MEE Printed in Japan Specifications subject to change without notice.

PRE-OPERATION INSTRUCTIONS

INSTALLATION

WIRING

INVERTER SETTING

FUNCTIONS

OBJECT MAP DEFINITIONS

TROUBLESHOOTING

OBJECT MAP

A-1

Thank you for choosing this Mitsubishi Inverter plug-in option.

This Instruction Manual gives handling information and

precautions for use of this equipment. Incorrect handling might

cause an unexpected fault. Before using the equipment, please

read this manual carefully to use the equipment to its optimum.

Please forward this manual to the end user.

1. Electric Shock Prevention

This section is specifically about

safety matters

Do not attempt to install, operate, maintain or inspect this

product until you have read through this Instruction Manual and

appended documents carefully and can use the equipment

correctly. Do not use this product until you have a full

knowledge of the equipment, safety information and

instructions.

In this Instruction Manual, the safety instruction levels are

classified into "WARNING" and "CAUTION".

Incorrect handling may cause

hazardous conditions, resulting in

death or severe injury.

Incorrect handling may cause

hazardous conditions, resulting in

medium or slight injury, or may

cause only material damage.

The level may even lead to a serious

consequence according to conditions. Both instruction levels

must be followed because these are important to personal

safety.

WARNING

CAUTION

SAFETY INSTRUCTIONS

WARNING

•While the inverter power is ON, do not open the front cover or

the wiring cover. Do not run the inverter with the front cover

or the wiring cover removed. Otherwise you may access the

exposed high voltage terminals or the charging part of the

circuitry and get an electric shock.

•Even if power is OFF, do not remove the front cover except for

wiring or periodic inspection. You may accidentally touch the

charged inverter circuits and get an electric shock.

•Before wiring or inspection, power must be switched OFF. To

confirm that, LED indication of the operation panel must be

checked. (It must be OFF.) Any person who is involved in

wiring or inspection shall wait for at least 10 minutes after the

power supply has been switched OFF and check that there

are no residual voltage using a tester or the like. The

capacitor is charged with high voltage for some time after

power OFF, and it is dangerous.

•Any person who is involved in wiring or inspection of this

equipment shall be fully competent to do the work.

•The plug-in option must be installed before wiring. Otherwise,

you may get an electric shock or be injured.

•Do not touch the plug-in option or handle the cables with wet

hands. Otherwise you may get an electric shock.

•Do not subject the cables to scratches, excessive stress,

heavy loads or pinching. Otherwise you may get an electric

shock.

A-2

2. Injury Prevention

3. Additional Instructions

Also the following points must be noted to prevent an accidental

failure, injury, electric shock, etc.

1) Transportation and mounting

2) Trial run

3) Usage

4) Maintenance, inspection and parts replacement

5) Disposal

6) General instruction

CAUTION

•The voltage applied to each terminal must be the ones

specified in the Instruction Manual. Otherwise burst, damage,

etc. may occur.

•The cables must be connected to the correct terminals.

Otherwise burst, damage, etc. may occur.

•Polarity must be correct. Otherwise burst, damage, etc. may

occur.

•While power is ON or for some time after power-OFF, do not

touch the inverter as they will be extremely hot. Doing so can

cause burns.

CAUTION

•Do not install or operate the plug-in option if it is damaged or

has parts missing.

•Do not stand or rest heavy objects on the product.

•The mounting orientation must be correct.

•Foreign conductive objects must be prevented from entering

the inverter. That includes screws and metal fragments or

other flammable substances such as oil.

CAUTION

•Before starting operation, each parameter must be confirmed

and adjusted. A failure to do so may cause some machines to

make unexpected motions.

WARNING

•Do not modify the equipment.

•Do not perform parts removal which is not instructed in this

manual. Doing so may lead to fault or damage of the inverter.

CAUTION

•

When parameter clear or all parameter clear is performed, the

required parameters must be set again before starting operations

because all parameters return to the initial value.

•Static electricity in your body must be discharged before you

touch the product. Otherwise the product may be damaged.

CAUTION

•Do not test the equipment with a megger (measure insulation

resistance).

CAUTION

•This inverter plug-in option must be treated as industrial

waste.

Many of the diagrams and drawings in this Instruction Manual

show the inverter without a cover or partially open for

explanation. Never operate the inverter in this manner. The

cover must be reinstalled and the instructions in the inverter

manual must be followed when operating the inverter.

⎯CONTENTS ⎯

1 PRE-OPERATION INSTRUCTIONS 1

1.1 Unpacking and Product Confirmation .............................................................................................1

1.1.1 SERIAL number..............................................................................................................................................1

1.1.2 Product confirmation.......................................................................................................................................2

1.2 Parts....................................................................................................................................................3

1.3 MNS LED (operation status indication) ...........................................................................................4

1.4 Specifications.....................................................................................................................................5

2 INSTALLATION 6

2.1 Pre-Installation Instructions .............................................................................................................6

2.2 Installation Procedure .......................................................................................................................6

2.3 Node Address Setting .....................................................................................................................12

3 WIRING 14

3.1 Connection to Network....................................................................................................................14

3.2 Wiring................................................................................................................................................15

4 INVERTER SETTING 20

4.1 Parameter List ..................................................................................................................................20

4.2 DeviceNet Data.................................................................................................................................21

4.2.1 DeviceNet address (Pr. 345) ........................................................................................................................22

4.2.2 DeviceNet baud rate (Pr. 346)......................................................................................................................23

4.3 Operation Mode Setting ..................................................................................................................25

4.3.1 Operation mode indication............................................................................................................................25

4.3.2 Operation mode switching and communication startup mode (Pr. 79, Pr. 340) ...........................................26

4.4 Operation and Speed Command Source (Pr. 338, Pr. 339, Pr. 550) ............................................29

4.4.1 Communication EEPROM write selection (Pr. 342) .....................................................................................33

4.5 Operation at Communication Error Occurrence...........................................................................34

4.5.1 Operation selection at communication error occurrence (Pr. 500 to Pr. 502) ..............................................34

4.5.2 Alarm and measures ....................................................................................................................................38

4.6 Inverter Reset ...................................................................................................................................40

4.7 Frequency and Speed Conversion Specifications .......................................................................42

5 FUNCTIONS 43

5.1 Output from the Inverter to the Network........................................................................................43

5.2 Input to the Inverter from the Network...........................................................................................43

6 OBJECT MAP DEFINITIONS 44

6.1 Object Model of DeviceNet Communication .................................................................................44

6.2 Response Level................................................................................................................................45

6.2.1 Response level of Polling I/O .......................................................................................................................45

6.2.2 Response level of explicit message .............................................................................................................46

6.3 Recommendation for Software Developers ..................................................................................47

III

7OBJECTMAP 48

7.1 Class 0x01 (Identity-Object)............................................................................................................48

7.1.1 Class 0x01 Instance 0 ..................................................................................................................................48

7.1.2 Class 0x01 Instance 1 ..................................................................................................................................49

7.2 Class 0x03 (DeviceNet Object) .......................................................................................................50

7.2.1 Class 0x03 Instance 1 ..................................................................................................................................50

7.3 Class 0x04 (Assembly Object)........................................................................................................51

7.3.1 Output Instance 20/Input Instance 70...........................................................................................................52

7.3.2 Output Instance 21/Input Instance 71...........................................................................................................54

7.3.3 Output Instance 126/Input Instance 176.......................................................................................................56

7.4 Class 0x05 (DeviceNet Connection Object)...................................................................................60

7.4.1 Class 0x05 Instance 1 Attribute (Explicit message connection)..................................................................60

7.4.2 Class 0x05 Instance 2 Attribute (Polling I/O connection) .............................................................................62

7.4.3 Class 0x05 Instance 4, 5, 6 Attribute (Explicit message connection) ..........................................................65

7.4.4 Class 0x05 Instance 1, 2, 4, 5, 6 service......................................................................................................66

7.5 Class 0x28 (Motor Data Object) ......................................................................................................67

7.5.1 Class 0x28 Instance 1 ..................................................................................................................................67

7.6 Class 0x29 (Control Supervisor Object) ........................................................................................68

7.6.1 Class 0x29 Instance 1 ..................................................................................................................................68

7.7 Class 0x2A (AC Drive Object) .........................................................................................................70

7.7.1 Class 0x2A Instance 1..................................................................................................................................70

7.8 Class 0x66 (Extended Object I).......................................................................................................79

7.8.1 Class 0x66 Instance 1 ..................................................................................................................................79

7.9 Class 0x67 (Extended Object II)......................................................................................................84

7.9.1 Class 0x67 Instance 1 ..................................................................................................................................84

7.10 Class 0x70 to 0x79 (Extended Object III) .......................................................................................86

7.10.1 Class 0x70 to 0x79 Instance 1, 2 .................................................................................................................86

7.11 Class 0x80 (Extended Object IV) ....................................................................................................87

7.11.1 Class 0x80 Instance 1 ..................................................................................................................................87

7.12 FR-E5ND (FR-E500-KND) Compatible Mode..................................................................................89

8 TROUBLESHOOTING 92

APPENDIX 93

EDS File ............................................................................................................................................93

Error Code List.................................................................................................................................94

1PRE-OPERATION INSTRUCTIONS

1.1 Unpacking and Product Confirmation

Take the plug-in option out of the package, check the product name, and confirm that the product is as you

ordered and intact.

This product is a plug-in option for the FR-E700 series inverter.

1.1.1 SERIAL number

Check the SERIAL number indicated on the rating plate or package.

For the 200V class of FR-E700, this option can be used with the inverter having the following SERIAL

number or later. (For the 400V class of FR-E700, this option can be used with all inverters regardless of

SERIAL number.)

zSERIAL number check

Refer to the Instruction Manual of the inverter for the location of the rating plate.

Type SERIAL number

FR-E720-0.1K to 0.75K J7Y{{{{{{

FR-E720-1.5K to 5.5K K7Y{{{{{{

FR-E720-7.5K L7Y{{{{{{

FR-E720-11K, 15K G7Y{{{{{{

Rating plate example

7 Y {{{{{{ SERIAL (Serial No.)

Symbol Year Month Control number

The SERIAL consists of one symbol, two characters indicating production year and month,

and six characters indicating control number.

The last digit of the production year is indicated as the Year, and the Month is indicated by

1 to 9, X (October), Y (November), or Z (December).

PRE-OPERATION INSTRUCTIONS

1.1.2 Product confirmation

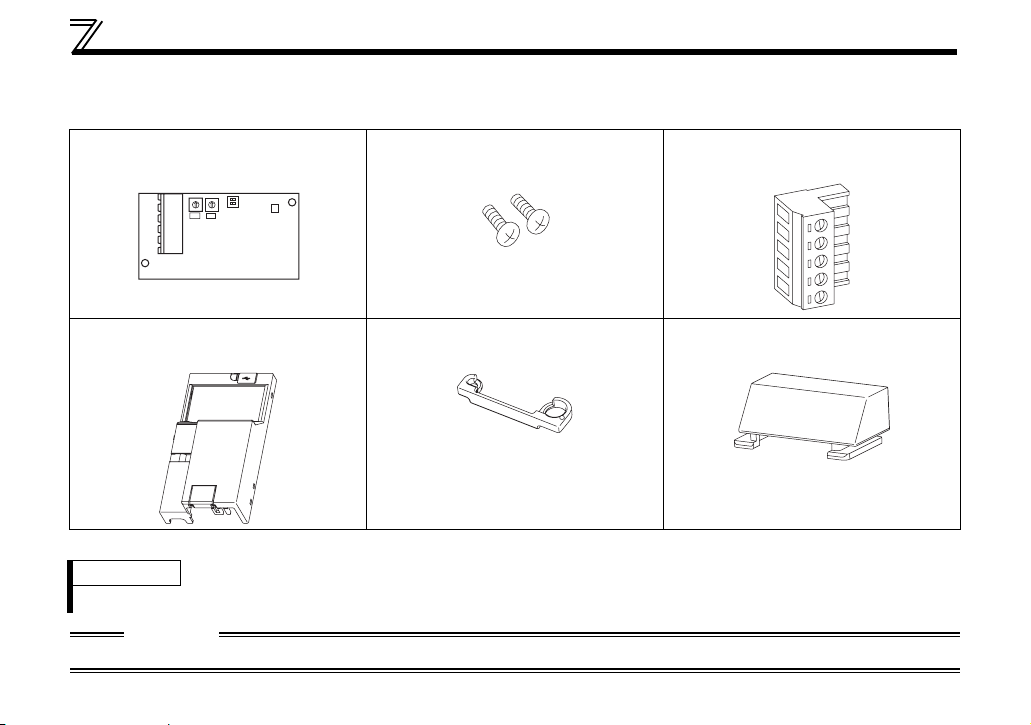

Check the enclosed items.

* Used with the FR-E720-3.7K (FR-E720-175) or less and FR-E740-7.5K (FR-E740-170) or less.

Plug-in option

.........................................................1

Mounting screw (M3 ×6mm)

........................ 2 (Refer to page 8, 10.)

Terminal block

......................... 1 (Refer to page 8, 10.)

Front cover for plug-in option

.........................................................1

Option protective cover

....................................................... 1*

Option small cover (Not used)

......................................................... 1

REMARKS

• DeviceNetTM is a registered trademark of ODVA (Open DeviceNet Vender Association, INC).

CAUTION

• In place of the inverter front cover, install a provided front cover for plug-in option.

X10 X1

PRE-OPERATION INSTRUCTIONS

1.2 Parts

CAUTION

• Set the compatible mode switch (SW3) before switching ON the inverter and do not change the setting

while the power is ON. Otherwise you may get an electric shock.

• Do not turn ON the switch 2 of the compatible mode switch (SW3).

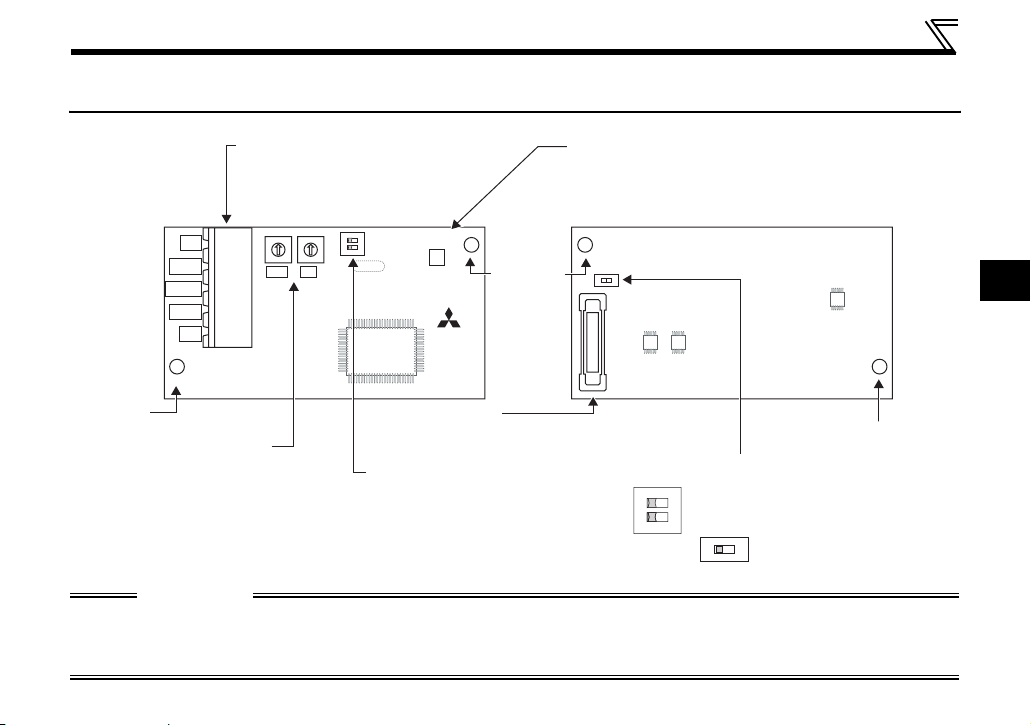

Front view Rear view

LED1

X10 X1

SW3

SW1 SW2

SW4

V-

CAN-

SHIELD

CAN+

V+

SW4

Mounting

hole

MNS LED (operation status indication)

Lit/flicker/off of the LED indicate inverter

operation status.

Connector

Connect to the inverter

option connector.

Compatible mode switch (SW3)

Switch over to the FR-E5ND

(FR-E500-KND) compatible mode.

(In the initial status, the switches

1 and 2 are both OFF.)

Node address switch

Set the node address.

Mounting hole

Connector for communication

Mount the accessory terminal

block to connect to the network.

FR-A7ND

MNS

Mounting

hole

Switch for manufacturer setting

Do not change from initially-set

status (OFF).

(Refer to page 4.)

(Refer to page 12.)

(Refer to page 89.)

Otros manuales para FR-A7ND E kit

Tabla de contenidos

Otros manuales de Inversor de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric FR-S500 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-HEL-C75K Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-E800 Manual de uso y cuidado

Mitsubishi Electric

Mitsubishi Electric FR-A800 Hoja de instrucciones

Mitsubishi Electric

Mitsubishi Electric FR-A500 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-F700 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric fr-e720-008 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Climaveneta i-BX-004-013M Guía de configuración

Mitsubishi Electric

Mitsubishi Electric FR-A820-04750-GF Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de lista de piezas

Mitsubishi Electric

Mitsubishi Electric FR-A720-00030-NA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric F800-E Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-HEL-N280K Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-F800 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric fr-e700 series Hoja de instrucciones

Mitsubishi Electric

Mitsubishi Electric FR-A700 Series Hoja de instrucciones

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 800 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric A800 Manual del propietario

Mitsubishi Electric

Mitsubishi Electric 800 Series Hoja de instrucciones

Mitsubishi Electric

Mitsubishi Electric FR-A720-0.4K Manual de usuario

Manuales populares de Inversor de otras marcas

Fourgroup

Fourgroup Easy Manual de usuario

Velleman

Velleman PI300M Manual de usuario

Sungrow

Sungrow SG350HX-US Manual de usuario

WilTec

WilTec 61897 Manual de usuario

SMA

SMA SUNNY BOY STORAGE 2.5 Manual de usuario

Simplicity

Simplicity LANDLORD 316 Manual de usuario

Santak

Santak SMAX 3000 Manual de usuario

ATON

ATON RA.Store-3 Manual de usuario

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manual de usuario

Tektronix

Tektronix CFG250 Manual de usuario

Champion

Champion 200989 Manual de usuario

Vanner

Vanner 20-500 Series Manual de usuario

GE GEP Manual de usuario

Astrel Group

Astrel Group Power Reducer Guía rápida

MULTIQUIP

MULTIQUIP GDP-5H Guía

GoWISE

GoWISE PS1007 Manual de usuario

Promate

Promate PM13500D ES Manual de usuario

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manual de usuario
