EN-1

LAN Control Utility

User Manual (for XD3500U)

Contents

Preparation/SetUp .........................................................................2

Preparation before using the network function...........................................2

Connection..................................................................................................3

Installation...................................................................................................3

Setting the IP address of the projector .......................................................5

When using a DHCP server ...........................................................................................6

When not using a DHCP server.....................................................................................7

Telnet setting...............................................................................................8

Setting the password (Password Setup) .......................................................................9

Setting the display language of ProjectorView (language) ..........................................10

Setting the LAN control (LAN-Controlled Mode) .........................................................10

Setting the PJLink™ certiﬁcation (PJLink certiﬁcation Mode).....................................11

Save and exit ...............................................................................................................11

ProjectorView...............................................................................12

Using the ProjectorView............................................................................12

How to start up ............................................................................................................12

VIRTUAL REMOTE controller.......................................................................................14

E-mail notiﬁcation function ..........................................................................................14

Initial setting.................................................................................................................15

Support for the PJLink™ function ...............................................16

EN-2

Preparation/SetUp

Preparation before using the network function

This projector is equipped with the network function to control and monitor the projector’s operations using a Web

browser and to send e-mail notiﬁcation.

Before using the network function, perform the following three preparation steps.

(1) Setup of the application software “Projector-Control Device Installer”

(2) Setting of the IP address of the projector*1

(3) Setting of password, display language, LAN control, and PJLink™ certiﬁcation using telnet.

*1 When setting IP addresses for multiple projectors collectively or when setting an IP address for a ceiling-

mounted projector after installation, check and take a note of combination of the projectors and the hardware

addresses (MAC addresses) in advance. To check the hardware addresses (MAC addresses), perform step 2

on the page 5.

[Major functions]

Setting of the projector’s IP address

Setting of password, display language, and LAN control

PJLink™ certiﬁcation setting (Telnet function)

Startup of the controlling / supervising tool (ProjectorView) using the Web browser

[System requirements]

Supported OS : Windows®2000, Windows®XP, Windows Vista®

Microsoft®.NET Framework 2.0*2 should be installed in Windows®2000 or Windows®XP.

Microsoft®.NET Framework 3.0*3 should be installed in Windows Vista®.

CPU : Pentium II 233 MHz or higher

Memory : 128 MB or more

Free HDD space : 32 MB or more

Web browser : Internet Explorer Ver. 6.0

(Java Plug-in*4 should be installed and JavaScript should be enabled.)

How to install Microsoft®.NET Framework Version 2.0, 3.0

*2 When using Windows®2000 or Windows®XP:

(1) Download .NET Framework Version 2.0 (ﬁle named “dotnetfx.exe”) from the download center on the

Microsoft®Web site (http://www.microsoft.com/downloads/).

(When the ﬁle is unavailable from the above-mentioned URL, search for .NET Framework using Windows

Update and access the download site found.)

(2) Execute the downloaded ﬁle named dotnetfx.exe.

*3 When using Windows Vista®:

(1) Download .NET Framework Version 3.0 (ﬁle named “dotnetfx3.exe”) from the download center on the

Microsoft®Web site (http://www.microsoft.com/downloads/).

(When the ﬁle is unavailable from the above-mentioned URL, search for .NET Framework using Windows

Update and access the download site found.)

(2) Execute the downloaded ﬁle named dotnetfx3.exe.

*4 How to install Java Plug-in

(1) Download JRE6 from the JAVA download center on the Sun Microsystems Web site (http://java.sun.com/

javase/downloads/index.jsp).

(When the ﬁle is unavailable from the above-mentioned URL, search for “JRE6 download” using a search

engine and access the download site found.)

(2) Execute the downloaded ﬁle.

(3) After the completion of the installation, select [Start] - [Control Panel] - [Java Plug-in] and disable the cache.

Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation•

in the United States and/or other countries.

Pentium is trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and•

other countries.

The trademark of PJLink is trademark applied for registration or registered trademark in Japan, the United•

States, and other countries and areas.

Other brand or product names are trademarks or registered trademarks of their respective holders.•

EN-3

Copy two ﬁles (DI_4.1.3.6.msi and Setup.exe) contained in the Tools folder of CD-ROM to the hard disk of

your personal computer.

Double-click the ﬁle named Setup.exe.

When the following window appears, click Next.

Installation

Before starting installation, be sure to read “ReadMe.txt” contained in the CD-ROM.

Connection

Preparation/SetUp (continued)

Computer

To LAN terminal

LAN cable (option)

(100BASE-TX or 10BASE-T should be supported.)

LAN cable (option)

(100BASE-TX or 10BASE-T

should be supported.)

External HUB

Use a straight-through category-5 cable for LAN connection.•

Don’t touch the metal parts of the LAN connector and LAN cable because static electricity may be discharged•

from your body, causing damage to the projector.

When STANDBY MODE of the INSTALLATION menu of the projector is set to LOW, the LAN network is

disabled. To enable the LAN network, set STANDBY MODE to STANDARD. (See the User Manual of the

projector.)

EN-4

Preparation/SetUp (continued)

Select a folder to install the program, and click Next.

Click Next.

Installation starts.

The progress of the installation process is•

displayed as shown on the right.

When the installation process is completed, click

Close.

How to remove Projector-Control Device Installer

Select [Start] - [Control Panel] - [Add or Remove Programs] - [Projector-Control Device Installer] and click

[Remove] (in the case of Windows®XP).

EN-5

Start the Projector-Control Device Installer.

Select [Start] - [All Programs] - [Projector] -•

[Projector-Control Device Installer] (in the case of

Windows®XP).

Click the Search button.

Projector is recognized.•

(Note)

When projector isn’t recognized, check the following.

The ﬁrewall function has been disabled. (When it•

has been enabled, search may not be conducted.)

The personal computer and the projector are on•

the same network. (For preventing unauthorized

access.)

More than one Projector-Control Device Installer•

isn’t running.

The network adapter being used is selected by•

the Option setting of the Tool menu.

“STANDBY MODE” of the projector is set to•

“STANDARD.”

Select a projector by clicking the line showing the

projector and click the Assign IP button.

Click here

The Assign IP Address screen appears.

Setting the IP address of the projector

Before setting the IP address, check that the projector has been LAN-networked and turn on the main power of

the projector.

When using multiple projectors, connect and conﬁgure them one by one. If you turn on the powers of the•

projectors that are connected but not yet conﬁgured at the same time, they may not be recognized.

For automatic IP address setting by the DHCP server, go to page 6. For IP address setting without using the•

DHCP server, go to page 7.

Preparation/SetUp (continued)

EN-6

Select [Obtain an IP address automatically] and click

Next.

Click Next.

Check that the options are marked with•

checkmarks as shown on the right. Keep them

unchanged for normal use.

Click Assign.

Click Finish.

Click the Search button.

Check the IP address.•

When using a DHCP server

Preparation/SetUp (continued)

EN-7

Select [Assign a speciﬁc IP address] and click Next.

Enter a ﬁxed IP address (for example, 192.168.0.1)

and click Next.

(Note)

Do not use 0 or 255 for the last digit of the IP

address.

Click Assign.

Click Finish.

Click the Search button.

Check the IP address you set.•

(Note)

When using the error/alert e-mail notiﬁcation function

described later, click the Assign IP button and set the

subnet mask and default gateway correctly.

For the values of the subnet mask and default•

gateway, contact your network administrator.

When not using a DHCP server

Preparation/SetUp (continued)

EN-8

Start the Projector-Control Device Installer.

Select [Start] - [All Programs] - [Projector] -•

[Projector-Control Device Installer] (in the case of

Windows®XP).

Press the +buttons on the left pane to expand the

tree structure until the IP address you set appears.

Click the Telnet Conﬁguration tab.

Select the Connect tab. Press the Enter key within

5 seconds after the message shown on the right

appears.

When it passes 5 seconds without any operation•

on this screen, the screen is shaded and no key

operation is accepted. In this case, click the

Connect button again to continue setting.

The setting menu appears.

Telnet setting

Setting of password, display language, LAN control, and PJLink™ certiﬁcation using telnet.

This section describes how to set the password, display language on the ProjectorView screen, LAN control, and

PJLink™ certiﬁcation that are necessary for the operation state control tool (commercially available) that uses the

projector operation control/monitor tool ProjectorView and the industry standard PJLink™ protocol.

Preparation/SetUp (continued)

EN-9

Enter “0” and press the Enter key.

Input the old (current) password and press the Enter

key. (Default password is admin.)

If you input a wrong password, an error message•

appears and the setting menu is displayed again.

In this case, set the password again.

If you forget your password, select “7•

factory defaults,” input the password

“projectorcontroller,” and then select “9 save and

exit” to perform initialization.

Input a new password (example: “proj2000”) and

press the Enter key.

(Note)

Use single-byte alphanumeric characters only.

Input the new password (example: “proj2000”) again

and press the Enter key.

If you input a wrong password, an error message•

appears and the setting menu is displayed again.

In this case, set the password again.

Setting the password (Password Setup)

Preparation/SetUp (continued)

EN-10

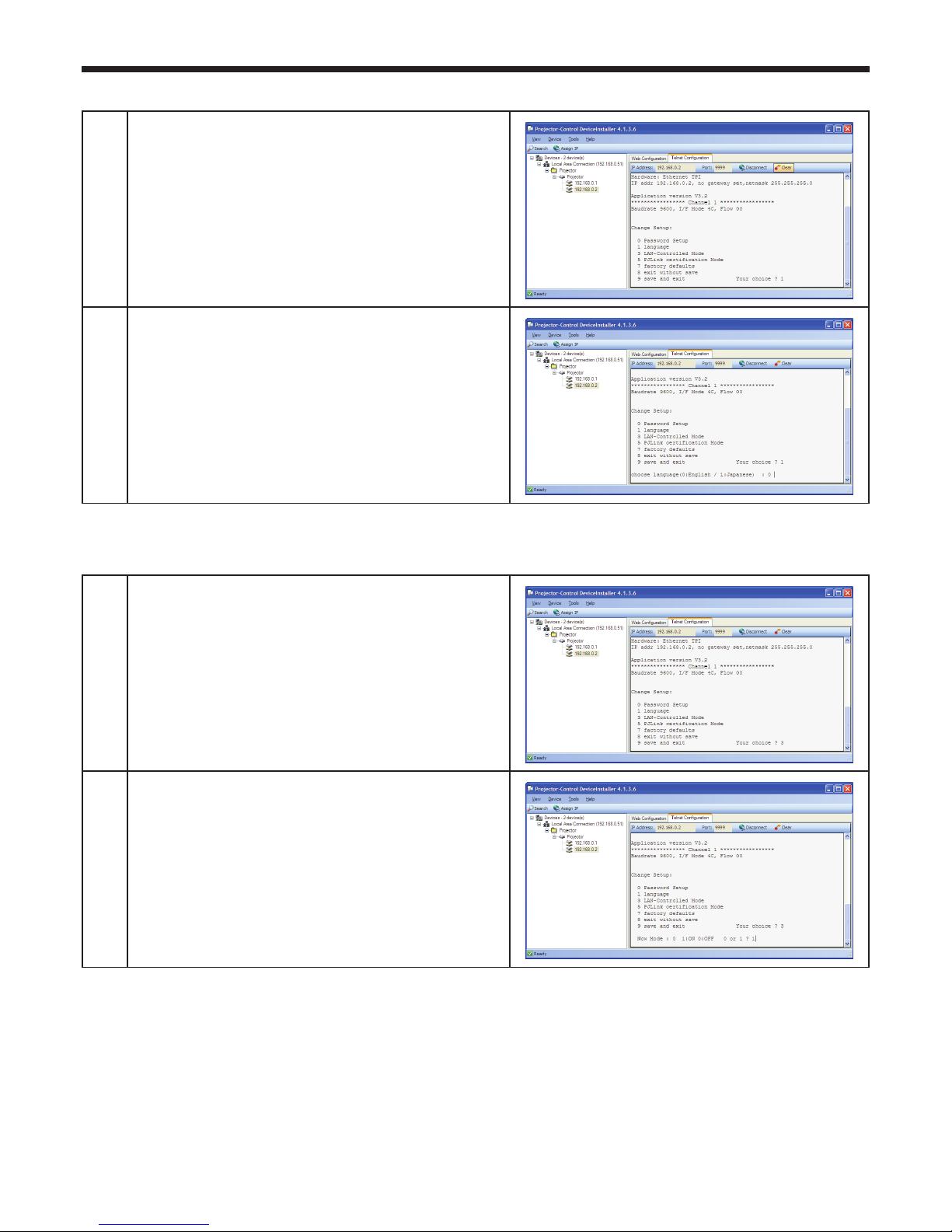

Enter “3” and press the Enter key.

To enable the e-mail notiﬁcation function of

ProjectorView, enter “1” and press the Enter

key. (Default is OFF (0).) (See pages 12 - 15 for

ProjectorView function.)

Setting the LAN control (LAN-Controlled Mode)

Preparation/SetUp (continued)

Enter “1” and press the Enter key.

Enter “0” for English or “1” for Japanese.

Setting the display language of ProjectorView (language)

Otros manuales para XD3500U

Tabla de contenidos

Otros manuales de Controladores de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric QD77MS Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q172CPU Manual del propietario

Mitsubishi Electric

Mitsubishi Electric MHK2 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric melsec q01ucpu Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC-A Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Melsec QJ71LP21 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FX3U-4AD Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC FX3U-485ADP-MB Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R RD78G4 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Manual de instrucciones

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5U Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX-16E-TB Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Manual de referencia

Mitsubishi Electric

Mitsubishi Electric PAC-YT51CRB Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC L series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric CR750-Q Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric M800VS Series Guía de configuración

Mitsubishi Electric

Mitsubishi Electric R16MTCPU Manual del propietario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R-R00CPU Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Melsec-F FX2NC Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R16MTCPU Manual del propietario

Mitsubishi Electric

Mitsubishi Electric PAC-YT51CRB Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
