ABOUT YOUR PHONE
The Mitel Networks 5212 and 5224 IP Phones are full-feature, dual port, dual
mode telephones that provide voice communication over an IP network.
Each features a back-lit liquid crystal display (LCD) screen, display-assisted
access to features, on-hook dialing and off-hook voice announce with
handsfree answerback and a large ring/message indicator. The 5212 IP
Phone offers 12 programmable keys, and the 5224 IP Phone offers 24
programmable keys for one-touch feature access. Both phones provide ten
fixed feature keys for convenient access to features such as Conferencing,
Redial, and many customizable user settings. The 5212 and 5224 IP Phones
support the Mitel Call Control (MiNet) protocol and Session Initiated Protocol
(SIP). The 5224 IP Phone also supports modules such as the Line Interface
Module, 5310 IP Conference Unit, and the 12 and 48 Button Programmable
Key Modules. The 5224 IP Phone can be used as an ACD Agent Phone or a
Teleworker phone.
The personal key on the bottom right (5224) or bottom left (5212) is always
your Prime Line; the remaining personal keys can be programmed as:
zFeature keys (for example, Swap). You can program feature keys from
your phone. Your administrator can also program feature keys.
zSpeed Call keys. You can program speed call keys from your phone.
zLine Appearances. Only the administrator can program line appearances.
-2-
The 5212 IP Phone
-3-

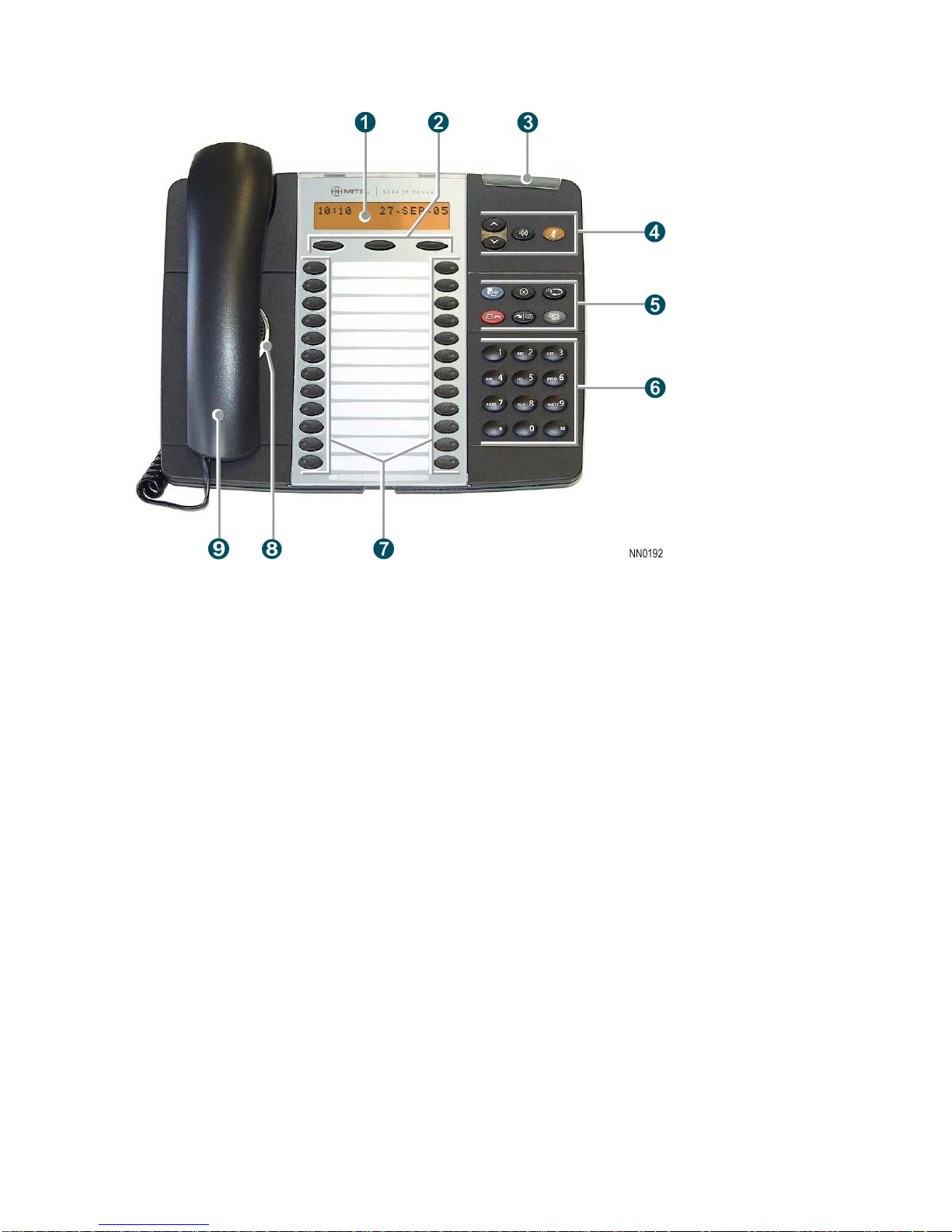

The 5224 IP Phone
-4-
Elements of Your Phone
Feature Function
1 Display Provides a two-line, 20-character liquid crystal display
(LCD) viewing area that assists you in selecting and
using phone features, accessing your voice mail, and
identifying callers. When you are using the Superkey
menu interface, prompts and feature information appear
on the display screen. For information on selecting menu
options with or without softkeys, see "Selecting Menu
Options" elsewhere in this guide.
2 Softkeys (5224 IP
Phone only) Context-sensitive keys change depending on the modes
of the operation and the menu currently displayed.
Softkeys enable you to easily view and select a variety of
features.
3 Ring/Message
Indicator Flashes to signal an incoming call and to indicate a
message waiting in your voice mailbox.
4 Volume, Speaker and
Mute Controls Provide the following audio control capability:
z(UP) and (DOWN) provide volume
control for the ringer, handset, and handsfree
speakers.
z(SPEAKER) enables and disables Handsfree
mode.
z(MUTE) enables Mute, which allows you to
temporarily turn your phone's handset or
handsfree speaker microphone off during a call.
