Mircom TX3 Series Manual de usuario

Version 3.2 TX3 Nano Installation Manual 1

LT-6637 Copyright April 2018

TX3 Series

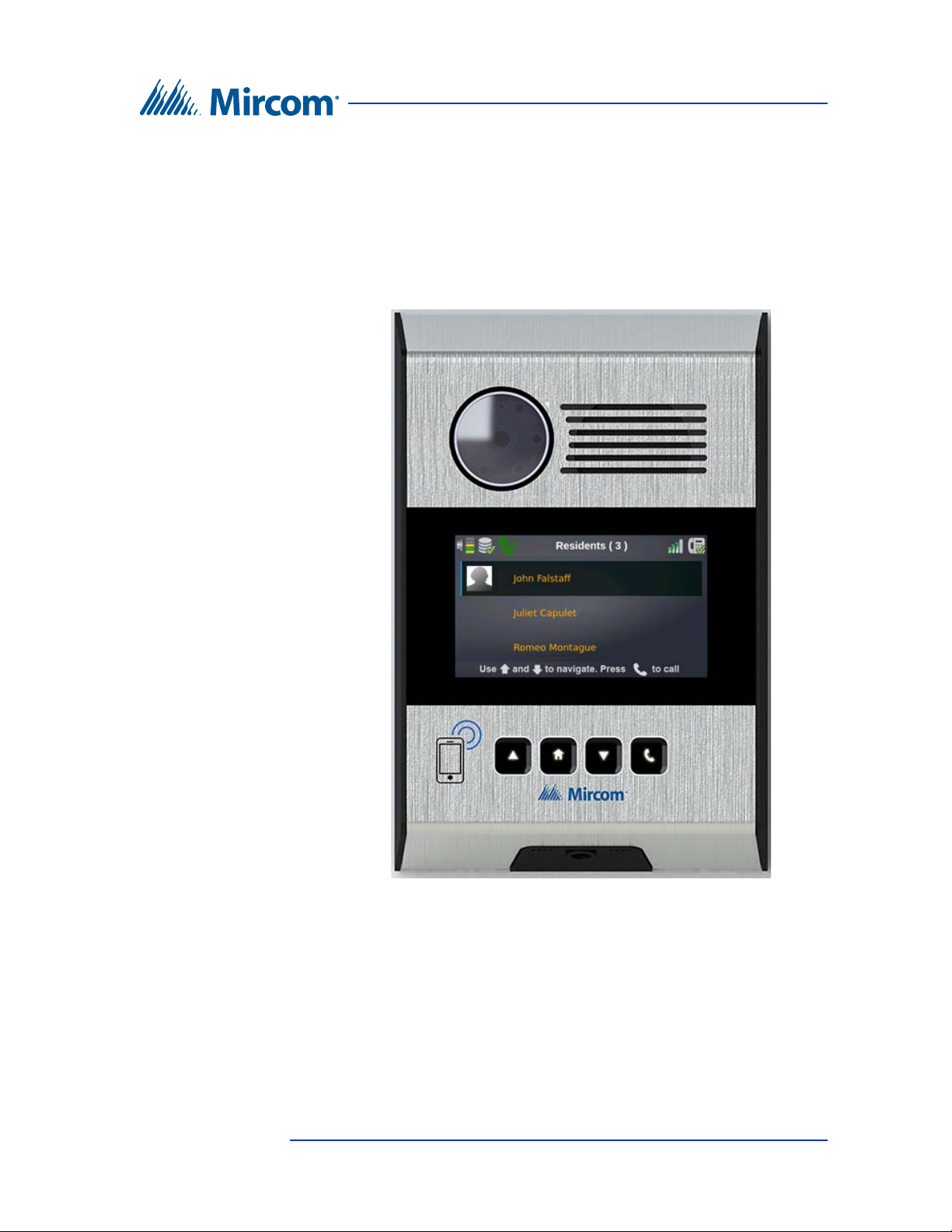

TX3 Nano

Installation

Manual

2TX3 Nano Installation Manual Version 3.2

LT-6637 Copyright April 2018

TX3 Nano Installation Manual Version 3.2

Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Mircom

25 Interchange Way

Vaughan, Ontario

L4K 5W3

905.660.4655

Fax:905.660.4113

TX3 Nano Installation Manual 3

Contents

1 Introduction 5

1.1 TX3 Nano Features 5

1.2 Maximum Mounting Height 6

1.3 TX3 Nano Products 6

1.4 Additional Documentation 6

2 Mounting 7

2.1 Contents of the Kit 7

2.2 Dimensions 8

2.3 Before Mounting, Apply Silicone to the Back of the Mounting Plate 10

2.4 Install the Mounting Plate 11

2.5 Fasten the TX3 Nano onto the Mounting Plate 14

2.6 Unmounting 16

3 Wiring 17

3.1 Wiring 17

3.2 RJ45 Connector 18

3.3 USB Port and Switch 18

3.4 Slot for mini-SIM Card 18

3.5 Screw for Adjusting Camera Tilt 19

3.6 Inputs 19

3.7 Input Supervision 20

3.8 Output 22

3.9 Telephone Line 23

3.10 Power 23

4 Specifications 24

5 Warranty and Warning Information 26

6 Special Notices 31

4TX3 Nano Installation Manual

Figures

Figure 1. Dimensions of the TX3 Nano 8

Figure 2. Dimensions of the mounting plate 9

Figure 3. Mounting plate (back view): apply silicone to the groove 10

Figure 4. Do not damage the rubber seal 11

Figure 5. Apply silicone around the holes on the back of TX3-NANO-BB 12

Figure 6. Install the mounting plate to TX3-NANO-BB 13

Figure 7. Front view of mounting plate showing 6 mounting holes 13

Figure 8. Holes for gang box 14

Figure 9. Hooks at the top of the mounting plate 14

Figure 10. Press the TX3 Nano on to the mounting plate 15

Figure 11. Secure the TX3 Nano to the mounting plate 15

Figure 12. Unmount the TX3 Nano 16

Figure 13. Back of the TX3 Nano 17

Figure 14. The terminal block 18

Figure 15. Input terminal sample connections 19

Figure 16. Input - Supervised for Open 20

Figure 17. Input - Supervised for Short 21

Figure 18. Input - Supervised for Open and Short 21

Figure 19. Sample Maglock connection 22

Figure 20. Sample door strike connection 22

TX3 Nano Installation Manual 5

1 Introduction

This manual provides information about the installation of the TX3 Nano, and

must be read in its entirety before beginning any installation work.

Installation must be performed by a qualified technician and must adhere to the

standards and special notices set by the local regulatory bodies.

Note: MircomperiodicallyupdatespanelfirmwareandConfigurator

Softwaretoaddfeaturesandcorrectanyminorinconsistencies.

For information about the latest firmware or software visit the

Mircom website at www.mircom.com.

For warranty and special notices information see the Warranty and Special

Notices chapter on page 26.

This chapter explains

• TX3 Nano Features

• Maximum Mounting Height

• TX3 Nano Products

• Additional Documentation

1.1 TX3 Nano Features

Mircom’s TX3 Nano is an IP networkable audio and video entry panel

providing multiple options to communicate with the resident or concierge in a

multi-unit dwelling establishment.

Features of the TX3 Nano include:

• High quality intercom and paging device

• Programmable scrolling 4.3” color LCD display

• Speaker and microphone for two way audio

• Ability to make calls over PSTN and cellular network

• Ability to make one-way video calls over VOIP

• Color camera with IR LED for night vision

• Touch buttons for scrolling the directory and making calls

6TX3 Nano Installation Manual

Introduction

• Storage of up to 1000 names

• Hands-free full duplex communication

• Dials up to 20 digit telephone numbers

• System can be configured over an IP network

1.2 Maximum Mounting Height

Consult the regulations in your jurisdiction for the minimum and maximum

mounting heights that comply with disability guidelines.

1.3 TX3 Nano Products

•TX3-NANO-S4: TX3 Nano Voice/Telephone Entry Communicator

(Surface Mount)

•TX3-NANO-S4-CA:TX3 Nano Voice/Telephone Entry Communicator

(Surface Mount with AT&T Cellular)

•TX3-NANO-S4-CV: TX3 Nano Voice/Telephone Entry Communicator

(Surface Mount with Verizon Cellular)

•TX3-NANO-S4-CT: TX3 Nano Voice/Telephone Entry Communicator

(Surface Mount with Telus Cellular)

•TX3-NANO-S4-CR: TX3 Nano Voice/Telephone Entry Communicator

(Surface Mount with Rogers Cellular)

1.4 Additional Documentation

For additional documentation, see the following Mircom literature:

• LT-1194 TX3 Nano Configuration Manual

• LT-600212 TX3-NANO-BB Installation Instructions

• LT-969 TX3 Telephone Access System Installation and Operation

Manual

• LT-980 TX3-CX Card Access System Manual

• LT-995 TX3 Touch Screen Configuration and Administration Manual

TX3 Nano Installation Manual 7

2 Mounting

This chapter explains

• Contents of the Kit

• Dimensions

• Before Mounting, Apply Silicone to the Back of the Mounting Plate

• Install the Mounting Plate

• Fasten the TX3 Nano onto the Mounting Plate

2.1 Contents of the Kit

•TX3Nano

• Mounting plate

• Paper mounting template

• Screwdriver for the terminal block

• Tamper-resistant screw (security screw) and bit

• USB flash drive with manuals

8TX3 Nano Installation Manual

Mounting

2.2 Dimensions

Figure 1. Dimensions of the TX3 Nano

47 mm

(1 27/32”)

219 mm

(8 19/32”)

147 mm

(5 3/4”)

Mounting

TX3 Nano Installation Manual 9

Figure 2. Dimensions of the mounting plate

Tools needed for wiring and mounting:

• Outdoor-rated weatherproof silicone

• Weatherproof self-sealing fasteners (for TX3-NANO-BB)

• Philips screwdriver

• Wire cutter

• Wire stripper

200 mm

(7 27/32”)

140 mm

(5 1/2”)

10 TX3 Nano Installation Manual

Mounting

2.3 BeforeMounting,ApplySiliconetotheBackofthe

Mounting Plate

• If you are mounting the TX3 Nano outside, apply outdoor-rated

weatherproof silicone to the groove in the back of the mounting plate to

prevent water from flowing around the mounting plate and into the TX3

Nano. In Figure 3, the groove is shown in solid black.

Figure 3. Mounting plate (back view): apply silicone to the groove

Warning: Do not apply silicone to any other part of the TX3 Nano. Apply

weatherproof silicone to the groove in the mounting plate only.

Apply outdoor-rated

weatherproof silicone

to this groove

Top

Bottom
