PRO-E Series User's Manual

1. Introduction 2

2. Controls and Indicators 5

3. Installation 7

4. Operation 9

5. Troubleshooting 12

6. Replacing the Battery 13

7. Obtaining Service 16

8. Specifications 17

9. Configurable Parameters & Settings 18

10. Limited Product Warranty 19

11. Declaration of Conformity 21

English

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS !

English

Thank you for purchasing a MINUTEMAN power protection product. It has been

designed and manufactured to provide many years of trouble free service.

Please read this manual before installing your PRO-E Series UPS, models

PRO500E, PRO700E, PRO1100E, PRO1500E, PRO500iE, PRO700iE,

PRO1100iE, PRO1500iE, as it provides important information that should be

followed during installation and maintenance of the UPS and batteries allowing

you to correctly set up your system for the maximum safety and performance.

Included is information on customer support and factory service if it is required.

If you experience a problem with the UPS please refer to the Troubleshooting

guide in this manual to correct the problem or collect enough information so

that the MINUTEMAN Technical Support Department can rapidly assist you.

CAUTION! To reduce the risk of electrical shock with the installa-

tion of this UPS equipment and the connected equipment, the user

must ensure that the combined sum of the AC leakage current does

not exceed 3.5mA.

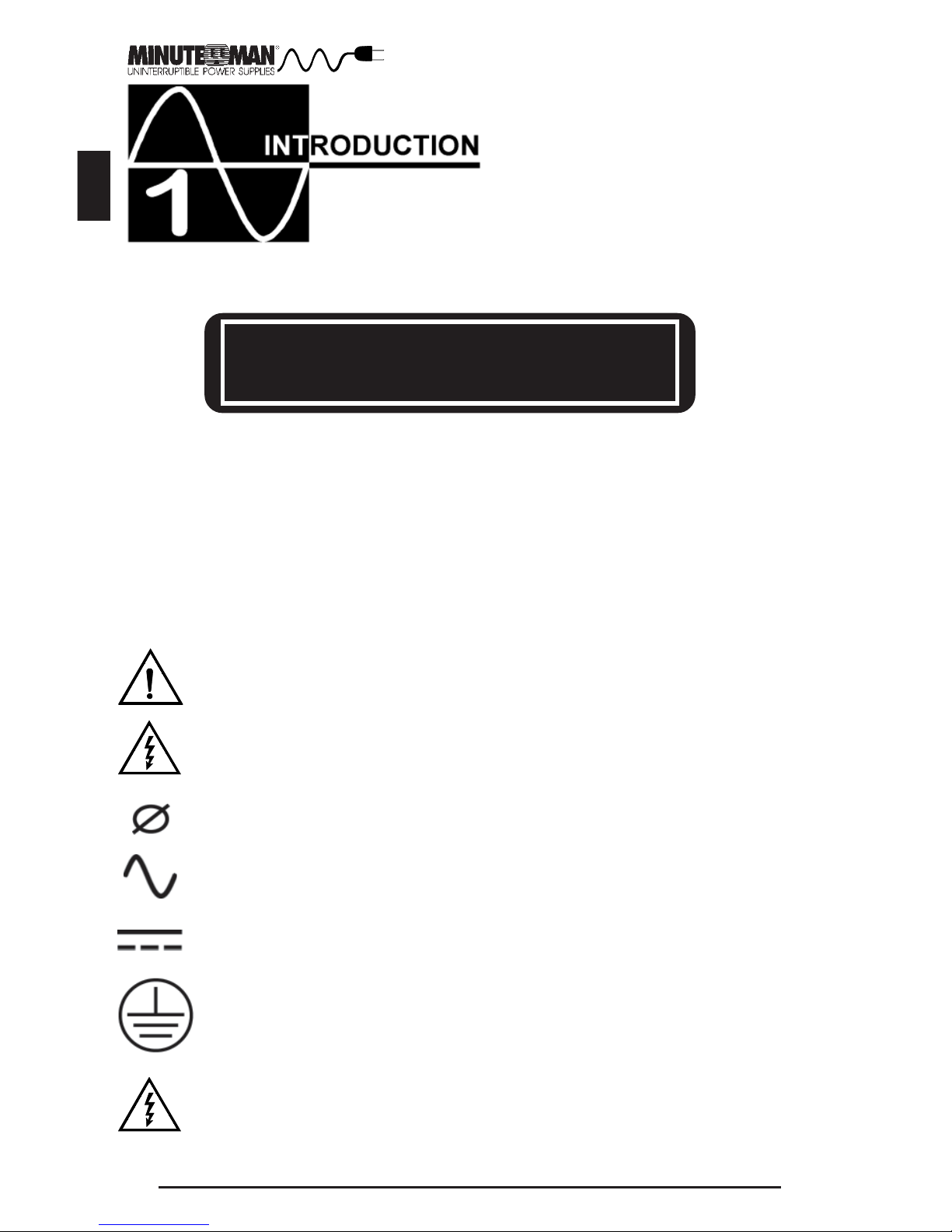

This symbol indicates "ATTENTION"

This symbol indicates "Risk of Electrical Shock"

This symbol indicates "Alternating Current Supply"

This symbol indicates "Direct Current Supply"

This symbol indicates "Alternating Current Supply Phase"

This symbol indicates "Equipment Grounding Conductor"

WARNING: Risk of Electrical Shock. Hazardous live parts inside

these power supplies are energized from the battery even when the

AC input is disconnected.

To de-energize the outputs of the UPS:

1. If the UPS is on press and release the On/Off/Test button.

2. Disconnect the UPS from the AC wall outlet.

3. To de-energize the UPS completely, disconnect the battery.

This Uninterruptible Power Supply (UPS) contains potentially hazardous volt-

ages. DO NOT attempt to disassemble the UPS. This UPS contains no user

serviceable parts. Repairs and battery replacement must be performed by

AUTHORIZED SERVICE PERSONNEL ONLY.

CAUTION! To reduce the risk of electrical shock in conditions where

the load equipment grounding cannot be verified, disconnect the UPS

from the AC wall outlet before installing a computer interface cable.

Reconnect the power cord only after all signaling connections are made.

CAUTION! Connect the UPS to a two pole, three wire grounding

AC wall outlet. The receptacle must be connected to the appropriate

branch protection (circuit breaker or fuse). Connection to any other

type of receptacle may result in a shock hazard and violate local elec-

trical codes.

English

NOTICE: This equipment has been tested and found to comply with

the limits for a Class B computing device in accordance with the speci-

fications in Subpart J of Part 15 of FCC Rules and the Class B limits for

radio noise emissions from digital apparatus set out in the Radio Interference of

the Canadian Department of Communications. These limits are designed to

provide reasonable protection against such interference in a residential installa-

tion. This equipment generates and uses radio frequency and if not installed

and used properly, that is, in strict accordance with the manufacturer's instruc-

tions, this equipment may cause interference to radio and television reception.

If this equipment does cause interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

!Re-orient the receiving antenna.

!Relocate the computer with respect to the receiver.

!Move the computer away from the receiver.

!Plug the computer into a different outlet so that the computer and receiver

are on different branch circuits.

!Shielded communications interface cables must be used with this product.

WARNING: Changes or modifications to this unit not expressly ap-

proved by the party responsible for compliance could void the user's

authority to operate the equipment.

English

Para Systems Life Support Policy

As a general policy, Para Systems Inc. (Para Systems) does not recommend

the use of any of its products in life support applications where failure or mal-

function of the Para Systems product can be reasonably expected to cause

failure of the life support device or to significantly affect its safety or effective-

ness. Para Systems does not recommend the use of any of its products in

direct patient care. Para Systems will not knowingly sell its products for use in

such applications unless it receives in writing assurances satisfactory to Para

Systems that (a) the risks of injury or damage have been minimized, (b) the

customer assumes all such risks, and (c) the liability of Para Systems Inc. is

adequately protected under the circumstances.

Examples of devices considered to be life support devices are neonatal oxygen

analyzers, nerve stimulators (whether used for anesthesia, pain relief, or other

purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia

detectors and alarms, pacemakers, hemodialysis systems, peritoneal dialysis

systems, neonatal ventilator incubators, ventilators for both adults and infants,

anesthesia ventilators, and infusion pumps as well as any other devices desig-

nated as “critical” by the United States FDA.

Hospital grade wiring devices and leakage current may be ordered as options

on many PARA SYSTEMS UPS systems. PARA SYSTEMS does not claim

that units with this modification are certified or listed as Hospital Grade by

PARA SYSTEMS or any other organization. Therefore, these units do not

meet the requirements for use in direct patient care.

After removing your MINUTEMAN UPS from its carton, it should be inspected

for damage that may have occurred in shipping. Immediately notify the carrier

and place of purchase if any damage is found. Warranty claims for damage

caused by the carrier will not be honored. The packing materials that your UPS

was shipped in are carefully designed to minimize any shipping damage. In the

unlikely case that the UPS needs to be returned to MINUTEMAN, please use

the original packing material. Since MINUTEMAN is not responsible for ship-

ping damage incurred when the system is returned, the original packing mate-

rial is inexpensive insurance. PLEASE SAVE THE PACKING MATERIALS!

Receiving Inspection

On-Line On-Battery Buck Boost

English

On-Line/On-Battery/Boost/Buck LED

Overload LED

Weak/Bad Battery LED

On/Off/Test Button

Fault LED

Press and release the ON/OFF/Test Button after 1 beep to turn the

UPS ON or OFF (see section 4).

The On-Line/On-Battery/Boost and Buck (green) LED illuminates in a steady

state when the UPS is on and supplying AC power to the load. The LED blinks

and the audible alarm sounds, when supplying battery power to the load. The

LED blinks and no audible alarm when the UPS is in either the boost or the

buck mode.

The Fault (red) LED illuminates when the UPS has detected an inter-

nal fault. (see section 5)

The Overload (yellow) LED illuminates when the loads connected to

the UPS exceeds the UPS power rating. (see section 5)

The Weak/Bad Battery (red) LED illuminates when the UPS has

detected that the batteries are Weak/Bad. Battery replacement might

be required. (see section 5)

REAR PANEL

English

110

1. The Information/Rating Label.

2. The Battery Backup and Surge output power receptacles are NEMA 5-15R

type (IEC 320 C13 sockets for 230V models).

3. The USB Communications Interface Port is for UPS monitoring and control.

4. The RS232 Communications Interface Port is for UPS monitoring and

control.

5. The Dipswitches are for setting the Inverter output voltage.

6. The input power cord has a NEMA 5-15P Plug (IEC 320 C14 socket for 230V

models).

7. The input circuit breaker will trip in the event the load exceeds the UPS’s

power rating.

8. The RJ11/RJ45 modular connectors are used for 10 Base-T Network/Fax/

Modem protection.

WARNING: The 230V models are NETWORK PROTECTION ONLY.

9. The Surge ONLY output power receptacles are NEMA 5-15R type (IEC 320

C13 sockets for 230V models).

NOTE: The Surge ONLY output power receptacles are only on the following

models: PRO500E, PRO700E, PRO500iE, PRO700iE.

10. The Site Wiring Fault (SWF) LED illuminates when the UPS detects an

improperly wired AC wall outlet (120V models only).

120V Models

230V Models

INSTALLATION PLACEMENT

The PRO-E series is intended to be install in a temperature controlled environ-

ment that is free of conductive contaminants. Select a location which will pro-

vide good air circulation for the UPS at all times. Avoid locations near heating

devices, water or excessive humidity, or where the UPS is exposed to direct

sunlight. Route power cords so they cannot be walked on or damaged.

Operating Temperature (Maximum): 0 to 40 degrees C (+32 to 104 degrees F)

Operating Elevation: 0 to 3,000m (0 to 10,000 ft)

Operating and Storage Relative Humidity: 95%, non-condensing

Storage Temperature: -15 to +45 degrees C (+5 to +113 degrees F)

Storage Elevation: 0 to 15,000m (0 to +50,000 ft)

INSTALLATION

Be sure to read the installation placement and all the cautions before installing

the UPS. Place the UPS in the final desired location and complete the rest of

the installation procedure. USE CAUTION: The UPS is heavy. Use the

appropriate number of personnel when installing the UPS.

CONNECTING YOUR EQUIPMENT

Plug the equipment into the output receptacles on the rear panel of the UPS.

Do not use extension cords, adapter plugs, power strips or surge strips on the

output of the UPS. Ensure that you do not exceed the maximum output rating

of the UPS (refer to the UPS's back panel or the Electrical Specifications in this

manual).

English

CAUTION! DO NOT connect a laser printer to the output receptacles on the

UPS, unless the UPS is rated 2000VA or greater. A laser printer

draws significantly more power when printing than at idle and

may overload the UPS.

English

DO NOT plug Power Strips or Surge Protection Devices into

the ”Battery Backup” Receptacles on the UPS. Plugging Power

Strips or Surge Protection Devices into the “Battery Backup”

Receptacles may cause internal damage to the UPS, the Power

Strip, or the Surge Protection Device.

WARNING!

CHARGING THE BATTERY

The PRO-E Series UPS will charge the internal batteries whenever the UPS is

connected to an AC source. It is recommended that the UPS's batteries be

charged for a minimum of 4 hours before use. The UPS may be used

immediately, however, the “ON Battery” runtime may be less than normally

expected.

CAUTION! If the UPS indicates a Site Wiring Fault (SWF), have a

Qualified Electrician correct the problem.

Connecting to the Communications Port is optional. The UPS works

properly without a connection.

NOTE:

CHECKING THE SITE WIRING FAULT

After plugging in the UPS, check the Site Wiring Fault (SWF) LED on the rear

panel of the UPS. If the SWF LED is illuminated, the UPS is plugged into an

improperly wired AC outlet.

COMMUNICATIONS PORT CONNECTION (OPTIONAL)

MINUTEMAN Power Monitoring Software and interface cables kits can be used

with the PRO-E Series UPS. Use only MINUTEMAN or MINUTEMAN approved

interface cables with these UPSs. Connect the interface cable (Serial or USB)

to the appropriate communications port on the rear panel of the UPS. Connect

the other end of the cable to the device that will be monitoring/controlling the

UPS.

CONNECTING THE UPS TO AN AC SOURCE

Plug the UPS into a two pole, three wire, grounded receptacle only. Do not use

extension cords, adapter plugs, power strips or surge strips.

NOTE: If the UPS is going to be out of service or stored for a prolonged period

of time, the batteries must be recharged for at least twenty-four hours

every ninety days.

The RJ45 protection sockets for the 230V models are NETWORK

PROTECTION ONLY. Connecting a Fax/Modem/Phone line is

PROHIBITED.

WARNING:

NETWORK/FAX/MODEM PROTECTION CONNECTION (OPTIONAL)

Connect a 10 Base-T network, Fax or Modem line to the RJ11/45 protection

sockets on the rear panel of the UPS. This connection will require another

length of telephone or network cable. The cable coming from the telephone

service or networked system is connected to the port marked “IN”. The equip-

ment to be protected is connected to the port marked "OUT".

Connecting to the Network/Fax/Modem protection socket connection

is optional. The UPS works properly without a connection.

NOTE:

English

TURNING THE UNIT ON/OFF

ON / OFF / Test Button

SELF TEST

Press and release the ON/OFF/Test Button after one beep to turn the UPS ON

and supply power to the load. The load is immediately powered while the UPS

runs a two-second self test. Press and release the ON/OFF/Test Button after

one beep to turn the UPS OFF. The UPS will continue to charge the batteries

whenever it is plugged into an AC outlet and there is AC present.

The self test feature is useful to verify the correct operation of the UPS and the

condition of the batteries. With the UPS in the normal On-Line mode, press

and hold the ON/OFF/Test Button for approximately 4 seconds (four beeps),

then release the button. The UPS will perform a ten-second self test. During

the self test, the UPS will switch to battery power and the On-Line LED will

blink and the audible alarm will sound. The length of the test that is automati-

cally performed every two weeks is longer than the start-up or user invoked

test. This test will run for approximately fifteen-seconds to measure the battery’s

capability to provide an acceptable amount of runtime. If the UPS fails a self

test, one of the LEDs will remain illuminated indicating the type of problem.

Note: The UPS will automatically perform a self test on start-up and every two

weeks.

DIP SWITCH SETTINGS

The DIP Switch setting may be changed by the user to set the desired Inverter

(on battery) output voltage. The DIP Switch must be set to the desired Inverter

output voltage and then the UPS must be turned OFF and restarted to reconfigure

the microprocessor and save the changes. The Inverter (on battery) output

voltage setting for the 120V models can be either 120VAC (default) or 127VAC.

Changing the Inverter output voltage to 127VAC, will also change the Buck

setpoint from 130VAC (default) to 136VAC. The Inverter (on battery) output

voltage setting for the 230V models can be either 230VAC (default) or 208VAC.

Changing the Inverter output voltage to 208VAC, will also change the Boost1

setpoint from 206VAC (default) to 198VAC.

Inverter output voltage

Switch 1 2

120V (230V)

127V (208V)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de Minuteman

Minuteman

Minuteman EN750 Manual de usuario

Minuteman

Minuteman Enterprise Plus LCD RTXL UPS Series Manual de usuario

Minuteman

Minuteman Enterprise Series Manual de usuario

Minuteman

Minuteman ERS1500RTNC Manual de usuario

Minuteman

Minuteman Pro Series Manual de usuario

Minuteman

Minuteman Continuous Power Series Manual de usuario

Minuteman

Minuteman MBK Series Manual de usuario

Minuteman

Minuteman PRO1100E Manual de usuario

Minuteman

Minuteman MN 325 Manual de usuario

Minuteman

Minuteman Endeavor ED6000T Manual de usuario

Minuteman

Minuteman CP Series Manual de usuario

Minuteman

Minuteman ETR550LCD Manual de usuario

Minuteman

Minuteman Smart Up Series Manual de usuario

Minuteman

Minuteman SentryII UPS Manual de usuario

Minuteman

Minuteman E750RM2U Manual de usuario

Minuteman

Minuteman MBK 300YYY Manual de usuario

Minuteman

Minuteman Continuous Power MCP 10001 Manual de usuario

Minuteman

Minuteman Enspire Series Manual de usuario

Minuteman

Minuteman Enterprise Plus Series Manual de usuario

Minuteman

Minuteman Pro Series Manual de usuario

Minuteman

Minuteman Pro 2200r Manual de usuario

Minuteman

Minuteman EN750LCD Manual de usuario

Minuteman

Minuteman Entrust-LG Series Manual de usuario

Minuteman

Minuteman MBK-E SERIES Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
