Parts and Instruction Manual

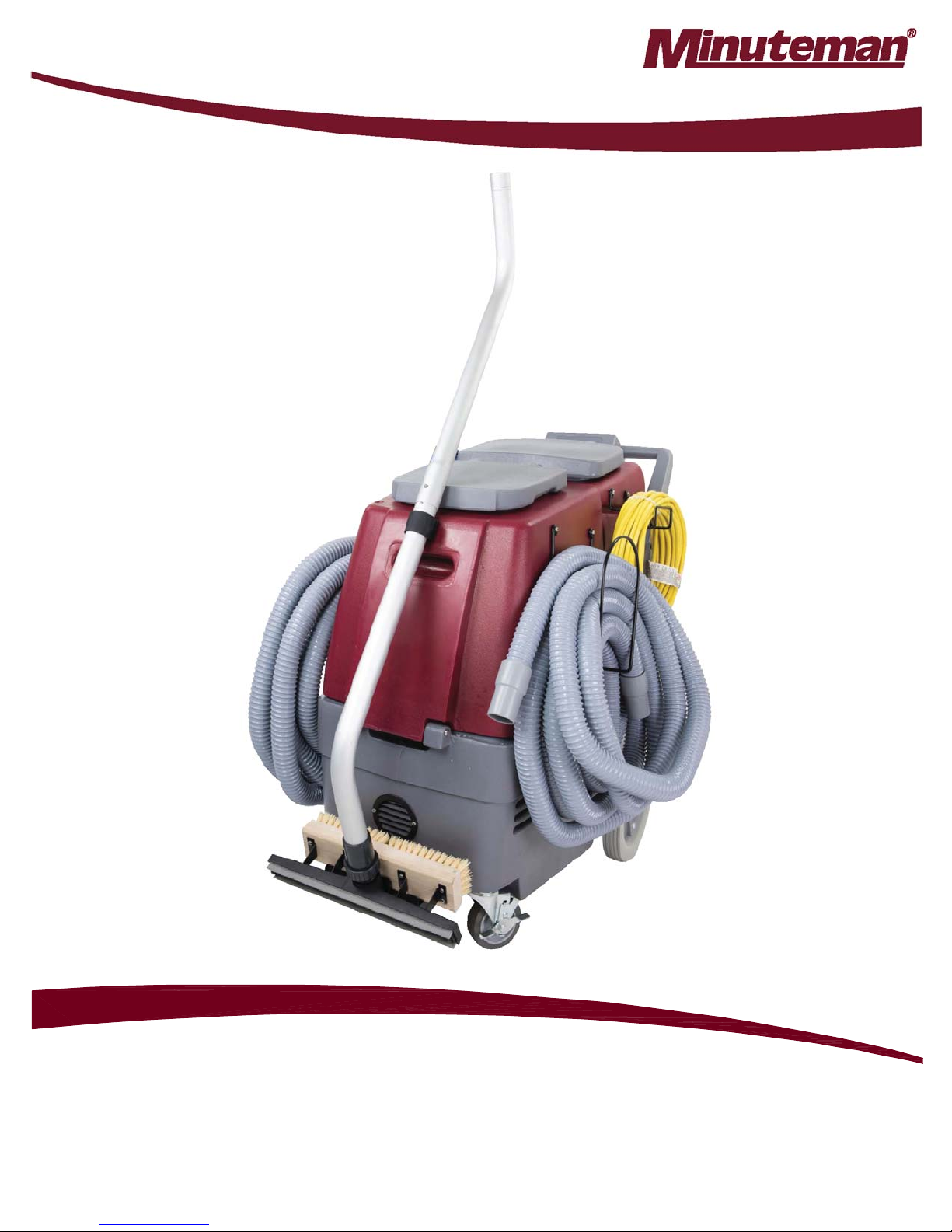

TRS17-220 Total Recovery System

Parts and Instruction Manual - TRS17 Total Recovery System

Total Restroom System

SPECIFICATIONS:

Model TRS17-220

Solution Tank 17 gallon

Recovery Tank

Vacuum Motor

Pump

Water Lift

Tank Construction

Baseplate

Rear Wheels

Casters

Power Cord

Dimensions

Weight

Electrical Draw

Vacuum Hose

Solution Hose

Wand

Pressure Gun

Fixture Drying Hose

15 gallon

Single 3-stage

600 psi/.85 GPM – 480 psi nozzle

120”

Polyethylene

¼” aluminum

10” non-marking

4” locking

50 ft.

39”H x 37”Lx 22”W

108 lbs.

12.5 amps

30’

35'

Swivel wand withsqueegee/brush head

Included

45’ x 1.25” Diameter

Technical Specications

Model:

TRS17-220

Technical Specications

Model:

TRS17-220

Parts and Instruction Manual - TRS17 Total Recovery System

INSPECTION...............................................................................

SAFETY INSTRUCTIONS...........................................................

GROUNDING...............................................................................

MAINTENANCE...........................................................................

MACHINE OVERVIEW.................................................................

OPERATION.................................................................................

UPPER ASSEMBLY.....................................................................

UPPER ASSEMBLY BOM...........................................................

UPPER ASSEMBLY BOM (PAGE 2)...........................................

LOWER ASSEMBLY....................................................................

LOWER ASSEMBLY BOM (PAGE 1)..........................................

LOWER ASSEMBLY BOM (PAGE 2)..........................................

LOWER ASSEMBLY BOM (PAGE 3)..........................................

INCLUDED ACCESSORIES........................................................

WARRANTY.................................................................................

Page 4

Parts and Instruction Manual - TRS17 Total Recovery System

INSPECTION

Page 4

Parts and Instruction Manual - TRS17 Total Recovery System

INSPECTION

UNPACKING YOUR NEW :

When your package is delivered, check the carton carefully for signs of rough handling. If your 

is damaged, notify the carrier immediately and request an inspection. Be sure to keep the carton,

packing inserts, packing lists and carrier’s receipt until the inspector has verified your claim.

MINUTEMAN’s liability ceases when the carrier picks up the shipment. However, our customer service

staff will be happy to furnish any information needed in connection with the claim and will attempt to

expedite a resolution.

PLEASE READ BEFORE OPERATING YOUR NEW :

Read the manual carefully and completely before attempting to operate the unit. This manual has

important information for the use and safe operation of the machine. Keep this manual handy at all

times.

This equipment has been engineered and manufactured to provide excellent performance and service.

ensure that your equipment will continue to perform as intended:

tMaintain equipment regularly- following the suggested maintenance schedule provided.

tUse only original MINUTEMAN parts when servicing.

tOperate equipment with care.

If additional information is needed, please contact:

MINUTEMAN INTERNATIONAL 630- 627-6900

ll information and specifications printed in the manual are current at the time of printing;

however because of MINUTEMAN’s policy of continual product development, we reserve the right

to make changes at any time without notice.

Page 5

Parts and Instruction Manual - TRS17 Total Recovery System

SAFETY INSTRUCTIONS

Page 5

Parts and Instruction Manual - TRS17 Total Recovery System

SAFETY INSTRUCTIONS

'"*-63&50$0.1-:8*5)5)&FOL

LOWING WARNINGS AND

INSTRUCTIONS WILL VOID THE WARRANTY.

WARNING!

tThe machine was designed for use on hard surfaces, applications as per instructions and

recommendations written in this manual. Any deviation from its proper use or purpose and the

consequential damage that may occur is the sole responsibility of the end user.

tDisconnect the power cord from the outlet before servicing. Do not leave machine connected to an

electrical outlet when unattended.

tDo not immerse or use this machine in standing water. Such use may cause electric shock.

tWhen using an extension cord, use only a 3-prong conductor grounding cord-12 gauge wire or

heavier.

tTo avoid electric shock, do not expose the unit to rain or snow. Store it indoors in a heated location

only.

tDo not use the machine for dry vacuuming.

tUse defoamer at all times to prevent damage to the vacuum motor.

tDo not use water in excess of 130°F (54°C) in the solution tank

tTo prevent seal damage and chemical build-up to the pump system, run clean water through the

solution lines after each day’s use.

tUse only commercially available carpet cleaning solutions and defoamer intended for use with

machines of this type. Do not use dyes, bleaches, ammonia, or other additives.

tThe use of powdered cleaning solution, if not diluted properly, may result in damage to the pump.

Powdered chemical is not recommended. If powdered chemicals are used, premix in a separate

container before placing in the solution tank.

tAlways read and understand your chemical’s MSDS (Material Safety Data Sheet) before use.

tThis equipment is not designed to handle or use combustible/volatile substances such as gasoline or

kerosene, in, on, or near the machine. The use of such materials will cause extreme hazardous

condition.

Page 6

Parts and Instruction Manual - TRS17 Total Recovery System

Page 6

Parts and Instruction Manual - TRS17 Total Recovery System

tDo not expose machine to freezing temperatures.

tAll repairs must be done by an authorized MINUTEMAN repair station.

tDo not use replacement parts other than original MINUTEMAN parts.

tDo not allow your spray stream to remain in one fixed location as surface damage may occur.

tCheck that all spray nozzles are securely fastened. Loose nozzles could be ejected from equipment at

high speeds.

tPrevent burns by wearing gloves or using a barrier to remove hot quick disconnects.

tThis is not a toy. Keep away from children.

tDo not pull by the power or use power cord as a handle. Always unplug by grabbing the plug and

pulling, do not unplug by pulling the power cord.

tInspect cord for damage. Do not use damaged cords. Connect only to properly grounded outlets.

tKeep hair, fingers, loose clothing, and body parts away from moving parts and openings.

tTurn off all controls before disconnecting machine

tUse caution with ejected liquid or chemicals. High pressures and temperatures could be hazardous to

nearby people or surroundings.

ELECTRICAL - 220 Volt

Model: TRS17-220V

This machine is designed to operate on a standard 220 volt, AC circuit.

Page 7

Parts and Instruction Manual - TRS17 Total Recovery System

GROUNDING

Page 9

Parts and Instruction Manual - TRS17 Total Recovery System

GROUNDING

GROUNDING INSTRUCTIONS:

This piece of equipment must be grounded. Should an electrical malfunction occur, grounding

provides a path of least resistance for electrical current- reducing the risk of electric shock. This piece

of equipment is furnished with a cord that has a grounding conductor and grounding plug. The

grounded plug must only be plugged into an appropriate outlet that is properly installed and grounded

in accordance with all local codes and ordinances.

WARNING:

Connecting the equipment to an improperly grounded outlet can result in an increased risk of electric

shock. A qualiﬁed electrician should be consulted if you are unsure that the outlet is properly grounded.

Do not modify the plug provided with the equipment. If it will not ﬁt the outlet, have a proper outlet

installed by a qualiﬁed electrician.

This appliance is designed for use on a 220-volt circuit.

Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs

and outlets. DO NOT use extension cords more than 25 feet (7.6 m) long

Page 8

Parts and Instruction Manual - TRS17 Total Recovery System

MAINTENANCE

Page 10

Parts and Instruction Manual - TRS17 Total Recovery System

MAINTENANCE

MAINTENANCE:

This TRS-17 has been engineered and built to require minimum maintenance. But like any machine, it

does require some care to keep it in optimum working condition. Careful attention to these maintenance

instructions will give you maximum operating performance and life expectancy of the machine.

CAUTION: Disconnect the power cord from the outlet before doing any clean up or maintenance

on the machine

1. Keep the machine clean. Do not allow dust to accumulate on external surfaces or near any moving

parts.

2. After every job, wipe down the surface of the machine with a clean damp cloth.

3. Inspect cord for damage. Do not use machine with a damaged cord.

PERIODIC MAINTENANCE

tUse only chemicals safe for extractors

tAdhere to the appropriate mix ratios for all chemicals

tDo not add chemical to the solution tank- use the chemical feed system or pre-spray

tFor optimal performance, it is suggested that the operator flush the system after every job or at the

end of the day.

tPump seals and valves may need to be replaced at the 1000 hour mark if a loss in pressure is noted

tThe pressure regulator may require servicing should a pressure drop be noted

Daily:

tFlush chemical lines with water by placing clean water in the solution tank and using the pump to

spray.

tCheck and clean vacuum filter

Weekly:

xCheck for obstructions in vacuum pathways

xQuarterly:

xCheck pump, plumbing and fittings for leaks

xCheck power cords and hoses for tears

xCheck and clean solution filter

Page 9

Parts and Instruction Manual - TRS17 Total Recovery System

Page 11

Parts and Instruction Manual - TRS17 Total Recovery System

CORD STORAGE:

While not in use, storage can be accomplished by winding cord around handle assy. Cord should be

completely unwound during operation.

CORD SAFETY

xDo not leave appliance when plugged in. Unplug from outlet when not in use and before

servicing

xDo not use with damaged cord or plug. If applianc

e is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return to service center for inspection and repair.

xDo not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run this TRS-17 over cord. Keep cord away from heated surfaces.

xDo not unplug by pulling cord. To unplug, grasp the plug, not the cord.

xDo not handle plug or appliance with wet hands.

xThis equipment should be stored indoors and not exposed to rain.

Page 10

Parts and Instruction Manual - TRS17 Total Recovery System

MACHINE OVERVIEW

1. Handle- Used to maneuver and position the TRS-17. Contains switch box (For switchbox, see

#17)

2. Recovery tank & lid- Lid allows access to recovery tank and creates a seal to ensure suction.

Recovery tank collects waste water.

3. Solution tank & lid- Lid allows access to the solution tank and prevents external contamination of

solution tank. Solution tank holds clean water or solution.

4. Accessory racks for hoses, cords, tools etc.- Two large racks on one side and three small racks

other side of the machine. 5 total.

5. Wand storage bracket and velcro strap- Allows the operator to secure a wand attachment to the

machine for ease of transport.

6. Non-marking front 4” locking casters and rear 10” wheels.

7. Recovery/vacuum hose inlet barb- connect your recovery vacuum hose to this barb

8. Feed hose line for chemical with threaded bottle cap- secures the feed hose line to the chemical

bottle

9. Bottle holder for chemical feed system- Holds up to a one gallon chemical bottle

10.N/A for 220v

11.Chemical dispensing valve- Select between “SOAP” and “RINSE” by turning to left or right as

marked

12.Male twist lock pigtail- Connects to 50 ft cord

13.Exhaust port hose barb- Used to connect to hose with blower attachment.

14.Pressure regulator- Decrease pressure by turning counter-clockwise or increase pressure by

turning clockwise

15.Priming/Pressure relief valve- Prime system in the event of air lock. Relieves pressure in the

event of pressure lock

16.Solution line Q.D.- Pressurized connection for solution line

17.Recovery tank dump hose

18.Switch box- one switch marked “PUMP” and one switch marked “VACUUM”. Switches light up

when powered on.

Tabla de contenidos

Otros manuales de Máquina de piso de Minuteman

Minuteman

Minuteman M2400 Manual de lista de piezas

Minuteman

Minuteman 747 Manual de lista de piezas

Minuteman

Minuteman SCV2832E Manual de usuario

Minuteman

Minuteman Ambassador Junior C45014-01 Guía

Minuteman

Minuteman X17 ECO CFS Manual de usuario

Minuteman

Minuteman MC20004CE Guía

Minuteman

Minuteman Ambassador 20 Manual de lista de piezas

Minuteman

Minuteman Lumina 20 M26036QP Guía

Minuteman

Minuteman M26036QP Manual de lista de piezas

Minuteman

Minuteman HM47B Manual de usuario

Minuteman

Minuteman Lumina 20 Manual de usuario

Minuteman

Minuteman Mirage M220028K17X Manual de lista de piezas

Minuteman

Minuteman E Ride 26 SPORT Manual de usuario

Minuteman

Minuteman E28 Manual de usuario

Minuteman

Minuteman X17 ECO CFS Manual de usuario

Minuteman

Minuteman MR1500 Series Manual de lista de piezas

Minuteman

Minuteman SW5X PB40PL Manual de usuario

Minuteman

Minuteman Lumina 20 Manual de usuario

Minuteman

Minuteman Lumina 20 M26036TD Guía

Minuteman

Minuteman Max Ride 20 Manual de usuario

Minuteman

Minuteman EX12 Manual de lista de piezas

Minuteman

Minuteman M17120-00 Manual de usuario

Minuteman

Minuteman E20 SPORT Manual de usuario

Minuteman

Minuteman Powerboss PB32036CE Guía

Manuales populares de Máquina de piso de otras marcas

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manual de usuario

Numatic

Numatic ET 4045 Manual de usuario

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manual de usuario

Mytee

Mytee 8070 Mytee-Lite Manual de usuario

Kärcher

Kärcher B 140 R Manual de usuario

Triple S

Triple S Ace 26T1 Manual de usuario

Nilfisk-Advance

Nilfisk-Advance SW 750 Manual de usuario

Tornado

Tornado Marathon 2000 98190 Manual

Windsor

Windsor ADMIRAL Admiral 8 Manual de usuario

Numatic

Numatic TTB 1117/100 Manual de usuario

Tennant

Tennant 8210D Manual de usuario

Nobles

Nobles Frontier Manual del producto

lavina

lavina 21-X Manual de usuario

KENT

KENT Edge 28B Manual de usuario

Tennant

Tennant 215 Manual del producto

Windsor

Windsor BDP 51/2000C Manual de usuario

CleanFreak

CleanFreak DURA-18HD Manual de usuario

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guía del administrador
