Minolta PageWorks Pro 25 Manual de usuario

Quick Guide for Installation and Reference

PageWorks 25

Step 1

Unpacking the Printer ..................... 1

Reference 1

Printer Parts..................................... 4

Reference 2

PageWorks 25 Overview ................. 5

Reference 3

Control Panel ................................... 6

Step 2

Installing the Imaging Cartridge .... 8

Step 3

Loading Paper................................ 10

Step 4

Connecting the Power Cord ......... 13

Step 5

Turning the Power On/Off ............. 13

Step 6

Printing a Test Page ...................... 14

Step 7

Connecting the Printer to the

Computer (Local Connection)......16

Step 8

Installing the Printer Driver .......... 17

Reference 4

Printer Menus................................. 19

Reference 5

Troubleshooting............................. 23

Contents

Before operating your printer, read this Quick Guide carefully

from cover to cover. Use this guide for reference.

Take the items and accessories shown above out of the carton.

Note

Remove the plastic bag and peel off the shipping tape from the printer.

After unpacking, keep all packing materials out of the reach of children.

Unpacking the Printer

Step 1

11.Printer

2.Accessories

User’s Manual

Printer Driver

User’s Manual

for Windows 3.1

Quick Guide

CD-ROM

Floppy Diskette

Power cord

Paper Size Label

Warranty card

Registration card

3.Imaging Cartridge

Pull out Tray 1 and remove the cushion from Tray 1.

Close Tray 1.

Pull out Tray 2 and remove the cushion from Tray 2.

Close Tray 2.

Step 1

Pull the side cover release lever and open the side cover.

Peel off the protective sheet from the image transfer roller.

Close the side cover.

Step 1

Printer Parts

Reference 1

Control

panel

Power

switch

Tray 1

(multipurpose

tray)

Tray 2

(500-sheet

tray)

Side cover

release lever

Paper size

selection dial

Parallel inter-

face connector

Power cord

socket

Imaging

cartridge

Note

The duplex unit, manual feed tray, 500-sheet paper feed unit, 250-sheet paper feed

unit, 2500 sheet tray, 5-bin mail-bin, 10-bin mail-bin (including the horizontal transport

unit andupper attachment), SIMM and NIC (Network Interface Card) are all available

options for your printer. For more information, please refer to the User’s Manual.

PageWorks 25 Overview

Reference 2

Upper attachment (option) 5-bin Mail-bin (option)

Horizontal

transport unit (option)

Printer Duplex unit

(option)

10-bin Mail-bin

(option) 2500 sheet tray (LCC) (option)

Manual feed unit

(option)

Tray 3/4/5

(250-sheet paper

feed unit) (option)

(500-sheet paper

feed unit) (option)

The control panel consists of a display panel (LCD), three indicator lights

and eight function keys.

Indicator Lights

There are three indicator lights that the printer uses to alert you to the

following situations:

Indicator On Off Blinking

On Line The printer is ready

to receive data. The printer cannot

receive data. Going off-line.

Data Dataisbeingstored

in the printer memo-

ry.

No data is stored in

the printer memory. The printer is re-

ceiving and pro-

cessing data.

Message Engine error.

The printer requires

service.

No error. Recoverable error,

such as paper emp-

ty, paper misfeed,

etc.

Control Panel

Reference 3

Data Message On Line Proceed Tray 1 Paper Shift

Job Cancel

Menu Item Select Enter

1Data indicator

2Message indicator

3On Line indicator

4On Line key

5Proceed key

6Tray1 Paper key

7Shift key

8Enter/Job Cancel key

9Select key

10 Item key

11 Menu key

12 LCD

12 34567

89101112

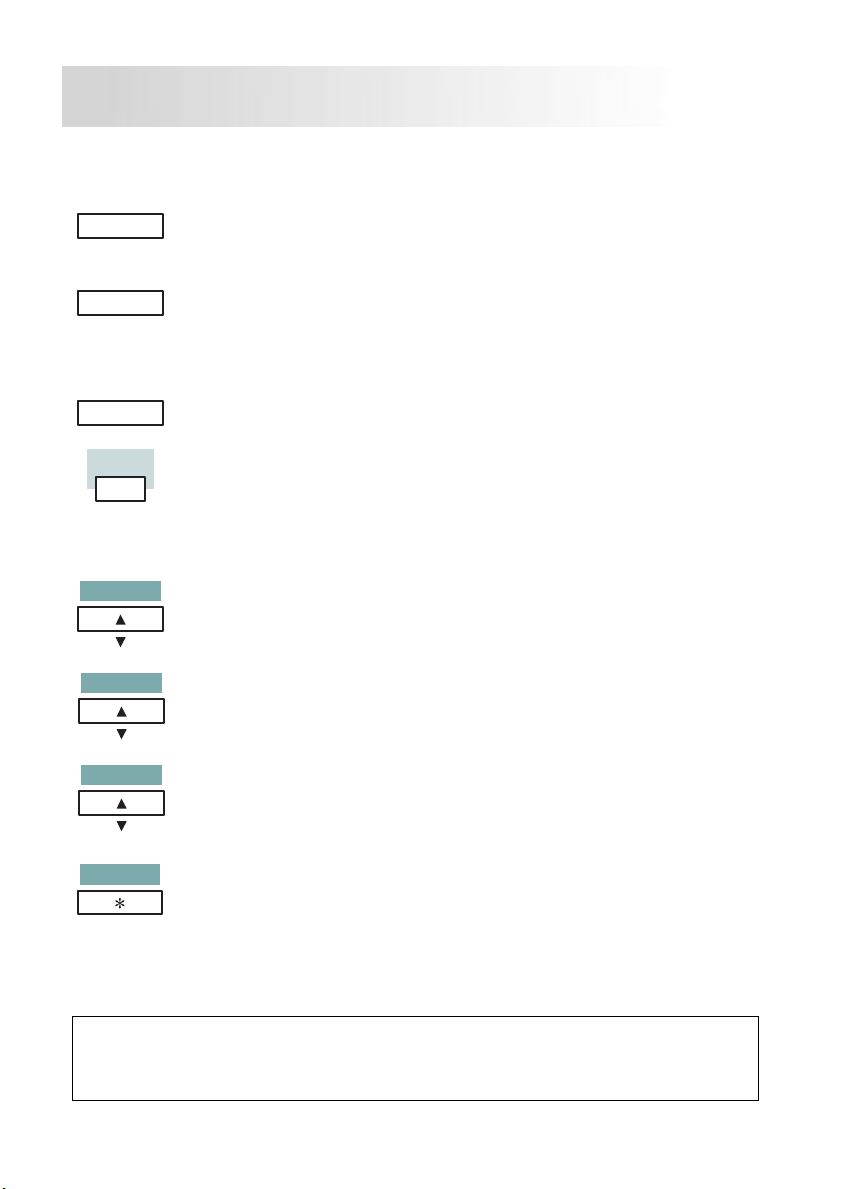

Key Functions

Note

Press this key to switch between online and offline modes. The printer

must be online in order to receive data.

Press this key to resume printing after one of the following situations has

occurred:

- when a Paper Size Error occurs.

- when a Memory Overflow or Job Too Complex error occurs.

- when the LOAD XX message appears due to a paper size error.

Press this key in order to enter the mode for setting the paper size (when

the dial on the Tray1 is set to User set) and media type for Tray1. You can

only enter this mode when the printer is off-line.

The shift key performs various functions when pressed in combination with

the following other keys:

Menu key: each menu will be displayed and rotated in reverse order.

Item key: each item will be displayed and rotated in reverse order.

Select key: each user selection value is displayed and rotated in reverse

order.

Press this key to enter the Menu mode when the printer is off-line. Press

this key repeatedly to display the Menu group in order.

Press this key to enter the Item mode when the printer is in the Menu

mode. Press this key repeatedly to display the items in order.

Pressthiskeytoenter theUserSelectionmodewhentheprinterisineither

the Item mode or the Tray1 Paper Menu mode. Press this key repeatedly

to view the user selection values in order. Press and hold the Select key

in order to increase the value at high speed.

Press this key to save User Selection settings. This key can be pressed in

combination with the Shift key to cancel a job that is currently being pro-

cessed and to clear the data for ajob from the printer’s memory. A job can

only be cancelled by using the Enter/Job Cancel key in combination with

the Shift key when the printer is off-line and when the Data indicator is ei-

ther on or blinking.

In order to cancel a job using the Enter/Job Cancel key through the proce-

dure described above, the printer must be off-line. You can force the printer

to go off-line by pressing the On Line key while printing.

Reference 3

On Line

Proceed

Tray 1 Paper

Shift

Item

Select

Job Cancel

Enter
