Step 1
Unpacking the Printer.....................1
Reference 1
Printer Parts..................................... 3
Reference 2
Control Panel ................................... 4
Step 2
Attaching the Face-Down Tray
and Tray 1....................................... 11
Step 3
Loading Paper................................ 13
Step 4
Connecting the Power Cord ......... 14
Step 5
Turning the Power On/Off ............. 14
Step 6
Connecting the Printer to the
Computer (Local Connection)......15
Step 7
Installing the Printer Driver .......... 16
Reference 3
Troubleshooting ............................ 18
Contents
1
Before operating your printer, read the Set-Up Instructions
carefully from cover to cover. Use this guide for reference.
1.
Take the items and accessories shown above out of the carton.
2.
Remove the plastic bag and peel off the shipping tape from the printer.
Unpacking the Printer
Step 1
1
23
4
1.Face-down tray
2.Printer
3.Accessories
User’s Manual
Quick Guide
Warranty card
Registration card
CD-ROM
Power cord
4.Tray 1
2
3.
Pull out the plastic-lead strip from the paper feed inlet.
4.
Remove the tape strip from the back of the printer.
Step 1
3
Printer Parts
Reference 1
Control panel
Face-down tray
Paper size guide
Manual feed tray
Tray cover
Tray 1
(multipurpose tray)
Paper size guide
Top cover release
button
Power switch
Power cord socket
Parallel interface
connector
Imaging
cartridge
4
The control panel has four indicator lights and one button.
Note
On or blinking
Ready LED See the explanation for Ready on the
LED chart. ☞p. 5
On or blinking
Error LED See the explanation for Error on the LED
chart. ☞p. 7
• The LED display will change as you press the Action key.
• The appearance of this icon throughout this manual indicates
when you need to press the Action key.
Control Panel
Reference 2
Error (amber)
Toner empty (amber)
Paper empty (amber)
Ready (green)
Action key
On
Off
Blinking
Indicator lights
5
When the Ready LED is on
Ready Power Save
Printer is ready and
able to print.
See page 6-16 of the
User’s Manual.
Printer has entered the
Power Save Mode.
See page 6-17 of the
User’s Manual.
Initializing Warming Up
Power on, initializing.
See page 6-16 of the
User’s Manual.
Printer is warming up.
See page 6-16 of the
User’s Manual.
Tray 1 Paper Empty Tray 2 Paper Empty
The paper supply of
Tray 1 is empty.
See page 2-10, 3-4 or
6-18 of the User’s
Manual.
The paper supply of
Tray 2 is empty.
See page 3-7 or 6-18 of
the User’s Manual.
Tray 3 Paper Empty Toner Low
The paper supply of
Tray 3 is empty.
See page 3-7 or 6-18 of
the User’s Manual.
The imaging cartridge
is low on toner but
printing is still possible.
See page 5-1 or 6-17 of
the User’s Manual.
Reference 2
Slowly
blinking
6
When the Ready LED is on
Wait Action Size Mismatch
Press the Action key in
the event of a paper
size error or when
operating in the manual
mode.
See page 6-17 of the
User’s Manual.
The wrong size of
paper has been
detected in Tray 1,
Tray 2 or Tray 3.
See page 3-1, 4-50 or
6-18 of the User’s
Manual.
Tray 2 No Cassette/No Tray 2 Tray 3 No Cassette/No Tray 3
The cassette for Tray 2
is not in place or a print
job was sent using the
Tray 2 setting in the
printer driver, even
though Tray 2 is not
installed on the printer.
See page 2-22, 4-51 or
6-19 of the User’s
Manual.
The cassette for Tray 3
is not in place or a print
job was sent using the
Tray 3 setting in the
printer driver, even
though Tray 3 is not
installed on the printer.
See page 2-22, 4-51 or
6-19 of the User’s
Manual.
Duplex Unit Not Available
A duplex print job has
been sent to a printer
that is not equipped
with a duplex unit.
See page 4-56, 4-59 or
6-19 of the User’s
Manual.
Reference 2
7

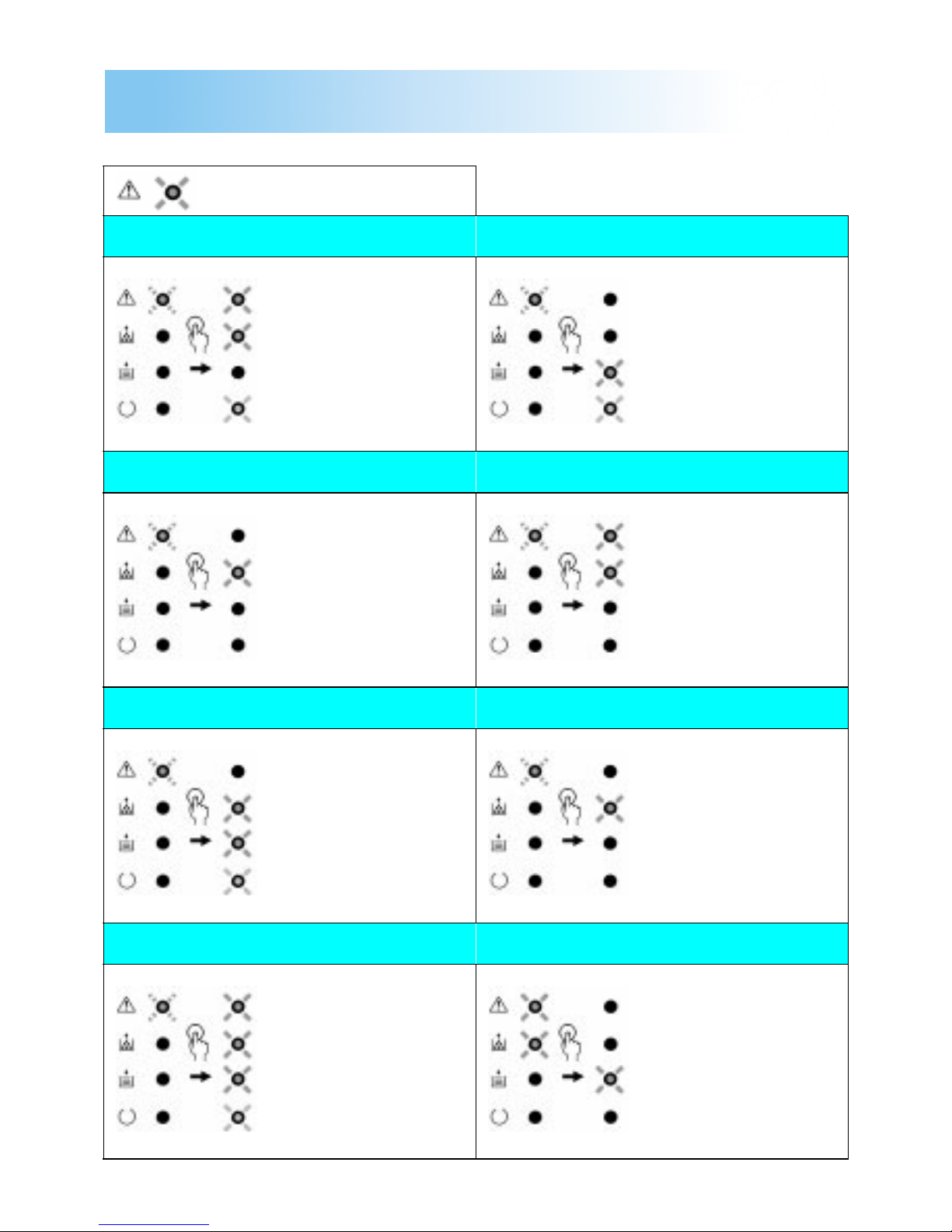

When the Error LED is on
Buffer Overflow Cover Open
The buffer cannot
handle the volume of
data being sent.
See page 6-20 of the
User’s Manual.
The cover is open.
See page 1-3 or 6-20 of
the User’s Manual.
Paper Size Error Cover Open (Duplex Unit)
The paper-size setting
of the printer driver
doesnotmatchthesize
of paper that has been
detected in the tray.
See page 3-1, 4-50 or
6-20 of the User’s
Manual.
The cover of the duplex
unit is open.
See page 2-19, 6-9 or
6-23 of the User’s
Manual.
Wrong Media (Duplex Unit) Wrong Size (Duplex Unit)
The wrong media has
been loaded into the
duplex unit.
See page 3-16 or 6-23
of the User’s Manual.
The wrong size of
paper has been loaded
into the duplex unit.
See page 3-16 or 6-23
of the User’s Manual.
Video Under Run Replace Imaging Cartridge
The buffer cannot
handle the volume of
data being sent.
See page 6-24 of the
User’s Manual.
The imaging cartridge
is out of toner.
See page 5-1 or 6-24 of
the User’s Manual.
Reference 2
8
When the Error LED is on
Paper Misfeed 1 Paper Misfeed 2
A paper misfeed
occurred near the
multipurpose tray.
See page 6-7 or 6-21 of
the User’s Manual.
A paper misfeed
occurred near Tray 2.
See page 6-8 or 6-21 of
the User’s Manual.
Paper Misfeed 3 Paper Misfeed 4
A paper misfeed
occurred near Tray 3.
See page 6-8 or 6-21 of
the User’s Manual.
A paper misfeed
occurred near the
manual feeding tray.
See page 6-7 or 6-21 of
the User’s Manual.
Paper Misfeed 5 Paper Misfeed 6
A paper misfeed
occurred near the
lower-duplex unit.
See page 6-9 or 6-22 of
the User’s Manual.
A paper misfeed
occurred near the
imaging cartridge.
See page 6-2 or 6-22 of
the User’s Manual.
Paper Misfeed 7 Paper Misfeed 8
A paper misfeed
occurred near the
fuser.
See page 6-2 or 6-22 of
the User’s Manual.
A paper misfeed
occurred near the
upper-duplex unit.
See page 6-9 or 6-22 of
the User’s Manual.
Reference 2
