P-51 Mustang

Assembly Instructions

Important Instructions

1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for

bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.

2.Please wait for the glue to dry and solidify in each installation step before the next installation.

3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be

used for heating.

4.Please use razor blade to remove the parts from the plate. Do not tear the parts by force.

1. Fuselage wooden frame parts.

2. Assemble the fuselage wooden frame.

3. Continue assembling the wooden frame and install the motor.

4. Overlap and install two servo wooden spacers. (Bottom view of the parts)

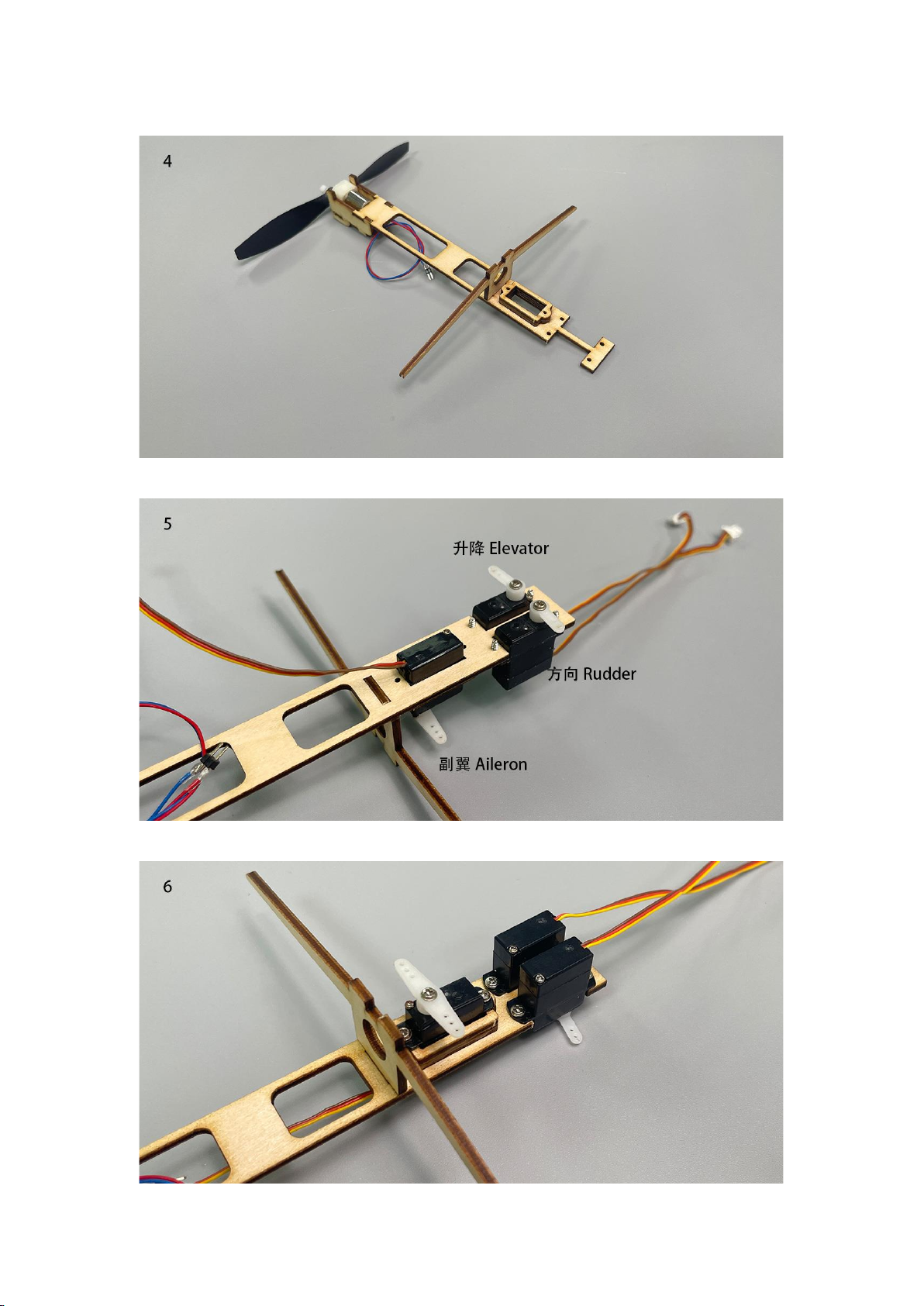

5. Install the servo as shown. (Top view of the parts)

6. Install the servo as shown. (Bottom view of the parts)

7. Connect the receiver to the servos, secure the receiver with Velcro, power it on, and

bind it to the transmitter to ensure that the servo arms return to their neutral positions.

Test if the servos are functioning correctly and install the servos and arms as shown in

the diagram. Note: This step is crucial; make sure the servos are powered, the arms are

centered, and follow the diagram precisely. Adjustments cannot be made after the

model is assembled.

8. Remove the fuselage from the foam board.

9. Use a sharp tool (screwdriver) to score through the marked lines on the bottom of the fuselage.

10. Magnets and its supporting structures.

11. Install the magnet.

12. Install the assembled magnet-supporting structure onto the wooden frame at the

corresponding location.

13. Use glue to secure the wooden frame and attach the fuselage to one sides of the

wooden frame, with the side marked with lines facing inward.

14. PS foam parts.

15. Press the fuselage inward along the score lines and use glue to install the bulkhead.

16. Use glue to secure the cockpit foam board.

17. Use glue to secure the front fuselage top plate and nose filler plate.

18. Use glue to secure the fuselage bottom plate, do not apply glue to the red-lined

section.

19.

20. Combine the fuselage.

21. Remove the propeller and apply the fuselage stickers.

22. The front bottom plate of the fuselage can be opened forward as a battery

compartment cover.

23. Install magnets at the circular hole position of the battery compartment cover.

24. Seal the mounting holes with sticker.

25. Install the tailwheel in the corresponding slot on the bottom of the aircraft.

26. Apply stickers to the aircraft tailwheel.
