Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S
Installation manual
Translation of the original installation manual 9499 053 28800 Edition 1.5.0 01/29/2020
Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany
Phone: +49.40.67960.303 Fax: +49.40.67960.383
Foreword
Must be followed!
Any information in this document is subject to change without notice and does not represent a commitment on
the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained
and qualied personnel. In correspondence concerning this product, the type, name, and release number/serial
number as well as all license numbers relating to the product have to be cited.
Note
This document is partially protected by copyright. It may not be changed or copied, and it may not be used
without purchasing or written permission from the copyright owner (Minebea Intec). The use of this product
constitutes acceptance by you of the abovementioned provisions.
Table of contents
1 Introduction.........................................................................................................................................2
1.1 Read the manual.........................................................................................................................................................2
1.2 This is what operating instructions look like..........................................................................................................2
1.3 This is what lists look like...........................................................................................................................................2
1.4 This is what menu items and softkeys look like.....................................................................................................2
1.5 This is what the safety instructions look like.......................................................................................................... 2
1.6 Hotline.......................................................................................................................................................................... 3
2 Safety instructions...............................................................................................................................4
2.1 General notes..............................................................................................................................................................4
2.2 Intended use................................................................................................................................................................4
2.3 Initial inspection..........................................................................................................................................................4
2.4 Before operational startup........................................................................................................................................4
3 Recommendations for installation .......................................................................................................5
3.1 Load cell and constrainer arrangement..................................................................................................................5
3.2 Mounting aid...............................................................................................................................................................6
3.3 Additional lift-o protection ....................................................................................................................................6
4 Specications ......................................................................................................................................8
4.1 Equipment supplied...................................................................................................................................................8
4.2 Dimensions..................................................................................................................................................................9
4.3 Technical data ............................................................................................................................................................11
5 Installation..........................................................................................................................................12
5.1 Prior to mounting ......................................................................................................................................................12
5.1.1 Preparing the foundation/substructure .....................................................................................................12
5.2 Tightening torques....................................................................................................................................................13
5.3 Assembly.....................................................................................................................................................................13
5.3.1 Safety instructions..........................................................................................................................................13
5.3.2 Installing the mounting kit and inserting the load cell............................................................................ 14
5.4 Check mounting........................................................................................................................................................ 16
6 Cleaning..............................................................................................................................................17
7 Disposal ............................................................................................................................................. 18
8 Spare parts and accessories ............................................................................................................... 19
8.1 Replacement parts ................................................................................................................................................... 19
8.2 Accessories ................................................................................................................................................................ 19
8.2.1 Load discs........................................................................................................................................................ 19
Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S Table of contents
Minebea Intec EN-1
1 Introduction
1.1 Read the manual
-Please read this manual carefully and completely before using the product.
-This manual is part of the product. Keep it in a safe and easily accessible location.
1.2 This is what operating instructions look like
1. - n. are placed before steps that must be done in sequence.
1.3 This is what lists look like
-indicates an item in a list.
1.4 This is what menu items and softkeys look like
[ ] frame menu items and softkeys.
Example:
[Start]- [Applications]- [Excel]
1.5 This is what the safety instructions look like
Signal words indicate the severity of the danger involved when measures for preventing
hazards are not followed.
DANGER
Warning of personal injury
DANGER indicates death or severe, irreversible personal injury which will occur if the
corresponding safety measures are not observed.
Take the corresponding safety precautions.
WARNING
Warning of hazardous area and/or personal injury
WARNING indicates that death or severe, irreversible injury may occur if appropriate
safety measures are not observed.
Take the corresponding safety precautions.
CAUTION
Warning of personal injury.
CAUTION indicates that minor, reversible injury may occur if appropriate safety
measures are not observed.
Take the corresponding safety precautions.
is placed before a step.
describes the result of a step.
Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S 1 Introduction
EN-2 Minebea Intec
NOTICE
Warning of damage to property and/or the environment.
NOTICE indicates that damage to property and/or the environment may occur if
appropriate safety measures are not observed.
Take the corresponding safety precautions.
Note:
User tips, useful information, and notes.
1.6 Hotline
Phone: +49.40.67960.444
Fax: +49.40.67960.474
eMail: [email protected]
1 Introduction Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S
Minebea Intec EN-3
2 Safety instructions
2.1 General notes
NOTICE
Warning of damage to property and/or the environment.
The product was in perfect condition with regard to safety features when it left the
factory.
To maintain this condition and to ensure safe operation, the user must follow the
instructions and observe the warnings in this manual.
2.2 Intended use
The mounting kits PR 6043/30N+S, PR 6043/40N+S are intended for weighing tasks, and
must only be used as such.
The mounting kits PR 6043/30N+S, PR 6043/40N+S are designed for installing the load
cells PR 6241.
The dimensions of all mounting and structural components must be calculated so that
sucient overload capacity is ensured for all loads which may occur while taking the
relevant standards into account. In particular, upright weighing objects must be
safeguarded against the weighing installation turning over or being shifted, thus
eliminating danger to people, animals, or goods even in the case of a break in a load cell
or mounting element.
Installation and repair work must only be carried out by expert/qualied personnel.
The mounting kits reect the state of the art. The manufacturer does not accept any
liability for damage caused by third-party system components or due to incorrect use of
the product.
2.3 Initial inspection
Check the contents of the consignment for completeness. Check the contents visually to
determine whether any damage has occurred during transport. If there are grounds for
rejection of the goods, a claim must be led with the carrier immediately. The
Minebea Intec sales or service organization must also be notied.
2.4 Before operational startup
NOTICE
Perform visual inspection.
Before operational startup as well as after storage or transport, inspect the
mounting kit visually for signs of mechanical damage.
Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S 2 Safety instructions
EN-4 Minebea Intec
3 Recommendations for installation
3.1 Load cell and constrainer arrangement
Examples:
Key
Do not constrain this position.
Constrainer
Load application
Possible direction of movement
-To ensure the required free moving space of the weighing facility, a maximum of
3 mounting kits with constrainer may be used to constrain a weighing object.
3 Recommendations for installation Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S
Minebea Intec EN-5
Round containers are the exception (image ① and ②). In this case, any number of
constrainers can be installed, provided that they are tangentially aligned.
Special mounting kits are available for weighing points without constrainers.
Alternatively, the constrainer can simply be removed.
With elastic constructions, it may be necessary to deviate from this recommendation
in order to guarantee the weighing object has sucient stability.
3.2 Mounting aid
Example: PR 6043/30
The auxiliary mounting plate (1) is intended to facilitate installation of the mounting kit
and load cell.
3.3 Additional lift-o protection
To increase the permissible lifting force for the mounting kits with constrainer, an
additional lift-o protection can be installed.
Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S 3 Recommendations for installation
EN-6 Minebea Intec
For this purpose, the simplest version requires the following components:
-1× threaded bar (1)
-3× nut (2)
-1× washer (3)
Assembly:
-Mount the threaded bar (1) so that it has sucient free moving space in the drill hole.
-Lock the nuts (2) so that there is a remaining distance A* from the washer (3).
* A = 1–2 mm
This distance is essential to avoid force shunts.
The required tightening torques are given in the following table.
Mounting kit Threaded bar/
nuts Property class Tightening tor-
que Perm. overall
lift-o force
PR 6043/30 M12 4.6 30 Nm 18 kN
PR 6043/40 M16 4.6 75 Nm 32 kN
3 Recommendations for installation Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S
Minebea Intec EN-7
4 Specications
4.1 Equipment supplied
Example: Mounting kit PR 6043/30N+S
No. Description
1 Auxiliary mounting plate
2 Screw (2×) and spring washer (2×) for the equipotential bonding cable (supplied
with the load cell)
3 Upper plate
4 Constrainer with joint head (2×), screwed joint, nut (2×), bolts (2×), and locking
washer (4×)
5 Lower plate
6 Spacer
7 Pin (2×)
8 Included in scope of supplies only with PR 6043/30: Bush (2×); only for load
cells PR 6241/12…52
The following are not shown:
9 Load disc kit
10 Quick guide
Mini FLEXLOCK mounting kits PR 6043/30N+S, PR 6043/40N+S 4 Specications
EN-8 Minebea Intec
Este manual sirve para los siguientes modelos
4
Tabla de contenidos
Otros manuales de Rack y soporte de Minebea Intec
Minebea Intec
Minebea Intec PR 97/00 Series Manual de usuario
Minebea Intec
Minebea Intec PR 95T/00S Manual de usuario
Minebea Intec
Minebea Intec PR 92/00N Manual de usuario
Minebea Intec
Minebea Intec PR 6011/00S Manual de usuario
Minebea Intec
Minebea Intec PR 6021 Manual de usuario
Minebea Intec
Minebea Intec PR 6144 Series Manual de usuario
Minebea Intec

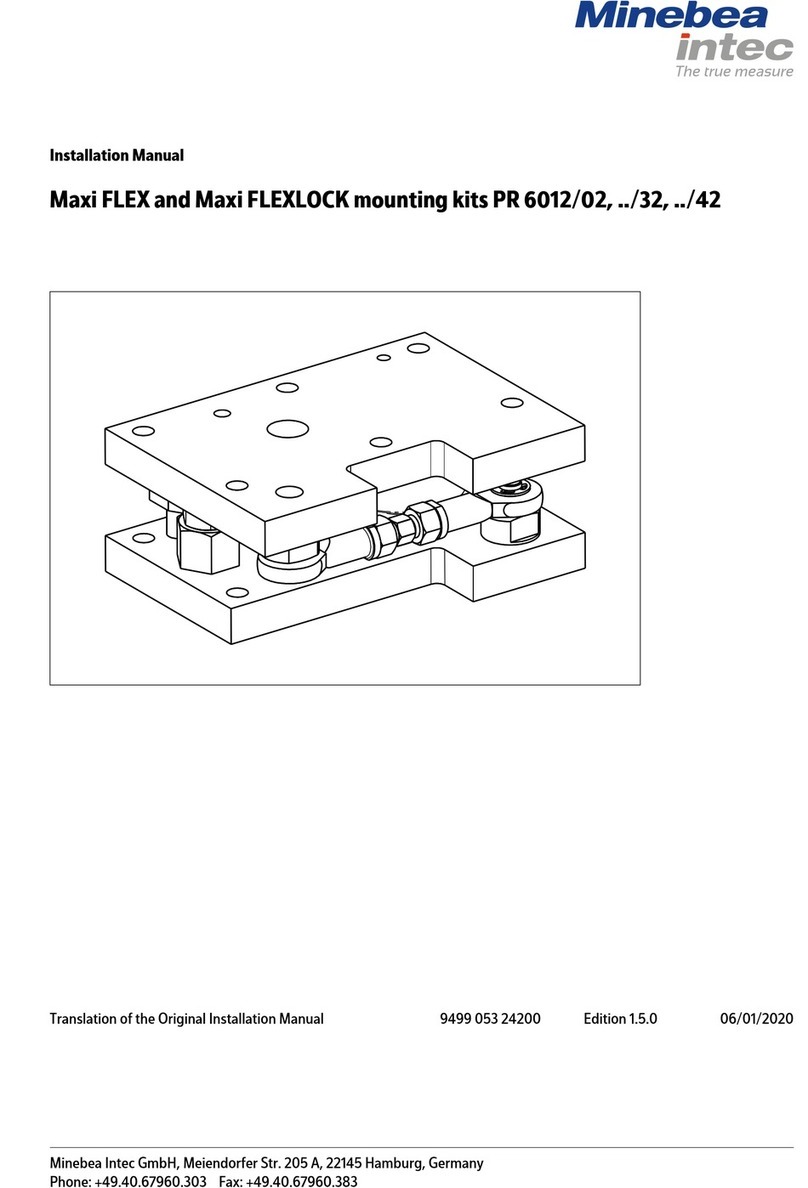

Minebea Intec PR 6012/02 Manual de usuario
