MIMAKI CJV30-60 Manual de usuario
Mimaki Europe B.V.
Sign Graphics Products
162 cm
62cm 103 cm 137.1 cm
Product Guide
24-04-2014
V1.2EU
The information in this document is subject to change without notice
Now with MAPS
Mimaki Advanced Pass System
Mimaki Europe B.V.
Sign Graphics Products
Terms of use
•The contents of this presentation are intended only for Mimaki authorized
resellers. Authorized persons are not permitted to distribute, copy or change
this presentation without explicit approval of Mimaki Europe B.V.
•Contents and technical explanations in this presentation are based on the
test results achieved at Mimaki at the time of testing and are not a guarantee
for performance. Substrates should be tested beforehand.
•In addition, the contents in this presentation do not lead to any legal
obligations from Mimaki and Mimaki does not take any responsibility. Please
verify in advance whether your intended prints will result in sufficient
quality.
•Contents of this presentation are subject to change without prior notice for
improvement. Compositors errors reserved.
2
Mimaki Europe B.V.
Sign Graphics Products
Newly developed
reduced production time
Automatic media clamp function
(Positions: off/low/middle/high)
Achieve high quality
Print Head
Continuous (overnight) printing
Automatic change of double ink cartridge
Cutter head
Tool holder
Intelligent heater Automatic
take-up device
CJV30 Design
3
Mimaki Europe B.V.
Sign Graphics Products
Concept and features
•High quality printing, up to 1440 dpi
•same as the JV33 Series
•Speed comparable to JV33
•max speed 17.5 m²/h, standard mode 11.9 m²/h
•Cutting speed up to 30 cm/s
•MAPS, Mimaki Advanced Pass System, included
•Printing with higher quality at higher speeds
•Available from firmware version 3.20 and higher
4
Mimaki Europe B.V.
Sign Graphics Products
Concept and features
•Automatic Media Clamp function
•for automated switching from printing to cutting
•Continuous Crop Mark detection
•for accurate contour cutting and increases the productivity
•Cuts the image directly after printing
•using fast-drying SS21 solvent ink
5
Mimaki Europe B.V.
Sign Graphics Products
Concept and features
•High density, fast drying white ink
•Widens the range of applications
•Simultaneous white and full color printing and white ink
overlay function
•UISS
•Continuous printing with the Uninterrupted Ink Supply System
•Space savings up to 40% in relation to purchasing a
separate printer and cutter.
•Bundled RIP, cutting and creation software
•Rasterlink Pro5 SG, FineCut, Simple Studio,
•Plug-ins for Adobe Illustrator and Corel Draw
6
Mimaki Europe B.V.
Sign Graphics Products
Max. Print/Cut Width
610mm (24.0”) Max. Print/Cut Width
1020 mm (40.2”)
Media Width 620mm (24.4’’) Media Width 1030mm (40.6’’)
Unique in its size, new markets/users and affordable
Target markets –CJV30-60 / CJV30-100
Target users Applications
Car/van fleet hire Vehicle graphics
Companies with large
fleet Vehicle graphics
Copy shops Posters, displays, stickers
Design agencies Displays for retail, stickers
Label producers Labels
Large retail chains In house production of in
store communication
Retail car dealers Vehicle graphics
Schools and colleges In house
signs/communication
Small screen printers Posters, displays, stickers,
labels
Smaller sign makers Posters, displays, stickers,
labels
The CJV30-60/100 are unique in its sizes
and target different markets than the
CJV30-130 and CJV30-160.
Examples of potential end users and
applications are listed.
62cm 103 cm
7
Mimaki Europe B.V.
Sign Graphics Products
Print service providers and sign makers engaged in the production of large sized signs
The CJV30-130 and CJV30-160 are typical
products for professional sign makers
and print houses. The CJV30 Series has
many characteristics of the award
winning JV33 series, making it a very
strong printer/cutter.
Target markets CJV30-130 / CJV30-160
Target users Applications
Sign makers and print houses/ print
service providers
Outdoor signs, POP displays, posters, floor
and window signs, stickers and labels
137.1 cm 162 cm
Max. Print/Cut Width
1361mm (53.6”) Max. Print/Cut Width
1610 mm (63.4”)
Media Width 1371mm (54.0’’) Media Width 1620mm (63.4’’)
8
Mimaki Europe B.V.
Sign Graphics Products
•Thanks to the combination
of the high speed print
head and the SS21 ink,
CJV30 series prints with
excellent performance
•Also the design of ink color
arrangement contributes to
high speed and high quality
printing

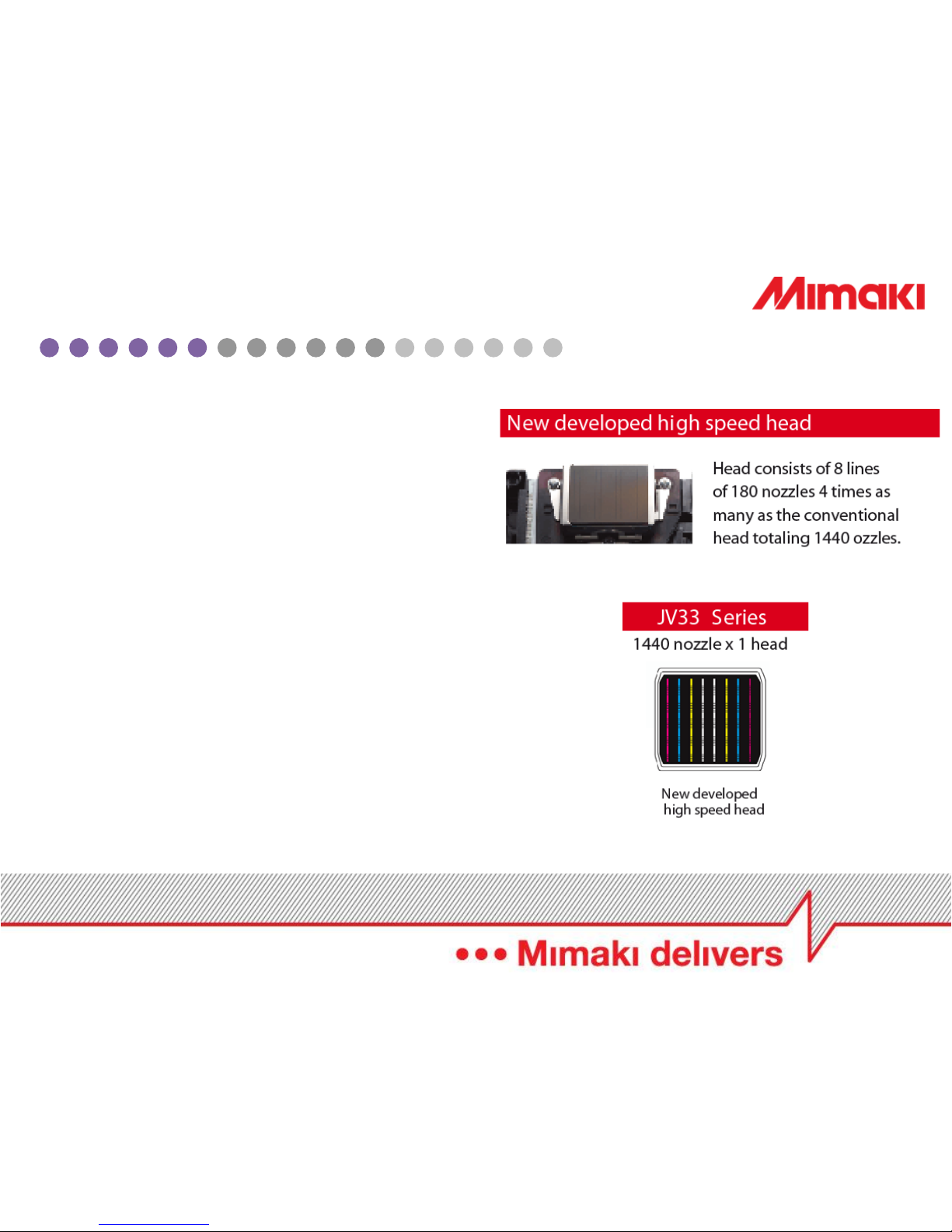

High speed print head
9
Mimaki Europe B.V.
Sign Graphics Products
CJV30 Printing speed
10
When printing in the lowest pass of each resolution with high speed scan, MAPS can be set only to minus
8
9,8
13,3
9,4
11,4
16,7
0 2 4 6 8 10 12 14 16 18 20
MAPS OFF
MAPS (目安値)
8,3
10,2
14
9,7
11,9
17,5
0 2 4 6 8 10 12 14 16 18 20
MAPS OFF
MAPS (目安値)
m²/h
m²/h
CJV30-160(4C)
CJV30-130(4C)
540x720,4P,Bi,Hi
540x1080,6P,Bi,Hi
720x1080,6P,Bi,Hi
540x720,4P,Bi,Hi
540x1080,6P,Bi,Hi
720x1080,6P,Bi,Hi
Optimum
value
Optimum
value
