Milltronics HydroRanger Plus Manual de usuario

HydroRanger Plus

Technology based. Customer driven.

October 1997

Instruction Manual

PL-507

33455070

Rev 2.1

hank you for purchasing Milltronics products. We endeavour to design

equipment that is simple to use and reliable in its operation, with the aim

of satisfying our customers' needs.

Milltronics has been designing and manufacturing process equipment since

1954. Our fields of expertise include ultrasonic and capacitance level

measurement, in-line weighing of dry bulk solids and motion sensing.

Milltronics is established world wide through associate offices and

representatives. Our network is continually being refined to provide our

customers with first rate sales information, engineering assistance and after

sales support.

For more details on our products and service, please contact us and we will

provide you with a listing of the offices or representatives nearest you.

TABLE OF CONTENTS

TITLE PAGE #

INTRODUCTION

About this Manual 5

About the HydroRanger Plus 6

Important HydroRanger Plus Features 8

INSTALLATION

Environmental 9

Outline 9

Mounting 11

Programmer 17

ComVerter 17

Interconnection 18

PROGRAMMING

Program Mode Entry 27

Display 28

Keypad 29

Parameter Value Alteration 31

Special Parameters 31

Parameter Reset Features 31

Programming Security 32

OPERATION

Run Mode Entry 33

Display 34

Keypad 35

System Performance Evaluation 36

Performance Test Results 37

Maintaining Operation 38

APPLICATIONS

General Application 39

Wet Well Control (Pump Down) 42

Reservoir Control (Pump Up) 44

Rake Control (Differential Level) 46

Penstock Control 48

General Alarms 50

OCM (Open Channel Monitor) 52

Volume Calculation 54

Pumped Volume Total 56

Failsafe Operation 58

Application Assistance 60

TITLE PAGE #

PARAMETERS

Security 61

Quick Start 62

Volume 65

Reading 67

Failsafe 69

Relays 71

mA Output 89

mA Input 94

Data Logging 95

OCM 105

Totalizer 119

Range Calibration 122

Temperature Compensation 124

Rate 126

Measurement Verification 128

Scanning 130

Display 131

Echo Processing 133

Advanced Echo Processing 136

Test 144

Measurement 146

Master Reset 148

TECHNICAL REFERENCE

Transmit Pulse 149

Echo Processing 149

Scope Displays 149

Distance Calculation 150

Sound Velocity 150

Scanning 151

Volume Calculation 152

Flow Calculation 153

Measurement Response 154

Relay Set Up 155

Maintenance 156

TROUBLESHOOTING

Troubleshooting Chart 157

Measurement Difficulties 158

SPECIFICATIONS

HydroRanger Plus 161

Programmer 163

Options 163

PROGRAMMING CHART 165

INTRODUCTION

ABOUT THIS MANUAL

This instruction manual provides information specific to the Milltronics

HydroRanger

Plus

(HYDRO+) level monitor*. Other products (including transducers) associated with

a HYDRO+ based level monitoring system, are supplied with individual instructions.

All general start up information is included in the white pages. Refer to the grey pages

for additional information or technical assistance, if required.

After reading this INTRODUCTION and completing the physical INSTALLATION, first

time system installers may wish to use the

HYDRORANGER PLUS Quick Start

Guide, PL-439

for step by step start up instructions.

INTRODUCTION

briefly describes key features.

INSTALLATION

step by step mounting and wiring procedure.

PROGRAMMING

program mode LCD and keypad functions.

OPERATION

run mode LCD and keypad functions.

APPLICATIONS

10 brief examples of common HYDRO+ uses.

PARAMETERS

specific programmable feature definitions.

TECHNICAL REFERENCE

detailed information for complex features.

TROUBLESHOOTING GUIDE

quick problem solving techniques.

SPECIFICATIONS

lists physical and operational characteristics.

PROGRAMMING CHART

space to record all programming for future

reference. (Also used as a Parameter index).

REMEMBER!

"Programming is not complete until the Programming Charts are completed".

*This manual applies to the wall, rack, and panel mount HYDRO+ versions.

For simplicity, the rack mount version is illustrated only

where necessary to identify version differences.

Throughout this manual (unless stated otherwise) "level" refers to the

relative position of a monitored liquid surface.

INSTALLATION

INTRODUCTION

PL-507 5

ABOUT THE HYDRORANGER PLUS

The HydroRanger Plus is to be used only in the

manner outlined in the instruction manual.

The HYDRO+ includes the features of the successful Milltronics "HydroRanger 1"

PLUS a variety of new features, incorporating advances in electronic component,

manufacturing, and software technology.

This multi-purpose microprocessor based level monitor contains numerous features

ideally suited for liquid monitoring and pump control applications.

A HYDRO+ level monitor, utilizing a single ultrasonic transducer (ordered separately),

accurately monitors level without contacting the surface monitored.

The HYDRO+ provides the transmit pulse to the transducer. The transducer emits

ultrasonic pulses in a narrow beam, perpendicular from the transducer face. The

HYDRO+ measures the time between pulse emission and reflection (echo) reception,

to calculate the transducer face to monitored surface distance.

The transducer internal temperature sensor is used to automatically compensate

for sound velocity variations due to air temperature changes within the

measurement range.

145

Reservoir

Open Channel

HYDRO +

Screen Rake

Wet Well

PL-507 6

The HYDRO+ monitors levels 0.3 to 15 m (1 to 50 ft) from the transducer face, with

outstanding accuracy, usually within 0.25% of range. (Ensure the transducer selected

suits the material and measurement range monitored).

This versatility is accomplished by Milltronics patented Sonic Intelligence TM, providing

high measurement reliability, regardless of operating conditions.

The HYDRO+ provides the following

LCD

(Liquid Crystal Display) Readings:

» Level, space, distance, volume, or remaining capacity in open or closed vessels.

» Differential level across a channel filter or screen (2 transducers required).

» Average level in a large vessel with an uneven material surface (2 transducers).

» Head, flow, or totalized flow in free flowing open channels.

» Pumped volume from wet wells or into reservoirs.

The HYDRO+ relays and/or mA output may be used as preset (or programmed as

desired) to activate alarms, pump controls, chart recorders, or virtually any process

control equipment.

The HYDRO+ infrared interface permits one programmer to be used for any number

of HYDRO+ level monitors. Upon programming completion, the programmer may be

locked away for programming security. All Operator programming is stored in

non-volatile memory, unaffected by power interruption.

While the HYDRO+ is typically used to monitor liquid level, any process which

requires a distance measurement or object presence/lack of presence (within the

system maximum measurement range) is a candidate for HYDRO+ application.

Refer to APPLICATIONS for detailed descriptions of a small sample of process

measurement requirements to which the HYDRO+ may be applied.

145

Alarm

PLC

Chart

Recorder

Pump

HYDRO +

INTRODUCTION

PL-507 7

IMPORTANT HYDRORANGER PLUS FEATURES

FIXED FEATURES

ENCLOSURE: Chemical resistant, light weight, dust/liquid tight.

LCD: Large digits and symbols for Readings and continuous

operating condition indication.

HAND PROGRAMMER: 20 tactile feedback keys, (ordered separately).

DOLPHIN COMPATIBLE: HYDRO+ / RS 232C interface, (ordered separately).

COMMUNICATIONS: Non-invasive infra-red digital data transfer.

SPEED: 16/32 bit microprocessor at 16.7 MHz clock speed.

RELIABILITY: Sonic Intelligence TM

Surface Mount Technology (SMT)

Immune to power interruptions. All programming is retained

indefinitely. Operating data is retained for 30 seconds min;

updated promptly upon resumption.

PROGRAMMABLE FEATURES

Typically, a very small percentage of the HYDRO+ operator programmable features

require alteration from default settings. However, for demanding measurement

requirements any number of features may be adjusted as required.

Following is a list of the features that make the HYDRO+ easy to program, yet

versatile enough to handle complex level measurement requirements.

GENERAL FEATURES

DIRECT ACCESS: Any operator programmable feature may be accessed directly.

SCROLL ACCESS: Scroll forward or backward to key programmable features.

OPERATION: 7 modes of operation to suit specific requirements.

MATERIAL: Preset for optimum performance on all liquid surfaces.

RESPONSE: Slow, medium, or fast response to level changes.

UNITS: Readings in m, cm, mm, ft, in, %, (or any other units desired).

ADDITIONAL FEATURES (use as desired)

VOLUME: 8 pre-programmed tank shape options

2 universal tank shape programming methods

FLOW: Open channel flowrate and total, 5 pre-programmed flumes.

PUMPED TOTAL: Total volume pumped including/excluding inflow/discharge.

DATA LOGS: Time and Date of important operational events.

FAIL-SAFE: Automatic process control equipment activation.

RELAYS: 6 alarm functions, 7 pump functions, 5 control functions,

storm condition and energy saving pump function modifiers.

mA OUTPUT: 7 functions, range selectable and scalable, overrange limits.

mA INPUT: HYDRO+ features based on any level monitor mA output.

PL-507 8

INSTALLATION

Installation shall only be performed by qualified personnel,

and in accordance with local governing regulations.

ENVIRONMENTAL

Choose a mounting location suited to the HYDRO+ enclosure.

The ideal HYDRO+ mounting location is where the:

1. Ambient temperature is always within -20 to 50°C (-5 to 122°F).

2. HYDRO+ display window is at eye level.

3. Cable length requirements are minimal.

4. Mounting surface is free from vibration.

Avoid mounting locations where the HYDRO+ is:

» exposed to direct sunlight, (otherwise, provide a sun shield).

» close to high voltage/current runs, contactors, SCR control drives, or

frequency inverters.

This product is susceptible to electrostatic shock.

Follow proper grounding procedures.

OUTLINE

WALL MOUNT

Non metallic enclosure does not provide grounding between conduit

connections. Use grounding type bushings and jumpers.

195 mm

(7.7")

168 mm

(6.6")

77 mm

(3.0")

13 mm (0.5")

20 mm (0.8")

102 mm

(4")

180 mm

(7.1")

Suitable location for conduit entrances. Use water

tight conduit hubs to maintain the enclosure rating.

mounting holes,

4.5 mm (0.18") Ø,

4 places

INSTALLATION

PL-507 9

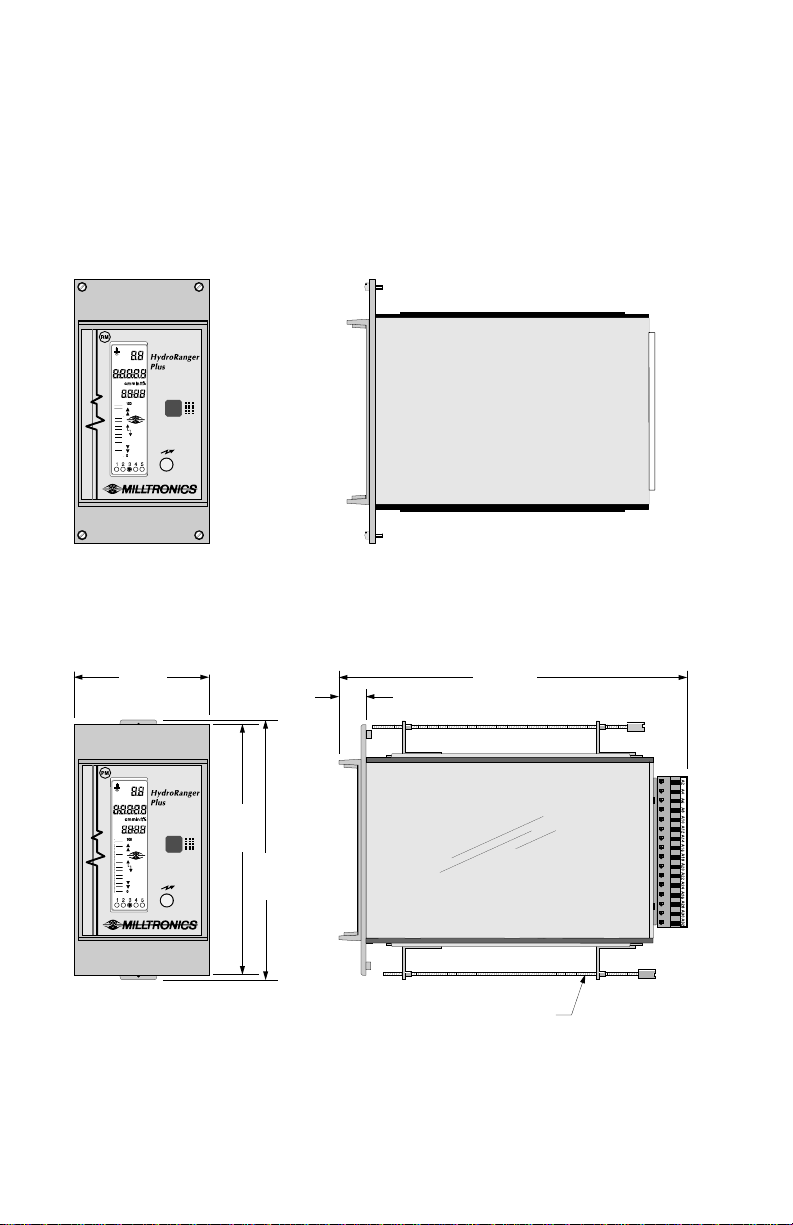

RACK MOUNT

The HYDRO+ rack mount version is a standard DIN 3U/14 HP, 4 rail plug-in unit, for a

standard 84 HP deep sub-rack.

201 mm

(7.9")

72 mm

(2.9")

150 mm

(5.9")

144 mm

(5.7")

slip on mounting bracket top & bottom

screws to be tightened to no more than

1 inch / lb. torque.

16 mm

(0.6")

PANEL MOUNT

PL-507 10

Tabla de contenidos

Otros manuales de Instrumento de medición de Milltronics

Milltronics

Milltronics IQ Radar 160 Manual de usuario

Milltronics

Milltronics MultiRanger Plus PL-513 Manual de usuario

Milltronics

Milltronics Mercap MCP01 S series Manual de usuario

Milltronics

Milltronics airanger XPL plus Manual de usuario

Milltronics

Milltronics miniranger plus Manual de usuario

Milltronics

Milltronics HydroRanger I Manual de usuario

Milltronics

Milltronics AIRANGER DPL PLUS Manual de usuario

Milltronics

Milltronics MultiRanger Plus Manual de usuario

Milltronics

Milltronics ILE-37 Manual de usuario

Milltronics

Milltronics COMPUFLO III Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
