Milesight SG50 Manual de usuario
Ultra Low Power Solar Gateway
SG50
Quick Start Guide
Milesight IoT Co., Ltd. www.milesight.com
All software & files can be downloaded from
https://www.milesight.com/iot/resources/download-center/#documents
Content
1. Packing List……………………………………………………………..........................................
2. Hardware Introduction……………………………………………………...................…............
3. SIM Card Installation……………………………………………...........................................
4. Power Supply……………………......................................................……..................
5. Installation………………………...........................................................…................
6. Web GUI Access………………………………........................................................…...
7. FCC Statement………………………………........................................................….....
2
3
4
4
6
11
12
1311
www.milesight.com
1. Packing List 2. Hardware Introduction
12 21313
www.milesight.com www.milesight.com
Button Descriptions:
Function Action LED Indicator
Turn On/Off Wi-Fi
Reset to Factory
Default
Quick press the
button once.
Press and hold the button
for more than 5 seconds. SYS LED quickly blinks.
Wi-Fi off: W-Fi LED off
Wi-Fi on: Wi-Fi LED static on.
Cellular & GPS
Antenna
Battery Compartment
Grounding Stud
4 × Wall Mount Screw Kits 1 × Warranty Card1 × Quick Start Guide
1 × Battery Pack1 × SG50 Device 1 × SIM Card Ejector Tool
1 × Antenna U-bolt Kit 1 × Solar Panel
(With M12 Power Cable) 4 × Mounting Screws
1 × LoRaWAN®Antenna 1 × Antenna Coaxial Cable (1m) 1 × Antenna U-strap Kit
1 × Mounting Bracket Kit1 × Solar Panel Bracket Kit 2 × Hose Clamps
SIM Slot
Type-C
USB
Button Vent Plug
Wi-Fi AntennaLED Area DC Power Connector
LoRaWAN®
Antenna Connector
3. SIM Card Installation
4. Power Supply
1 4 15
www.milesight.com www.milesight.com
1. Take the SIM cover down, use an ejector tool to open the SIM card tray. Insert the nano
SIM card, then put the slot with the SIM card back into the device.
2. Rotate back the cover and tighten it with a wrench to prevent water from entering the
device.
SG50 can be powered by either a 12-24 VDC external supply or solar panel. I n the
meantime, the internal battery pack will also be charged. When the external supply
is disconnected or there is not enough power for the solar panel, SG50 can be powered
by the internal battery pack.
Battery Installation
1. Release the fixing screw on the side of the device, and remove the battery compartment
cover.
2. Push the battery into the battery compartment as the icon shows.
3. Fix the cover back to the device using the fixing screw.
Note：
After installing the battery, the device will not power on automatically. Please connect
the power cable of the solar panel to the device to turn it on. When the power cable is
disconnected, the device will power off.
The device can not be charged when its temperature is more than 50°C. Please avoid
direct exposure of the device to sunlight.
The battery should be removed from the device if it will not be used for an extended period.
Hold the latches on the battery pack to pull it out.
5. Installation
16 17
Bracket Pole Mounting
Solar Panel Installation
www.milesight.com www.milesight.com
Bracket Wall Mounting
Drill 4 holes on the wall according to the mounting bracket and insert the wall plugs into
these holes. Then fix the mounting bracket to the wall by fixing the wall mounting screws
into the wall plugs.
Straighten the hose clamps and slide them through the rectangular rings in the mounting
bracket. Wrap the hose clamps around the pole, then use a screwdriver to tighten the
locking mechanism by turning it clockwise.
1. Fix the solar panel to the solar panel bracket using 6 fixing screws.
18 19
Antenna U-strap Installation
Device Installation
www.milesight.com
www.milesight.com
2. Hang the solar panel bracket onto the mounting bracket and fix both parts using 2 fixing
screws first. Adjust the angle of the solar panel bracket (15°, 45°, and 75° is optional) based
on the installation environment. Then fix the remaining two screws to the solar panel bracket.
1. Pass the LoRaWAN®antenna through the U-strap clamp and fix the U-strap clamp to
the side of the mounting bracket using 2 flat washers and 2 screws.
1. Fix the device to the opposite side of the solar panel bracket using 4 screws. When
installation, it is suggested to fix the 2 screws on the top at first.
2. Install antennas as subsequent steps.
15°
45°
75°
3. Connect M12 power cable of solar panel to DC power connector of device, the device
will power on automatically.
110 111
www.milesight.com www.milesight.com
1. Pass the LoRaWAN®antenna through the antenna clamp and fix it using 4 screws,
then wrap the U-bolt around the pole and fix the clamp with nuts and other accessories.
SG50 provides a web-based configuration interface for management. If it is the first time
you configure the device, please use the default settings listed below:
Wi-Fi SSID: Gateway_XXXXXX
Wi-Fi IP Address: 192.168.23.1
Username: admin
Password: password
Configuration Steps:
1. Ensure the Wi-Fi LED is statically on.
2. Enable Wireless Network Connection on your computer and search for the SSID to
connect it.
3. Type 192.168.23.1 to the browser to log in the web GUI of device.
Antenna U-bolt Installation
6. Web GUI Access
2. Connect one end of the antenna coaxial cable to the LoRaWAN®antenna, the opposite
end to the device’s antenna connector.
2. Connect one end of the antenna coaxial cable to the LoRaWAN®antenna, and the
opposite end to the device's antenna connector.
112
www.milesight.com
7. FCC Statement
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator& your body. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
Otros manuales para SG50
1
Tabla de contenidos
Otros manuales de Puerta de Milesight
Milesight
Milesight UG67 Manual de usuario
Milesight
Milesight UG67 Manual de usuario
Milesight
Milesight Urbana GI03 Manual de usuario
Milesight

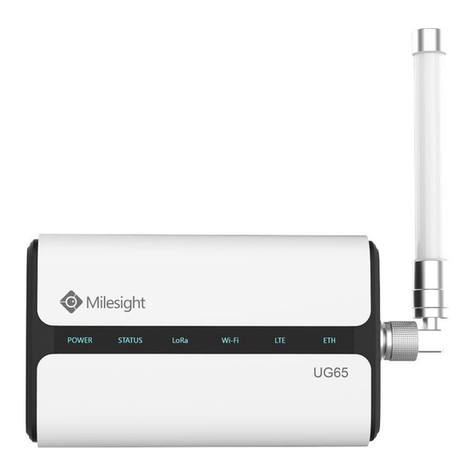

Milesight UG65 Manual de usuario
