MikroTik Chillifire Manual de usuario

ChillifireHotspotRouterInstallationGuide–MikrotikOS



This guide is valid for any device running MikroTik OS

Tested on RouterOS 5.x



TointegrateChillifireHotspotswithadevicerunningMikroTikOSfirstofallyouhavetohaveanaccountwith

Chillifire.YoucancreateafreeChillifireaccountonhttp://www.chillifire.net.

ThereisnothingspecialtoconsiderinthesetupoftheChillifireaccount,whichyoucanconfigureanywayyou

liketo,free,pay‐per‐use,voucherbased,online‐payment,yourownlogo,colourschemeetc.Nextstepisto

configureyourMikrotTikdevice.

1) ResetRoutertodefaultsettings

You need to setup your MikroTik router by using Winbox. Winbox is the graphical user interface for

configuring the MikroTik Router OS. You can download WinboxfromMikroTik'swebsite. Once

downloaded just connect your PC to the MikroTik device via LAN cable to an Ethernet port other that

eth1, while connecting the device to the internet on eth1. Click on Winbox to open the programme; it

should recognise the Mikrotik device and allow you to connect it.

We will assume for the purpose of the setup that all possible RouterOS modules have been loaded.

Please refer to RouterOS support or forum if you are unsure how to do that. Here is what your package

list should look like (System->Packages):

ChillifireHotspotRouterInstallationGuide–MikrotikOS

Before starting you must reset your router to default configuration. Do that within Winbox at System-

>Reset Configuration. Even if you reset with the reset button, do perform a software reset afterwards,

as it reinstates the default configuration, which gives your router a known starting point. The router will

reboot and you need to reconnect. When you see a message about RouterOS Default Configuration

press ‘OK’.



PleasenotethatfordeviceswithoneormoreWLAN(s)thedefaultconfigurationdoesincludeabridge

called‘bridge‐local’Youcansafelyignorethisbridgeifitisthere.Justleaveitinplaceanddonottouchit.



ChillifireHotspotRouterInstallationGuide–MikrotikOS

2) Setupinterfaces

Nextstepistosetuptheinterfacesandpreparethemtoreceivethehotspotconfigurationfile.We

recommendtoremovetheslaveconfigurationoftheEthernetportsandmakethemallmasters.Theycan

thenbeindividuallyassignedtoeitherbehotspotcontrolledorgrantfreeaccesstotheinternet.Thishas

theadvantagethatyoucanassign,say,Ethernetport#2tohavefreeInternetaccessandassignports#3,#4

and#5tobehotspotcontrolled.Thisgivesconfigurationgivesyouthecontinuedtoaccessandconfigure

therouterusingWinboxthroughaLANcableconnection.Whentheconfigurationhasbeensuccessfully

concludedthisaccesswillbenolongerrequired,andcanbeswitchedovertohotspotcontrolaswell,ifyou

wish.

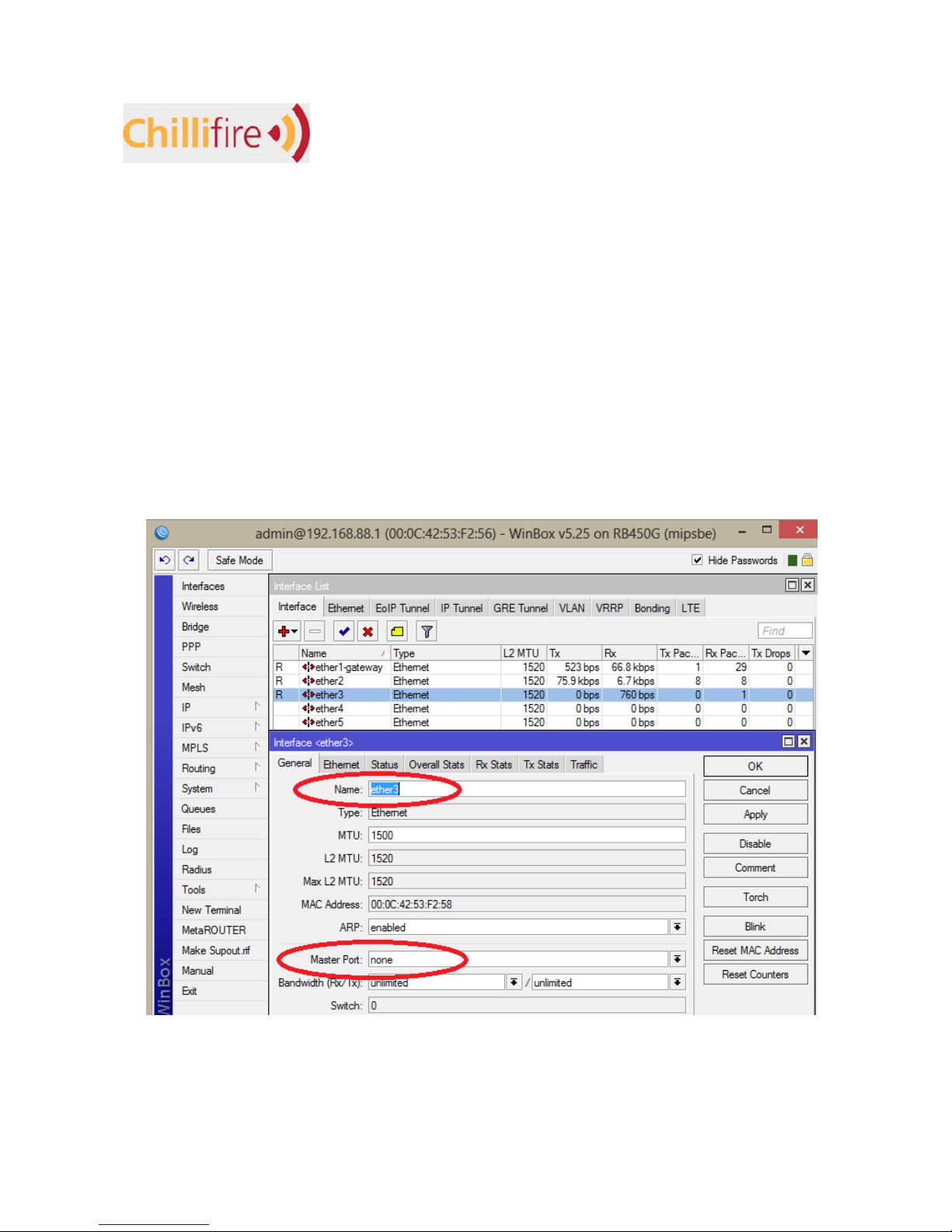

HereisanexampleforEthernetport#2,whichwehaverenamedfor‘ether3‐slave’to‘ether3’and

switched‘MasterPort’to‘none’.NotethattheWANinterfacemustbenamedether‐1‐gateway,the

defaultname.



ChillifireHotspotRouterInstallationGuide–MikrotikOS

3) Wirelessinterfaces

Fordeviceswithwirelessinterfacesthesameprincipleapplies.Werecommendtosethotspotcontrolled

WLANswithoutencryption,andfollowthenamingconvention‘wlan1’,‘wlan2’,…

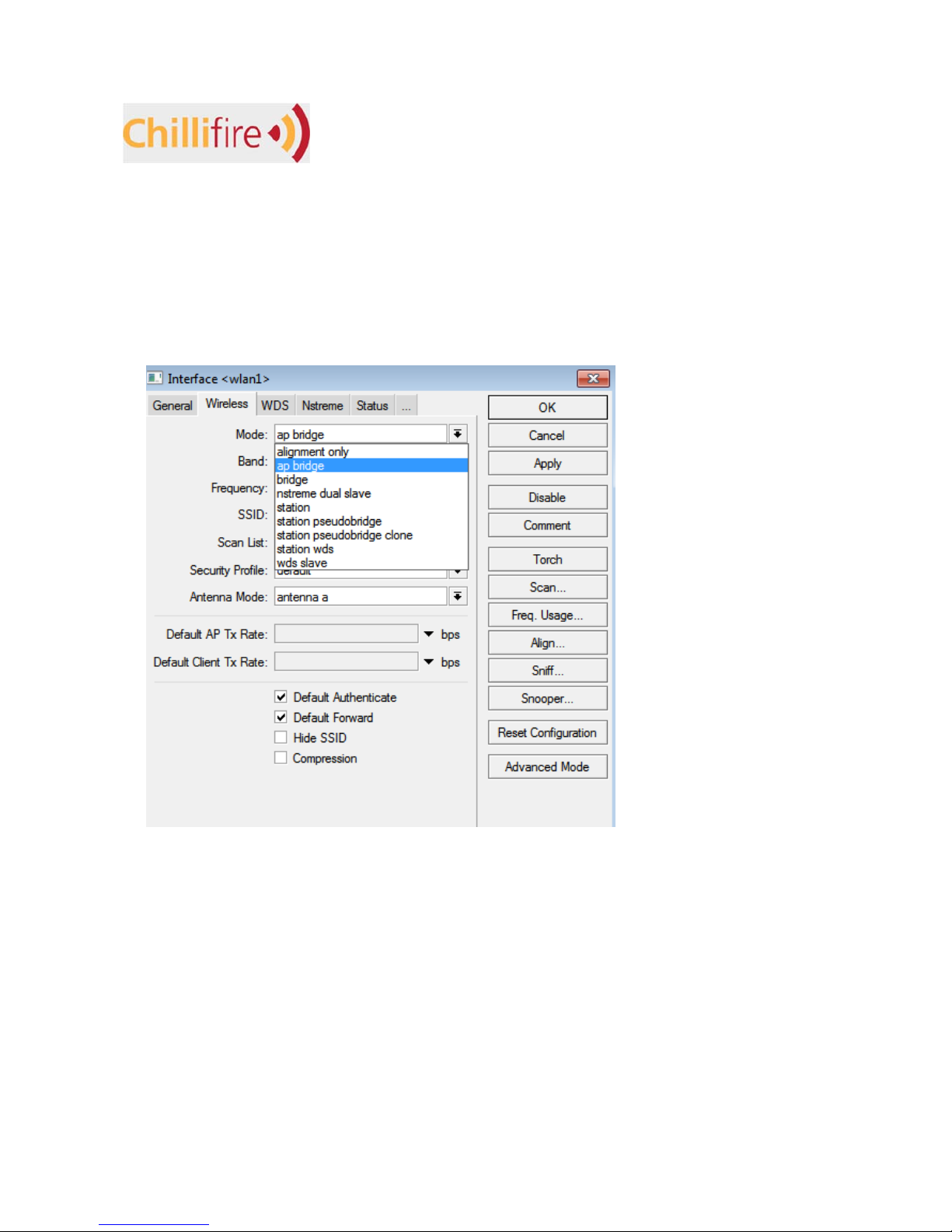

Therouterwirelessinterface(s)shouldbeplacedin‘apbridge’mode.ClickonInterface,doubleclickwlan1,

clickMode:andselect‘apbridge’andmakesurethefrequencyissetto2.4b/G.





ChillifireHotspotRouterInstallationGuide–MikrotikOS

4) Createahotspotbridge

Thenextstepistocreateabridge,whichmustbenamed‘br‐hotspot’.Wewillusethebridgetoassignthe

relevantEthernetportsandWLANstotheactualhotspotconfiguration.Wecanonlyassignthehotspot

configurationtooneinterface,butthebridgeconfigurationallowsustobundleEthernetandwirelessinto

oneentity,thebridge,whichwecanthenassigntothehotspotconfiguration.Heretheexample:



Andbyclickingonthe‘Ports’tabwecanassignthoseinterfacestothebridgewejustcreated.Inthis

examplewehaveassignedEthernetports#3,#4and#5.

OfcoursewirelessWLANscanalsobeassignedtothebridge.



ChillifireHotspotRouterInstallationGuide–MikrotikOS

5) Importhotspotconfiguration

Nextstepistoloadourhotspotconfiguration.

Itisstoredinafilecalled‘Chillifire.rsc’.Simply

openthe‘Files’windowinWinboxanddrag

the‘Chillifire‐5.25.rsc’filefromyour

computerontotheRouterOSfilesystem,

dependingontheRouterOSversionyouare

using.

Oncethatisdone,clickon‘NewTerminal’in

Winbox,andtype

/import

file=Chillifire‐5.25.rsc

Thiswillloadtherequiredconfiguration.You

willreceivepositivefeedbackofthefilebeing

loadedandthescripthavingbeenloaded

successfully.



6) Uploadhtmlfiles

Nextyouneedtouploadanumberofhtmlandimagefilesrequiredtoproperlymanagetheflowofthe

hotspotscreens.Thesefilesare:

‐ login.html

‐ logout.html

‐ status.html

‐ img/wait.gif

‐ img/Chillifire.gif

Aspreviouslyjustdrag

thefilesfromyour

desktoptothe/hotspot

directoryoftheFiles

windowinWinbox:



ChillifireHotspotRouterInstallationGuide–MikrotikOS

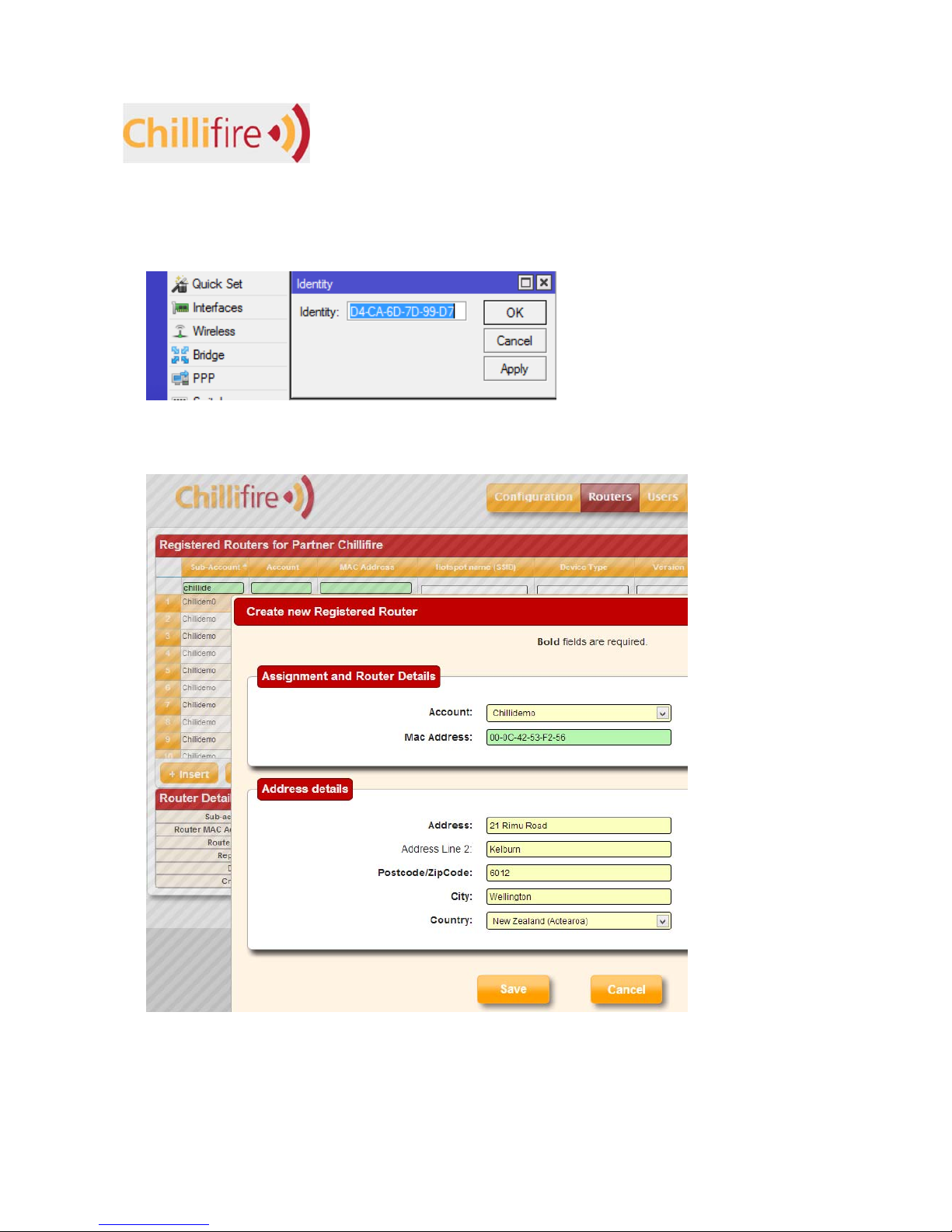

7) NextstepistoregistertherouterintheChillifreControlpanel.TogettherelevantMACaddressgotto

System‐>IdentityinWinboxandcopytheMACaddressstoredinthere.



Thenlogontothecontrolpanelwithyouraccount,gotoRouter‐>RouterData,andclickonthe‘Insert’

button.Nowchoosetheproperaccountorsub‐account,fillinthelocationaddressandpressSave.



NextstepistoreboottheMikrotikRouter.After5minutesyoushouldseeaheartbeatinthecontrolpanel.

ChillifireHotspotRouterInstallationGuide–MikrotikOS

8) Remoteaccessconnection

ToestablisharemoteaccessVPNconnectionbetweenourhotspotmanagementserverandyourrouter,

weneedtocreateauserandpasswordonourVPNserverforyourrouter.Pleaseraiseaticketonour

supportpageshttp://support.chillifire.netafteryouhaveregisteredyourrouterinthepreviousstep,

requestingtheestablishmentofaVPNconnection.



9) HotspotuserIPaccountingandlogging(optional)

Ifyouwanttotracethemetadataofthetrafficthathotspotuserscreateduetolegalrequirementsinyour

jurisdiction,thenmakesurethe‘EnableAccounting’fieldistickedintheIP‐>Accountingmenu.



10) HotspotSMTPServer(optional)

InmanycasescorporatelaptopsormobiledevicesrunningMicrosoftOutlookorsimilaremailclientshave

adesignatedSMTPservermaintainedintheirconfiguration.InmanycasesISPsdonotallowtheuseof

externalSMTPontheirnetworkthough,forfearofspamemailsbeingcreatedontheirnetwork.Thishasas

aconsequencethatoftensuchuserscannotaccessemailusingtheiremailclients.Youcanpreventthis

issuebyredirectingallSMTPtrafficthroughtheISP’sSMTPserver.ThatistheISPthatprovidesthe

broadbandconnectionforthehotspot.

TheSMTPserverIPaddresscanbeaddedinthehotspotserverprofile:


