All Mikroelektronika’s development systems feature a large number of peripheral

modules expanding microcontroller’s range of application and making the

process of program testing easier. In addition to these modules, it is also

possible to use numerous additional modules linked to the development system

through the I/O port connectors. Some of these additional modules can operate

as stand-alone devices without being connected to the microcontroller.

Additional board

MikroElektronika

Figure 1: dsPIC Ready3 additional board

How to connect the board?

The dsPIC Ready3 board features ve 2x5 connectors (CN1 - CN5) that enable connection between the pins of the

microcontroller plugged into the appropriate socket on the board and external devices. A 2x5 connector CN6 is used

to connect the dsPICFlash programmer to the microcontroller pins used for programming. A USB connector CN51

enables connection between the additional board and a PC via the UART module. In order to enable USB-UART

communication, it is necessary to place the appropriate switch on the DIP switch SW1 to the ON position. By doing

this, the RX and TX pins of the USB-UART module are connected to the appropriate pins of the microcontroller. The

additional board is powered with a voltage in a range between 8 and 16V AC/DC via the CN8 connector.

How to use the board?

In order to use the dsPIC Ready3 additional board, it is rst necessary to place a microcontroller in DIP28 package

into one of two appropriate socket supplied on the board. The microcontroller is programmed with the dsPICFlash

programmer that is plugged via its IDC10 connector into a 2x5 connector CN6 supplied on the board. In order to reset

the microcontroller, just press the RESET button. When the programming process is nished, it is necessary to place

jumpers over the 2x5 connector CN6, Figure 1.

dsPIC Ready3

The dsPIC Ready3 additional board is used to experiment with dsPIC® microcontrollers in DIP28 package.

Key features:

- Data transfer via USB-UART communication;

- Programming via the external programmer;

- Pads;

- 8 to 16V AC/DC power supply voltage;

MikroElektronika

Figure 2: Programming the on-board microcontroller

MikroElektronika

MCUTX-

MCURX-

FT232RL

DCD#

CTS#

CBUS4

CBUS2

CBUS3

OSCO

OSCI

TEST

AGND

CBUS0

CBUS1

GND

VCC

RESET#

GND

3V3OUT

USBDM

USBDP

DSR#

TXD

DTR#

RTS#

VCCIO

RXD

RI#

GND

VCC

C12

100nF

VCC

C13

100nF

VCC

C11

100nF

VCC

CN51

USB B

RESET#

USBDP

USBDM

D+

GND

VCC

D-

10K

4K7

Bottom view

VCC

GND

D+

D-

VCC

10uF

RB8

RB0

RE0

RE4

RD0

RB2

RE2

RE8

RF2

RD8

RF2-PGC

RB4

RB6

RF4 RF3-PGD

RC14

RF6 MCLR-MCU

RB1

RE1

RE3

RE5

RD1

RB3

RF3

RD9

RF2

RC13

RB9

RB5

RB7

RF5 RF3

MCLR

VCCVCC

VCC

VCC VCC

PORTB&C

PORTB

PORTE

PORTF

PORTD

CN2CN1

CN4

CN5

CN3

CN6

C10

100nF

VCC

REG1

7805

330uF

10uF

4x1N4007

D3 D4

CN8

8MHz

OSC1

OSC2

22pF

10K

CLRM

RESET

VCC

CN10

CN9

100nF

RF2

RF3

RF4

RF5

RC14

RC13

SW1

RD1 14

RD9 14

VCC 13

RC14 12

RC13 11

OSC2 10

OSC1 9

GND 8

RB5 7

RB4 6

RB3 5

RB2 4

RB1 3

RB0 2

MCLR-MCU 1

15 RD0

15 RD8

16 RE8

16 RF6

17 RF3-PGD

18 RF2-PGC

19 GND

20 VCC

21 RE5

21 RF5

22 RE4

22 RF4

23 RE3

23 RB9

24 RE2

24 RB8

25 RE1

25 RB7

26 RE0

26 RB6

27 GND

28 VCC

DIP28A

DIP28B

PIC30F2010, 3010, 4012

PIC30F2012, 3013

100nF

VCC

100nF

VCC

100nF

VCC

100nF

VCC

100nF

VCC

100nF

VCC

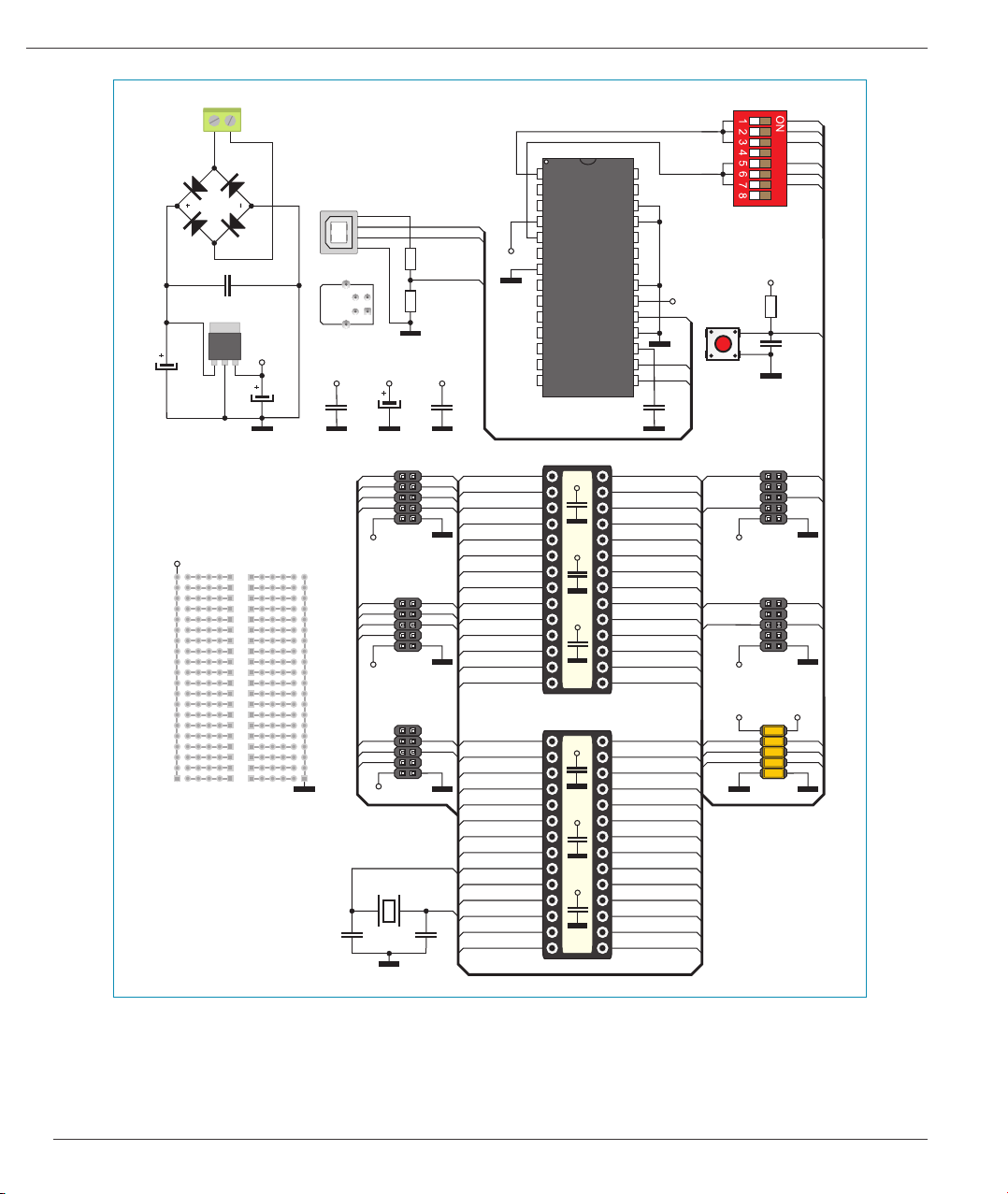

Figure 3: The dsPIC Ready3 board connection schematic

MikroElektronika

Figure 4: Dimensions of the dsPIC Ready3 additional board

MikroElektronika

If you want to learn more about our products, please visit our website at www.mikroe.com

If you are experiencing some problems with any of our products or just need additional information, please place your ticket at

www.mikroe.com/en/support

If you have any questions, comments or business proposals, do not hesitate to contact us at of[email protected]
