Operating and Installation
Instructions
Wine Storage Unit
KWT 1601 SF
KWT 1611 SF
To prevent accidents
and appliance damage
read these instructions
before
installation or use. M.-Nr. 09 223 770
en - US, CA
IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the wine storage unit .......................................7
Before use .......................................................9
Before using for the first time..........................................9
Turning the appliance On/Off .........................................9
Settings.........................................................10
Using the settings .................................................10
Custom settings ...................................................11
Turning the button sound On/Off ......................................12
Turning off for longer periods of time ..................................13
Alarm...........................................................14
Temperature alarm ................................................14
Door alarm .......................................................14
Optimum temperature and air quality ................................15
Setting the temperature .............................................15
Humidity.........................................................19
Storing wine .....................................................21
Wooden racks ....................................................21
Bottle display rack .................................................22
Maximum capacity.................................................22
Display lighting ...................................................23
Defrosting .......................................................24
Cleaning and care ................................................25
Cleaning the interior................................................26
Appliance door ...................................................26
Ventilation slits ....................................................26
Door seals .......................................................26
Active charcoal filters ..............................................27
Changing the light bulbs ............................................27
Frequently asked questions ........................................29
After sales service ................................................32
Caring for the environment.........................................34
Installation ......................................................35
Installation site ....................................................35
Base............................................................36
Furniture/fixtures ..................................................36
Contents
Installation options .................................................37
Adjusting the door opening angle (optional accessory) ....................38
Dimensions......................................................39
Installation ......................................................42
Before you begin ..................................................42
RemoteVision module installation .....................................44
Home Security System (HSS) ........................................46
Preparing the installation niche .......................................47
Sliding the appliance into the installation niche ..........................50
Aligning the appliance..............................................51
Attaching the appliance to the installation niche..........................52
Electrical connection..............................................55
RemoteVision (optional accessory) ..................................56
Contents
When using the appliance, follow
basic safety precautions, including
the following:
Read all instructions before
installation and use to prevent
accidents and machine damage.
This appliance is intended for
residential use only. Use only as
described in this Operating manual.
Only use the appliance for its
intended purpose.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Warning: At an altitude of more than
8200 ft (2500 m) the glass door can
break. Danger of injuries.
Electrical safety
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(e.g., danger of overheating).
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~Only connect power to the
appliance when all installation work is
complete.
IMPORTANT SAFETY INSTRUCTIONS
4
Installation
This appliance is top-heavy and
must be secured to prevent the
possibility of tipping forward.
Keep the door closed until the
appliance is completely installed
and secured per installation
instructions.
~This appliance must be installed
and connected in compliance with the
installation instructions.
~Installation and repair work should
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~Do not install the appliance in a
room with too low an ambient
temperature, e.g., a garage, as this
may lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Use
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–shops, offices and similar work
environments
–by customers in hotels, motels, Bed
& Breakfasts or similar residential
environments.
~This appliance is not intended for
outdoor use.
~Persons who lack physical, sensory
or mental abilities, or experience with
the machine should not use it without
supervision or instruction by a
responsible person.
~To reduce the risk of injury, do not
allow children to play in, on or near the
appliance, especially in the door hinge
area.
~Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
~Do not use any oils or grease on the
door seal, as these will cause the seal
to deteriorate and become porous with
time.
~Do not block the ventilation gaps in
the plinth or the top of the appliance
housing unit as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.
IMPORTANT SAFETY INSTRUCTIONS
5
~Never use a steam cleaner to clean
the appliance. Pressurized steam could
damage electrical components and
cause a short circuit.
~Do not use any electrical equipment
inside the appliance. Danger of injury.
Disposal of your old appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
~Take off the door.
~Leave the shelves in place so that
children may not easily climb inside.
~Consult with your municipal policy
on recycling.
~Be careful not to damage any part of
the pipework while awaiting disposal
by:
- puncturing the refrigerant
channels in the evaporator.
- bending any pipework.
- scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
~Your old refrigerator may have a
cooling system that used CFCs
(chlorofluorocarbons). CFCs are believed
to harm stratospheric ozone.
If you intentionally release this CFC
refrigerant, you can be subject to fines
and imprisonment under provisions of
environmental legislation. Make sure the
CFC refrigerant is removed and disposed
of by a qualified technician.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6
aCirculation fans / Active charcoal filter
bWooden racks
cInsulation panel to separate the upper and middle temperature zones
dBottle display rack
eControl panel / Insulation panel to separate the middle and lower temperature
zones
fMain switch to turn the appliance On/Off
gGlass door with UV filter
hConnection (behind the ventilation gap) for the Home Security System (HSS)
Guide to the wine storage unit
7
Control panel
aAccess button
bUpper temperature zone
cMiddle temperature zone
dLower temperature zone
eTemperature display:
Allows you to set the temperature
(Xcolder; Ywarmer)
and
set the duration of the display
lighting
(Xshorter; Ylonger)
fLong-term wine storage
gShort-term storage of white wine at a
moderate temperature
hShort-term storage of red wine at a
moderate temperature
iOn/Off sensor button for the display
lighting
jOff sensor button for the temperature
and/or door alarm*
* only visibly when the relevant function
is activated
Guide to the wine storage unit
8
Before using for the first time
The stainless steel surface of the
appliance is protected with a plastic
film, which protects it during shipping.
Do not remove this protective film until
the appliance has been completely
installed.
After removing the protective film clean
the exterior surface with the supplied
stainless steel agent. This will aid in
preventing resoiling.
^Clean the inside of the appliance and
the accessories with a mild solution
of warm water and liquid dish soap.
Dry with a soft cloth.
If the appliance was transported or
laid horizontally for any reason, allow
it to stand vertical for at least 8 hours
before turning it on. Failure to do so
will affect the functioning of the
appliance.
Turning the appliance On/Off
^Open the appliance door.
^Turn the appliance On/Off with the
main switch.
The main switch is located on the
right-side underneath the control panel.
All three zones are switched on or
off together.
Once on, the appliance begins cooling.
When the door is open, the interior
lights come on.
The access button will light in the
control panel.
The preset temperatures (factory
settings) are reached after a few hours.
,Turning off the appliance with
the main switch does not safely
isolate it from the power supply.
Before use
9
Using the settings
This appliance is operated with the use
of touch keys activated by a finger.
–An available button will appear white.
–A selected button will appear yellow..
^Touch the access button so it turns
yellow.

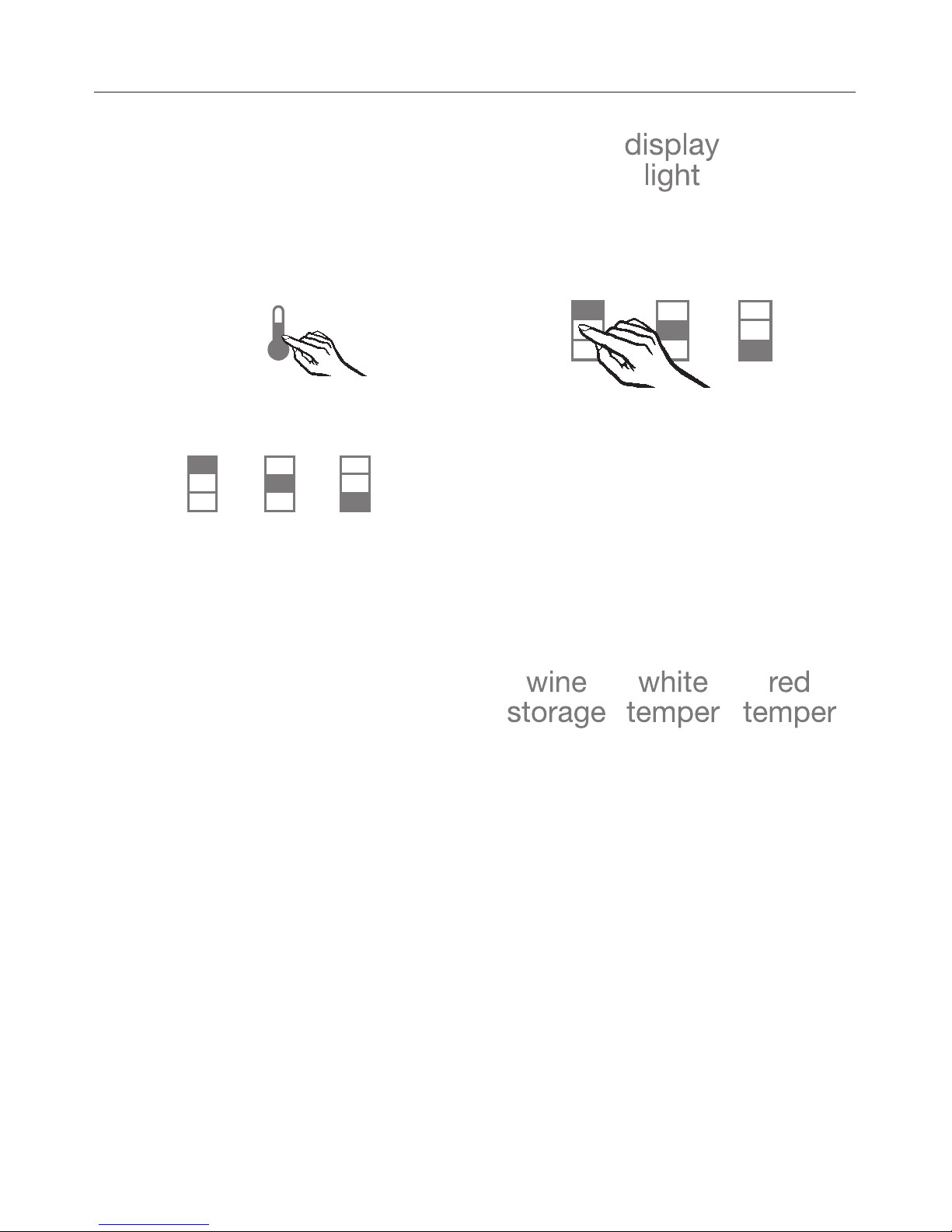

On the control panel you will now see
the sensor buttons of the three
temperature zones.
The factory (default) settings for the
temperature zones are as follows:
– upper temperature zone:
red temper.
–middle temperature zone:
white temper.
–lower temperature zone:
wine storage.
^To turn the display lighting on or off
when the door is closed, touch the
"display light" sensor button.
^To change the settings, touch the
sensor button for the temperature
zone you wish to set.
The selected sensor button appears
yellow.
You can now select from the following
settings for the selected zone(s) or
change the pre-set temperature(s) as
desired.
For more information on setting the
temperature see "Optimum temperature
and air quality".
Settings
10
Otros manuales para KWT 1601 SF
2
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Enfriador de vino de Miele
Miele
Miele KWT 6834 SGS Manual de usuario
Miele
Miele KWT 6112 iG ed/cs Manual de usuario
Miele
Miele KWT 6312 UGS Manual de usuario
Miele
Miele KWT 6422 iG Manual de usuario
Miele
Miele KWT 1601 Vi Manual de usuario
Miele
Miele KWT 1612 Vi Hoja de especificaciones
Miele
Miele 09 507 300 Manual de usuario
Miele
Miele KWT 6322 UG Manual de usuario
Miele
Miele KWT6832SGS Manual de usuario
Miele
Miele KWT 4154 UG-1 Hoja de especificaciones
Miele
Miele KWT 6312 UGS Manual de usuario
Miele
Miele KWT 1601 SF Manual de usuario
Miele
Miele KWNS 28462 E ed/cs Manual de usuario
Miele
Miele KWT 4154 UG Manual de usuario
Miele
Miele KWT 1603 SF Manual de usuario
Miele
Miele KWT6322 Manual de usuario
Miele
Miele KWT 4974 SG ed Instrucciones de montaje
Miele
Miele MasterCool KWT 2602 SF Manual de usuario
Miele
Miele KWT 4154 UG-1 Hoja de especificaciones
Miele
Miele KWT 2662 ViS Manual de usuario
