Installation Instructions

+%HQ&$



,QVWDOODWLRQUHSDLUDQGPDLQWHQDQFHZRUNVKRXOGEHSHUIRUPHGE\

D0LHOHDXWKRUL]HGVHUYLFHWHFKQLFLDQLQDFFRUGDQFHZLWKQDWLRQDO

DQGORFDOVDIHW\UHJXODWLRQVDQGWKHSURYLGHGLQVWDOODWLRQLQVWUXFWLRQV

Electrical connection

ɘCAUTION:

Before servicing, disconnect the

power supply by either removing the

fuse, shutting off the power main or

manually "tripping" the circuit

breaker.

Installation, repair and maintenance

work must be performed by a Miele

authorized service technician. Work

by unqualified persons could be

dangerous and may void the

warranty.

Before connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Only operate the appliance after it

has been installed into cabinetry.

The power cable plug must be

inserted into a suitable outlet that

has been installed and grounded in

compliance with all applicable local

regulations.

WARNING: THIS APPLIANCE MUST

BE GROUNDED

Installer: Please pass these

instructions on to the customer.

Electrical connection

Data plate

The silver data plate is located along

the front side of the oven with the door

open (see "Guide to the oven").

ɘBefore connecting the appliance

to the power supply, make sure that

the voltage and frequency listed on

the data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

H2261B: Electrical connection

208 V

ɘDo not connect the oven to a

240 V power supply.

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-30P plug, ready for

connection to a 120/208 V, 60 Hz, 20 A

power supply.

Maximum connected load: 3,600 W

H2261B: Electrical connection

240 V

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-30P plug, ready for

connection to a 120/240 V, 60 Hz, 20 A

power supply.

Maximum connected load: 3,800 W

H2260E: Electrical connection

208 V

ɘDo not connect the oven to a

240 V power supply.

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-50P plug, ready for

connection to a 120/208 V, 60 Hz, 40 A

power supply.

Maximum connected load: 9,700 W, in

combination with Miele cooktop

KM6002.

H2260E: Electrical connection

240 V

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-50P plug, ready for

connection to a 120/240 V, 60 Hz, 40 A

power supply.

Maximum connected load: 9,900 W, in

combination with Miele cooktop

KM6002.

SAVE THESE INSTRUCTIONS FOR

THE ELECTRICAL INSPECTOR'S

USE.

NEMA 14-30P, L1, L2, N, G, 20 amp

208/240 VAC

Installation diagrams

Appliance and cut-out dimensions

Undercounter installation

7/8" (23 mm)

21 9/16" (547 mm)

22 1/2"

(572 mm)

21 7/16" (544 mm)

23 7/16"

(595 mm)

23 7/16"

(596 mm)

22 1/16"

(560 mm)

(100 mm)

23 5/8"

(600 mm)

21 5/8"

( 550 mm)

ǞCut-out for power cord with plug (min. 4" x 22" / 100 mm x 560 mm) in the

bottom of the cabinet

ǟPower cord with plug

Installation diagrams

Installation into a tall cabinet

7/8" (23 mm)

21 9/16" (547 mm)

22 1/2"

(572 mm)

21 7/16" (544 mm)

23 7/16"

(595 mm)

23 7/16"

(596 mm)

22 1/16"

(560 mm)

(100 mm)

590-595 mm

(23 1/4"-23 7/16")

21 5/8"

( 550 mm)

ǞCut-out for power cord with plug (min. 4" x 22" / 100 mm x 560 mm) in the

bottom of the cabinet

ǟPower cord with plug

Installing the oven

ɘThe oven must not be operated

until it has been properly installed

within cabinetry.

In order for the oven to function

correctly, it required an adequate

supply of cool air. Ensure that the air

flow is not impaired (e.g. insulation in

the cabinetry). Also be sure that the

cool air supply is not heated by other

sources nearby.

Before installation

ĺBefore connecting the oven to the

power supply, first disconnect the

power supply from the oven isolator

switch.

Installing the oven

ĺConnect the power cord to the

electrical supply.

Do not carry the oven by the door

handle. The door can be damaged.

Use the handles on each side of the

oven to carry it.

It is recommended that you remove

the door before installing the

appliance (see "Cleaning and Care -

Removing the door") and all oven

accessories from the cavity. This will

make for easier installation into the

niche and will not tempt you to use

the handle to carry it.

ĺIf there are side handles, please

remove them.

ĺPush the oven into the cabinetry and

align it.

ĺOpen the door (if it was not removed

previously).

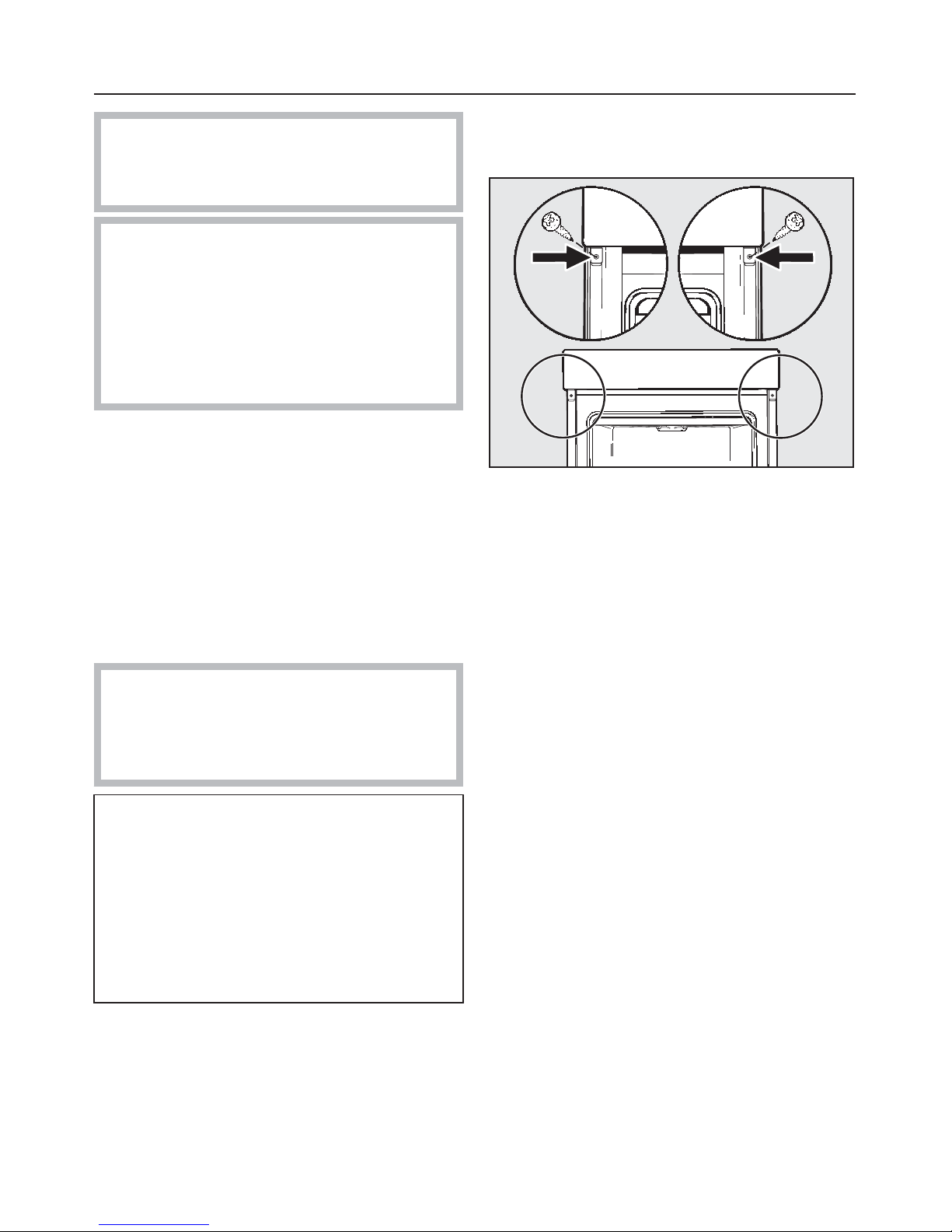

ĺUse the supplied screws to secure

the oven to the side walls of the

cabinetry through the holes in the

trim.

ĺReinstall the door, if necessary (see

"Cleaning and care - Installing the

door").

Installing the combination oven/cooktop

ɘThe combination oven/cooktop

must not be operated until it has

been properly installed within

cabinetry.

In order for the combination oven/

cooktop to function correctly, it

required an adequate supply of cool

air. Ensure that the air flow is not

impaired (e.g. insulation in the

cabinetry). Also be sure that the cool

air supply is not heated by other

sources nearby.

Before installation

ĺBefore connecting the oven to the

power supply, first disconnect the

power supply from the oven isolator

switch.

Installing the combination oven/

cooktop

ĺConnect the power cord to the

electrical supply.

ĺAlign the oven with the front of the

cabinetry.

ĺConnect the cooktop plug to the

socket on the range.

Do not carry the oven by the door

handle. The door can be damaged.

Use the handles on each side of the

range to carry it.

It is recommended to remove the door

before installing the appliance (see

"Clean and Care - Removing the

door") and remove the accessories

from the oven cavity. This will make it

easier to install the oven in its niche,

and ensure that you will not use the

door handle to lift it.

ĺPush the oven into the cabinetry and

align it.

ĺOpen the door (if it was not removed

previously).

ĺUse the supplied screws to secure

the oven to the side walls of the

cabinetry through the holes in the

trim.

ĺReinstall the door, if necessary (see

"Cleaning and care - Installing the

door").
