Operating and installation instructions

Gas hobs

KM 2014

KM 2034 / 2035

KM 2052

KM 2054

To avoid the risk of accidents

or damage to the appliance it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 07 181 160

en-GB

GThis appliance can be used in countries other than those specified on the

appliance. It is, however, set up for connection to the gas and electricity

supplies in the countries specified. For use in other countries please contact

the Miele spare parts or customer service department in your country.

DDas Gerät ist auch für den Gebrauch in anderen als auf dem Gerät

angegebenen Bestimmungsländer zugelassen. Die landesspezifische

Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf

den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als

auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den

für das Land zuständigen Kundendienst.

EEl aparato está autorizado para el uso en países diferentes a los países de

destino indicados. La ejecución específica para cada país y el tipo de

conexión del aparato influyen de forma decisiva en el funcionamiento correcto

y seguro. Para el funcionamiento en un país diferente al país de destino

indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.

FCet appareil est également homologué dans des pays différents de ceux

mentionnés sur l’appareil. Pour que l’appareil fonctionne parfaitement et en

toute sécurité, il est important de disposer de l’exécution spécifique au pays et

du type de raccordement approprié. Pour le fonctionnement dans un pays

autre que celui spécifié sur l’appareil, veuillez vous adresser au service

après-vente du pays où sera installé l’appareil.

IL’apparecchio può essere usato anche in paesi diversi da quello indicato

sull’apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese

e il tipo di allacciamento alla rete hanno un’importanza fondamentale per il suo

sicuro e corretto funzionamento. Per questo se si vuole usare l’apparecchio in

un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in

cui si intende usarlo.

MHet apparaat is ook toegelaten voor gebruik in andere landen dan de landen

die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze

zijn van groot belang voor het goed en veilig functioneren. Neem daarom

contact op met de Technische Dienst van de fabrikant in uw land als u het

apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.

Gas-heated appliances

Safety precautions to take if you smell gas

ßTurn off the gas emergency control valve immediately.

This is usually located near the gas meter.

ßEliminate all sources of ignition in a safe manner.

Do not smoke, light cigarette lighters or matches.

ßDo not operate electrical lights or switches, i.e. do not switch them "On" or "Off".

ßOpen all doors and windows to ventilate the area.

ßIf the smell of gas persists, evacuate the building.

In the UK you must now:

ßCall the Gas Emergency Contact Centre (Tel: 0 800 111 999)

For any gas work in the UK always use a Gas Safe registered engineer.

In other countries please follow relevant country specific procedures on gas.

Guide to the appliance .............................................5

Models ...........................................................5

Burner ...........................................................9

Warning and Safety instructions ....................................10

Caring for the environment.........................................17

Before using for the first time.......................................18

Operation .......................................................19

Switching on .....................................................20

Regulating the flame ...............................................21

Switching off .....................................................21

Suitable pans ....................................................22

Safety cut-out ....................................................24

Cleaning and care ................................................25

Problem solving guide ............................................29

Optional accessories..............................................31

Safety instructions for installation...................................32

Appliance and building-in dimensions ...............................35

Installation ......................................................38

Electrical connection..............................................40

Gas connection ..................................................42

Burner ratings ...................................................44

Conversion to another type of gas...................................46

Jet table .........................................................46

Changing the jets..................................................47

To change the main jets ..........................................47

To change the small jets..........................................48

After changing the jets..............................................50

After sales service, data plate ......................................51

Contents

Models

KM 2014

aWok burner

bSmall burner

cd Medium burners

Controls:

eFront right

fRear right

gRear left

hFront left

Guide to the appliance

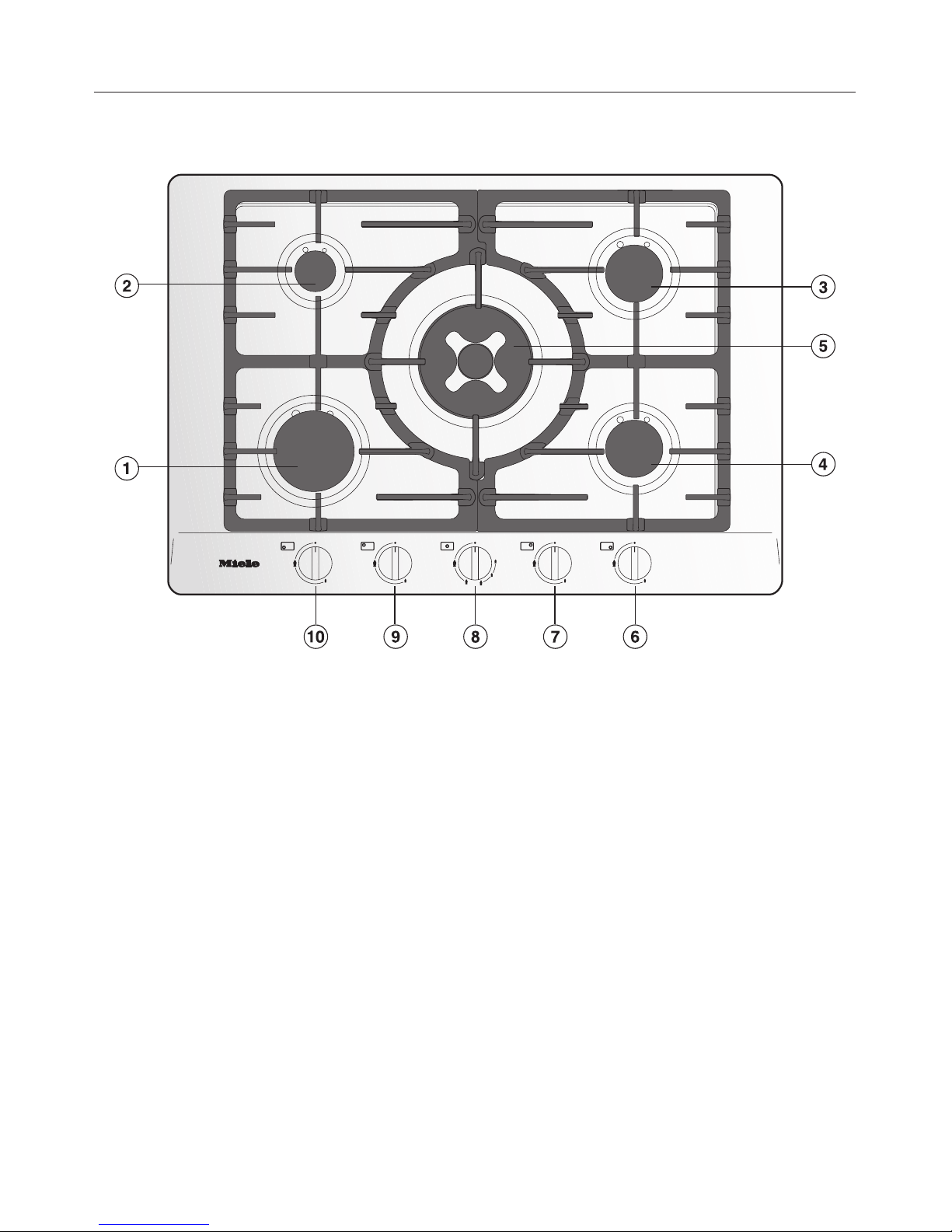

KM 2034 / KM 2035

aLarge burner

bSmall burner

cd Medium burners

eWok burner

Controls:

fFront right

gRear right

hMiddle

iRear left

jFront left

Guide to the appliance

KM 2052

aWok burner

bSmall burner

cLarge burner

de Medium burners

Controls:

fFront right

gRear right

hMiddle

iRear left

jFront left

Guide to the appliance

KM 2054

ad Wok burners

bSmall burner

cLarge burner

eMedium burner

Controls:

fFront right

gRear right

hMiddle

iRear left

jFront left

Guide to the appliance

Burner

Wok burner Small, medium and large burners

aBurner ring

bBurner cap

cBurner head

dBurner base

eIgnition safety device

fIgnitor

Guide to the appliance

This appliance complies with all

relevant local and national safety

requirements. Improper use of the

appliance can, however, present a

risk of both personal injury and

material damage.

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before installation and using it for

the first time. They contain important

notes on installation, safety,

operation and care.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This gas hob is not designed for

commercial use. It is intended for use in

domestic households and in similar

working and residential environments

such as:

–Shops

–Offices and showrooms

and by residents in establishments

such as:

–Hostels and guest houses.

~It is intended for domestic use only

to cook food and keep it warm.

Any other usage is not supported by

the manufacturer and could be

dangerous. Miele cannot be held liable

for damage resulting from incorrect or

improper use or operation.

~The gas hob is not intended for

outdoor use.

~This appliance is not intended for

use by people with reduced physical,

sensory or mental capabilities, or lack

of experience and knowledge, unless

they are supervised whilst using it, or

have been shown how to use it by a

person responsible for their safety.

Warning and Safety instructions
