Miele KM 360 G Manual de usuario

Installation instructions

Gas hobs

KM 360 G / KM 360-1 G

KM 361 G

KM 362 G / KM 362-1 G

KM 363 G

To avoid the risk of accidents or

damage to the appliance it is

essential to read these operating

instructions before it is installed

or used for the first time.

GiZ

M.-Nr. 05 827 600

GThis appliance can be used in countries other than those specified on the

appliance. It is, however, set up for connection to the gas and electricity

supplies in the countries specified. For use in other countries please contact

the Miele spare parts or customer service department in your country.

DDas Gerät ist auch für den Gebrauch in anderen als auf dem Gerät

angegebenen Bestimmungsländer zugelassen. Die landesspezifische

Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf

den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als

auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den

für das Land zuständigen Kundendienst.

EEl aparato está autorizado para el uso en países diferentes a los países de

destino indicados. La ejecución específica para cada país y el tipo de

conexión del aparato influyen de forma decisiva en el funcionamiento correcto

y seguro. Para el funcionamiento en un país diferente al país de destino

indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.

FCet appareil est également homologué dans des pays différents de ceux

mentionnés sur l'appareil. Pour que l'appareil fonctionne parfaitement et en

toute sécurité, il est important de disposer de l'exécution spécifique au pays et

du type de raccordement approprié. Pour le fonctionnement dans un pays

autre que celui spécifié sur l'appareil, veuillez vous adresser au service

après-vente du pays où sera installé l'appareil.

IL'apparecchio può essere usato anche in paesi diversi da quello indicato

sull'apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese

e il tipo di allacciamento alla rete hanno un'importanza fondamentale per il suo

sicuro e corretto funzionamento. Per questo se si vuole usare l'apparecchio in

un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in

cui si intende usarlo.

MHet apparaat is ook toegelaten voor gebruik in andere landen dan de landen

die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze

zijn van groot belang voor het goed en veilig functioneren. Neem daarom

contact op met de Technische Dienst van de fabrikant in uw land als u het

apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.

Gas-heated appliances

Safety precautions to take if you smell gas

ßTurn off the gas emergency control valve immediately.

This is usually located near the gas meter.

ßEliminate all sources of ignition in a safe manner.

Do not smoke, light cigarette lighters or matches.

ßDo not operate electrical lights or switches, i.e. do not switch them "On" or "Off".

ßOpen all doors and windows to ventilate the area.

ßIf the smell of gas persists, evacuate the building.

In the U.K you must now:

ßCall TRANSCO (Tel: 0 800 111 999)

ßArrange for an appointment of a Corgi registered gas installer to visit the site

(Tel: Talking pages 0 800 600 900)

In other countries please follow relevant country specific procedures on gas.

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance dimensions and worktop cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

KM 360 G / KM 362 G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

KM 360-1 G / KM 362-1 G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

KM 361 G / KM 363 G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Securing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Natural gas / liquid gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Burner ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Conversion to another type of gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Jet table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Changing the jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the main jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the small jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

After changing the jets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Contents

Building in

Fit wall units and extractor hood

before fitting the hob, to avoid

damaging the appliance.

The veneer or laminate coating of

worktops (or adjacent kitchen

units) must be treated with 100 °C

heat-resistant adhesive which will not

dissolve or distort.

Any backmoulds must be of

heat-resistant material.

Ideally the gas hob should be

installed with plenty of space on

either side. There may be a wall at the

rear and a tall unit or wall at one side.

On the other side, however, no unit or

divider should stand higher than the

hob (see illustrations).

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans, aircraft

etc. However it may be suitable for

such usage, subject to a risk

assessment of the installation being

carried out by a suitably qualified

engineer.

Due to the heat radiated by the hob

and to allow cooking fumes to

dissipate, it is essential that a

minimum safety distance aof 100

mm is maintained between the

worktop cut-out and adjacent

furniture, e.g. a tall unit.

recommended

not recommended

not allowed

Safety instructions

The room in which the gas hob is

installed must be at least 20 m3in

size with a door or window in it which

can be opened to the outside air.

Using the gas hob will cause a

build-up of heat and moisture in

the room in which it is installed. Ensure

that the room has sufficient natural or

mechanical means of ventilation, e.g.

an extractor.

If the hob is used for very long

periods of time additional

ventilation of the room may be

necessary, e.g. by opening windows or

doors, or running the extractor on the

highest setting.

The hob may be installed above a

Miele oven, if the work-top is at

least 40 mm thick.

An electric fryer must not be

installed next to a gas hob, as the

gas flames could ignite the fat in the

fryer. It is essential to maintain a

distance of at least 300 mm between

these two appliances.

This gas hob must not be installed

over a dishwasher, washing

machine, tumble dryer, refrigerator or

freezer. The high temperatures radiated

by the hob could damage the

appliance below.

Spray canisters, aerosols and other

inflammable substances should not

be stored in a drawer under the hob.

Cutlery inserts must be heat-resistant.

Safety distance above the appliance

bA minimum safety distance must be

maintained between the appliance

and a cooker hood above it. See the

manufacturer’s operating and

installation instructions for details.

For any flammable objects, e.g.

utensil rails etc. a minimum safety

distance of 760 mm should be

maintained between it and the

appliance below.

All dimensions in this instruction booklet

are given in mm.

Keep these instructions in a safe place

and pass them on to any future

user/owner of the appliance.

Safety instructions

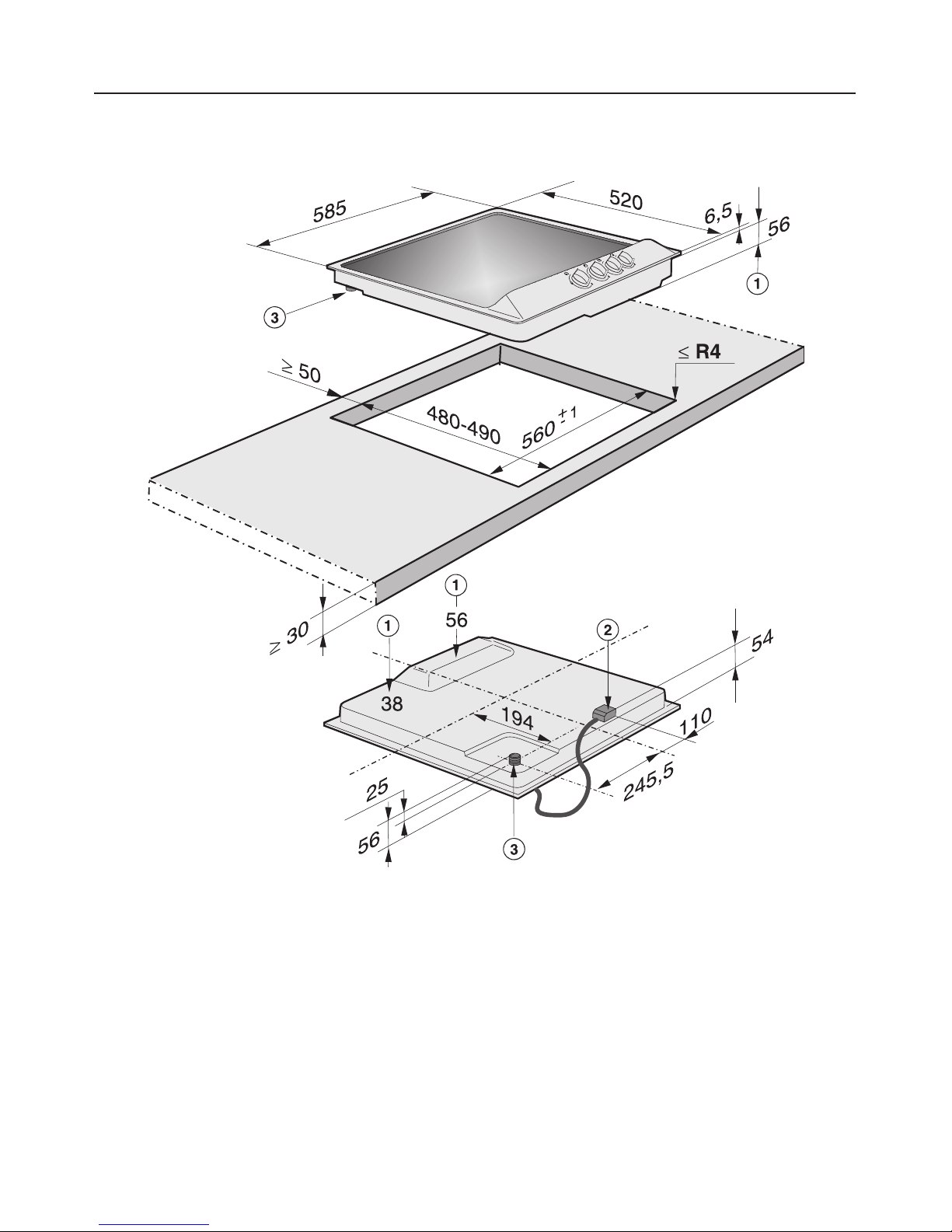

KM 360 G / KM 362 G

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

KM 360-1 G / KM 362-1 G

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

KM 361 G / KM 363 G

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

^Prepare the worktop cut-out as

shown in the diagrams.

Remember to maintain a minimum

safety distance of 50 mm between

the hob and the back wall and 100

mm between it and a side wall or tall

unit to the right or left of the hob.

(See "Warning and Safety

instructions").

^Seal the cut surfaces with a suitable

heat-resistant sealant to avoid

swelling caused by moisture.

If during installation, the corners of

the frame are not flush with the

worktop surface, the corner radius,

Max R4 can be carefully scribed to

suit.

Appliance dimensions and worktop cut-out
