Installation Instructions

Gas Cooktop

KM 404

KM 406

To prevent accidents and

machine damage,

read the operating instructions

before

installation or use.

M.-Nr. 05 060 881

®®

WARNING:

If the information in this manual is not followed

exactly, a fire or explosion may result causing

property damage, personal injury or death

–Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance

– WHAT TO DO IF YOU SMELL GAS

ßDo not try to light any appliance

ßDo not touch any electrical switch

ßDo not use any phone in your building

ßImmediately call your gas supplier from a

neighbor’s phone Follow the gas supplier’s

instructions

ßIf you cannot reach your gas supplier, call the

fire department

–Installation and service must be performed by a

qualified installer, service agency or the gas

supplier

(In Massachusetts a licensed plumber/gasfitter)

–Note to the installer:

Please leave this instruction book with the

consumer for the local electrical/gas inspector’s

use

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety distance above the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cooktop dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 406. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Countertop cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Laying out the support bars and brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Securing the support bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Securing the support brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting the cooktop into place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Gas pressure regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Nominal ratings for all types of gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Converting to another type of gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

To convert the regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Converting KM 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

To convert the burners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Converting KM 406. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

To convert the burners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Changing the small burner orifice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Check the intake air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

After conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Contents

Installation

The minimum distances given in

these Installation Instructions must

be observed in order to ensure safe

operation. Failure to do so increases

the risk of fire.

To prevent damage to the cooktop,

the cabinetry and venting hood

should be installed first.

Gas appliances should only be

installed in a well ventilated area.

The countertop must be bonded

with heat resistant (212 °F/100 °C)

adhesive to prevent distortion or

dissolving.

The cooktops should only be

installed as shown in the

illustrations, while maintaining the

required safety distances shown. Do

not install the cooktop between 2 tall

cabinets as this is a fire hazard.

a= minimum safety distance

KM 404 = 10" (250 mm)

KM 406 = 10" (250 mm)

Deep fryers must not be installed

next to gas cooktops. Gas flames

can ignite splattering oil. A distance of

at least 12" (305 mm) should be

maintained between these two

appliances.

recommended

not recommended

not allowed

IMPORTANT SAFETY INSTRUCTIONS

Cooktops should not be installed

above a dishwasher, washer, dryer,

freezer or refrigerator. The heat

generated by cooktops could damage

these appliances.

This equipment has not been

designed for maritime use or for

use in mobile installations such as

aircraft or recreational vehicles.

However, under certain circumstances

it may be possible for an installation in

these applications. Please contact a

Miele Dealer or Miele’s Technical

Service Department with specific

requirements.

This appliance must be installed

with its own shut off valve and gas

pressure regulator. Both the valve

and the regulator must be easily

accessible to the consumer after the

appliance is installed.

This appliance must be

disconnected from the gas supply

during any pressure testing of that

system performed in excess of ½psi

(3.5 kPa), or isolated at test

pressures equal to or less than ½psi

(3.5 kPa).

Any pipe connections must be made

using a thread sealant approved for

gas connections. Failure to correctly

install these items could lead to a

gas leak and subsequent explosion.

Safety distance above the

cooktop

There must be a minimum safety

distance of at least 30 inches (760 mm)

between the top of the cooktop and any

cabinet above it, b. The overhead

cabinet depth, if unprotected, must not

exceed 13 inches. If the cabinet

manufacturer recommends a different

distance, follow that manufacturer’s

recommendation.

When installing the cooktop under a

venting hood, always observe the

minimum distances recommended

by the hood manufacturer.

Keep this instruction book in a safe

place and pass it on to any future

owner

IMPORTANT SAFETY INSTRUCTIONS

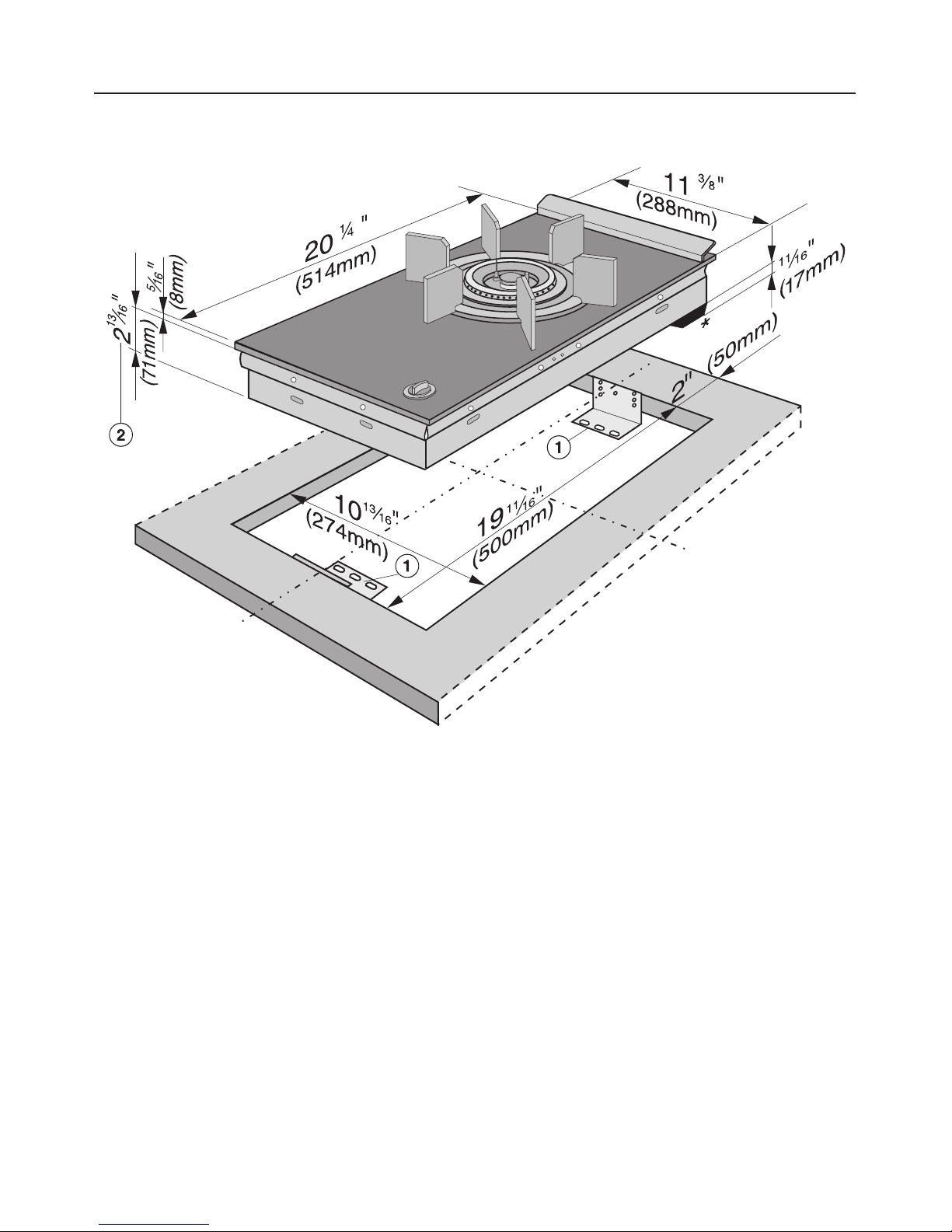

KM 404

aSupport bracket

bBuilding in height plus 1/8" (3 mm) for

fixing screw

* Please allow an additional 31/2"

(90 mm) depth across the rear of the

cooktop for clearance of the gas

regulator and adapter (see "Gas

connection" for illustration).

Cooktop dimensions

KM 406

aSupport bracket

bBuilding in height plus 1/8" (3 mm) for

fixing screw

* Please allow an additional 31/2"

(90 mm) depth across the rear of the

cooktop for clearance of the gas

regulator and adapter (see "Gas

connection" for illustration).

Cooktop dimensions

All Miele combisets have the same

length and width. Make sure that there

is enough room under the countertop to

allow for the depth of the various

appliances. Remember to allow

clearance for the gas regulator and gas

pipe that must be connected to the

appliance.

The following distances must be

maintained for safety:

– Between the cooktop and rear wall:

2" (50 mm)

–Between the cooktop and side wall

or cabinet:

10" (250 mm)

Refer to section "IMPORTANT SAFETY

INSTRUCTIONS" for further installation

information.

Installing one or multiple appliances:

Cut out the countertop using the

dimensions listed in the following table.

Number of

cooktops

Cut out width

Dimension "B"

110 13/16" (275 mm)

222 1/8" (562 mm)

333 1/2" (851 mm)

44 13/16 (1138 mm)

556 1/8" (1426 mm)

667 1/2" (1714 mm)

778 13/16" (2002 mm)

The tolerance for each dimension is

1/16" (1 mm).

When installing more than one

combiset cooktop, a support bar

must be installed between the

appliances. Install the support bars

as shown in the relevant section

before setting the appliances into

the countertop.

Countertop cut-out

Laying out the support bars

and brackets

aSupport brackets

bSupport bars

cSlight gap between support bar and

countertop

dBracket center line

The illustration shows the layout for 3

combisets, their respective support

bars, b, and the support brackets, a,

required for their correct installation.

If more than 3 combisets are being

installed, add an additional 11 3/8"

(290 mm) to the overall length of the cut

out for each additional combiset, or

use the table on the preceding page.

Installation

Securing the support bars

Wood or Corian countertops

^Arrange the bars, b, as shown in the

illustration.

^Drill 1/16" (1.5 mm) pilot holes through

the brackets and secure them using

the supplied screws.

^Fill the gap, c, between the bars and

the countertop using the supplied

silicon sealant.

Granite countertops

For granite countertops, the support

bars, b, can be secured with double

sided tape or construction adhesive.

Do not allow the bars to "float", they

must be securely fastened. Fill the gap,

c, between the bars and the

countertop using the supplied silicon

sealant.

The screws are not necessary for

granite countertops.

Securing the support brackets

^Place the brackets, a, as shown in

the illustration.

^Drill two 1/16" (1.5 mm) pilot holes for

each bracket and secure them using

the supplied screws.

Granite countertops

A granite countertop must be

prepared with a hole drilled at the

position indicated to secure each

support bracket (see illustrations).

Using a piece of double sided tape or

construction adhesive press the

support brackets supplied, a, onto the

position indicated in the illustration,

flush with the top edge of the

countertop and secure each bracket

with one screw.

Installation
