Midea MCHC90B68 Manual de usuario

COOKER HOOD

INSTRUCTION MANUAL

Read this manual carefully before use

Pictures in this manual are for reference only, the actual product shall prevail.

KKKKKKKKKKKKKK

MCHC90B68

Contents

01 Contents.................................................................. 2

02 Warnings................................................................. 3

03 Safety Warnings......................................................5

04 Installation Instruction ............................................. 6

05 First Time Usage....................................................10

06 Maintenance...........................................................11

07 Main Parameters....................................................13

08 Trouble shooting ....................................................

09 Disposal..................................................................14

Warnings

This appliance is not intended for use by person

(including children) with reduced physical, sensory or

mental capabilities or lack of experience and

knowledge unless they have been given supervision or

instruction concerning the use of the appliance by a

person responsible for their safety. Children shall

not play with the appliance. Cleaning and maintenance

shall not be made by children without supervision. If the

supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

person in order to avoid hazard.

There shall be adequate ventilation in the room when

the range hood is used together with appliances in

burning gas or other fuels.

Please do not use corrosive detergent for cleaning.

Please check the appliance regularly to ensure normal

operation.

To protect the main body from corroding by dirt that

accumulated for long, the cookerhood should be

cleaned by hot water with non-corrosive detergent

every two months.

There is a risk of fire if cleaning is not carried out in

accordance with the instructions.

Do not flame under the range hood.

The air must not be discharged into a flue that is used

for exhausting fumes from other appliances, for

example burning gas or gas that generated by other

fuel-driven appliances.

A minimum distance should be kept between the

supporting surface for the cooking vessels on the hob

and the lowest part of the range hood. When the range

hood is located above a gas appliance, at least 65 cm of

distance shall be kept. User should take into

consideration if the instruction has specified a greater

distance for the gas hob installation. The distance of 65

Warnings

non-combustible parts of range hoods and / or parts

operating at safety extra low voltage,will not touch the

electrical parts if deformed.

Regulations concerning the discharge of air have to be

fulfilled.

The appliance could apply to the use of 6 hob elements

at most. Accessible parts may become hot when

using with cooking appliances.

During the power connection or the re-connection of

power, the self-inspection function of the hood shall

operate.The top glass plate will open and close for one

Please keep your hand away from the panel.

Range hoods and other cooking fume extractors may

adversely affect the safe operation of appliances that

use burning gas or other fuels (including those in other

rooms)

cm can be reduced if:

CAUTION :

time.

due to the back flow of combustion gases. These

gases may potentially result in carbon monoxide poisoning.

After installation of a range hood or other cooking fume

extractors, the operation of open-type and flued-type gas

appliances should be tested by certified technician to

ensure that the back flow of combustion gases does

not occur.

Safety Warning

The appliance is not intended for the usage by young children or

infirmed person without supervision.

Young children should be supervised to ensure that they do not play

with the appliance.

Plug the power cord to socket outlet with earthing continuity terminal.

The cooker hood is for home use only. It is not suitable for barbecue or

other commercial purposes.

The cooker hood and its filter should be cleaned regularly

according to the instruction.

Do not use open flame or allow oil to go beneath the appliance.

If there is any malfunction occurred with the appliance, please call our

customer service center.

Please keep the kitchen ventilated.

Prior to any maintenance and cleaning operation, please ensure the

power is cut off.

If the supply cord is damaged, it must be replaced by the manufacturer,

service agent or similarly qualified person in order to avoid a hazard.

The replaced power cord should be provided by manufacturer or

retailer.

If the plug or cord is damaged, please call our customer service center.

Use this appliance according to the instructions to avoid any fire hazard.

Follow the local laws that applicable for external air evacuation.

When the upper panel is closing, don’t put your hands between the

upper panel and the body in case of potential accident.

As steam generator is working, be careful of hot steam releasing out from

the cookerhood body.

Installation Instruction

Determine the location

Range hood should be installed horizontally parallel on the top of

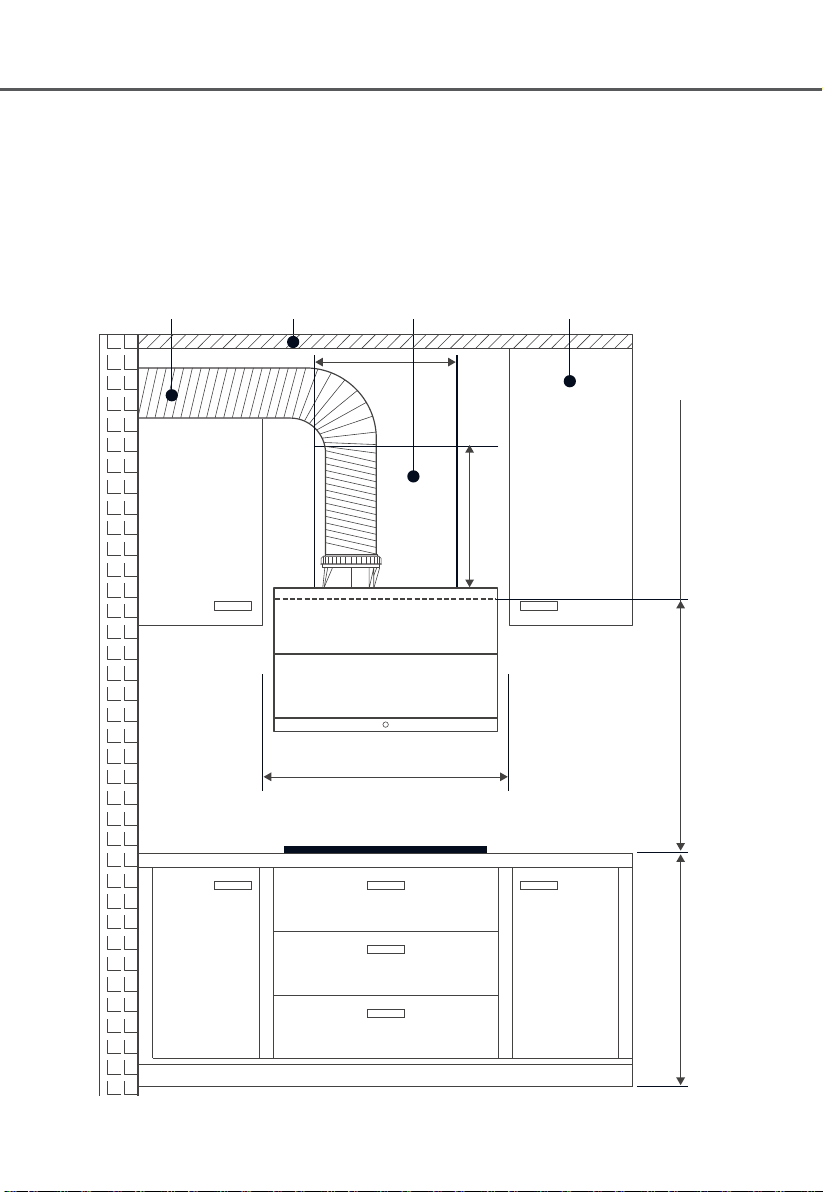

the stove. Installation diagram as follow:

Exhaust pipe Suspended

ceiling Chimney Cupboard

905~915

430

482

800~850 780~850 Line for Installation

Schematic diagram of the exhaust

pipe hole size at the ceiling

Note: This installation height is only applicable to

electric stove. For gas stove, the installation

height should be in accordance with the

installation height requirements of it.

220

405

105

Ф200220

320

Installation Instruction

Installation plate

After hanging the hood on the installation plate, fasten

two pieces of M5X50 screws to avoid the slide off of

the hood accidentally.

780~830

The hood should be screwed to a stable wall.

It is not recommended to secure the hood to the bottom

of the cabinet with screws, which may invalidate the

maintenance terms.

Accessories

Range hood body 1

Exhaust pipe 1

Check valve 1

Check valve sealing gasket 1

Installation plate 1

Expansion bolt (8 x 60)

Screws (ST2.9x2)

Screws (ST4.2x16)

Screws (M5x50)

Screws (M5x16)

Water cup

Oil collector

Chimney Cover

Decorative Cover Hanging Plate

Water Pipe

Screw package

Short press: 0.5 second

Long press: 2~3 seconds

First Time Usage

Range hood can be used immediately after power connection.

Gesture control left

Gesture control right

Light

Short press: Turn on the light;

Long press: Adjust the light.

Gesture

Short press: Open the gesture;

Short press: Close the gesture.

Steam

Wash

Long press: Start;

Twice short press: Cancel the indicator

Turbo

Short press: Startup (09 speed), return to 02 speed after 3 mins,

please select manually if needs it to continue opertating.

Speed

Short press: Adjust speed.

On/Off

1st Short press: Startup (2 speed);

2nd Short press: Delay 3 mins;

3rd Short press: OFF immediately.

Palm waving from left to right or right to left to turn on

the range hood.

Gesture Steam wash Turbo Speed

light On/Off
