Dear customer:

Thank you for buying this refrigerator-freezer. To ensure that you get the best

results from your new refrigerator-freezer, please take time to read through the

simple instructions in this booklet.

Please ensure that the packing material is disposed of in accordance with the

current environmental requirements.

When disposing of any refrigerator-freezer equipment please contact your local

waste disposal department for advice on safe disposal.

This appliance must beonly used for its intended purpose.

a) DANGER –Risk of fire or explosion. Flammable refrigerant used. Do not use

mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

b) DANGER –Risk of fire or explosion. Flammable refrigerant used. To be

repaired only by trained service personnel. Do not puncture refrigerant tubing.

c) CAUTION –Risk of fire or explosion. Flammable refrigerant used. Consult

repair manual/owner’s guide before attempting to service this product. All safety

precautions must be followed.

d) CAUTION –Risk of fire or explosion. Dispose of property in accordance with

federal or local regulations. Flammable refrigerant used.

e) CAUTION –Risk of fire or explosion due to puncture of refrigerant tubing;

Follow handling instructions carefully. Flammable refrigerant used.

CAUTION :

General：

This type of refrigerator-freezer is widely used in places such as hotels,

offices, student dormitories,and houses. It is suitable for refrigerating

and preserving food and beverage. It features the advantages of small

size, lightweight, low electric consumption and easy use.

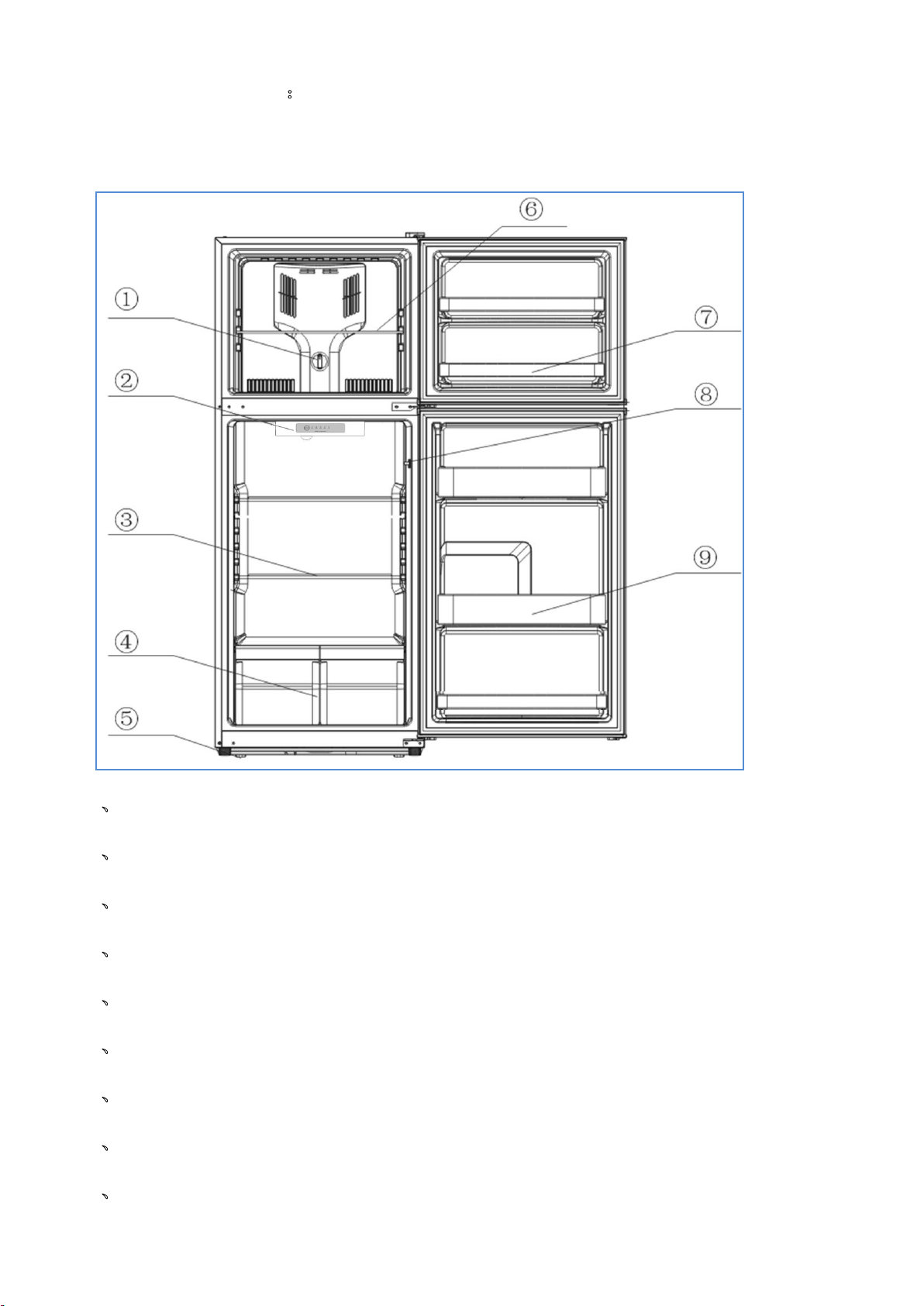

Main Configuration：

The sample outline is representation of this series of refrigerator, which have similar structure and

different capacity.

1、Thermostat

2、Temperature control panel

3、Refrigerator shelf

4、Crisper

5、Adjustable foot

6、Freezer shelf

7、Freezer tray

8、Lamp switch

9、Refrigerator tray

UNPACKING YOUR REFRIGERATOR-FREEZER

WARNING: Use two or more people to move refrigerator-freezer. Failure to

do so can result in back or other injury.

Remove tape and any labels from your refrigerator-freezer before using,

Do not remove the rating label..

To remove any remaining tape or glue, rub the area briskly with your thumb.

Tape or glue residue can also be easily removed by rubbing a small amount of

liquid dish soap over the adhesive with your fingers. Wipe with warm water and

dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive

cleaners to remove tape or glue. These products can damage the surface of your

refrigerator-freezer.

When moving the refrigerator-freezer, do not tilt the refrigerator-freezer beyond

45° from upright position.

CLEANING BEFORE USE：

Remove all packaging material, including the foam between the outside

condenser and cabinet. Clean the inside of your refrigerator-freezer thoroughly

before use.

SPACE REQUIREMENTS

WARNING: Keep flammable materials and vapors, such as gasoline, away form

refrigerator-freezer.

Failure to do so can result in death, explosion, fire or burns .

To ensure proper ventilation for your refrigerator-freezer, allow for 8 inches space

on each side between walls, 8 inches space between the back of your refrigerator-

freezer and the wall, and 12 inches space between the counter top and the roof or

ceiling.

If you are installing your refrigerator-freezer next to a fixed wall, leave sufficient

space on the hinge side to allow for the door to swing open.

Never install your refrigerator-freezer near a heat source or in direct sunlight.

ELECTRICAL REQUIREMENT

WARNING: DO NOT REMOVE GROUND PRONG.

DO NOT USE AN ADAPTER.

DO NOT USE EXTENSION CORD.

Failure to follow these instructions can result in death, fire or electrical shock.

Before you move your refrigerator-freezer into its final location, it is important to

make sure you have the proper electrical connection.

Recommended Grounding Method

AC115Volt 60Hz, AC only 10 amp fused and properly grounded electrical

supply is required. It is recommended to use a separate dedicated circuit for this

appliance. Use a receptacle which cannot be turned off with a switch or pull

chain. Do not use an extension cord.

NOTE: Before performing any type of installation, disconnect the

refrigerator-freezer from the electrical source. When you are finished, connect the

refrigerator-freezer to the electrical source and reset the control to the desired

setting.

LEVELING

If the refrigerator-freezer is not leveled during installation, the doors may not

close or seal properly, causing cooling, frost, or moisture problems. It is very

important for the refrigerator-freezer to be level in order to function properly.

To level your refrigerator-freezer you may turn the adjustable foot clockwise

or counter-clockwise to raise or lower the desired side.

NOTE: Have someone push against the top of the refrigerator-freezer to take

some weight off. This makes it easier to adjust the adjustable foot.

USE OF THE APPLIANCE

To obtain the best possible results from your refrigerator-freezer, it is important

that you operate it properly.

OPERATION

HMI and keys operaon

The keys in HMI and display layout are referred in the following figure：

1.1 Key

A.SET posion set key

1.2 Display screen

①Shi1

②Shi2

③Shi3

④Shi4

⑤Shi5

1.3 Display

◆Once inially powered on，the display screen is on full display for 3s，and then operates as the

displayed middle shi.

◆Normal operaon display

In case of a failure，the appropriate LED light will show in combination with the failure code (in recycling display)；

In case of no failures，the actual operation position of refrigerator will be on display.

1.4 Shiseng

Each time the shift setting key A is pressed once，the shift position changes one time. After the shift setting has been

completed, the refrigerator will operate according to the set value in 5mins.

The shift regulation is：

Shift 1 Shift 2 Shift 3 Shift 4 Shift 5

A ①②③④⑤

1.5 Fault indicaon

Display Malfuncon

The LED1 and LED2 lit Refrigerator temperature sensor circuit

The LED1 and LED3 lit Freezer defrost sensor

The LED1 and LED4 lit Ambient temperature sensor

Fresh Food Storage

Wrap or store food in the refrigerator in airtight and moisture –proof material.

This prevents food odor and taste transfer throughout refrigerator.

·Fruit –wash, let dry and store in refrigerator in plastic bags or crisper.

·Leafy vegetables- Remove wrapping and trim or tear off bruised and discolored

areas, wash in cold water and drain. Place in plastic bag or plastic container and

store in crisper.

·Fish–Use fresh fish the same day as purchased.

·Meat –Store most meat in original wrapping as long as it is airtight and

moisture–proof.

Re–wrap if necessary.

·Leftovers –Cover leftovers with plastic wrap or aluminum foil. Plastic containers

with airtight lid can also be used.

Frozen Food Storage

Temperature Control

When using the refrigerator-freezer for the

first time or after defrosting, turn the

temperature control to set “MAX” for at least
