Midea MRF29D6AST Manual de usuario
MRF29D6AST
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
FRENCH DOOR REFRIGERATOR SERIES
Refrigerator Freezer
Download the app
& activate product
LANGUAGES
Free 3 months
extension of the original
limited warranty
period!* Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the
three months immediately following
the completion of the product’s
original warranty period. Individuals
do not need to register the product in
order to get all the rights and remedies
of registered owners under the original
limited warranty.
EN English
FR French
ES Spanish
04
EN
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER------------------------------------------- 04
SPECIFICATIONS------------------------------------------------ 05
PRODUCT OVERVIEW----------------------------------------- 06
PRODUCT INSTALLATION ----------------------------------- 07
OPERATION INSTRUCTIONS-------------------------------- 14
CLEANING AND MAINTENANCE--------------------------- 21
TROUBLESHOOTING------------------------------------------- 25
DOC AND CERTIFICATIONS--------------------------------- 27
WARRANTY------------------------------------------------------- 28
05
EN
SPECIFICATIONS
Product model MRF29D6AST
Volume 29.3cu.ft.
Rated Voltage 115V~
Rated Frequency 60 Hz
Rated Current 2.7 A
Rated Defrost Power 280 W
Refrigerant R600a
Amount 2.75 oz (78 g)
Unit Dimensions 35.8 x 36.1 x 69.9 in(91,0 x 91,7 x 177,5 cm)
Wireless Network Module Model MWB-S-WB01
Antenna type Printed PCB antenna
Frequency band 2400-2483.5 MHz
Operating temperature 0 °C ~ 85 °C /32 °F ~185 °F
Operation humidity: 10%~85%
Power input DC5V/500mA Maximum
Transmission power: <20dBm
06
EN
PRODUCT OVERVIEW
Names of components
1LED lighting
Front View
Top View
7Crisper drawer
2Ice maker 8Small drawer
3Door tray 9Upper freezer drawer
4Control pan!l10 Lower freezer drawer
5Big drawer 11 Freezer tray
6Shelf 12 Ice maker
13 Freezer drawer
ATTENTION
ȼThe picture above is only for reference. The actual configuration will depend on the
physical product or statement by the distributor.
ȼSmall drawers suggest placing items suitable for its size, such as smaller milk cartons.
07
EN
PRODUCT INSTALLATION
Install Instruction
Finding a suitable location
ȼ
ȼ
ȼKeep away from heat and avoid direct sunlight. Do not place the refrigerator in
moist or watery places to prevent rust or reduction of insulating eect.
This refrigerator is designed to be free standing only and should not be
installed in a recessed or built-in space.
The refrigerator should be placed in a well-ventilated indoor place and the
ground should be flat and sturdy.
Dimensions and Clearances
ȼToo small of a distance from adjacent items may result in the degradation
of freezing capability and increased electricity costs. Allow over 4" of
clearance from each adjacent wall when installing the appliance.
Required space for
air circulation
Top View
>4"
>4"
>4"
>4"
>4"
>4"
Providing a proper power supply
ȼCheck your local power source. This refrigerator requires a AC115 V, 60 Hz
power supply.
ȼUse a receptacle that accepts the grounding prong. The power cord is
equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock
hazard from this refrigerator.
CAUTION
The refrigerator should always be plugged into its own individual electrical
outlet which has a voltage rating that matches the rating plate.
Never unplug your refrigerator by pulling on the power cord. Always grip the
plug firmlyand pull straight out from the outlet.
WARNING: When positioning the appliance, ensure the supply cord is not
trapped orˏdamaged.
Start to use
ȼThe refrigerator should sit in an upright position for 2 hours before connecting
power when it is initially started.
ȼThe refrigerator should run 2 to 3 hours before loading fresh or frozen foods.
The refrigerator should run for more than 4 hours in advance when the
ambient temperature is high.
08
EN
Space requirement diagram (when the door is open and when the door is closed)
C
E
B
135 °
C1
D
Width Overall
Height Depth Depth Only
Cabinet
Depth doors
open 135°
Width doors
open 135°
ABCC1DE
35.8" 69.9" 33.9" 29.3" 44.4" 62.8"
B
A
09
EN
Installing the Water Line
Installing the Water Line
ȼWater line installation kits are
available as an addional accessory
from your dealer or at a local
hardware store.
1. First, shut o the main water supply
line and turn the ice-maker o.
2. Locate the nearest cold water supply
valve.
3. After connecting the water supply to
the water valve, turn your main water
supply back on and flush several
gallons of water to clear the water
supply line.
Cold water line
Pipe clamp
Shut o walve
Water line installation kit
Water connector
Water tube
Connecting the Water Line to The
Refrigerator
ȼThere are several items that you
need to purchase to complete this
connection.
ȼYou will find these items sold as a kit
at your local hardware store.
1. First, close the main water supply and
locate the nearest cold water line.
2. Second, connect the water valve to
the cold water line.
3. Turn water valve on and check for
any leakage.
4. When moving the refrigerator, you
can hang the power cord on the
power cord hook.
Connecting the Water Line to A
Drinkable Water Source
ȼIf your water line is not drinkable,
please add an external water filter.
ȼIf you must repair or disassemble the
water line, cut o the plastic tubing
to make sure you get a snug, leak-
free connection.
ATTENTION
The minimum inlet water pressure: 276kPa.
The maximum inlet water pressure: 689kPa.
WARNING: Connect to potable water supply
only. New hose-sets supplied with the
appliance are to be used and that old hose-
sets should not be reused.
Power cord hook
Water line
Water connector
10
EN

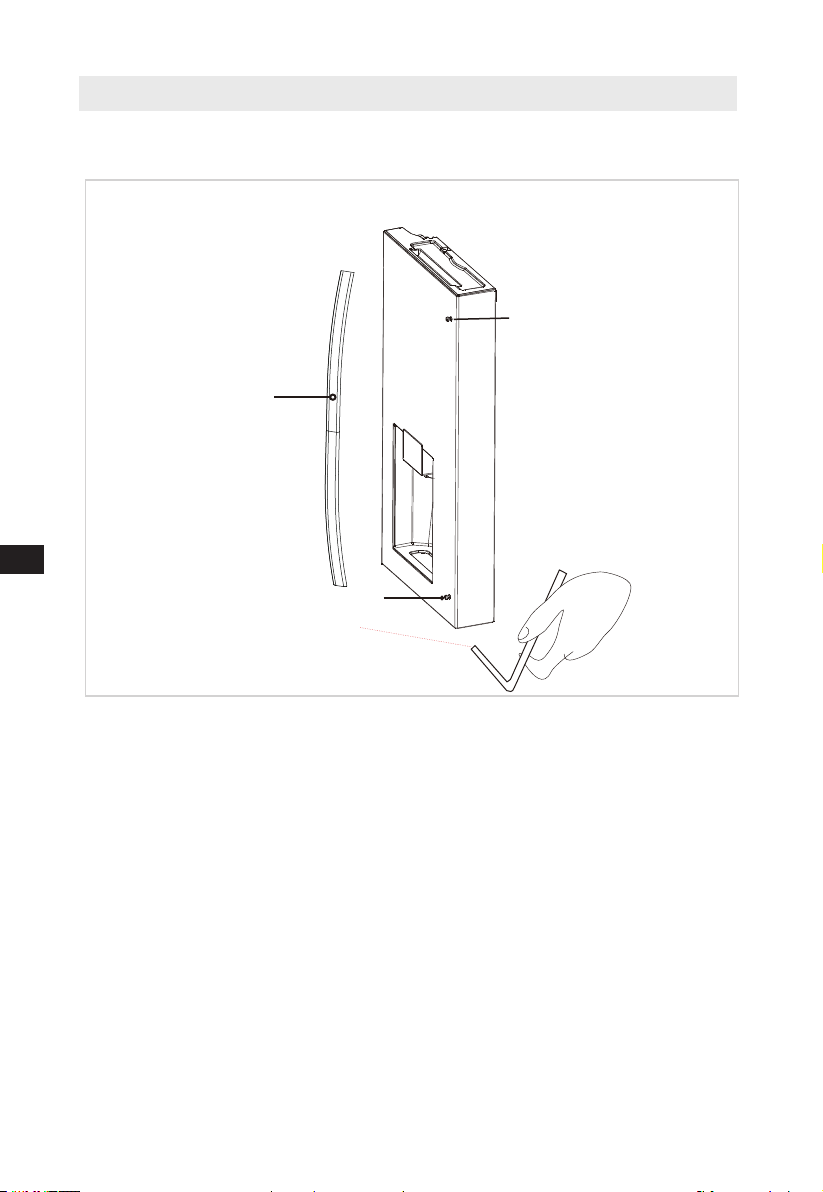

Door handle installation
(!/!ˏ0'!ˏ,.!10%+*/ˏ0+ˏ/!1.!ˏ0$!ˏ$* (!ˏ* ˏ,.!2!*0ˏ%*&1.5.
Step
ȆȐ F%.st take out the bolts for fixing the handle from the package bag of the userˏ
manual and then fasten it on the door body with a cross screwdriver.
ȇȐ Take out the door handle from the refrigerating chamber after the f%.st step isˏ
completed, and then place it the door in the direction as on shown in the figureˏ
and make the two bolts for fixing the handle in the handle.
ȈȐ Use the allen wrench to fasten the screws in two holes of each handle with theˏ
handle fixing bolts.
Bolt
Handle
Bolt
