Middle Atlantic Products TOR Series Manual de usuario

I-00106 Rev F

TOR SERIES

TOR-X-20RP

Flush Mount tilt out wall rack

Instruction Sheet

C US

LISTED

THANK YOU

Thank you for purchasing the TOR-X-20RP Flush Mount. Please read these instructions thoroughly

before installing / assembling this product.

PRODUCT FEATURES

- Convenient tip-out design allows easy access to equipment controls

- Rackrail is included for use with rackmount equipment

- Mount non-rackmount equipment using included clamp bars

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING ALERTS YOU TO A SITUATION

THAT COULD RESULT IN SERIOUS PERSONAL INJURY

OR DEATH.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING! Failure to read, understand and follow the following information can result in serious personal injury, damage to the

equipment or voiding of the warranty.

NOTE: A NOTE IS USED TO HIGHLIGHT PROCEDURES

PERTAINING TO THE INSTALLATION, OPERATION OR

MAINTENANCE OF THE PRODUCT.

CAUTION: A CAUTION ALERTS YOU TO A SITUATION

THAT MAY RESULT IN MINOR PERSONAL INJURY OR

DAMAGE TO THE PRODUCT AND / OR PROPERTY.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Clean only with dry cloth.

• Only use attachments/accessories specified by the manufacturer.

CAUTION: All installation and assemble steps must be performed by qualified personnel.

CAUTION: Ensure that the wall/floor has a structural load capacity that will support the weight of the cabinet fully loaded with

equipment.

CAUTION: Some parts of the enclosure system may not be effectively bonded to the Protective Earth Terminal (PET). If these parts

need to be bonded to the PET it should be done in accordance with Article 250 of the National Electrical Code.

CAUTION: Power cord(s), for fans or other accessories, need to be secured to ensure that they are routed away from pinch points

and moving parts.

CAUTION: Do not attempt to unload or move the enclosures alone. Make sure to have sufficient amount of personnel and

equipment to safely move this product.

CAUTION: The following parts are not effectively bonded to the protective earth terminal: Rackrails, lace bars, Lever Lock™,

shelving, baffles, blank panels, and cable management equipment. If any part needs to be bonded to the protective earth terminal

it shall be done in accordance with Article 250 of the National Electrical Code.

CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY AND CONFORM TO THE UL LISTING THESE

MOUNTING INSTRUCTIONS MUST BE FOLLOWED AND PROPER WEIGHT CAPACITIES MUST BE OBSERVED.

CAUTION: Maximum weight capacity is 100 lbs.

Page 3

Tools needed:

- Socket wrench set

- Power Drill and bit set

1) Construct a rough opening - 24.75" W x 30.312" H:

2 space - 2 x 4

3 space - 2 x 4 for partial, 2 x 6 for flush

4 space - 2 x 4, 2 x 6 for partial, 2 x 8 for flush

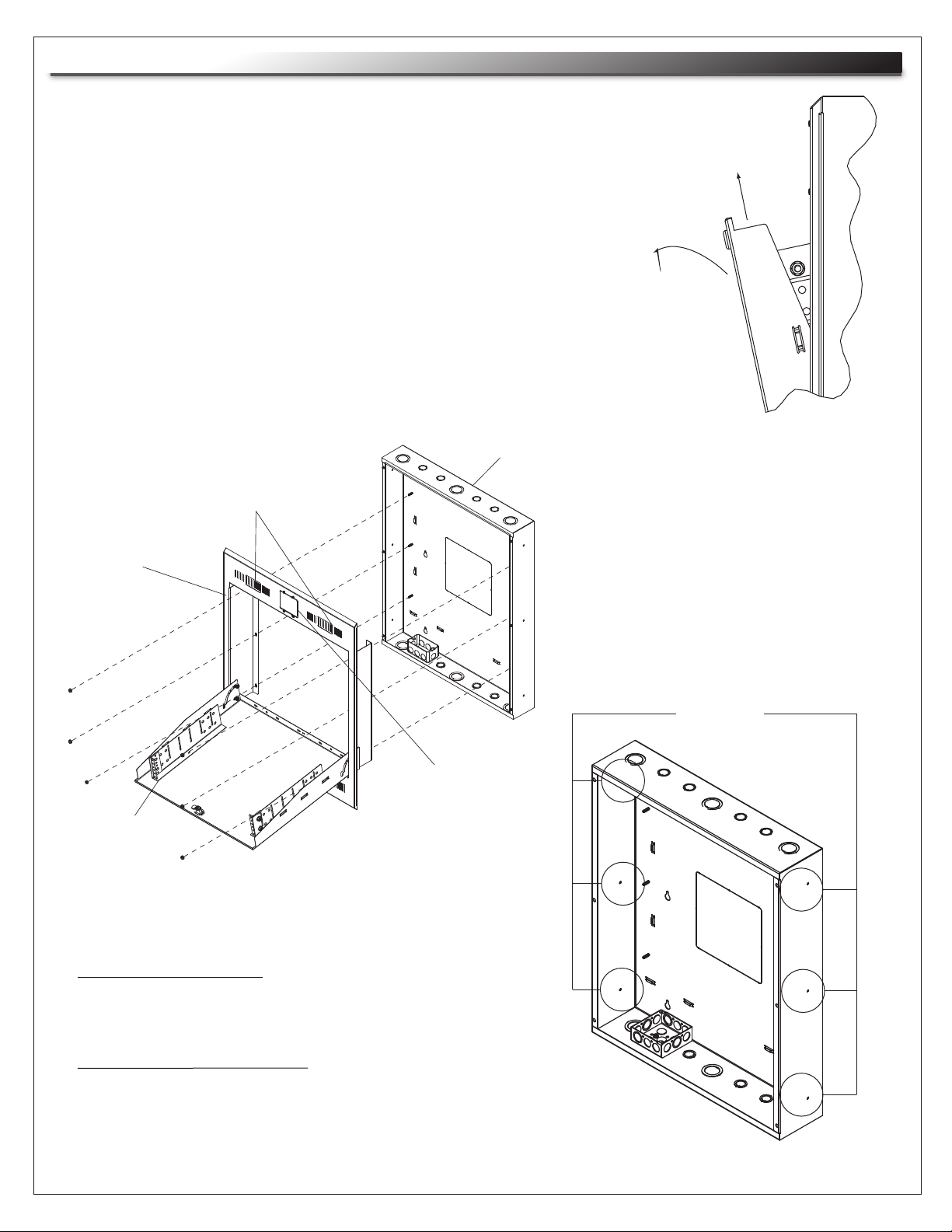

2) Disassembly is required prior to mounting. Open the door on the

faceplate. To do this, the door must be slightly lifted and opened to

the service position (105º). (FIGURE A)

3) Remove the six nuts that secure the faceplate to the backpan and

remove the faceplate. (FIGURE B)

FIGURE B

ROTATE

LIFT

FIGURE A

UCP

PANEL

FACE

PLATE

DECORATOR STYLE

KNOCKOUT

BACKPAN

CLAMP

NOTE: If using with the partial recess

trim kit (TOR-PRT), see Instruction

Sheet I-00107. (optional accessory)

4) Using the customer supplied mounting hardware

specified below, mount the backpan into the wall.

(FIGURE C)

Block Wall Installation:

1) 5/8" pilot hole

2) 1/4" X 2" toggle bolt and washer

Wood Stud Wall Installation:

1) 1/8" pilot hole in center of stud

2) 1/4" X 2" lag bolt and washer

FIGURE C

MOUNTING

HOLES

5) Re-assemble the faceplate to the backpan by re-using the six nuts. (FIGURE B)

ASSEMBLY

NOTE: Do not use 8.5" x 8.5" square

knock-out in backpan when flush mount

installed. Knock-out must remain in place.

Page 4

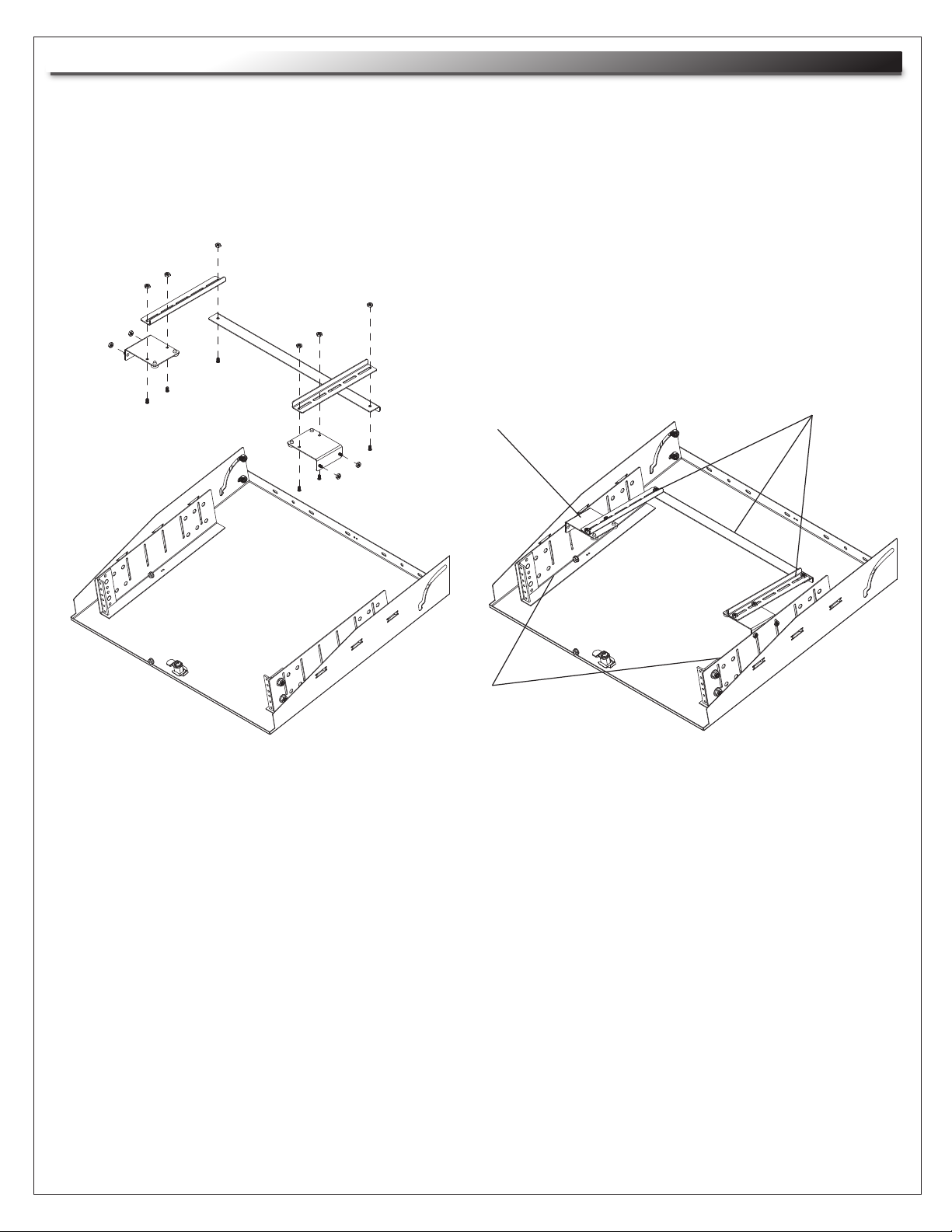

NOTE: Middle Atlantic Products provides a clamp for use on non-rackmount equipment. On equipment

that is rackmounted, clamp is not required and can be discarded.

Choose a desired location for clamp and assemble clamp to ears using screws and nuts provided

(See FIGURE D). Slide clamp brackets securely down on equipment and tighten. Adjust stop bars to

secure rear of equipment

FIGURE D

CLAMP

BRACKETS

STOP

BARS

EARS

CLAMP ASSEMBLY

OPTIONAL ACCESSORY:

UNIVERSAL CONNECTOR PANEL

For Middle Atlantic Products UCP modules (used to mount commonly used connectors), see

middleatlantic.com for details. To install, remove blank panel and install re-using hardware provided.

NOTE: Some of the UCP panels may need to be mounted on the surface of the faceplate.

Page 5

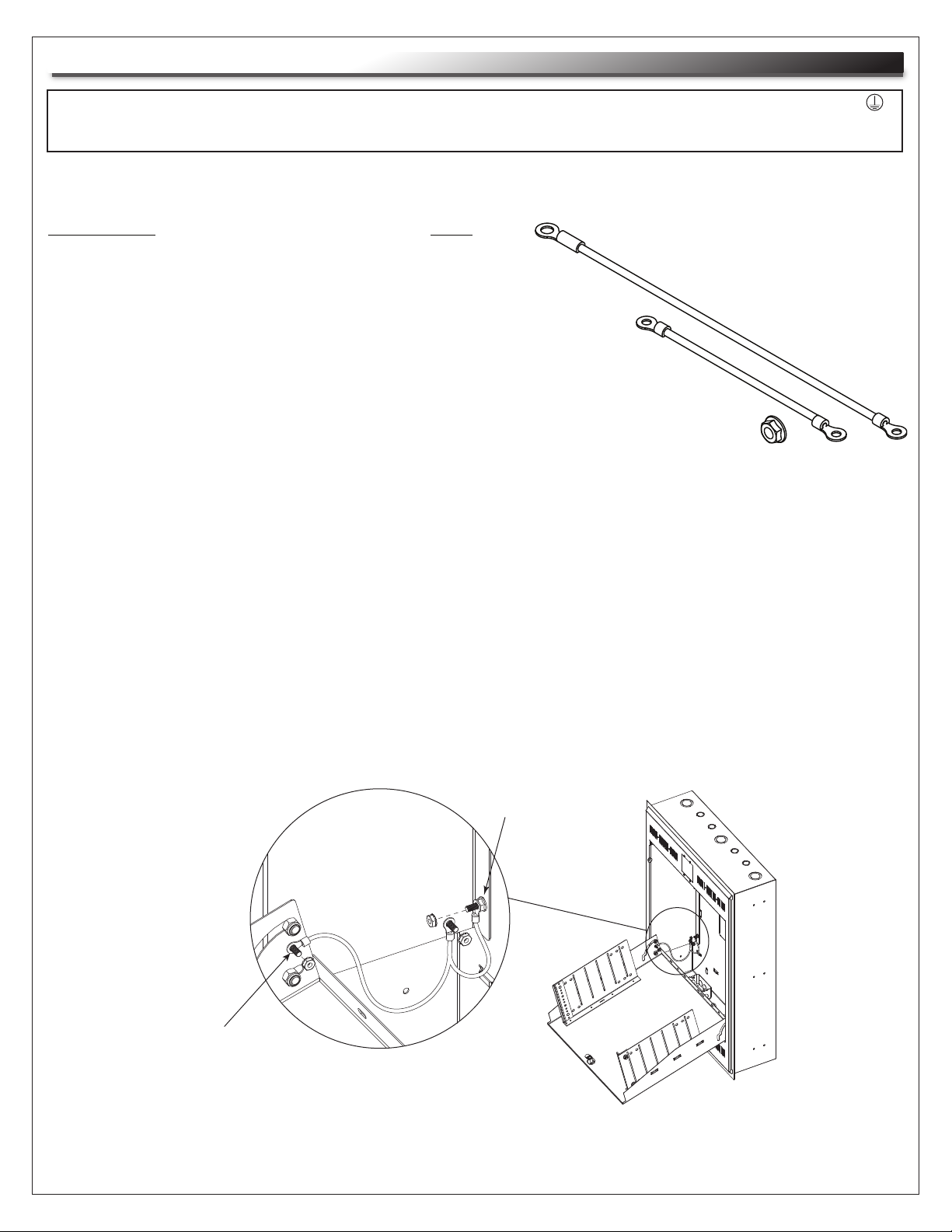

GROUNDING AND BONDING

Protective Earth Terminals (PET) are located in backpan of the wall rack. These terminals are marked with the symbol

Wall rack parts, center section and door, contain or are provided with bonding points for connection to the backpan / PET.

Protective earth and bonding connections shall be in accordance with Article 250 of the National Electric Code.

OPTIONAL PROTECTIVE EARTH TERMINAL KIT: #PET-K-WRP/S

PARTS LIST

• Backpan bonding wire [12 Gauge Wire

(#10 ring terminal to 1/4” ring terminal] 10”]

• Door bonding wire [12 Gauge Wire

(#10 ring terminal to #10 ring terminal) 5”]

• Locking Nut 10-32

QTY

(1)

(3)

(3) (1) (1)

1) Attach backpan bonding wire from 10-32 backpan protective earth terminal (PET) to door

bonding point.

NOTE: The main protective earth ground needs to be the first terminal placed on the PET and this

terminal needs to be secured on its own with a nut. The bonding wire for the center section can

be added to the PET after securing the nut for the main ground.

2) Attach door binding wire to access door bonding stud (10-32) and door bonding stud (10-32)

using hardware provided (included).

Door Bonding Stud

(10-32)

Access Door

Bonding Stud

(10-32)

FIGURE E

WARRANTY

Middle Atlantic Products (the "Company") warrants the TOR-X-20RP Flush Mount to be free from

defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and

exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of

and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products

purchased, or any part or parts thereof, which the Company has determined to be defective after

inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by

parties other than the Company, or any modification or alteration of the products. In addition, this

warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY

BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES

WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE

PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY)

HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS

PAID TO THE COMPANY.

Corporate Headquarters

Corporate Voice 973-839-1011 - Fax 973-839-1976

International Voice +1 973-839-8821 - Fax +1 973-839-4982

middleatlantic.com - [email protected]

Middle Atlantic Canada

Voice 613-836-2501 - Fax 613-836-2690

middleatlantic.ca - [email protected]

Factory Distribution

USA: NJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.
