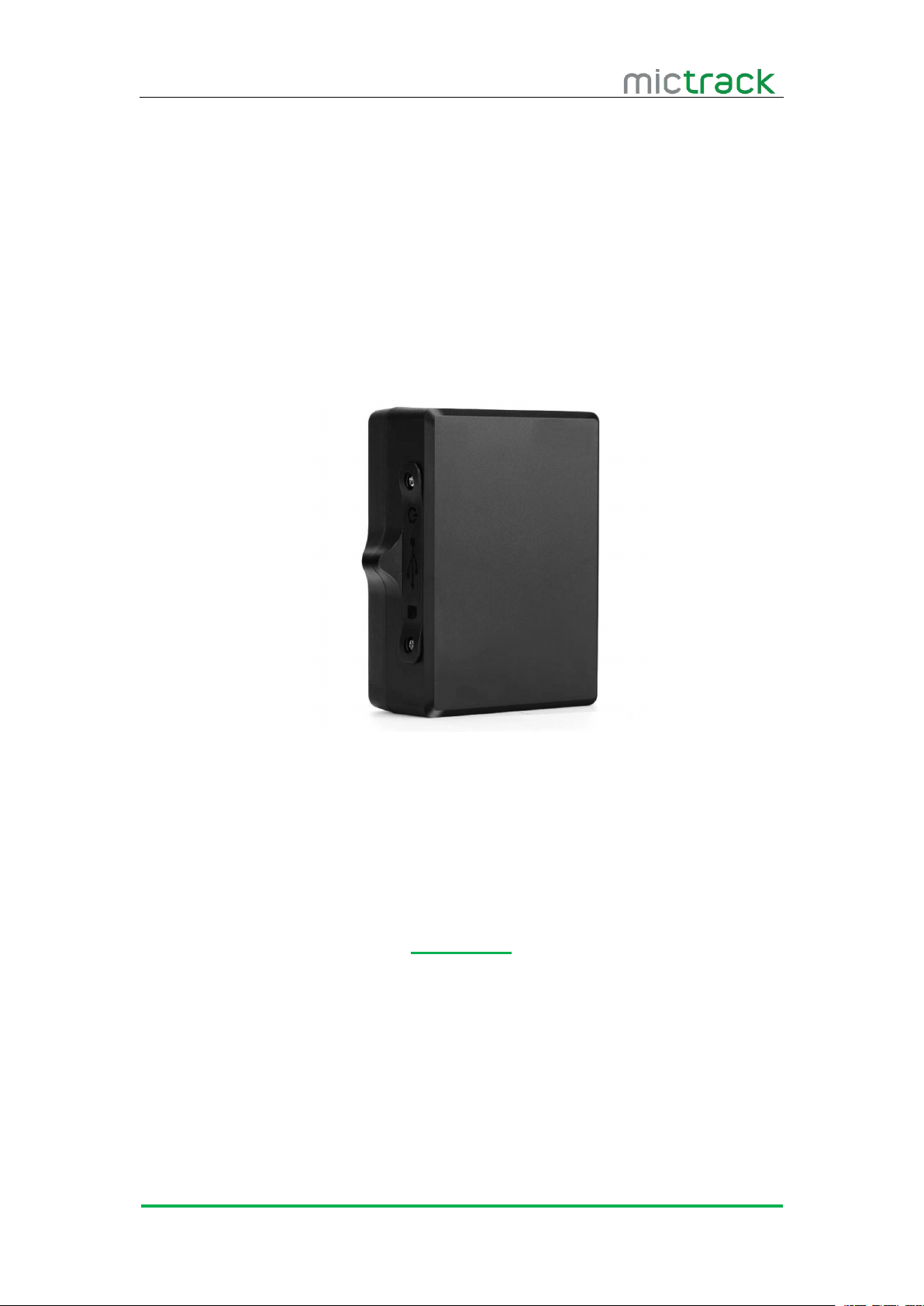

MT700 User Manual V1.0

http://www.mictrack.com

MT700 Cat M1 & NB-IoT Asset GPS Tracker

User Manual V1.0

Preface

Thanks for purchasing Mictrack Asset GPS tracker MT700. This manual shows how to

easily program and setup the tracker for the best results. Please read this manual carefully

before using this product, so as to avoid delays or confusion with its operation. Please note

that specifications and instructions are subject to change without notice to facilitate product

improvement. Updates and changes will be integrated into the latest release. The

manufacturer assumes no responsibility for any errors or omissions in outdated documents.

MT700 User Manual V1.0

https://www.mictrack.com

Contents

1. Quickly Reference..............................................................................................................1

2. Overview...............................................................................................................................1

3. Features................................................................................................................................1

4. Applications.......................................................................................................................... 1

5. Specifications.......................................................................................................................2

6. MT700 Interface................................................................................................................. 2

7. In the box............................................................................................................................ 3

7.1 Standard Accessories............................................................................................ 3

7.2 Optional Accessories............................................................................................. 3

8. Installation............................................................................................................................ 3

8.1 SIM Card installation............................................................................................. 3

8.2 LED Indications....................................................................................................... 3

8.2.1 Red indicator- Charge.............................................................................. 3

8.2.2 Blue indicator- SYS...................................................................................3

8.2.3 Green indicator- GPS............................................................................... 3

9. Setup and Configuration.................................................................................................. 4

9.1 Change the password........................................................................................... 4

9.2 Set APN (Access Point Name).......................................................................... 4

9.3 Set the IP and port............................................................................................... 4

9.4 Working Mode......................................................................................................... 4

9.4.1 MODE 1 (Real Time Mode)................................................................... 4

9.4.2 MODE 2 (GPS Auto Mode)....................................................................4

9.4.3 MODE 3 (Deep Sleep Mode)................................................................ 5

9.4.4 MODE 4 (Vibrate Mode)..........................................................................5

9.4.5 MODE 5 (WiFi Only Mode).................................................................... 5

9.4.6 MODE 0 (AUTO Mode)........................................................................... 5

9.5 Setup Protocol.........................................................................................................5

9.6 SET AGPS............................................................................................................... 6

9.7 Setup Last location report................................................................................... 6

9.8 Low Power alarm................................................................................................... 6

9.9 Remove alarm......................................................................................................... 6

9.10 Vibrate alarm......................................................................................................... 6

9.11 Restart..................................................................................................................... 6

9.12 Reset....................................................................................................................... 6

10. App & PC Tracking platform........................................................................................ 7

10.1 App install & Login.............................................................................................. 7

10.2 PC login..................................................................................................................7

11. Troubleshooting................................................................................................................. 8

MT700 User Manual V1.0

https://www.mictrack.com

1. Quickly Reference

Warning

There is a Toggle Switch in internal(following image). Please carefully to operate it.

If you use Non-rechargeable batteries, Make sure Toggle Switch to LEFT;

If you use chargeable batteries, Make sure Toggle Switch to RIGHT;

REVERSE IS FORBIDDEN, Could Result in Fire or Explosion.

Non-rechargeable Batteries Recommendation

Battery Type: Lithium Iron Disulfide (LiFeSO2) 3 x AA 1.5V cell batteries;

Battery Brand: Energizer Ultimate L91 AA 1.5V.

Battery holder: Buy from Manufacture or your distributor.

NOTE:

Non-rechargeable batteries need to full compatible with the original battery

holder, or the device may cause damage, explosion and fire.

Disclaimer

Before using this device, the customers should fully understand their usage

scenarios and installation environment. Mictrack will not be held responsible for any

losses caused by using the devices in a wrong scenario or reporting rate. It is highly

recommended that users should contact Mictrack before deployment. We are glad to give

you the suggestions.

MT700 User Manual V1.0

https://www.mictrack.com

2. Overview

MT700 is an IP68 waterproof asset GPS tracker that uses Cat M1 & NB-IoT technology

that can provide super low power consumption up to 15 years standby time powered by

internal batteries. Its built-in powerful magnets, easy to install without wiring.

The user can real-time track the unit via their mobile phone or PC any time anywhere. It

has been widely used in fleet management, trailer, container, logistics, car rental, automobile

finance, transportation, and other segments.

3. Features

Cat M1 & NB-IoT & GSM Network

GPS+Glonass+Galileo+Beidou System

15 Years Standby Time

IP68 Dust & Water Resistance

Dynamic Power Path Management

Ultra Low Power Consumption less than 1.5uA

Easy Installation

Powerful Magnet Mount

Bracket Kits (optional)

Rugged Construction

Real-timing Tracking

Geo-fence Alarm

Low Power Alarm

Removal Alerts

Smart Motion Detection

Scheduled Timing Report

GPS+WiFi Positioning (optional)

Multiple Power Saving Mode Switching

PC & Mobile App Tracking

Programmable via Web/USB/SMS

Open Protocol & Easy Integration with any third party platform

4. Applications

Trailer Tracking

Container Tracking

Logistics Tracking

Vehicles Tracking

Automobile Finance

Fleet Management

MT700 User Manual V1.0

https://www.mictrack.com

5. Specifications

Item

Specifications

Dimension

88mm*62mm*34mm (3.46″ *2.44″ *1.34″)

Weight

290g (10oz)

Charging Mode

Micro USB charging DC; Quick Charge 2A@5V

(for rechargeable version only)

Power Consumption

<1.5uA standby current (in lowest power configuration)

Backup Battery

(Two version)

Rechargeable 3.7V 7800mAh Li battery

Non-rechargeable LiFeS2 (batteries are exclude)

4G Cellular Bands

Cat M1 (LTE-M, eMTC)

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B39

NB-IoT (CAT NB1):

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28

GSM: 850/900/1800/1900Mhz

Working temperature

-20°C to 60°C (-4°F to 140°F)

Mounting

Magnet, Bracket Kits (optional)

Positioning

GPS, WiFi (optional)

GPS

Qualcomm Gen 8C GNSS receiver

GPS Antenna

Internal

Cellular Antenna

Internal

Sensor

3-Axis Accelerometer, Light Sensor

LED

Charge/SYS/GPS

SIM Card interface

Internal Micro 3FF SIM

Protocol

TCP, UDP, SMS

Waterproof

IP68

Battery life

Up to 15 Years

6. MT700 Interface

MT700 User Manual V1.0

https://www.mictrack.com

7. In the box

7.1 Standard Accessories

1* MT700 Asset GPS Tracker

1* USB Charge Cable (for rechargeable version only)

1* Battery Holder (for Non-rechargeable version only)

1* Quick Start Guide

7.2 Optional Accessories

1* Car Charger

1* Power Adapter

1* USB Config Cable

8. Installation

8.1 SIM Card installation

Get ready a Micro SIM Card (Cat M1 or NB-IoT) with 15MB data a month;

Open the Waterproof Cover with the screwdriver;

Insert the SIM Card (as SIM icon direction) with a little push. You also can

refer to this article https://bit.ly/how-to-config-mt700

Turn the Power button from OFF to ON.

8.2 LED Indications

8.2.1 Red indicator- Charge

8.2.2 Blue indicator- SYS

8.2.3 Green indicator- GPS

Status

Description

OFF

No charge or fully charged

Solid Red

In charging

Blinking

Fully charged

Status

Description

OFF

Power OFF or in sleep mode

Solid Blue

Running mode

Status

Description

OFF

Power OFF or GPS unavailable, or in sleep mode

Solid Green

GPS available

MT700 User Manual V1.0

https://www.mictrack.com

9. Setup and Configuration

For the first time to use, please connect the USB Config cable to setup the APN

(CALL your sim card provider to get the correct APN) and then lock the

network(base on your sim card support, please lock to CAT M1 or NB-IoT) ;

After that you can setup other commands via the USB Config tool;

Then If your sim card support SMS you can setup the unit via following SMS

commands (9.1-9.10)

Config tool user guide : https://bit.ly/how-to-config-mt700

9.1 Change the password

SMS Command format:777+new password+old password

For example:77712340000

Reply:SET USER PASSWORD OK.

Note: Default password is 0000

9.2 Set APN (Access Point Name)

SMS Command format 1: #803#password#APN##

For example : #803#0000#nbiot##

SMS Command format 2: #803#password#APN#APN user name#APN password##

For example: #803#0000#CMNET#INTERNET#INTERNET##

Reply: SET GPRS APN OK

9.3 Set the IP and port

SMS Command format : #804#password#IP address(or domain) #port##

For example : #804#0000#e.trackits.com#7700##

Reply: SET SERVER IP AND PORT OK.

9.4 Working Mode

9.4.1 MODE 1 (Real Time Mode)

SMS Command format: MODE,1,password,T

For examples: MODE,1,0000,60

Reply: SET TRACKER MODE:1 OK

Note:The device will report data every 60s .T is interval time and the range is [60-600]

seconds. On this mode, GPS and TCP will always on

9.4.2 MODE 2 (GPS Auto Mode)

SMS Command format: MODE,2,password,T, X, Y

For examples: MODE,2,0000,10,1,1

Reply: SET TRACKER MODE:2 OK

Note:

1. T is report interval time and the range is [10,60] minutes.

2. X=0 means GPS will wake-up only when report interval time is arrive; X=1 means

GPS will always on,.

3. Y=0 means TCP will wake-up only when report interval time is arrive; Y=1 means

MT700 User Manual V1.0

https://www.mictrack.com

TCP will always connected,.

9.4.3 MODE 3 (Deep Sleep Mode)

SMS Command format: MODE,3,password,T

For examples: MODE,3,0000,1

Reply: SET TRACKER MODE:3 OK

Note: Device will wake up and report one data to server every 1 hour, after that it will

go to sleep again until next 1 hour. T is [1-24] hours.

9.4.4 MODE 4 (Vibrate Mode)

SMS Command format: MODE,4,Password,T

For examples: MODE,4,0000,60

Reply: SET TRACKER MODE:4 OK

Note: When the device detects continuous vibration for more than 1 minute, it will wakes

up and starts to connect to the network, After connected it will Immediately report a data

to the platform;

If the device is still in a vibrating state, MT700 will report to server every 60 seconds

If there is no vibration more than 7 minutes:

1>During In the 7 minutes, if no report data it will go to sleep soon.

2>During In the 7 minutes, if have report data and after send out last location, it will

wait for 3 minutes and then go to sleep again. T is [60-600] seconds

9.4.5 MODE 5 (WiFi Only Mode)

SMS Command format: MODE,5,password,T, X, Y

For examples: MODE,5,0000,5,0,1

Reply: SET TRACKER MODE:5 OK

Note: 1. T is report interval time and the range is [1,60] minutes.

2. X fix to 0.

3. Y=0 means TCP will wake-up only when report interval time is arrive; Y=1 means

TCP will always connected.

9.4.6 MODE 0 (AUTO Mode)

SMS Command format: MODE,0,password,T1,T2

For examples: MODE,0,0000,60,1

Reply: SET TRACKER MODE:0 OK

Note: This is mix mode of Mode 3 and mode 4. T1 is [60-600] seconds, T2 is [1-24] hours;

When device is still it will run as Mode 3 and when device detect to vibrate it will run as

Mode 4.

9.5 Setup Protocol

SMS Command format: #800#password#X##

For examples: #800#0000#TCP##

Reply: SET SERVER TYPE OK

Note: X=TCP mean setup to TCP protocol, X=UDP means set to UDP Protocol.

MT700 User Manual V1.0

https://www.mictrack.com

9.6 SET AGPS

Disable AGPS Location :190+password

For examples:1900000

Reply: SET AGPS OFF

Enable Last Location :191+password

For examples:1910000

Reply: Reply: SET AGPS ON.

9.7 Setup Last location report

Disable Last Location :192+password

For examples:1920000

Reply: SET LAST VALID GPS OFF

Enable Last Location :193+password

For examples:1930000

Reply: Reply: SET LAST VALID GPS ON.

9.8 Low Power alarm

When the unit’s internal backup battery is low, it will upload location data to server

along with the status “BLP”

9.9 Remove alarm

If the device was removed and the light sensor detects the light it will report location

data to server along with the status “DEF”

9.10 Vibrate alarm

In vibrate mode (Mode 4) If the device was detected to vibrate for 1 minute, it will

report location data to the server (as the customize interval time) along with the status

“TOWED”

9.11 Restart

SMS Command format : *RESTART#Password##

For examples:*RESTART#0000##

The device will restart after send this command.

Reply: DEVICE WILL BE RESTART.

9.12 Reset

SMS Command format : *RESET#Password##

For examples:*RESET#0000##

Reply:DEVICE WILL BE RESET.

MT700 User Manual V1.0

https://www.mictrack.com

10. App & PC Tracking platform

10.1 App install & Login

Subscribe the plan: https://shop.mictrack.com/product/gps-tracking-platform-service/

if you have subscribed the plan please ignore this step.

Search “Yi tracker” in Google Play or iOS store(or scan the following QR code) to

download the Mobile APP(not Yi tracker2);

Choose the” Login by Device No.,

Input server www.trackits.com

Input your device’s ID number and password(default is 123456) to login.

10.2 PC login

Web: www.trackits.com, Choose “ID No.”

Input your device’s ID number and password(default is 123456) to login

Watch the video: https://bit.ly/trackis

Otros manuales para MT700

Tabla de contenidos

Otros manuales de GPS de Mictrack

Mictrack

Mictrack MC330 Manual de usuario

Mictrack

Mictrack MT532 Manual de usuario

Mictrack

Mictrack MP80 Manual de usuario

Mictrack

Mictrack MT710 Manual de usuario

Mictrack

Mictrack MP90-NB Manual de usuario

Mictrack

Mictrack MT700 Manual de usuario

Mictrack

Mictrack B2316 Manual de usuario

Mictrack

Mictrack MT600 Plus Manual de usuario

Mictrack

Mictrack B2316 Manual de usuario

Mictrack

Mictrack MT531 Manual de usuario

Mictrack

Mictrack MT810 Manual de usuario

Mictrack

Mictrack MC350 Manual de usuario

Mictrack

Mictrack MP91 Manual de usuario

Mictrack

Mictrack MT825 Manual de usuario

Mictrack

Mictrack MP90-NB Manual de usuario

Mictrack

Mictrack MT6000-NB Manual de usuario

Mictrack

Mictrack G902 NB-IoT Manual de usuario

Mictrack

Mictrack MP10 Manual de usuario

Mictrack

Mictrack MT825 Manual de usuario

Mictrack

Mictrack MT510 3G Manual de usuario

Mictrack

Mictrack MT600 Manual de usuario

Mictrack

Mictrack MT710 Manual de usuario

Mictrack

Mictrack B21 Manual de usuario

Mictrack

Mictrack MT550 Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
